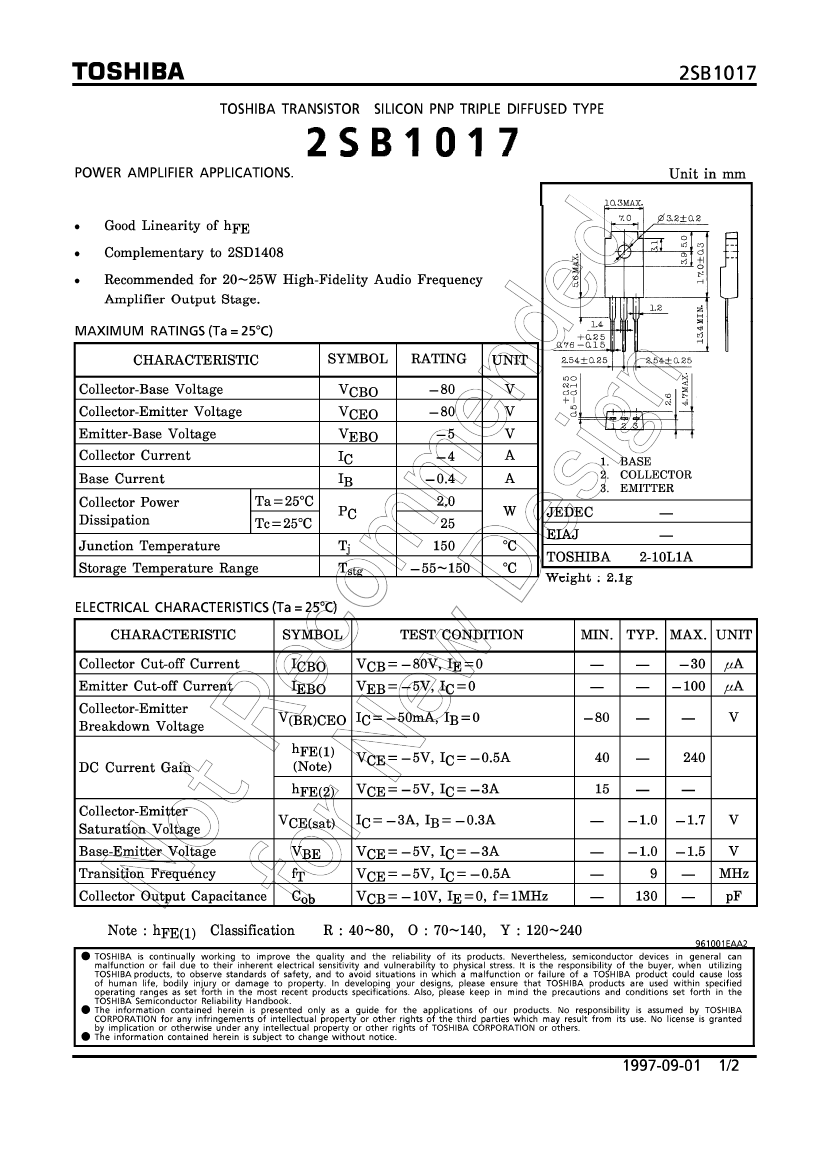

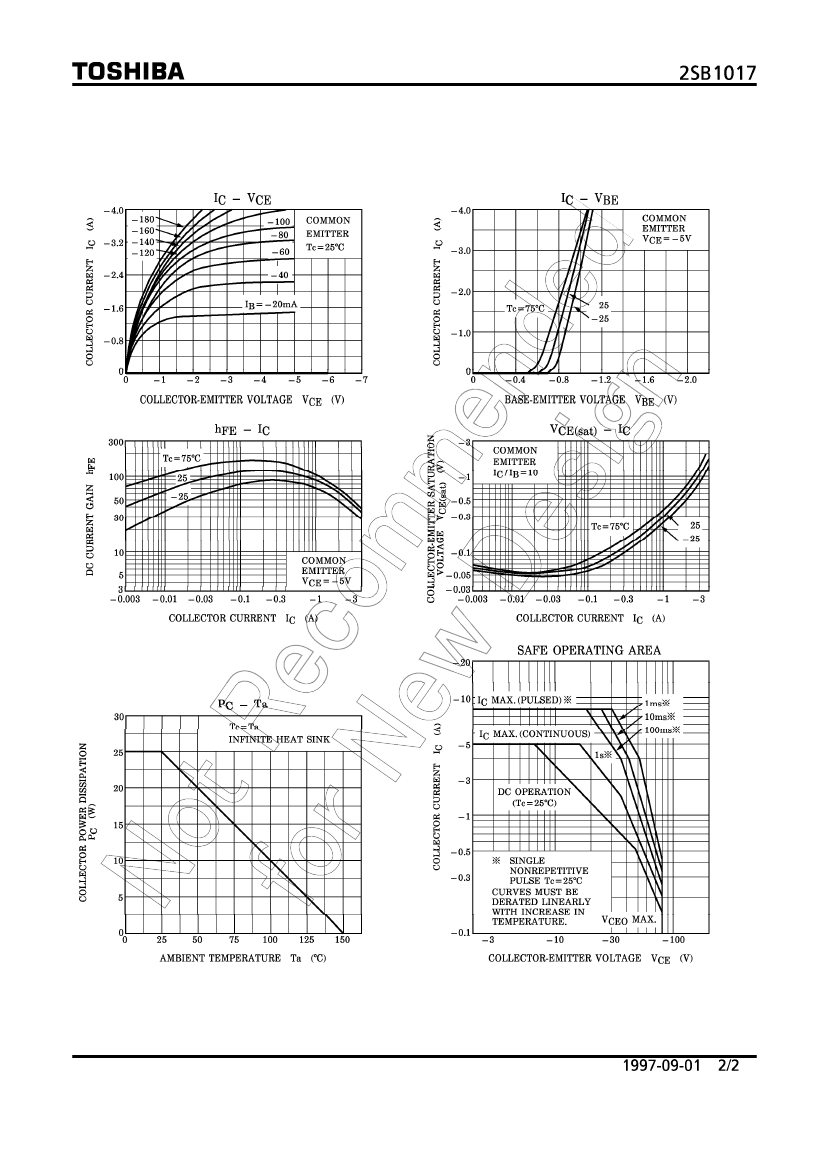

2SB1017R datasheet, PDF - EEWORLD Datasheet

2SB1017R: DescriptionTRANSISTOR 4 A, 80 V, PNP, Si, POWER TRANSISTOR, 2-10L1A, 3 PIN, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size157KB，2 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

2SB1017R Overview

TRANSISTOR 4 A, 80 V, PNP, Si, POWER TRANSISTOR, 2-10L1A, 3 PIN, BIP General Purpose Power

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	4 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	9 MHz
Base Number Matches	1

	2SB1017R	2SB1017O	2SB1017Y
Description	TRANSISTOR 4 A, 80 V, PNP, Si, POWER TRANSISTOR, 2-10L1A, 3 PIN, BIP General Purpose Power	TRANSISTOR 4 A, 80 V, PNP, Si, POWER TRANSISTOR, 2-10L1A, 3 PIN, BIP General Purpose Power	TRANSISTOR 4 A, 80 V, PNP, Si, POWER TRANSISTOR, 2-10L1A, 3 PIN, BIP General Purpose Power
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED
Maximum collector current (IC)	4 A	4 A	4 A
Collector-emitter maximum voltage	80 V	80 V	80 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	70	120
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	9 MHz	9 MHz	9 MHz
Base Number Matches	1	1	1
