Crimp
SHD
CONNECTOR
Disconnectable Crimp style connectors

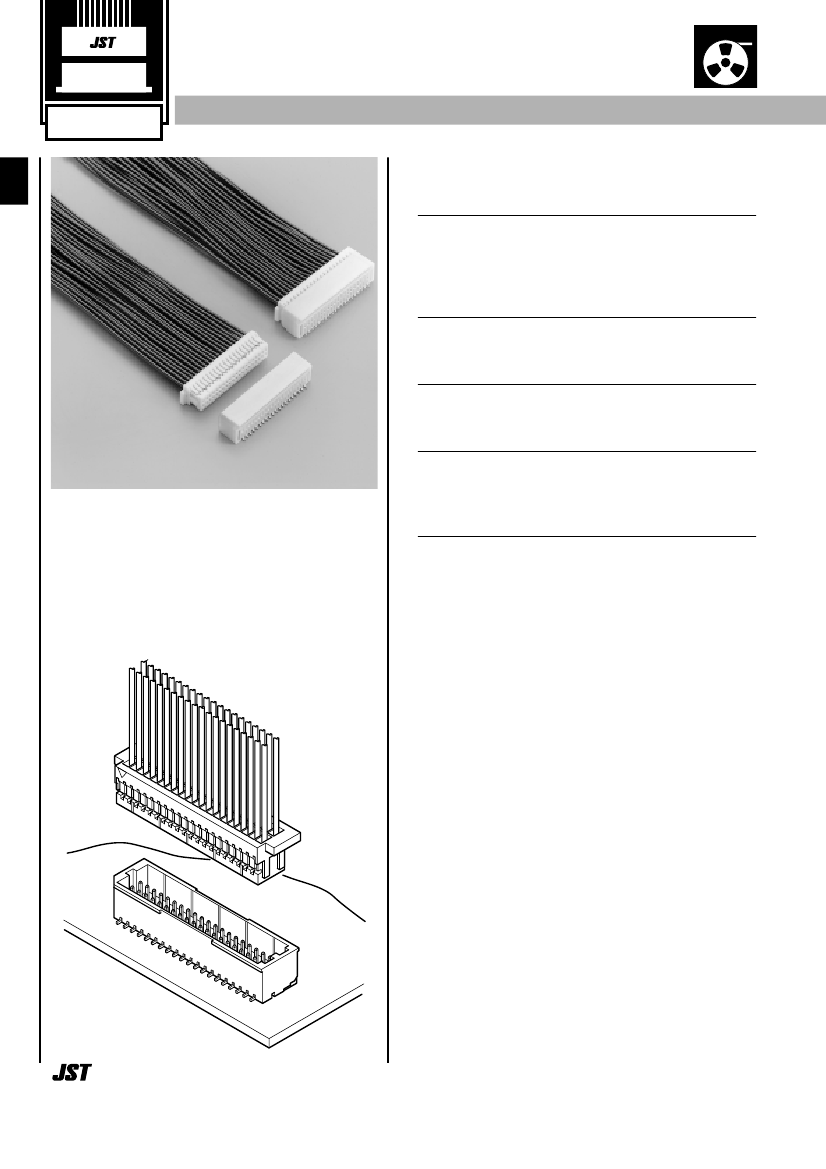

• Ultra-compact, low profile design
5.1mm (.201") for side entry type.
Emboss Tape
1.0mm
(.039") pitch
Features ––––––––––––––––––––––––
The SHD connector is compact with a mounting height of
6.3mm (.248") for top entry type and 5.5mm (.217") for side
entry type, and a width of 5.0mm (.197") for top entry type and
• Reliable contact
The same contact can be used for the single-row SH
connectors.
• Anti-misinsertion feature
Ribs and grooves on the header and receptacle prevent
misinsertion and distortion during mating and unmating.
• Receptacles with protrusions
The receptacle has protrusions on both ends for an operator to
disengage the receptacle from the header without holding the
wires.
Ultra-compact, double-row design
• Header designed for vacuum pick and place robotics
Although this shrouded header has locking features for its
mating receptacle, there are no holes in the header shroud that
would adversely effect vacuum gripping equipment.
Since there is enough flat surface for secure vacuum gripping,
this miniature surface mount connector is versatile for designers
and economic for manufacturing.
Specifications –––––––––––––––––––
11
21
31
39
• Current rating: 1.0A AC, DC (AWG #28)
• Voltage rating: 50V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/20m
Ω
max.
After environmental testing/40m
Ω
max.
• Insulation resistance:
100M
Ω
min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: AWG #32 to #28
Insulation O.D./0.4 to 0.8mm (.016" to .031")
* Contact JST for details.
Standards ––––––––––––––––––––––
6
0
1
Recognized E60389
Certified LR20812
SHD
Model No.
0.8(.031)
1.35(.053)
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
3.9(.154)
2.0(.079)
0.5(.020) 0.8(.031)
1.6(.063)
1.55(.061)
mm
2
0.032 to 0.08
Applicable wire
Q'ty /
Insulation O.D. mm(in.) reel
AWG#
32 to 28
0.4 to 0.8(.016 to .031)
23,000
SSH-003GA-P0.2
Material and Finish
Phosphor bronze, nickel-undercoated, selective gold-plated
Note: Contact JST for tin-plated contacts.
0.45(.018)

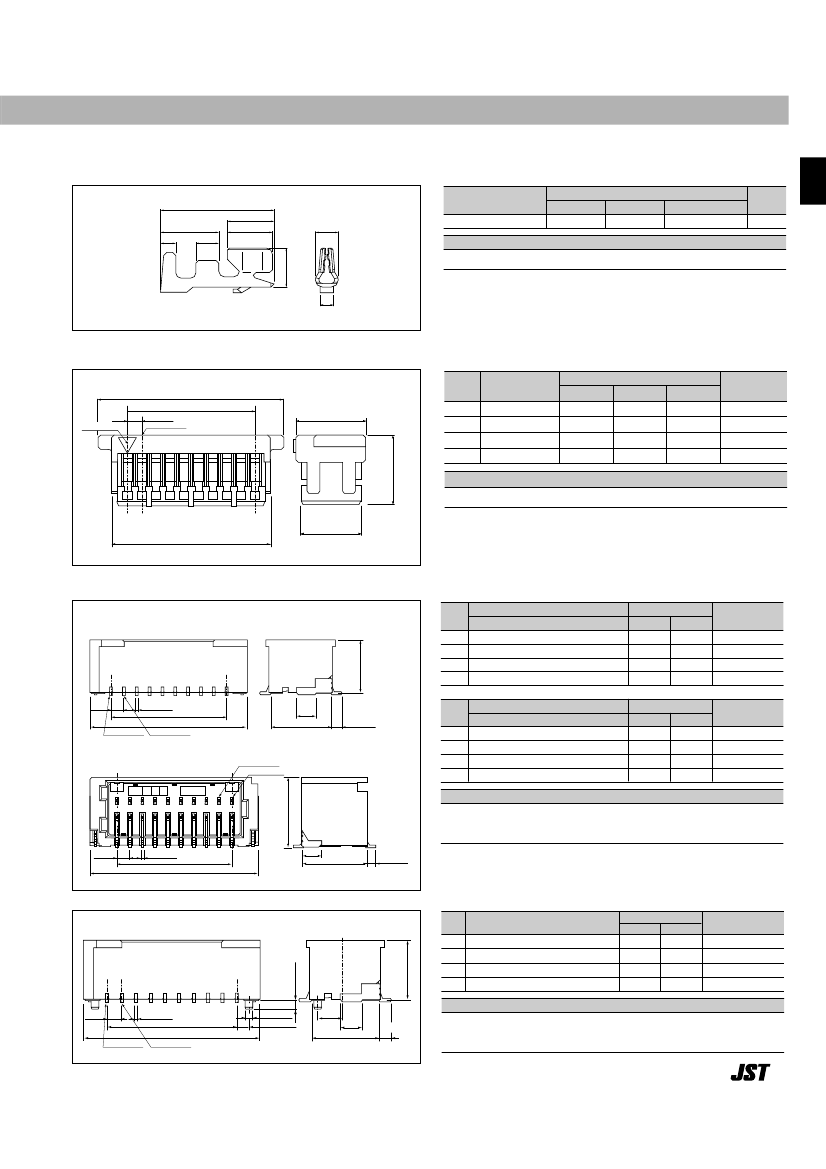

Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
C
A
No.1 mark
1.0(.039)
Circuit No.3
4.9
(.193)
Model No.
SHDR-20V-S-B
SHDR-30V-S-B
SHDR-40V-S-B
SHDR-50V-S-B
Dimensions mm(in.)
A
9.0(.354)
14.0(.551)
19.0(.748)
24.0(.945)
B
11.2( .441)
16.2( .638)
21.2( .835)
26.2(1.031)
C
13.0( .512)
18.0( .709)
23.0( .906)
28.0(1.102)
Q'ty / box
4,000
4,000
2,000
2,000
20
30
40
5.0
(.197)
50
Material
PBT, UL94V-0, natural (white)
4.2
(.165)
B
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
4.25(.167)
Circuits
20
30
40
50
Model No.
Top entry type
BM20B-SRDS-G-TF
BM30B-SRDS-G-TF
BM40B-SRDS-G-TF
BM50B-SRDS-G-TF
Model No.
Side entry type
SM20B-SRDS-G-TF
SM30B-SRDS-G-TF
SM40B-SRDS-G-TF
SM50B-SRDS-G-TF
Dimensions mm(in.)
A
B
9.0(.354) 12.3( .484)
14.0(.551) 17.3( .681)
19.0(.748) 22.3( .878)
24.0(.945) 27.3(1.075)
Q'ty / reel
1,500
1,500
1,500
1,500
1.0
(.039)
0.2(.008)
A
1.5
(.059)
5.0(.197)
0.7(.028)
Circuits
20
30
40
50
B
Circuit No.1 Circuit No.3
Dimensions mm(in.)
A
B
9.0(.354) 13.1(.516)
14.0(.551) 18.1(.713)
19.0(.748) 23.1(.909)
24.0(.945) 28.1(1.106)
Q'ty / reel
1,250
1,250
1,250
1,250
Side entry type
H JST
Circuit No.3
Circuit No.1
5.5(.216)
Material and Finish
Header contact: Phosphor bronze, nickel-undercoated, gold-plated
Wafer: Glass-filled polyamide, UL94V-0, natural (ivory)
Solder tab: Brass, copper-undercoated, tin/lead-plated
1.5(.059)
5.1(.201)
0.7(.028)
1.0
(.039)
0.2(.008)
B
A
Note: 1. The products listed above are supplied on embossed-tape.
2. Contact JST for the headers with tin-plated pins.
3. Contact JST for the top entry type headers with suction cap.
Top entry type with a boss
4.25(.167)
Circuits
20
30
40
50
Model No.
BM20B-SRDS-A-G-TF
BM30B-SRDS-A-G-TF
BM40B-SRDS-A-G-TF
BM50B-SRDS-A-G-TF
Dimensions mm(in.)
A
B
9.0(.354) 12.3( .484)
14.0(.551) 17.3( .681)
19.0(.748) 22.3( .878)
24.0(.945) 27.3(1.075)
Q'ty / reel
1,250
1,250
1,250
1,250
0.6(.024)
1.0
(.039)
0.2(.008)
A
B
Circuit No.3
0.5(.020)dia.
0.85(.033)
1.9
(.075)
1.5
(.059)
5.0(.197)
Material and Finish
0.7(.028)
Header contact: Phosphor bronze, nickel-undercoated, gold-plated
Wafer: Glass-filled polyamide, UL94V-0, natural (ivory)
Solder tab: Brass, copper-undercoated, tin/lead-plated
Circuit No.1
Note: 1. The products listed above are supplied on embossed-tape.
2. Contact JST for the headers with tin-plated pins.
7
SHD
CONNECTOR

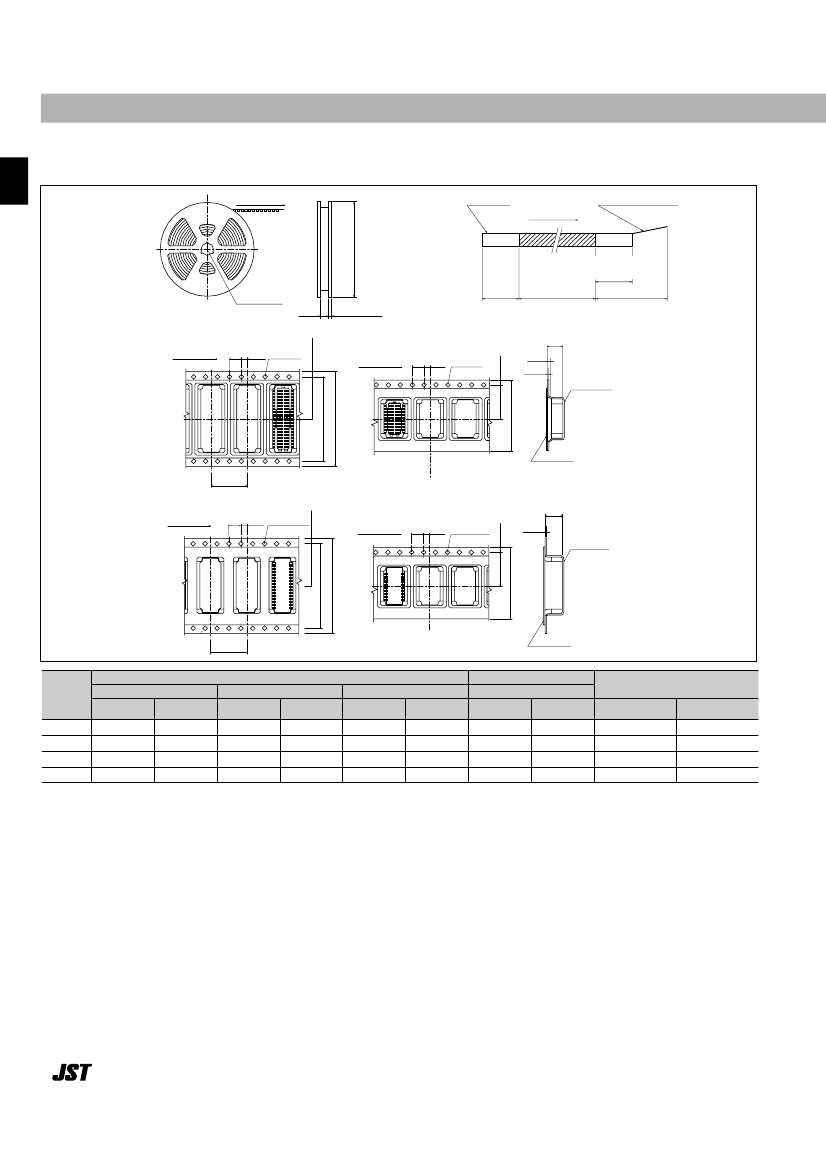

Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
380.0±2.0(14.961±.079)
Carrier tape
Feeding direction
Cover tape leader area
[13.0(.512)dia.]
Tail tape
(Unloaded area)
40.0(1.575)min.
Lead tape
(Unloaded area)
20 vacancies min.
Connector
loaded area
400(15.748)min.
W1
(W1
+.098
)
-.039
+2.5
-1.0
2±0.5(.079±.02)
1.75
±0.1
1.75±0.1
(.069±.004)
4.0±0.1 2.0±0.1 1.55±0.05dia.
Feeding direction (.157±.004) (.079±.004) (.061±.002)
(.069±.004)
Top entry type
(30,40,50 circuits)
(20 circuits)
4.0±0.1 2.0±0.1 1.55±0.05dia.
Feeding direction (.157±.004) (.079±.004) (.061±.002)
5.05
(.199)
0.8
(.031)
0.3±0.05
(.012±.002)
F
±0.1(.004)
Carrier tape
W
±0.3(.012)
S
±0.1(.004)
F±0.1(.004)
W±0.3(.012)
Cover tape
12.0±0.1
(.472±.004)
Side entry type
(30,40,50 circuits)
1.75±0.1
(.069±.004)
4.0±0.1
2.0±0.1 1.55±0.05
Feeding direction (.157±.004) (.079±.004) (.061±.002)dia.
(20 circuits)
1.75±0.1
(.069±.004)
4.0±0.1 2.0±0.1 1.55±0.05
Feeding direction (.157±.004) (.079±.004) (.061±.002)dia.
0.3±0.05
(.012±.002)
5.75
(.226)
Carrier tape
F±0.1(.004)
S±0.1(.004)
12.0±0.1
(.472±.004)
F±0.1(.004)
W±0.3(.012)
W
Cover tape
Circuits
20
30
40
50
11.5(.453)
14.2(.559)
20.2(.795)
20.2(.795)
F
Dimensions mm(in.)
S
W
Reel dimensions mm(in.)
W1
Q'ty / reel
Top entry type
1,500
1,500
1,500
1,500
Top entry type Side entry type Top entry type Side entry type Top entry type
11.5(.453)
14.2(.559)
20.2(.795)
20.2(.795)
–
28.4(1.118)
40.4(1.591)
40.4(1.591)
–
28.4(1.118)
40.4(1.591)
40.4(1.591)
24.0( .945)
32.0(1.260)
44.0(1.732)
44.0(1.732)
Side entry type Top entry type Side entry type
24.0( .945)
32.0(1.260)
44.0(1.732)
44.0(1.732)
25.5(1.004)
33.5(1.319)
45.5(1.791)
45.5(1.791)
25.5(1.004)
33.5(1.319)
45.5(1.791)
45.5(1.791)
Side entry type
1,250
1,250
1,250
1,250
Note: 1. Specifications conform to JIS C 0806. The tape width, connector loading recess square dimensions,
etc.are determined by the number of circuits and external shape of the connector to be loaded.
Note:
2. Specifications are subject to change without prior notice.
8
SHD
Top entry type
5.4(.213)
1.0±0.1
0.6
(.039±.004) (.024)
0.9±0.1
(.035±.004)
0.85±0.1
(.033±.004)
Circuit No.1
1.6
(.063)
Header outline
7.1
(.280)
CONNECTOR
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
Side entry type
Top entry type
with a boss
0.6
1.0±0.1
(.039±.004) (.024)
0.9±0.1
(.035±.004)
0.85±0.1
(.033±.004)
6.3(.248)
4.1(.161)
5.5
(.217)
0.5
(.020)
1.8±0.1
(.071±.004)
4.0(.157)
7.2(.283)
0.9 1.8±0.1
(.035)(.071±.004)
1.6
(.063)
0.7
Header outline (.028)
Circuit No.1
1.5
(.059)
5.0(.197)
0.7
(.028)
0.7
(.028)
1.5(.059)
5.1(.201)
0.7
(.028)
0.55
+0.05
0
(.022
+0.05
)dia.
0
Circuit No.1
1.9±0.1
(.075±.004)
0.85±0.1
(.033±.004)
Header outline
1.0±0.1 0.6
(.039±.004) (.024)
0.85±0.1
1.25±0.1
(.049±.004) (.033±.004)
Note: 1. Tolerances are non-Cumulative: ±0.05mm( ±.002") for all centers.
Note:
2. Hole dimensions differ according to the kind of PC board and piercing method.
Note:
The dimensions above should serve as a guide line. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SSH-003GA-P0.2
Crimp applicator MKS-L-10-3
with safety cover
without safety cover
APLMK SSH/L003-02
APLNC SSH/L003-02
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
Strip-crimp applicator MKS-SC
with safety cover
APLSC SSH003-02
1.8±0.1
(.071±.004)
4.0(.157)
7.2(.283)
0.5
(.020)
9
