N74F846DB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N74F846DB

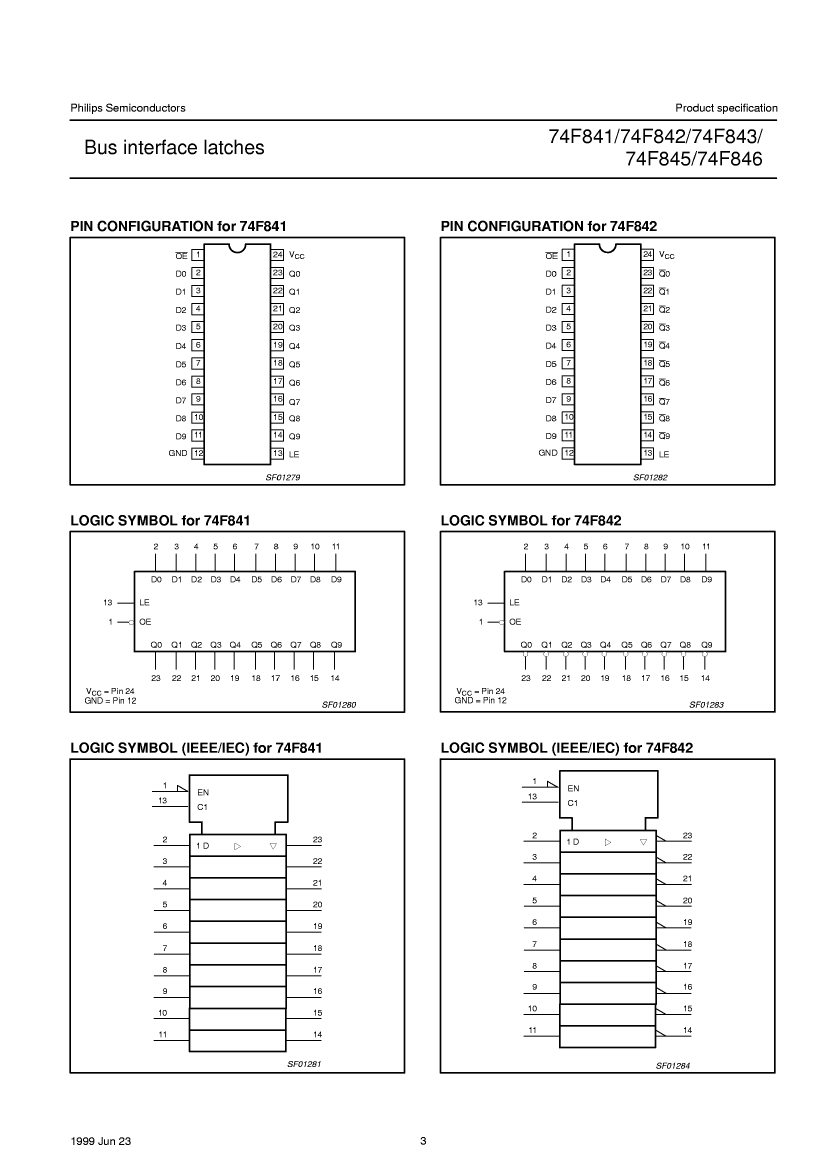

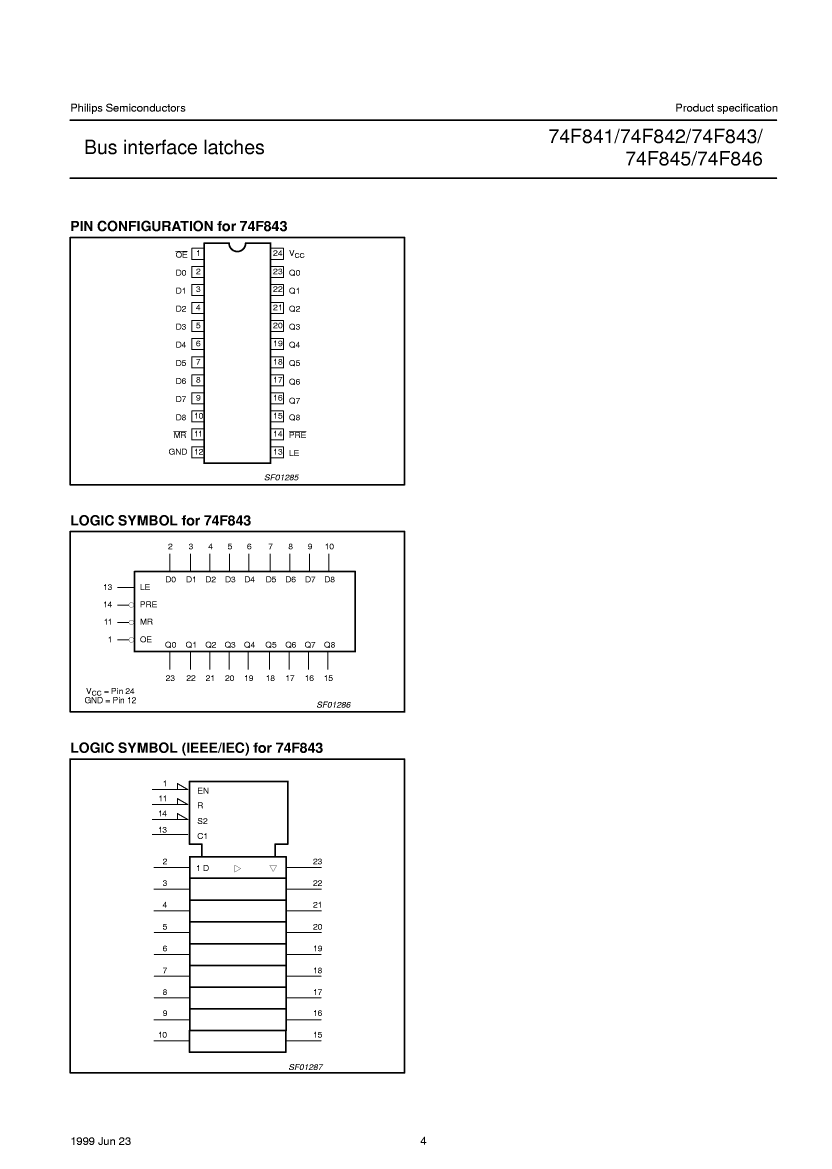

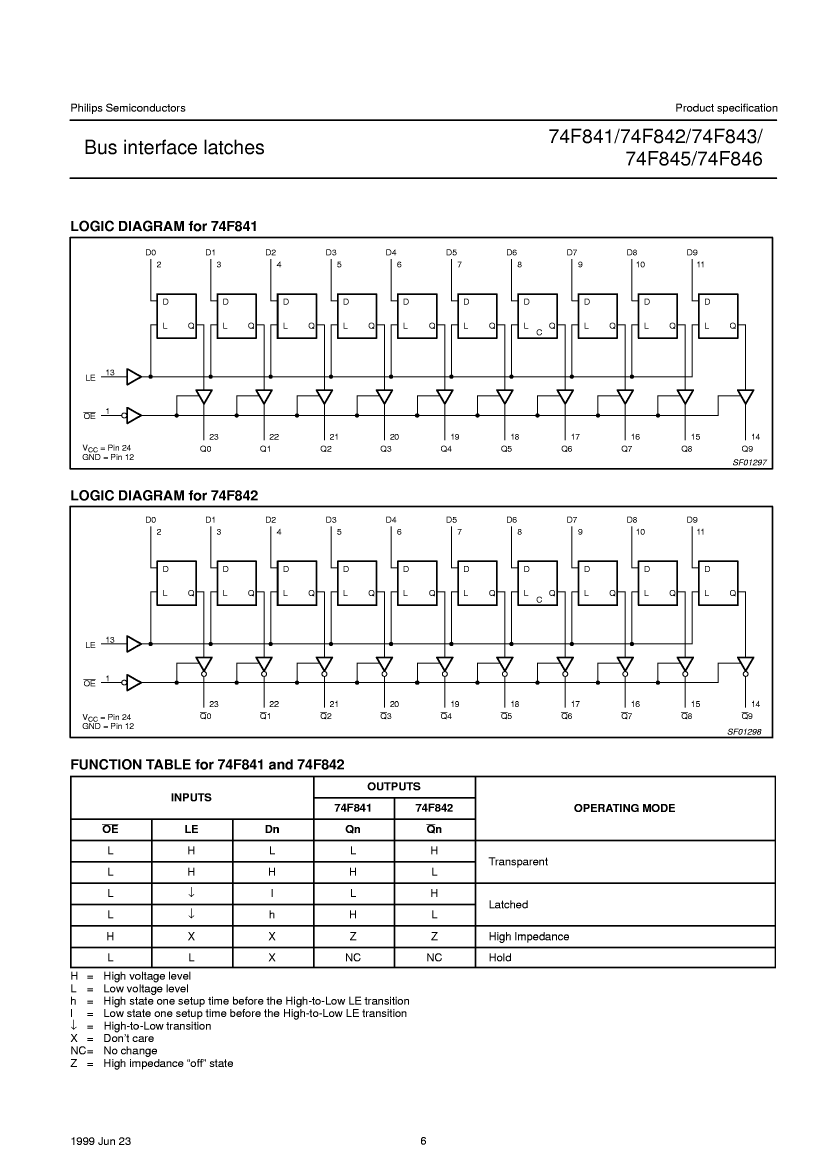

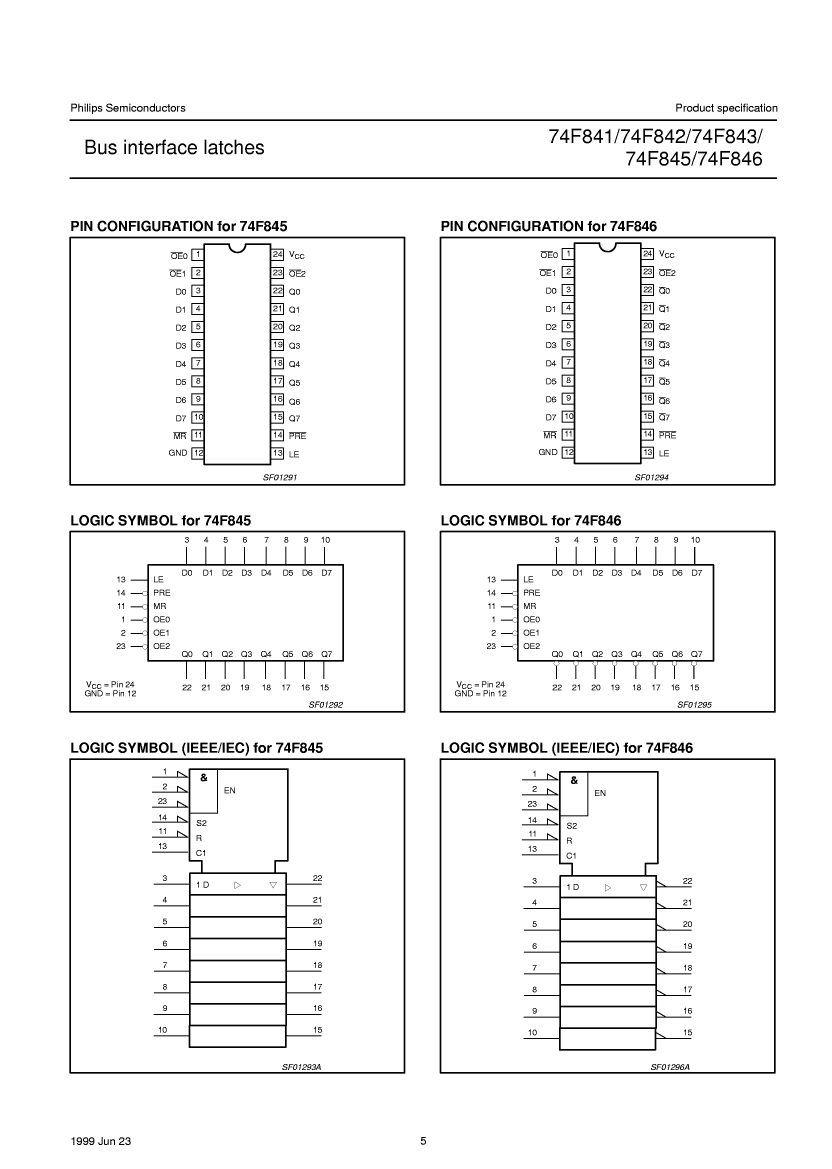

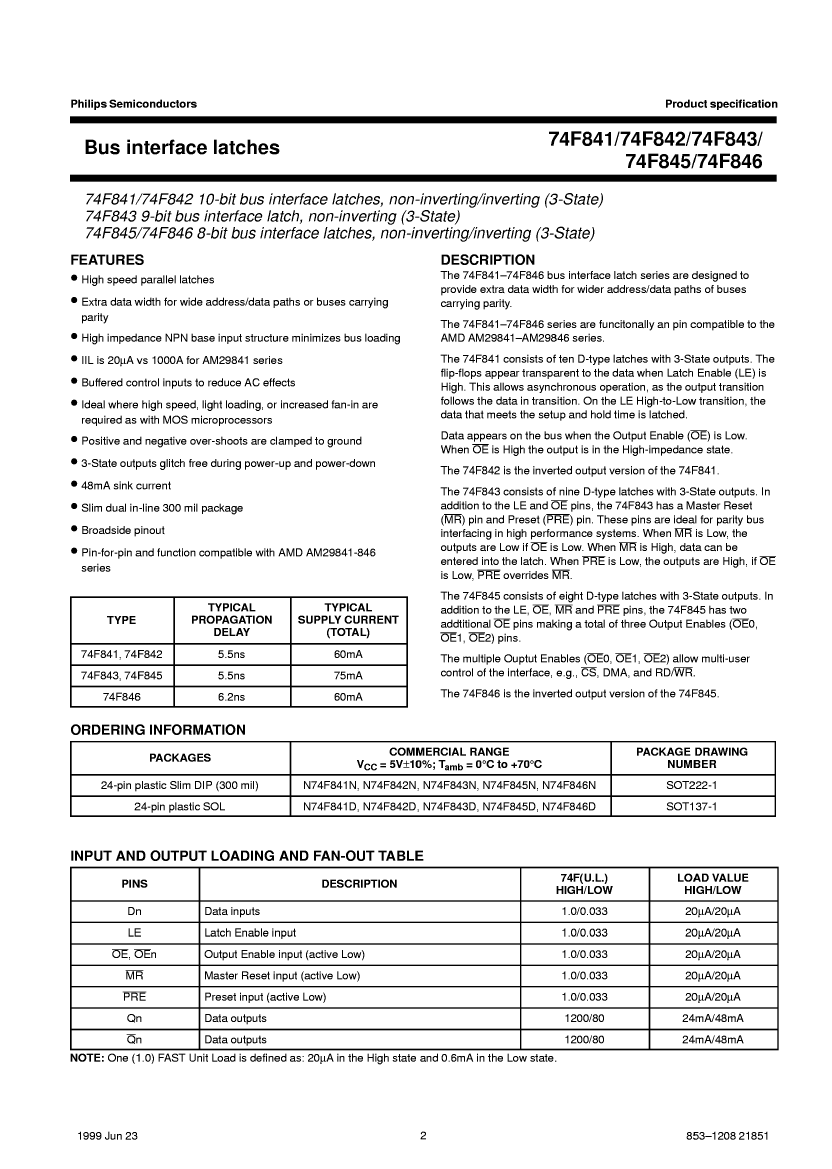

N74F846DB: DescriptionD Latch, 1-Func, 8-Bit, TTL, PDSO24; Categorylogic logic; File Size755KB，17 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

N74F846DB Overview

D Latch, 1-Func, 8-Bit, TTL, PDSO24

N74F846DB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP24,.4
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	95 mA
Prop。Delay @ Nom-Sup	10.5 ns
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

N74F846DB Related Products

	N74F846DB	N74F842N-B	N74F841N-B	N74F843N-B	N74F845N-B	N74F846N-B
Description	D Latch, 1-Func, 8-Bit, TTL, PDSO24	D Latch, 1-Func, 10-Bit, TTL, PDIP24	D Latch, 1-Func, 10-Bit, TTL, PDIP24	D Latch, 1-Func, 9-Bit, TTL, PDIP24	D Latch, 1-Func, 8-Bit, TTL, PDIP24	D Latch, 1-Func, 8-Bit, TTL, PDIP24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP24,.4	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
JESD-30 code	R-PDSO-G24	R-PDIP-T24	-	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	-	e0	e0	e0
Logic integrated circuit type	D LATCH	D LATCH	-	D LATCH	D LATCH	D LATCH
MaximumI(ol)	0.048 A	0.048 A	-	0.048 A	0.048 A	0.048 A
Number of digits	8	10	-	9	8	8
Number of functions	1	1	-	1	1	1
Number of terminals	24	24	-	24	24	24
Maximum operating temperature	70 °C	70 °C	-	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	-	DIP	DIP	DIP
Encapsulate equivalent code	SOP24,.4	DIP24,.3	-	DIP24,.3	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	-	5 V	5 V	5 V
Maximum supply current (ICC)	95 mA	90 mA	-	115 mA	115 mA	95 mA
Prop。Delay @ Nom-Sup	10.5 ns	10.5 ns	-	10 ns	10 ns	10.5 ns
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V	5 V
surface mount	YES	NO	-	NO	NO	NO
technology	TTL	TTL	-	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL
