LH52256AVN datasheet, PDF - EEWORLD Datasheet

LH52256AVN: DescriptionStandard SRAM, 32KX8, 200ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28; Categorystorage storage; File Size140KB，10 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

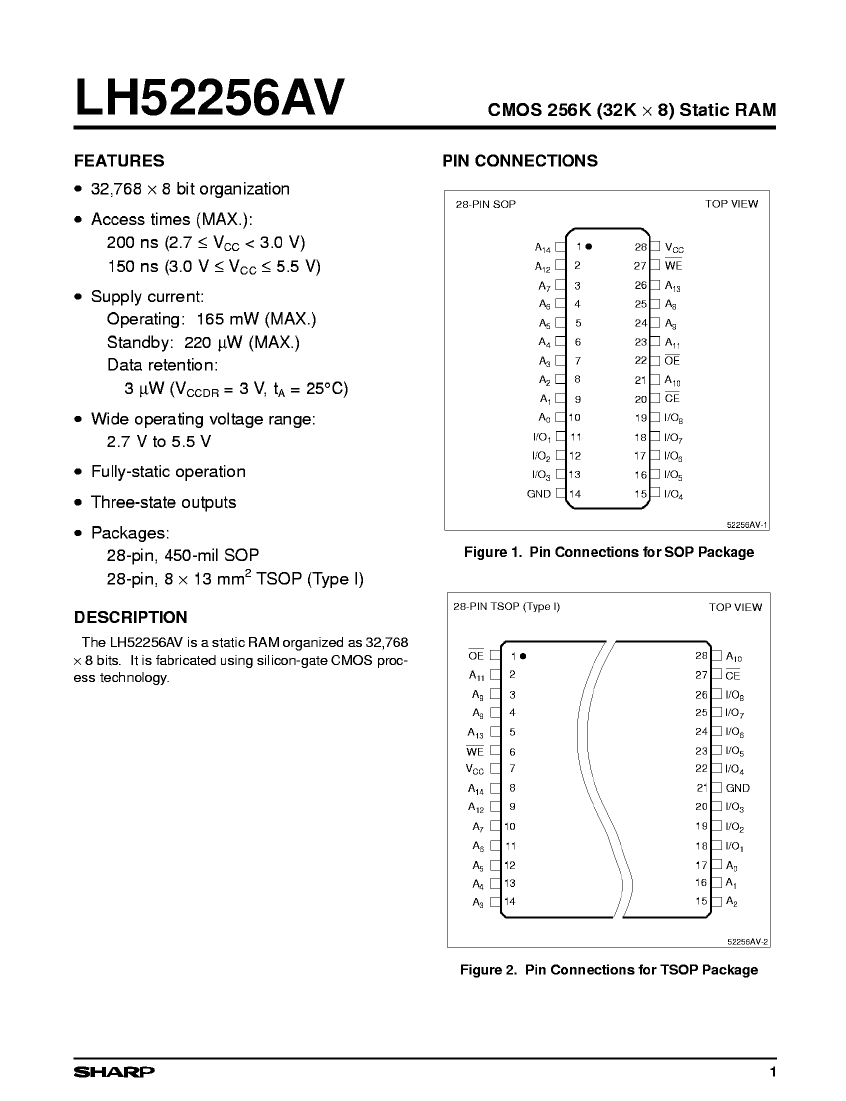

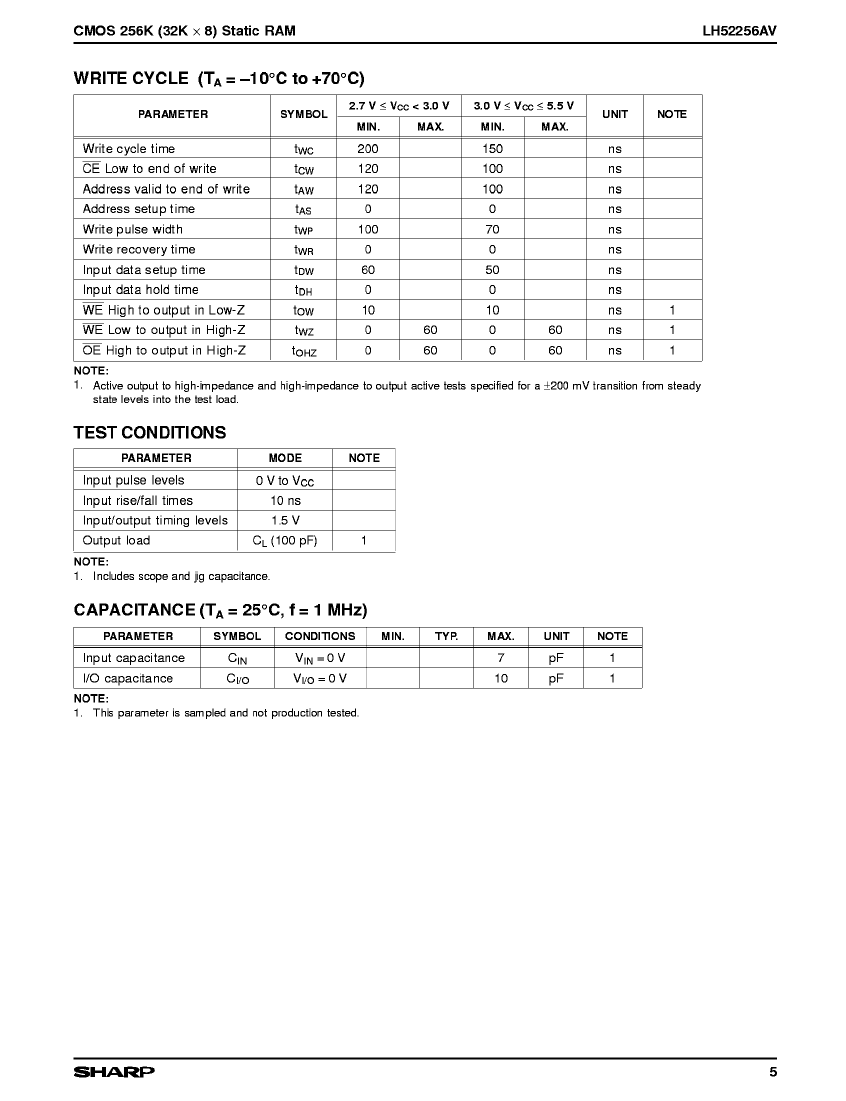

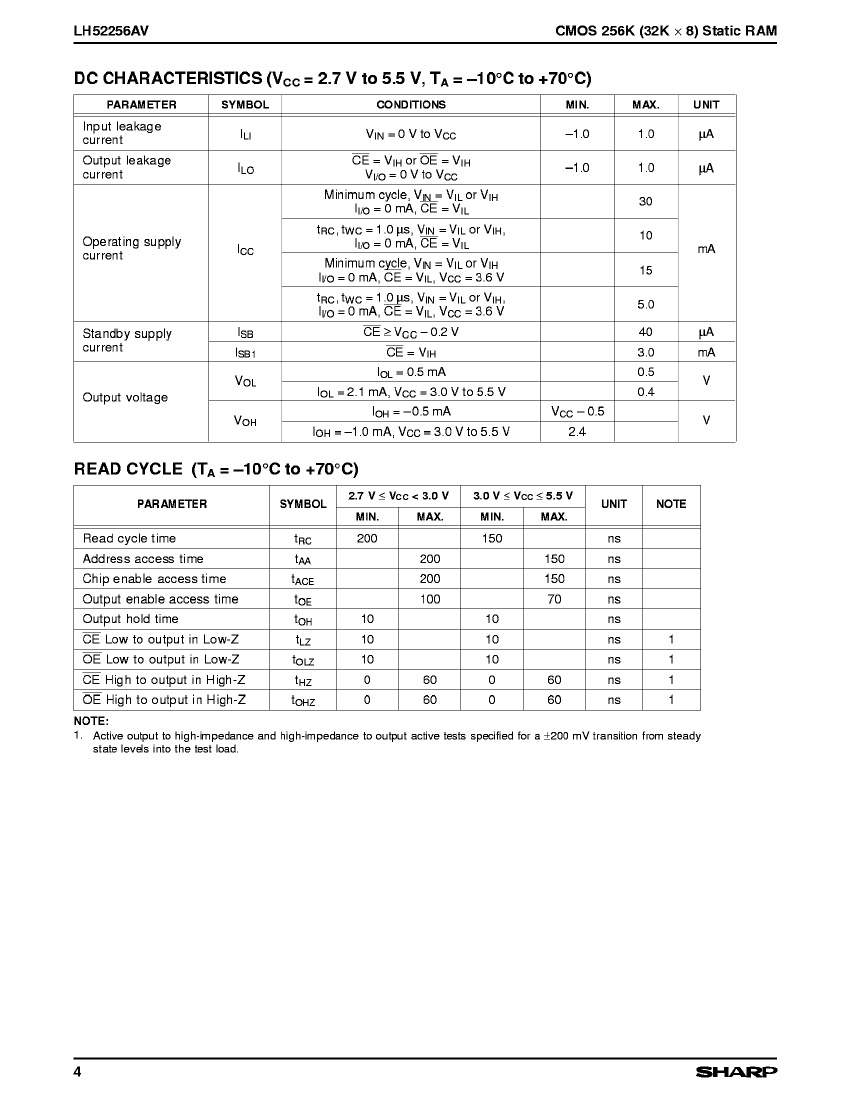

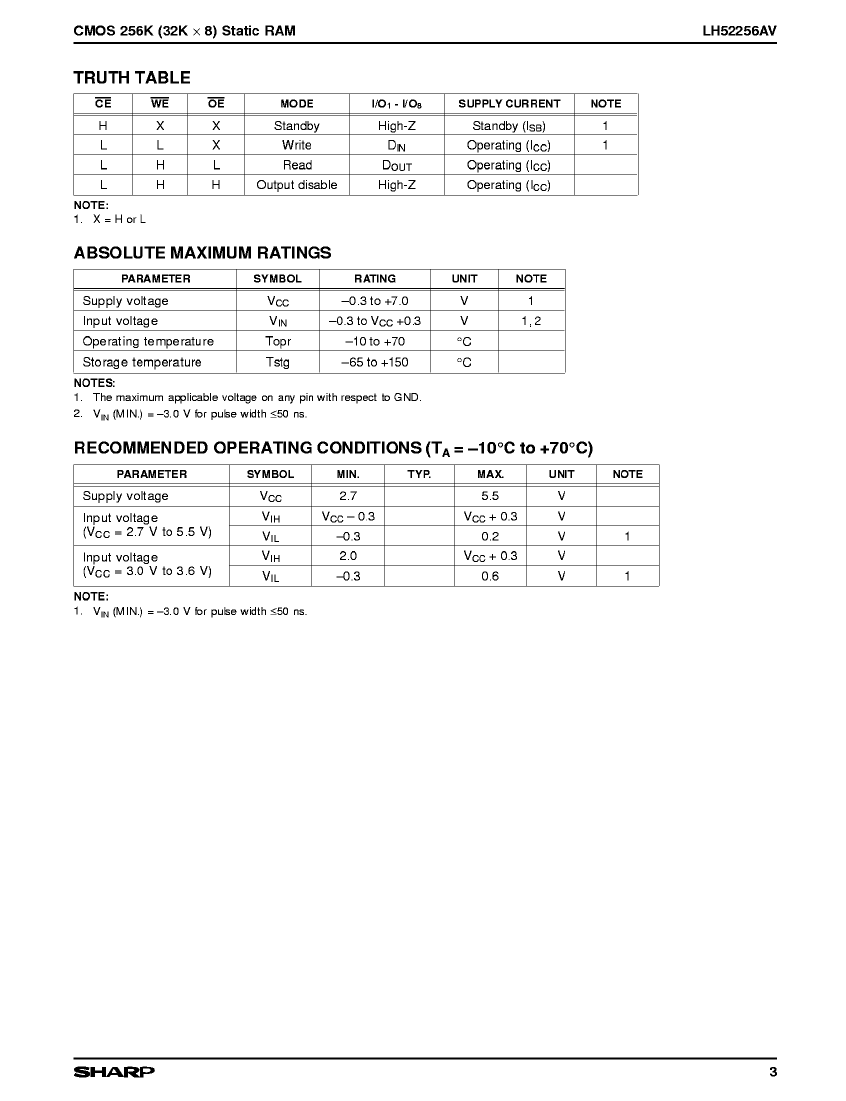

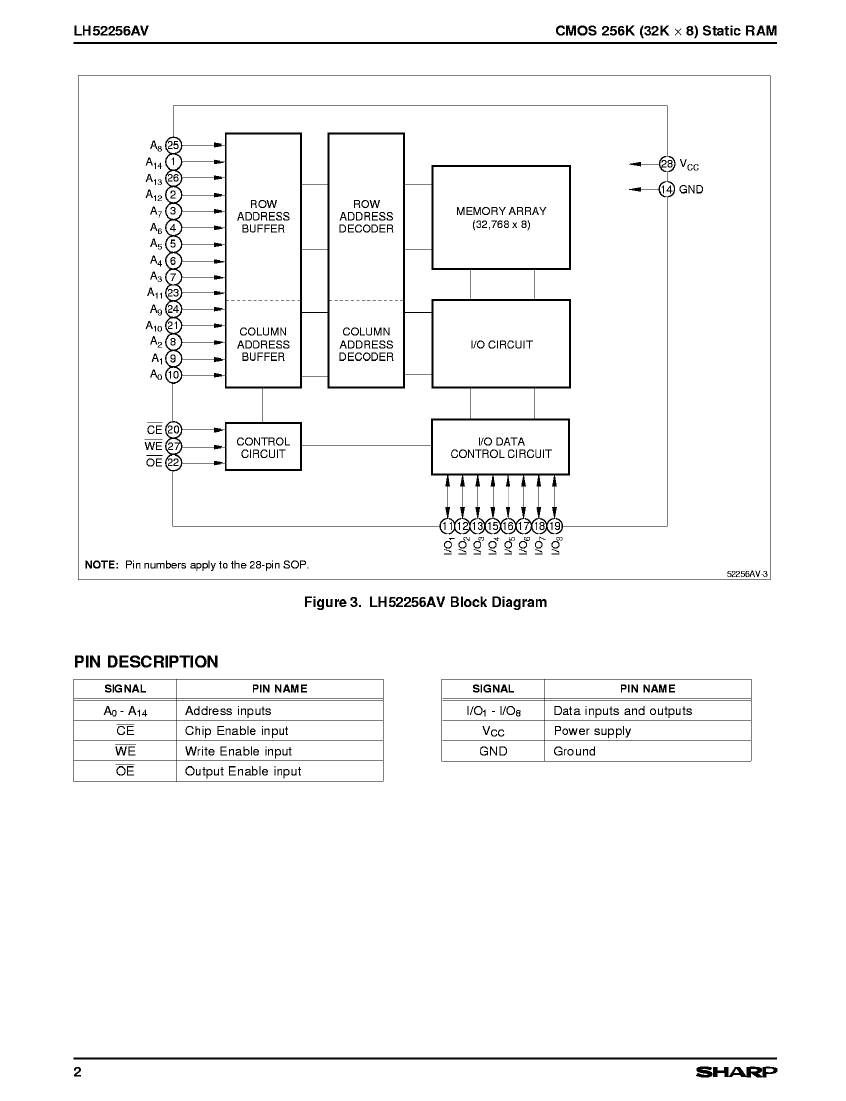

LH52256AVN Overview

Standard SRAM, 32KX8, 200ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	0.450 INCH, PLASTIC, SOP-28
Reach Compliance Code	unknown
Maximum access time	200 ns
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	18 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
organize	32KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.6 mm
Minimum standby current	2 V
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.6 mm

	LH52256AVN	LH52256AVT
Description	Standard SRAM, 32KX8, 200ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28	Standard SRAM, 32KX8, 200ns, CMOS, PDSO28, 8 X 13 MM, PLASTIC, TSOP1-28
Maker	SHARP	SHARP
package instruction	0.450 INCH, PLASTIC, SOP-28	8 X 13 MM, PLASTIC, TSOP1-28
Reach Compliance Code	unknown	unknown
Maximum access time	200 ns	200 ns
JESD-30 code	R-PDSO-G28	R-PDSO-G28
length	18 mm	11.8 mm
memory density	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	8	8
Number of functions	1	1
Number of ports	1	1
Number of terminals	28	28
word count	32768 words	32768 words
character code	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
organize	32KX8	32KX8
Output characteristics	3-STATE	3-STATE
Exportable	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.6 mm	1.2 mm
Minimum standby current	2 V	2 V
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.55 mm
Terminal location	DUAL	DUAL
width	8.6 mm	8 mm
