2SK711
TOSHIBA Field Effect Transistor
Silicon N Channel Junction Type
2SK711
High Frequency Amplifier Applications
AM High Frequency Amplifier Applications
Audio Frequency Amplifier Applications
•
•
High |Y
fs
|: |Y
fs
| = 25 mS (typ.)
Low C
iss
: C
iss
= 7.5 pF (typ.)
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Gate-drain voltage
Gate current
Drain power dissipation
Junction temperature
Storage temperature range
Symbol
V
GDS
I
G
P
D
T
j
T
stg
Rating
−20
10
150
125
−55~125
Unit
V
mA
mW
°C
°C
Note: Using continuously under heavy loads (e.g. the application of high
JEDEC
TO-236MOD
temperature/current/voltage and the significant change in
JEITA
SC-59
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
TOSHIBA
2-3F1B
operating temperature/current/voltage, etc.) are within the
Weight: 0.012 g (typ.)
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and
individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Gate leakage current
Gate-drain breakdown voltage
Drain current
Gate-source cut-off voltage
Forward transfer admittance
Input capacitance
Reverse transfer capacitance
Symbol
I
GSS
V
(BR) GDS
I
DSS
(Note)
V
GS (OFF)
⎪Y
fs
⎪
C
iss
C
rss
Test Condition
V
GS
= −15
V, V
DS
=
0 V
V
DS
=
0 V, I
G
= −100 μA
V
DS
=
5 V, V
GS
=
0 V
V
DS
=
5 V, I
D
=
1
μA
V
DS
=
5 V, V
GS
=
0 V, f
=
1 kHz
V
DS
=
5 V, V
GS
=
0 V, f
=
1 MHz
V
DS
=
5 V, I
D
=
0 mA, f
=
1 MHz
Min
⎯
−20
6
⎯
15
⎯
⎯
Typ.
⎯
⎯
⎯
⎯
25
7.5
2
Max
−1.0
⎯
32
−2.5
⎯
10
3
Unit
nA
V
mA
V
mS
pF
pF

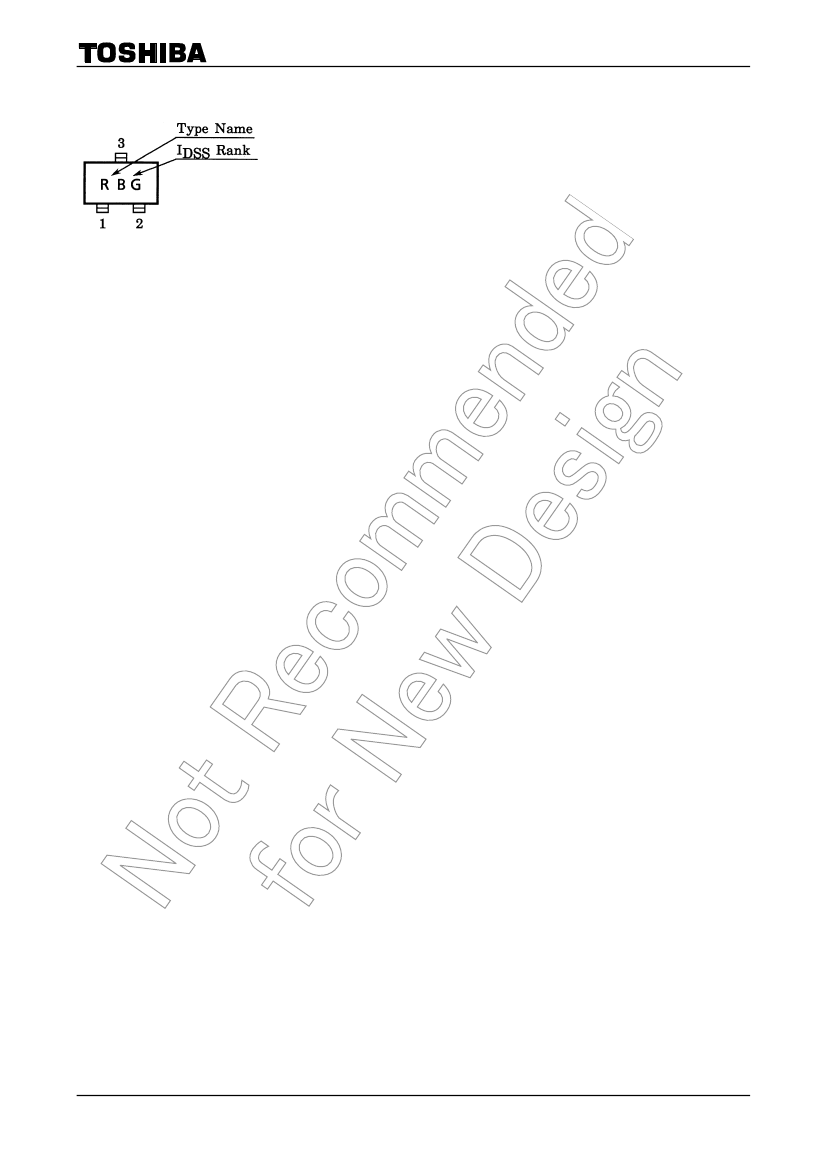

Note: I
DSS
classification
GR: 6~12 mA, BL: 10~20 mA, V: 16~32 mA
(G)
(
(L)
(V)
) ...... I
DSS
rank marking
1
2007-11-01
