2SA1255OTE85L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA1255OTE85L

Preview

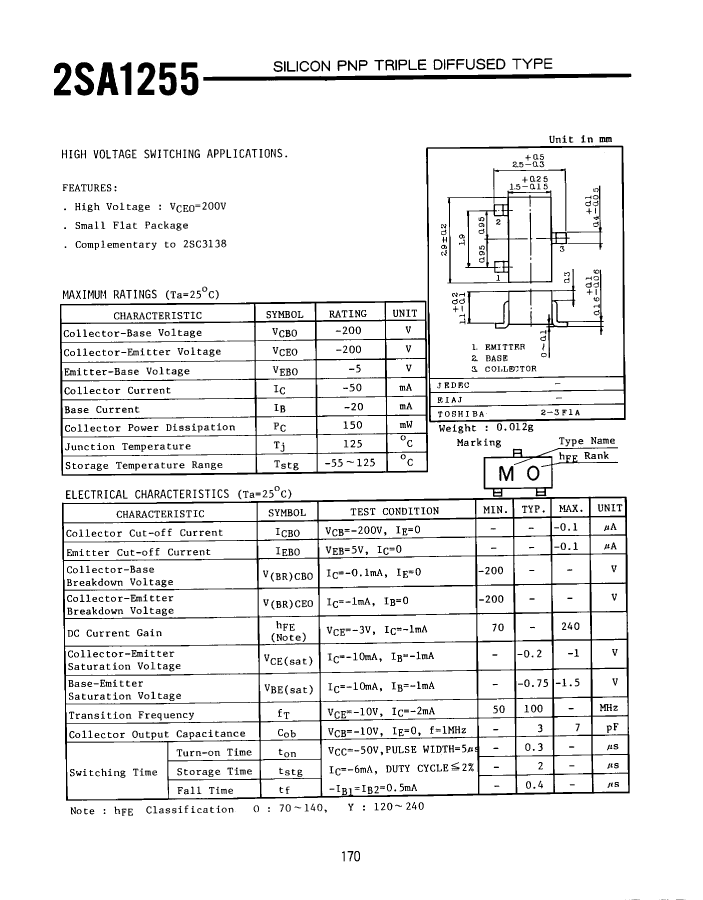

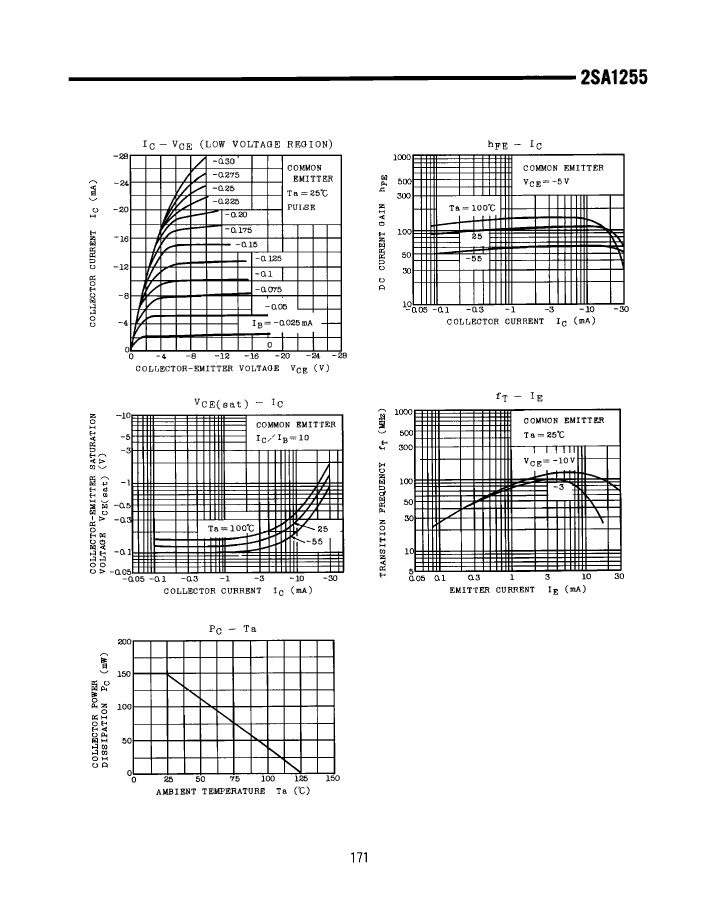

2SA1255OTE85L: DescriptionTRANSISTOR 50 mA, 200 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size64KB，2 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

2SA1255OTE85L Overview

TRANSISTOR 50 mA, 200 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236, BIP General Purpose Small Signal

2SA1255OTE85L Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-based maximum capacity	7 pF
Collector-emitter maximum voltage	200 V
Configuration	SINGLE
Minimum DC current gain (hFE)	70
JEDEC-95 code	TO-236
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
VCEsat-Max	1 V
Base Number Matches	1

Preview

Download Datasheet

View All

2SA1255OTE85L Related Products

	2SA1255OTE85L	2SA1255YTE85L	2SA1255TE85R	2SA1255OTE85R	2SA1255TE85L	2SA1255YTE85R
Description	TRANSISTOR 50 mA, 200 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236, BIP General Purpose Small Signal	TRANSISTOR 50 mA, 200 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236, BIP General Purpose Small Signal	TRANSISTOR 50 mA, 200 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236, BIP General Purpose Small Signal	TRANSISTOR 50 mA, 200 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236, BIP General Purpose Small Signal	TRANSISTOR 50 mA, 200 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236, BIP General Purpose Small Signal	TRANSISTOR 50 mA, 200 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236, BIP General Purpose Small Signal
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Collector-based maximum capacity	7 pF	7 pF	7 pF	7 pF	7 pF	7 pF
Collector-emitter maximum voltage	200 V	200 V	200 V	200 V	200 V	200 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	70	120	70	70	70	120
JEDEC-95 code	TO-236	TO-236	TO-236	TO-236	TO-236	TO-236
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
VCEsat-Max	1 V	1 V	1 V	1 V	1 V	1 V
Base Number Matches	1	1	1	1	1	1
