LH534P00ATR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH534P00ATR

LH534P00ATR: DescriptionMASK ROM, 512KX8, 120ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48; Categorystorage storage; File Size160KB，8 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH534P00ATR Overview

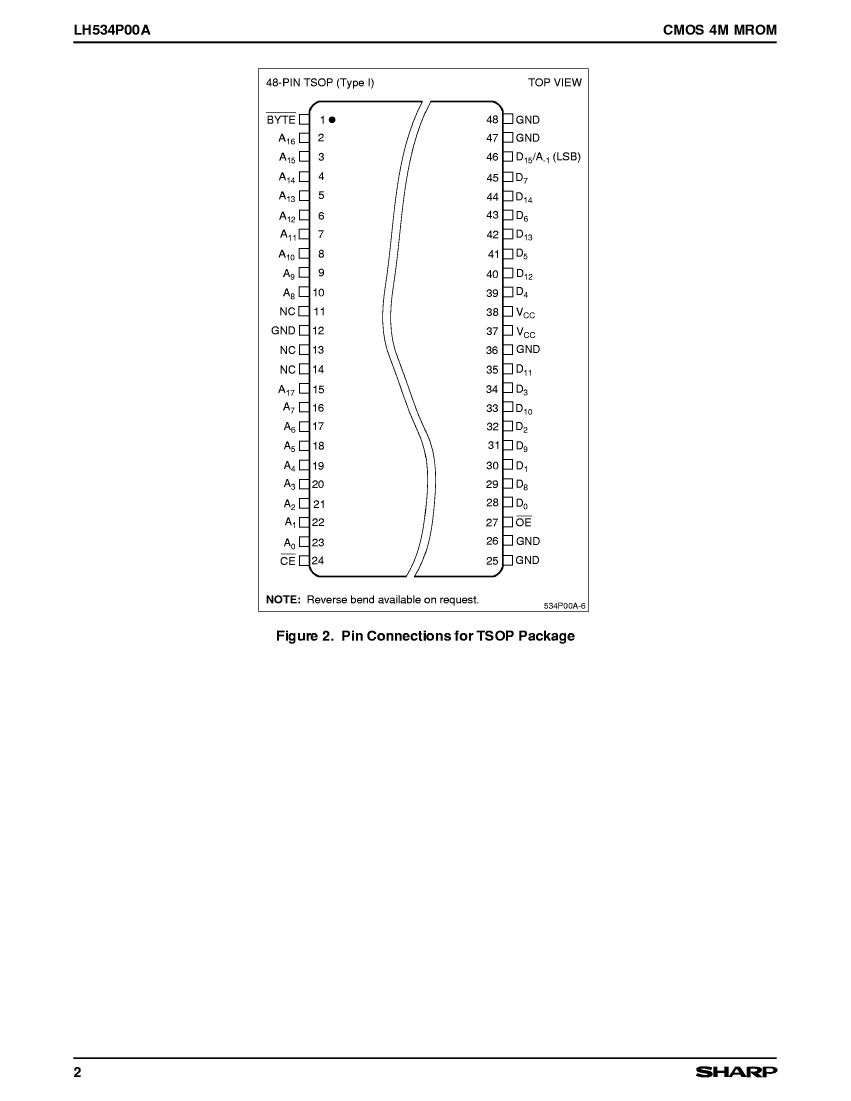

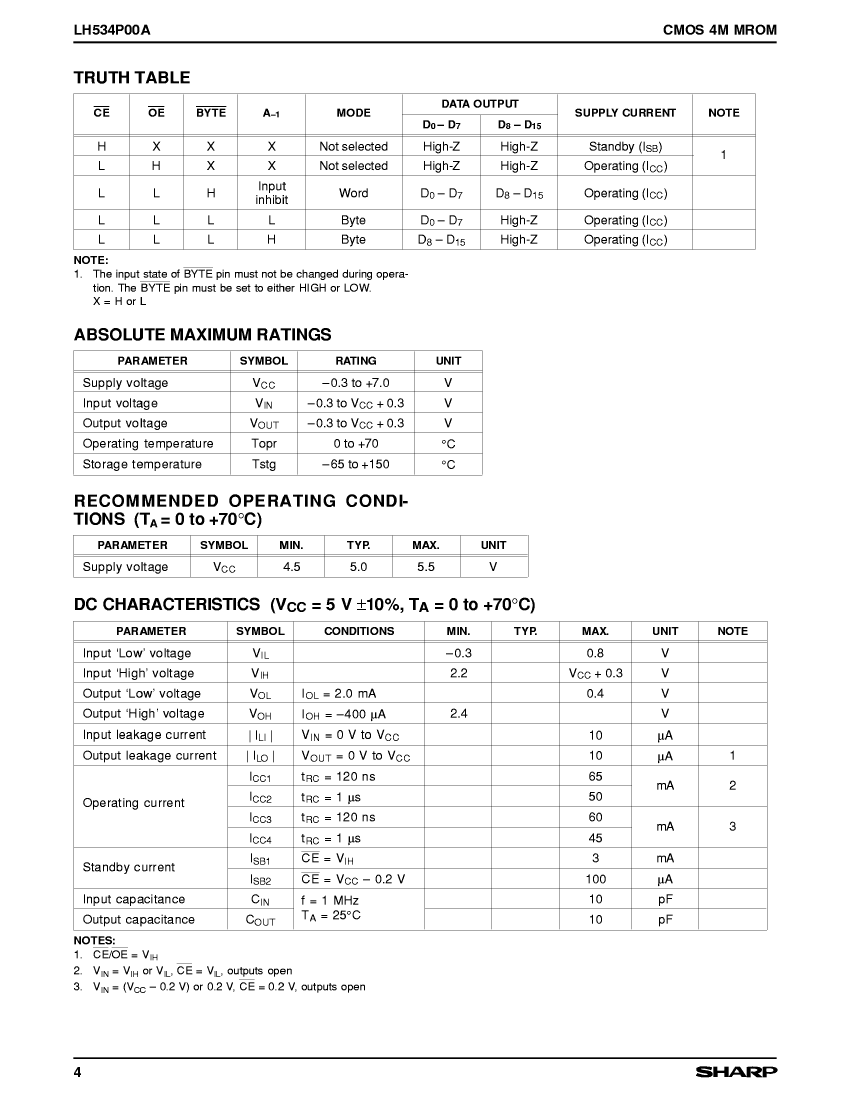

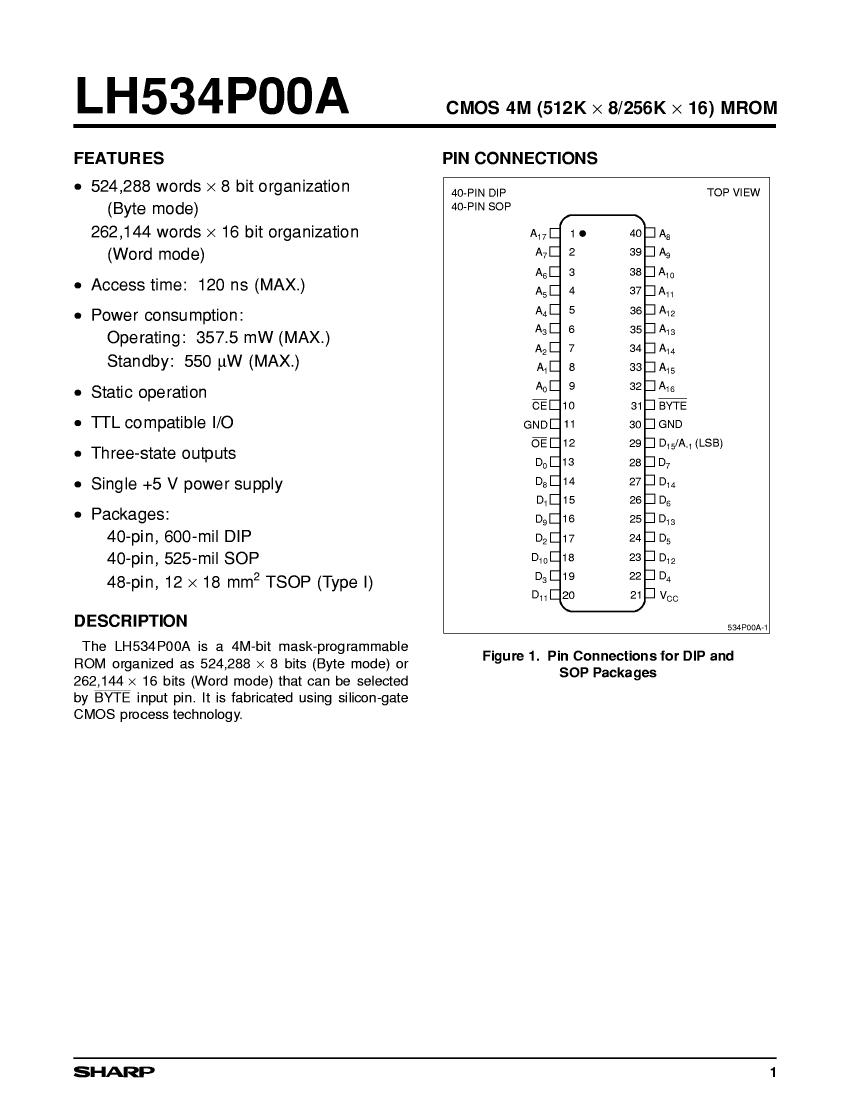

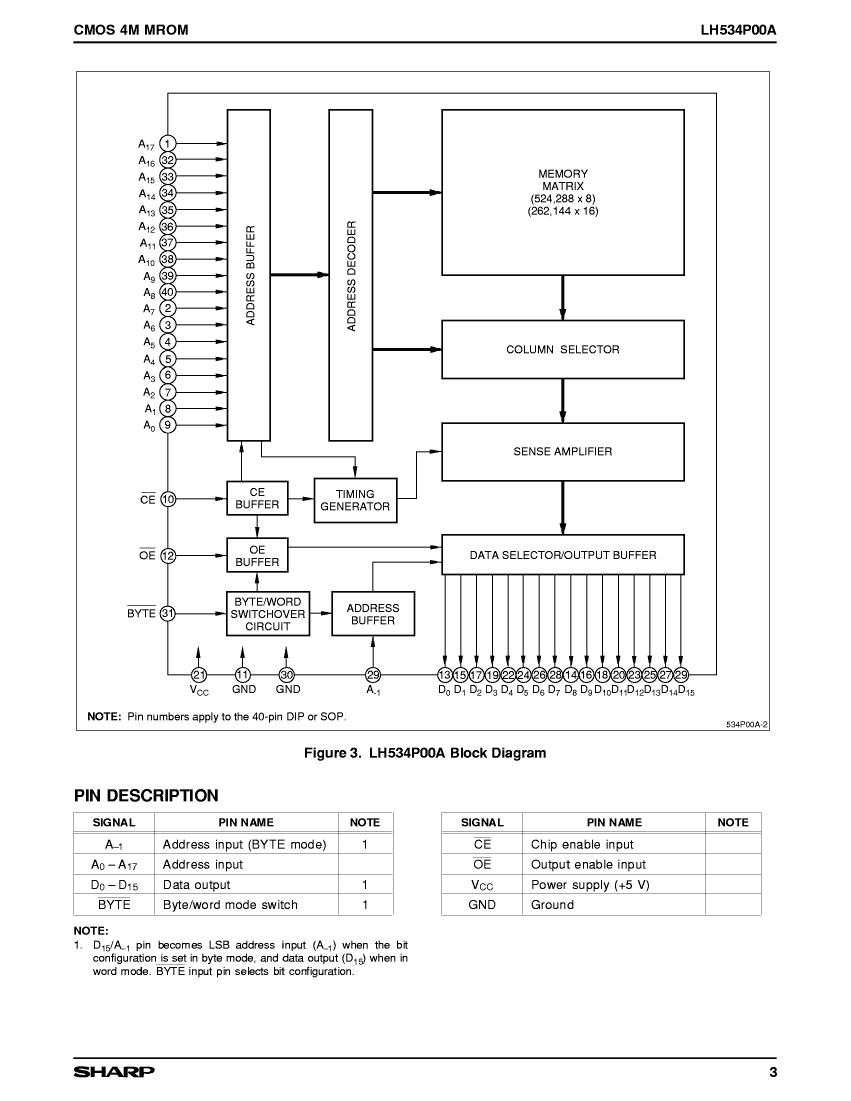

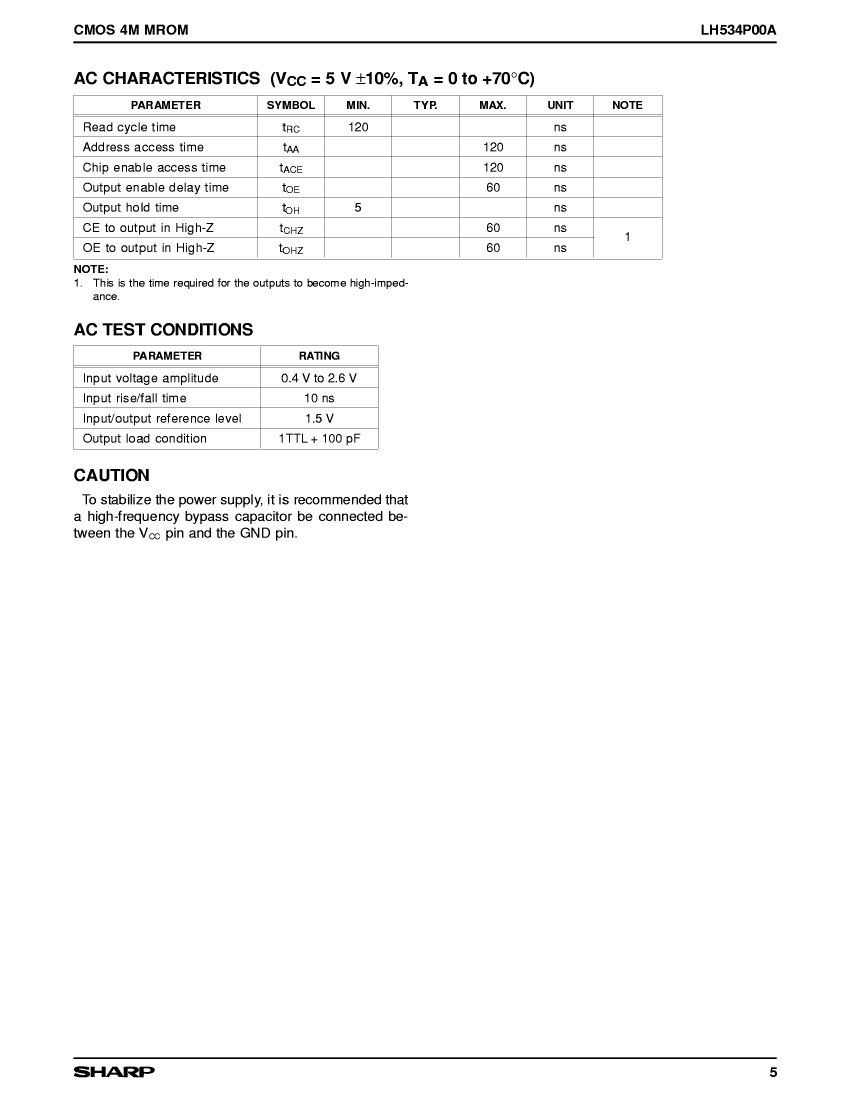

MASK ROM, 512KX8, 120ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48

LH534P00ATR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	12 X 18 MM, PLASTIC, REVERSE, TSOP1-48
Reach Compliance Code	unknown
Maximum access time	120 ns
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	16.4 mm
memory density	4194304 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	48
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1-R
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	12 mm

LH534P00ATR Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LH534P00ATR Related Products

	LH534P00ATR	LH534P00AD	LH534P00AN	LH534P00AT
Description	MASK ROM, 512KX8, 120ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48	MASK ROM, 512KX8, 120ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40	MASK ROM, 512KX8, 120ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40	MASK ROM, 512KX8, 120ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	SHARP	SHARP	SHARP	SHARP
package instruction	12 X 18 MM, PLASTIC, REVERSE, TSOP1-48	0.600 INCH, PLASTIC, DIP-40	0.525 INCH, PLASTIC, SOP-40	12 X 18 MM, PLASTIC, TSOP1-48
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	120 ns	120 ns	120 ns	120 ns
JESD-30 code	R-PDSO-G48	R-PDIP-T40	R-PDSO-G40	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0
length	16.4 mm	52 mm	26.3 mm	16.4 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	48	40	40	48
word count	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1-R	DIP	SOP	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	5.4 mm	3.1 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	0.5 mm	2.54 mm	1.27 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	12 mm	15.24 mm	11.3 mm	12 mm
