2-382434-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 2-382434-9

2-382434-9: DescriptionROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,18; CategoryMechanical and electronic products switch; File Size53KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-382434-9 Overview

ROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,18

2-382434-9 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Actuator color	WHITE
Actuator length
Actuator material	THERMOPLASTIC
Actuator type	ROCKER
Other features	LOW PROFILE, UV SEALED
body width	9.652 mm
Body color	BLUE
body height	7.366 mm
Body length or diameter	24.892 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.015 A
Contact (DC) maximum rated R load	0.015A@24VDC
Contact function	ON-OFF
Contact resistance	0.1 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VDC V
Electrical life	2000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	7100
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB hole count	18
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Switch type	ROCKER SWITCH
Terminal surface	TIN-LEAD/NICKEL
Terminal length	0.14 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

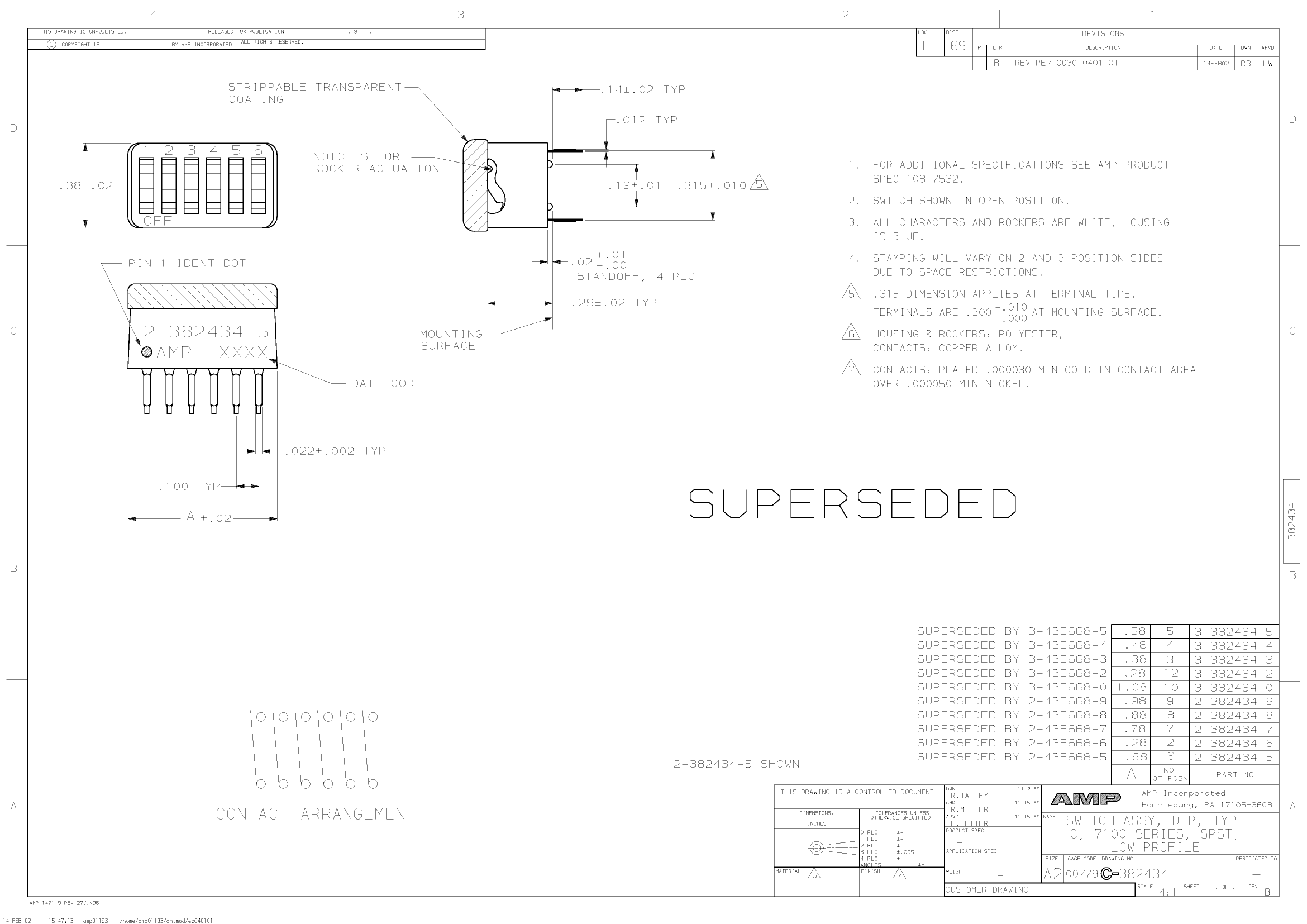

Preview

Download Datasheet

View All

2-382434-9 Related Products

	2-382434-9	2-382434-7	3-382434-4	3-382434-2	3-382434-5	3-382434-3
Description	ROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,18	ROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,14	ROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,8	ROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,24	ROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,10	ROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,6
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknown
Actuator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
Actuator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Actuator type	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER
Other features	LOW PROFILE, UV SEALED	LOW PROFILE, UV SEALED	LOW PROFILE, UV SEALED	LOW PROFILE, UV SEALED	LOW PROFILE, UV SEALED	LOW PROFILE, UV SEALED
body width	9.652 mm	9.652 mm	9.652 mm	9.652 mm	9.652 mm	9.652 mm
Body color	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE
body height	7.366 mm	7.366 mm	7.366 mm	7.366 mm	7.366 mm	7.366 mm
Body length or diameter	24.892 mm	19.812 mm	12.192 mm	32.512 mm	14.732 mm	9.652 mm
center contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Maximum contact current (DC)	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A
Contact (DC) maximum rated R load	0.015A@24VDC	0.015A@24VDC	0.015A@24VDC	0.015A@24VDC	0.015A@24VDC	0.015A@24VDC
Contact function	ON-OFF	ON-OFF	ON-OFF	ON-OFF	ON-OFF	ON-OFF
Contact resistance	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	24 V	24 V	24 V	24 V	24 V	24 V
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V
Electrical life	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)
End contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	7100	7100	7100	7100	7100	7100
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB hole count	18	14	8	24	10	6
surface mount	NO	NO	NO	NO	NO	NO
Switch action	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL
switch function	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Terminal surface	TIN-LEAD/NICKEL	TIN-LEAD/NICKEL	TIN-LEAD/NICKEL	TIN-LEAD/NICKEL	TIN-LEAD/NICKEL	TIN-LEAD/NICKEL
Terminal length	0.14 inch	0.14 inch	0.14 inch	0.14 inch	0.14 inch	0.14 inch
Terminal material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1
