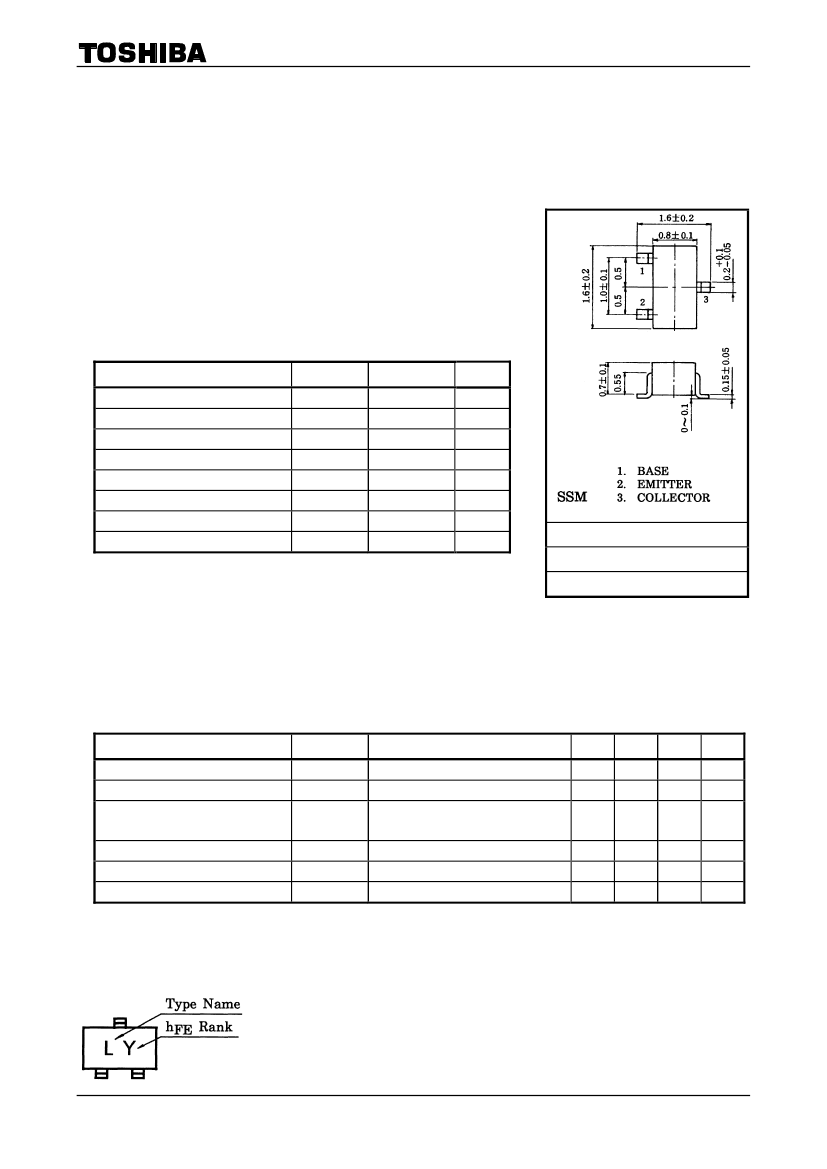

2SC4738
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT process)
2SC4738
Audio Frequency General Purpose Amplifier Applications
•
•
•
•
•
High voltage and high current: V
CEO
= 50 V, I
C
= 150 mA (max)
Excellent h
FE
linearity: h
FE
(I
C
= 0.1 mA)/ h
FE
(I
C
= 2 mA)
= 0.95 (typ.)
High h
FE
: h
FE
= 120~700
Complementary to 2SA1832
Small package
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
60
50
5
150
30
100
125
−55~125
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
―
JEITA
―
Note: Using continuously under heavy loads (e.g. the application of high
TOSHIBA
2-2H1A
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
Weight: 2.4 mg (typ.)
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
Symbol
I
CBO
I
EBO
h
FE
(Note)
V
CE
(sat)
f
T
C
ob
Test Condition
V
CB
=
60 V, I
E
=
0
V
EB
=
5 V, I
C
=
0
V
CE
=
6 V, I
C
=
2 mA
I
C
=
100 mA, I
B
=
10 mA
V
CE
=
10 V, I
C
=
1 mA
V
CB
=
10 V, I
E
=
0, f
=
1 MHz
Min
⎯
⎯
120
⎯
80
⎯
Typ.
⎯
⎯
⎯
0.1
⎯
2.0
Max
0.1
0.1
700
0.25
⎯
3.5
V
MHz
pF
Unit
μA
μA
Note: h
FE
classification Y (Y): 120~240, GR (G): 200~400, BL (L): 350~700
( ) marking symbol
Marking
1
2007-11-01

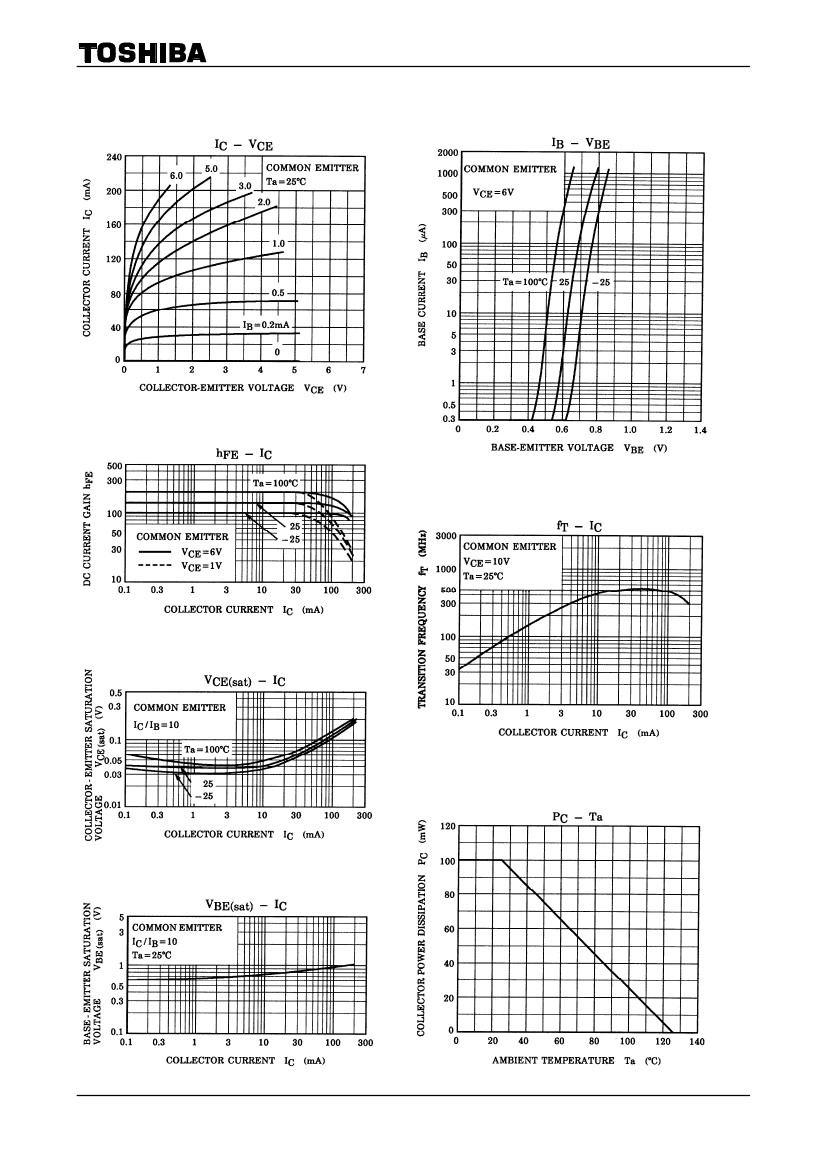

2SC4738
