3.4mm RIGHT ANGLE LED INDICATOR
L1384QMP/YD
Features
!
PRE-TRIMMED
!
CAN
!
I.C.
Description
LEADS FOR PC MOUNTING.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
BE ASSEMBLED WITH EACH OTHER.
CASE ENHANCES CONTRAST RATIO.
COMPATIBLE.
VIEWING ANGLE.
RELIABILITY LIFE MEASURED IN YEARS.
!
BLACK
!
WIDE
!
HIGH
!
HOUSING MATERIAL: PPA
!
PACKAGE : 1000PCS / REEL.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAA4139
APPROVED :
REV NO: V.1
CHECKED :
Digitally signed by YANGSHOUFEN
cn=YANGSHOUFEN, ou=42, o=KINGBRIGHT,
c=US
Date: 2001.10.05 15:30:55 +08'00'
Reason: Document is certified
DATE: SEP/26/2001
DRAWN: S.S. Wu
PAGE: 1 OF 4
Selection Guide
Iv (m c d )
@ 10 m A
Min .
L1384QMP/YD
YELLOW (GaAsP/GaP)
YELLOW DIFFUSED
8
Ty p .
15
V i ew i n g
An g l e
2θ1/2
60 °
Par t No .
Dic e
Cas e-Co lo r
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
°
Electrical / Optical Characteristics at T
)
=25°C
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Halfwidth
Capacitance
Forward Voltage
Reverse Current
Yellow
Yellow
Yellow
Yellow
Yellow
All
D ev i c e
Ty p .
590
588
35
20
2.1
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
IF=20mA
IF=20mA
IF=20mA
VF=0V;f=1MHz
IF=20mA
V R = 5V
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Yello w
10 5
30
140
5
-40
°
C To +85
°C
Un it s
mW
mA
mA
V
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
SPEC NO: DSAA4139
APPROVED :
REV NO: V.1
CHECKED :
DATE: SEP/26/2001
DRAWN: S.S. Wu
PAGE: 2 OF 4

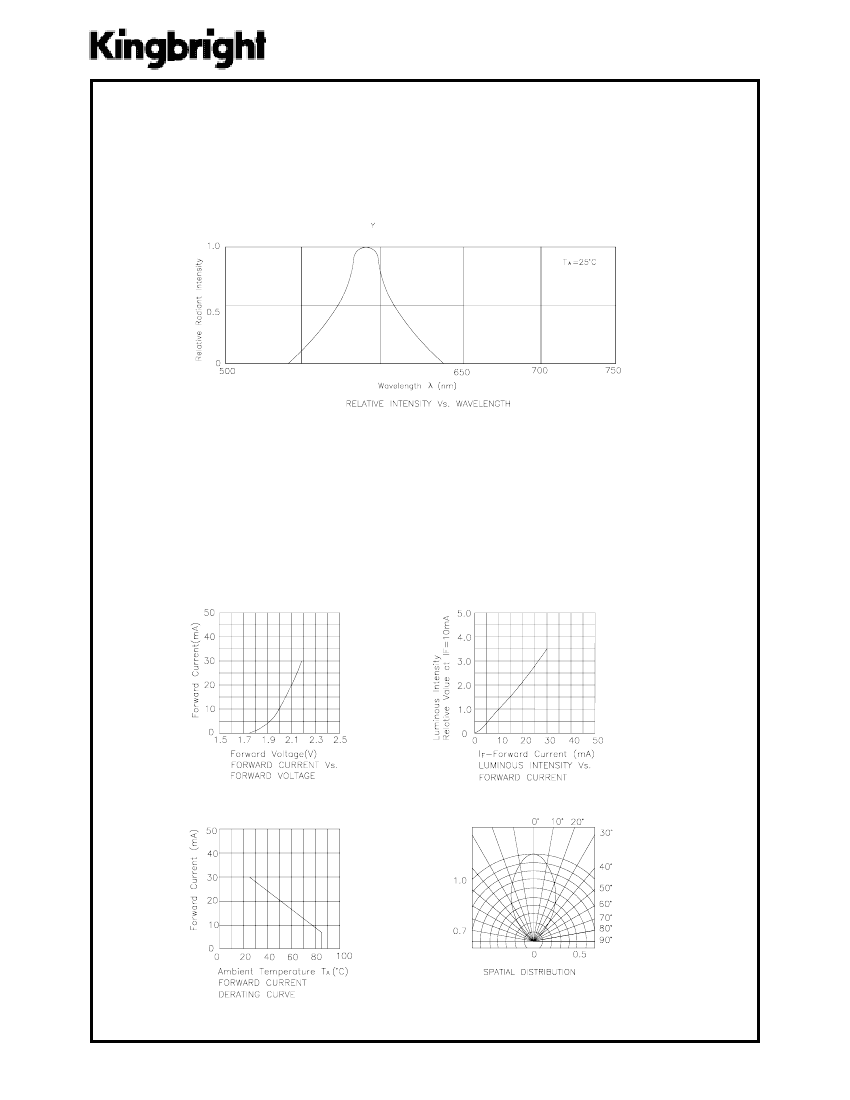

Yellow L1384QMP/YD
SPEC NO: DSAA4139
APPROVED :
REV NO: V.1
CHECKED :
DATE: SEP/26/2001
DRAWN: S.S. Wu
PAGE: 3 OF 4
L1384QMP/YD

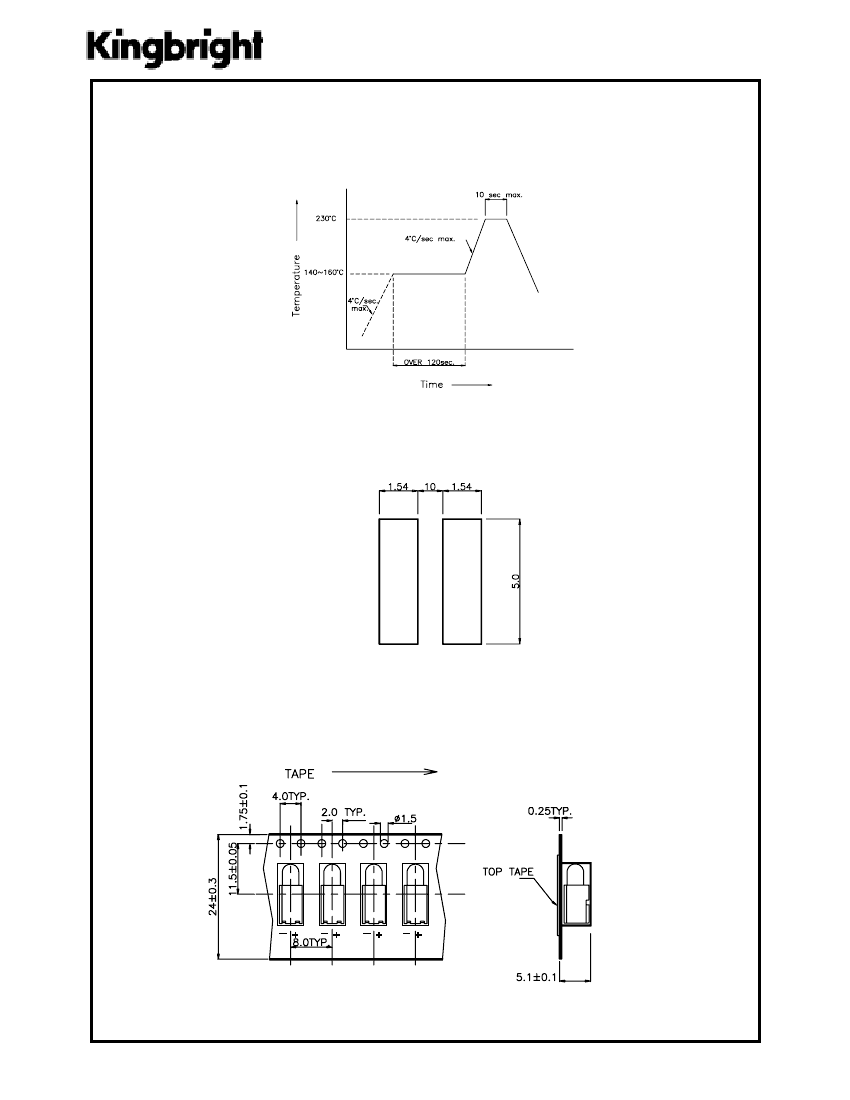

SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process."
Recommended Soldering Pattern
Tape Specifications
SPEC NO: DSAA4139
APPROVED :
REV NO: V.1
CHECKED :
DATE: SEP/26/2001
DRAWN: S.S. Wu
PAGE: 4 OF 4
