L-934HD-TNR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-934HD-TNR

L-934HD-TNR: DescriptionSINGLE COLOR LED, RED, 2.9mm,; CategoryLED optoelectronic/LED photoelectric; File Size161KB，1 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L-934HD-TNR Overview

SINGLE COLOR LED, RED, 2.9mm,

L-934HD-TNR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
color	RED
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	DIFFUSED
Nominal luminous intensity	3.125 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	TAPE AND REEL
peak wavelength	700 nm
shape	ROUND
size	2.9 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	60 deg

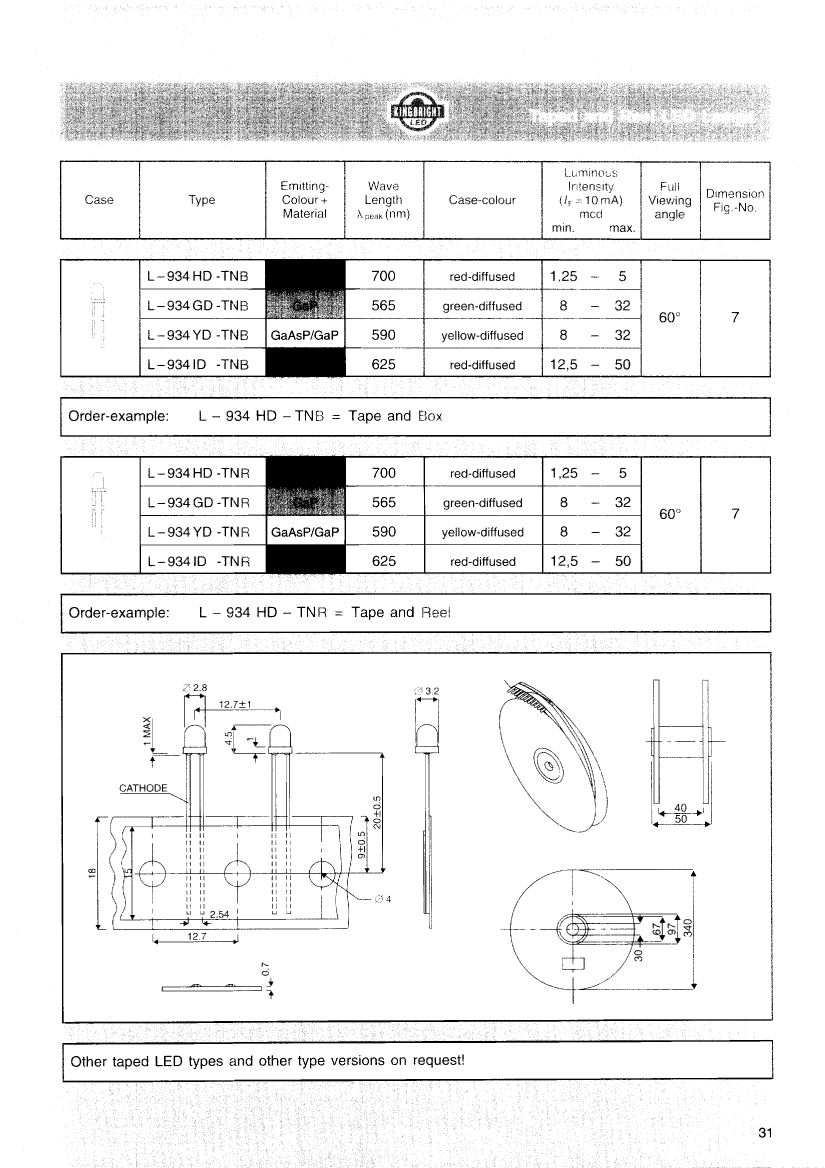

Preview

Download Datasheet

View All

L-934HD-TNR Related Products

	L-934HD-TNR	L-934ID-TNB	L-934ID-TNR	L-934YD-TNR	L-934YD-TNB	L-934GD-TNB	L-934HD-TNB
Description	SINGLE COLOR LED, RED, 2.9mm,	Single Color LED, Super Red, Red Diffused, 2.9mm,	SINGLE COLOR LED, SUPER RED, 2.9mm,	SINGLE COLOR LED, YELLOW, 2.9mm,	Single Color LED, Yellow, Diffused, 2.9mm,	Single Color LED, Green, Diffused, 2.9mm,	Single Color LED, Red, Diffused, 2.9mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	RED	SUPER RED	SUPER RED	YELLOW	YELLOW	GREEN	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.03 A	0.03 A	0.03 A	0.03 A	0.025 A	0.025 A
Lens type	DIFFUSED	RED DIFFUSED	RED DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	3.125 mcd	31.25 mcd	31.25 mcd	20 mcd	20 mcd	20 mcd	3.125 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm
method of packing	TAPE AND REEL	TAPE AND BOX	TAPE AND REEL	TAPE AND REEL	TAPE AND BOX	TAPE AND BOX	TAPE AND BOX
peak wavelength	700 nm	625 nm	625 nm	590 nm	590 nm	565 nm	700 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg
