W02M

Description
GENESIC SEMICONDUCTOR - W02M - BRIDGE RECTIFIER; 1PH; 1.5A; 200V; DOB
Categorysemiconductor    Discrete semiconductor
File Size143KB,2 Pages
ManufacturerSHANGHAI SHANGLANG ELECTRONIC TECHNOLOGY CO., LTD.
Download Datasheet Compare View All

W02M Online Shopping

Suppliers Part Number Price MOQ In stock
W02M - - View Buy Now

W02M Overview

GENESIC SEMICONDUCTOR - W02M - BRIDGE RECTIFIER; 1PH; 1.5A; 200V; DOB

CE
CHENYI ELECTRONICS

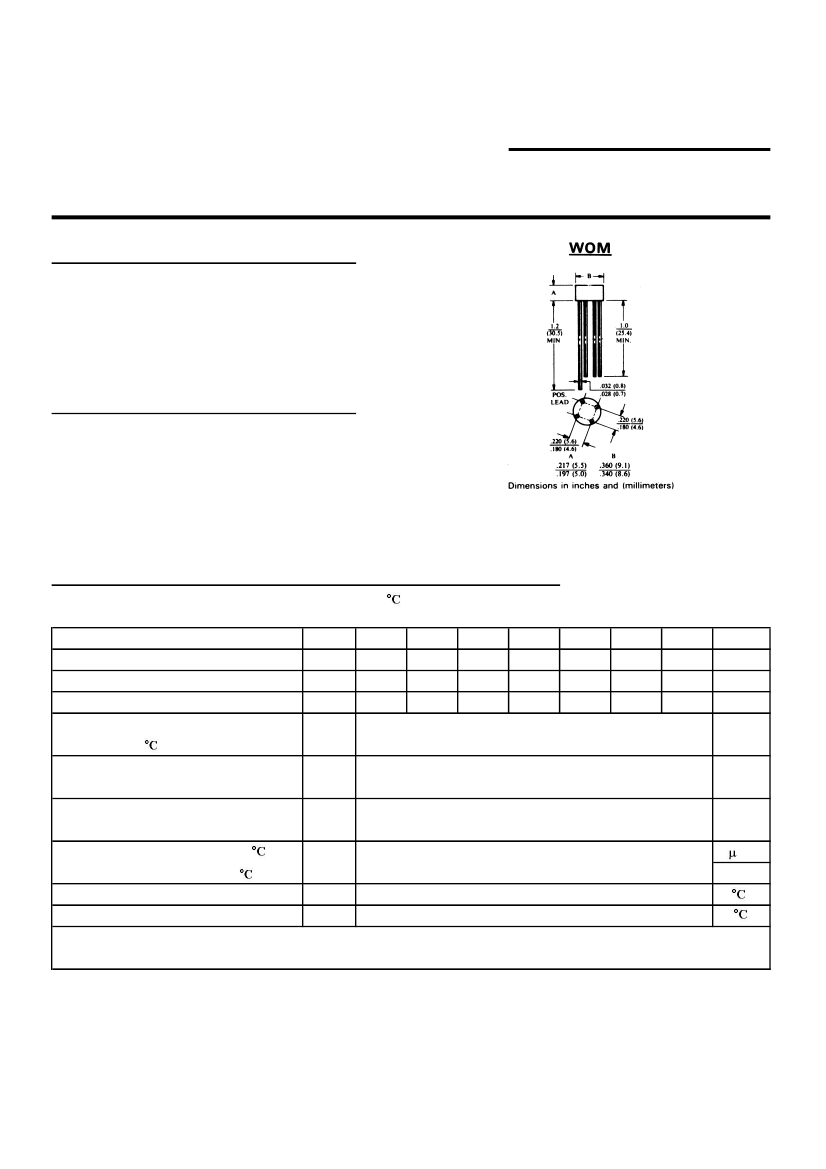

W005M THRU W10M
SINGLE PHASE GLASS
PASSIVATED BRIDGE RECTIFIER
Voltage: 50 TO 1000V CURRENT:1.5A
FEATURES
Ideal for printed circuit board
Surge overload rating: 50A peak
High case dielectric strength
MECHANICAL DATA
.
Terminal:
Plated leads solderable per
MIL-STD 202E, method 208C
.
Case:
UL-94 Class V-0 recognized Flame Retardant Epoxy
.
Polarity:
Polarity symbol marked on body
.
Mounting position:
any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Single-phase, half-wave, 60HZ, resistive or inductive load rating at 25
for capacitive load, derate current by 20%)
SYMBOL W005M
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified
current at Ta=25
Peak Forward Surge Current 8.3ms single
half sine-wave superimposed on rated load
Maximum Instantaneous Forward Voltage at
forward current 1.5A DC
Maximum DC Reverse Voltage Ta=25
at rated DC blocking voltage Ta=100
Operating Temperature Range
Storage and operation Junction Temperature
Ir
Tj
Tstg
Vf
1.0
10.0
1.0
-55 to +125
-55 to +150
V
A
mA
Ifsm
50
A
If(av)
1.5
A
Vrrm
Vrms
Vdc
50
35
50
W01M
100
70
100
W02M
200
140
200
W04M
400
280
400
W06M
600
420
600
W08M
800
560
800
W10M
1000
700
1000
, unless otherwise stated,
units
v
v
v
Copyright @ 2000 SHANGHAI CHENYI ELECTRONICS CO.,LTD

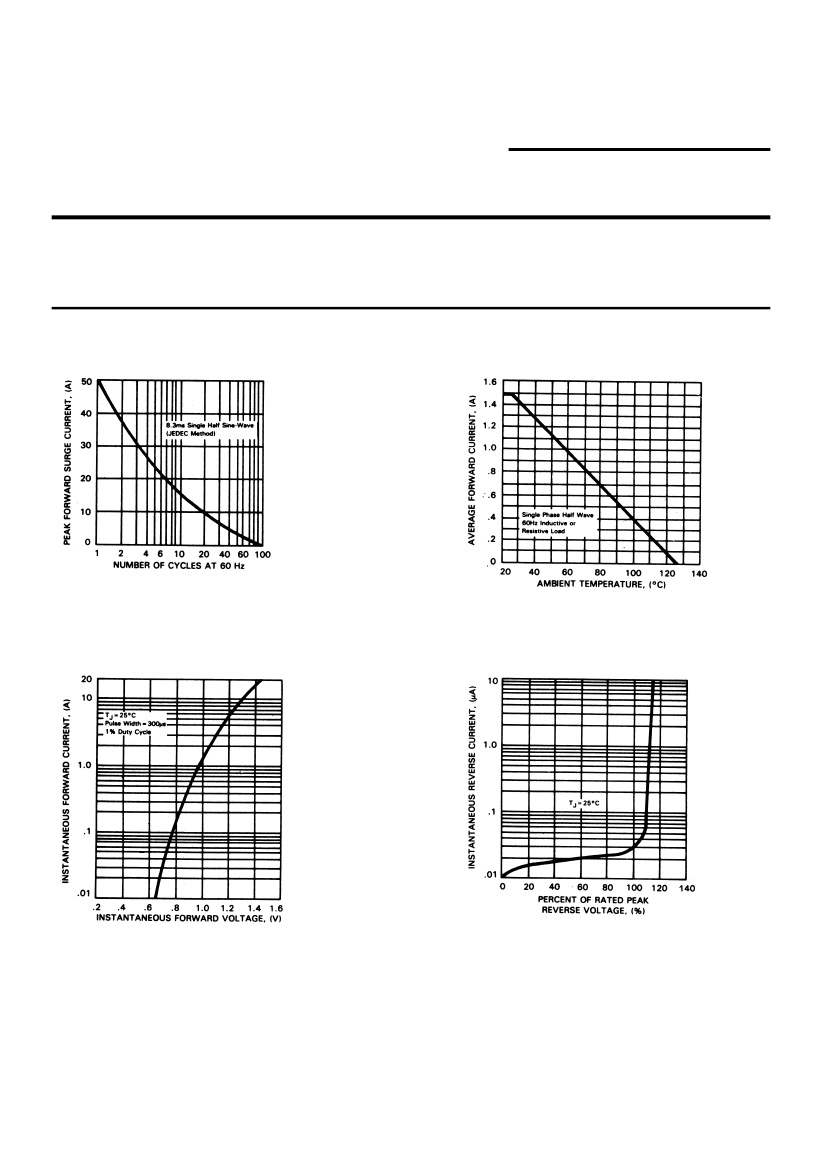

Page 1 of 2
