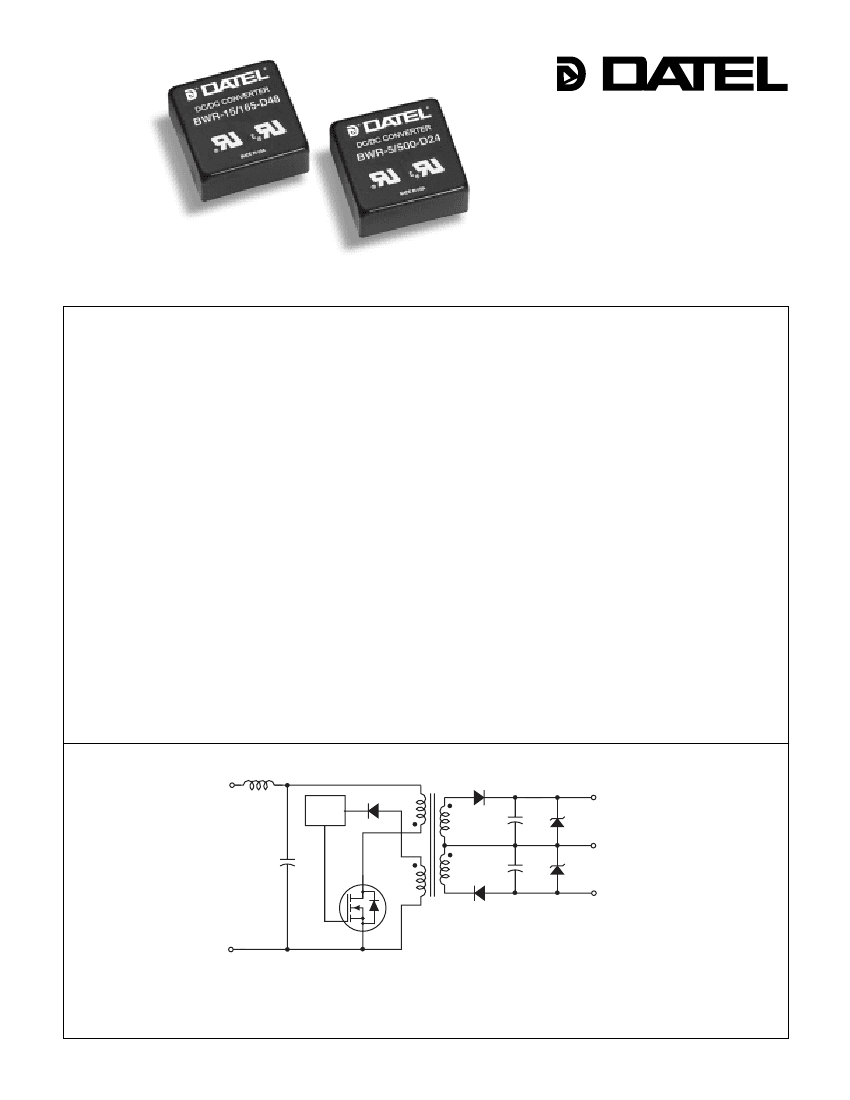

INNOVATION and EXCELLENCE
Dual Output
BWR Models
Miniature, 1" x 1"
5 Watt, DC/DC Converters
Features
s
s
s
s
Small size, 1" x 1" x 0.45"
Full 5 Watts output power
No external components required
Drop-in replacements for many
standard, 2" x 1" DC/DC’s
Wide input voltage ranges:
18-36V or 36-72V
Standard output voltages:
±5, ±12, ±15 Volts
Guaranteed efficiencies to 80%
Fully regulated and isolated
(1000Vdc guaranteed)
Output overvoltage protection and
current limiting
–25 to +95
o
C operating temperature
Shielded cases (5 sides)
UL1950, CSA 22.2 No. 234, and IEC950
Modifications and customs for OEM's
s
s
s
s
s
s
s
s
s
The migration to distributed power is accelerating. The critical need for accurate
voltages, tight regulation and rapid transient response is propelling the move to power
processing at the "point-of-use" with low-power DC/DC converters physically located
right at their loads.
DATEL’s miniature, full featured, 5 Watt BWR Models were specifically designed for
today’s demanding distributed power architectures in aerospace, marine, telecom and
computer applications. The converters’ small size (1" x 1" x 0.45"),
full 5 Watt output capability and low cost give system architects unprecedented design
and layout flexibility.
Occupying less than 0.5in
3
total volume, these extremely compact, fully regulated
and isolated (1000Vdc) modules are available with ±5, ±12 or ±15 Volt outputs. Input
voltage ranges are either 18-36 Volts ("D24" models) or 36-72 Volts ("D48" models).
Although their overall size is 50-75% smaller than many similarly rated power
modules, these 1" x 1" BWR Models are exact, drop-in, pin-for-pin replacements for
many standard 2" x 1" and 2" x 2", 5 Watt modules. They achieve their small size and
low cost by exploiting a novel feedback approach that does not depend upon traditional
optocoupler techniques.
All models are 5-side shielded and have a non-conductive baseplate that permits
pc-card runs to be placed beneath the package. Units are assembled using high-
speed automated SMT techniques and are fully encapsulated with thermally conductive
potting compound. Every unit is electrically tested before
and after encapsulation, 100% burned-in under full load, hi-pot tested, and final-
electrical tested prior to shipment. Every unit meets DATEL’s traditional high standards
for quality and long-term reliability.
+V
IN
*
+V
OUT
PWM
COMMON
–V
OUT
–V
IN
* "D24" models only
Figure 1. Simplified Schematic
DATEL, Inc., 11 Cabot Boulevard, Mansfield, MA 02048 (U.S.A.)
•
Tel: (508)339-3000, (800)233-2765 Fax: (508)339-6356
•
Email: datellit@mcimail.com
XWR Series
M I N I AT U R E , 5 WAT T
DC/DC
CONVERTERS
Performance Specifications and Ordering Guide
Output
Model
BWR-5/500-D24
BWR-5/500-D48
BWR-12/210-D24
BWR-12/210-D48
BWR-15/165-D24
BWR-15/165-D48
Input
Regulation (Max.)
Load
Line
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
V
OUT
(Volts)
±5
±5
±12
±12
±15
±15
I
OUT
(mA, Max.)
±500
±500
±210
±210
±165
±165
Ripple/Noise
(mVp-p, Max.)
150
120
150
150
150
150
V
IN
Nom.
(Volts)
24
48
24
48
24
48
Range
(Volts)
18-36
36-72
18-36
36-72
18-36
36-72
I
IN
(mA, Max.)
25/282
25/141
25/264
25/133
25/260
25/130
Efficiency
(Min.)
75%
75%
80%
80%
80%
80%
Package
(Case,
Pinout)
C7, P4
C7, P4
C7, P4
C7, P4
C7, P4
C7, P4
Typical at T
A
= +25°C under nominal line voltage and full-load conditions unless otherwise noted.
Ripple/Noise (R/N) measured over a 20MHz bandwidth.
Balanced loads, 20% to 100% load.
Nominal line voltage, no-load/full-load conditions.
PART NUMBER STRUCTURE
M E C H A N I C A L S P E C I F I C AT I O N S
B WR
-
15
/
165
-
D48
Output Configuration:
B
= Bipolar
Wide Range Input
Nominal Output Voltages:
±5, ±12 or ±15 Volts
Maximum Output Current
in mA from each output
0.20 MIN.
(5.08)
Case C7
Input Voltage Range:
D24
= 18-36 Volts (24V nominal)
D48
= 36-72 Volts (48V nominal)
0.45
(11.43)
1.00
(25.40)
METAL CASE
INSULATED BASE
0.040 ±0.002 DIA.
(1.016 ±0.051)
0.800
(20.32)
0.10
(2.54)
0.100
(2.54)
1
3
0.400
(10.16)
4
2
5
1.00
0.800
(20.32) (25.40)
T E M P E R AT U R E D E R AT I N G
5
4.5
4
0.200
(5.08)
6
BOTTOM VIEW
0.200
(5.08)
0.10
(2.54)
Output Power (Watts)
3.5
3
2.5
2
1.5
1
0.5
0
–25
0
35
40
45
50
55
60
65
70
75
80
85
90
95
I/O Connections
Pin Function P4
+Input
1
–Input
2
+Output
3
Common
4
No Pin
5
–Output
6
Notes:
For "D24" models, the case
is connected to pin 2 (–V
IN
).
For "D48" models, the case
is connected to pin 1 (+V
IN
).
Ambient Temperature (°C)
2
M I N I AT U R E ,
5 WAT T
DC/DC
CONVERTERS
BWR Models
Performance/Functional Specifications
Typical @ T
A
= +25°C under nominal line voltage and full-load conditions, unless noted.
Input
Input Voltage Range:
"D24" Models
"D48" Models
Input Current
Input Filter Type
Reverse-Polarity Protection
V
OUT
Accuracy
(50% load):
±5V Outputs
±12/±15V Outputs
Temperature Coefficient
Ripple/Noise
(20MHz BW)
Line Regulation
Load Regulation
Efficiency
Isolation Voltage
Current Limiting
Overvoltage Protection
Transient Response
(50% load step)
Switching Frequency
Operating Temperature
(ambient):
Without Derating
With Derating
Storage Temperature
Dimensions
Shielding
Case Connection:
"D24" Models
"D48" Models
Case Material
Pin Material
Weight
18-36 Volts (24V nominal)
36-72 Volts (48V nominal)
See Ordering Guide
LC on "D24" models
C on "D48" models
Yes (Instantaneous, 6A maximum)
Input Voltage:
"D24" Models
"D48" Models
ABSOLUTE MAXIMUM RATINGS
44 Volts
88 Volts
Current must be <6A. Brief
duration only. Fusing recommended.
6.8 Volts, limited duration
15 Volts, limited duration
18 Volts, limited duration
Current limited. Max. current and
short-circuit duration are model
dependent.
–55 to +125°C
+300°C
Input Reverse-Polarity Protection
Output Overvoltage Protection
±5V Outputs
±12V Outputs
±15V Outputs
Output Current
OUTPUT
±1.5%, maximum
±1%, maximum
±0.02% per °C
See Ordering Guide
See Ordering Guide
See Ordering Guide
See Ordering Guide
1000Vdc, minimum
Auto-recovery
Zener/transorb clamps
Storage Temperature
Lead Temperature
(soldering, 10 sec.)
These are stress ratings. Exposure of devices to any of these conditions may adversely
affect long-term reliability. Proper operation under conditions other than those listed in the
Performance/Functional Specifications Table is not implied.
TECHNICAL NOTES
Dynamic Characteristics
500µsec max. to ±1.5% of final value
170kHz (±10kHz)
Environmental
–25 to +60°C
to +95°C (See Derating Curve)
–55 to +125°C
Floating Outputs
Since these are isolated DC/DC converters, their outputs are "floating." Any
BWR model may be configured to produce an output of 10V, 24V or 30V
(for ±5V, ±12V or ±15V models, respectively) by applying the load across
the +Output and –Output (pins 3 and 6), with either output grounded. The
Common (pin 4) should be left open. Minimum 20% loading is recom-
mended under these conditions.
Filtering and Noise Reduction
All BWR 5 Watt DC/DC Converters achieve their rated ripple and noise
specifications without the use of external input/output capacitors. In critical
applications, input/output ripple and noise may be further reduced by
installing low-ESR, tantalum or electrolytic capacitors across the input
and/or output terminals. Output capacitors should be connected between
their respective output pin (pin 3 or 6) and Common (pin 4)as shown in
Figure 2. The capacitors should be located as close to the power
converters as possible. Typical values are listed below. In many applica-
tions, using values greater than those listed will yield better results.
To Reduce Input Ripple
"D24" Models
"D48" Models
To Reduce Output Ripple
±5V Outputs
±12/15V Outputs
20µF, 50V
10µF, 100V
47µF, 10V, Low ESR
33µF, 20V, Low ESR
Physical
1" x 1" x 0.45" (25.4 x 25.4 x 11.4mm)
5-sided
Pin 2 (–V
IN
)
Pin 1 (+V
IN
)
Corrosion resistant steel with
epoxy-based enamel finish
Brass, solder coated
0.7 ounces (20 grams)
These power converters require a minimum 20% loading to maintain specified regulation.
Operation under no-load conditions will not damage these devices; however they may not
meet all listed specifications.
Application-specific internal input/output filtering can be recommended and perhaps added
internally on request. Contact DATEL Applications Engineering for details.
Units can be screened or modified for higher guaranteed isolation voltages.
Contact DATEL Applications Engineering for details.
Units can be screened for lower-temperature operation.
Contact DATEL Applications Engineering for details.
In critical, space-sensitive applications, DATEL may be able to tailor the
internal input/output filtering of these units to meet your specific require-
ments. Contact our Applications Engineering Group for additional details.
3
XWR Models
M I N I AT U R E , 5 WAT T
DC/DC
CONVERTERS
Typical Performance Curves
(T
A
= +25°C)
The performance curves below were derived from actual test data for a single model number (BWR-15/165-D48).
Since all devices in this series have the same circuit topology, the performance curves are representative of all devices.
E F F I C I E N C Y V S . I N P U T VO LTAG E A N D O U T P U T L OA D
Efficiency vs. Input Voltage
(Full-load conditions. Guaranteed efficiency = 80%
at V
IN
= 48V
)
85
84
84
82
Efficiency (%)
80
78
76
74
72
36
42
48
54
60
66
72
Efficiency vs. Output Load
(V
IN
= nominal = 48V. Guaranteed efficiency at full load = 80%)
Efficiency (%)
83
82
81
80
79
33
66
99
Output Currents (±mA)
132
165
Input Voltage (Volts)
L OA D R E G U L AT I O N
Output Voltage vs. Load (Balanced)
(V
IN
= nominal = 48V. Nominal V
OUT
span = 30V)
30.3
15.20
Output Voltage vs. Load (Unbalanced)
(V
IN
= nominal = 24V. Load on +V
OUT
fixed at 165mA)
Output Voltage Span (Volts)
30.2
30.1
30.0
29.9
29.8
29.7
35
45
55
65
75
85
95
105 115 125 135 145 155 165
Output Currents (±mA)
Output Voltage (±Volts)
15.15
15.10
15.05
15.00
14.95
14.90
14.85
14.80
35
55
75
95
115
135
155
175
–V
OUT
Output Current (mA)
–V
OUT
+V
OUT
L I N E R E G U L AT I O N
Output Voltage vs. Input Voltage
(Full-load conditions. Nominal V
OUT
span = 30V)
30.3
Output Voltage Span (Volts)
30.2
30.1
30.0
29.9
29.8
29.7
36
40
44
48
52
56
60
64
68
72
Input Voltage (Volts)
4
M I N I AT U R E ,
5 WAT T
DC/DC
CONVERTERS
BWR Models
E M I R A D I AT E D E M I S S I O N S
+OUTPUT
1
+INPUT
+
C
IN
2
–INPUT
COMMON
3
+
C
OUT
4
+
C
OUT
6
–OUTPUT
If you’re designing with EMC in mind, please note that all of DATEL’s BWR 5
Watt DC/DC Converters have been characterized for radiated and conducted
emissions in our new EMI/EMC laboratory. Testing is conducted in an EMCO
5305 GTEM test cell utilizing EMCO automated EMC test software. Radiated
emissions are tested to the limits of FCC Part 15, Class B and CISPR 22
(EN 55022) Class B. Correlation to other specifications can be supplied upon
request. Radiated emissions plots to FCC and CISPR 22 for model BWR-15/
165-D48 appear below. Its performance is typical of all models in the Family.
Published EMC test reports are available for each model number. Contact
DATEL’s Applications Engineering Department for details.
Figure 2. Using External Capacitors to Reduce
Input/Output Ripple/Noise
80
70
BWR-15/165-D48 Radiated Emissions
FCC Part 15 Class B, 3 Meters
Converter Output = ±15Vdc @ ±132mA
Radiated Emissions (dBµV/M)
Input Fusing
Certain applications and/or safety agencies may require the installation of
fuses at the inputs of power conversion components. For DATEL BWR
5 Watt DC/DC Converters, you should use slow-blow type fuses with values
no greater than 0.5A.
60
FCC Class B Limit
50
40
30
20
10
0
Radiated Emissions
C U S TO M C A PA B I L I T I E S
–10
DATEL’s world-class design, development and manufacturing team stands
ready to work with you to deliver the exact power converter you need for your
demanding, large volume, OEM applications. And ... we’ll do it on time and
within budget!
Our experienced applications and design staffs; quick-turn prototype capability;
highly automated, SMT assembly facilities; and in-line SPC quality-control
techniques combine to give us the unique ability to design and deliver any
quantity of power converters to the highest standards of quality and reliability.
We have compiled a large library of DC/DC designs that are currently used in a
variety of telecom, medical, computer, railway, aerospace and industrial
applications. We may already have the converter you need.
Contact us. Our goal is to provide you the highest-quality, most cost-effective
power converters available.
–20
100
1000
Frequency (MHz)
BWR-15/165-D48 Radiated Emissions
EN 55022 Class B, 10 Meters
Converter Output = ±15Vdc @ ±132mA
80
70
60
Radiated Emissions (dBµV/M)
50
EN 55022 Class B Limit
40
30
20
10
0
Radiated Emissions
–10
–20
100
1000
Frequency (MHz)
5
京公网安备 11010802033920号
EEWORLD
