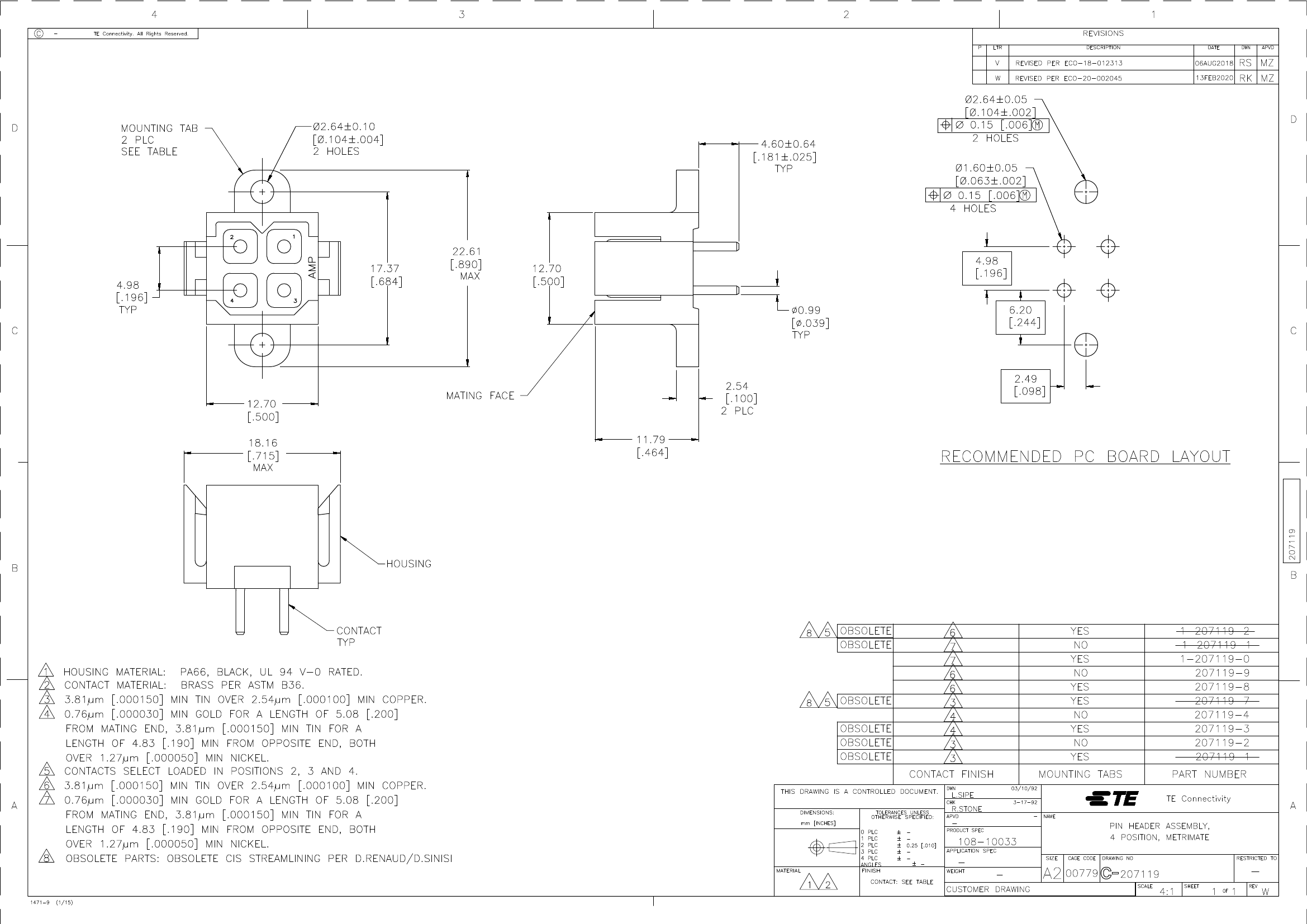

207119-1: Description4 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER, PLUG; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

207119-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	207119-1	-	-	View	Buy Now

207119-1 Overview

4 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER, PLUG

207119-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1431083726
Reach Compliance Code	compliant
YTEOL	0
Other features	PIN HEADER
body width	0.715 inch
subject depth	0.464 inch
body length	0.89 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2000VAC V
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	100000000 Ω
Insulator color	RED
insulator material	THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.196 inch
Match contact row spacing	0.196 inch
Plug information	207015-1
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.9784 mm
Plating thickness	150u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	7.5 A
Guideline	CSA, UL
Shell material	POLYAMIDE
Terminal length	0.181 inch
Terminal pitch	5.0038 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N

Preview

Download Datasheet

View All

207119-1 Related Products

	207119-1	MHR0309SA207K20	207119-3
Description	4 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER, PLUG	maximum working voltage	METRIMATE PIN HEADER ASSY,4P
Is it lead-free?	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	-	incompatible
Objectid	1431083726	-	1431083732
Reach Compliance Code	compliant	-	compliant
Other features	PIN HEADER	-	PIN HEADER
body width	0.715 inch	-	0.715 inch
subject depth	0.464 inch	-	0.464 inch
body length	0.89 inch	-	0.89 inch
Body/casing type	PLUG	-	PLUG
Connector type	COMBINATION LINE CONNECTOR	-	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	MALE	-	MALE
Contact material	COPPER ALLOY	-	COPPER ALLOY
contact mode	RECTANGULAR	-	RECTANGULAR
Contact style	RND PIN-SKT	-	RND PIN-SKT
DIN compliance	NO	-	NO
Dielectric withstand voltage	2000VAC V	-	2000VAC V
Durability	250 Cycles	-	250 Cycles
empty shell	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
maximum insertion force	4.8928 N	-	4.8928 N
Insulation resistance	100000000 Ω	-	100000000 Ω
Insulator color	RED	-	RED
insulator material	THERMOPLASTIC	-	THERMOPLASTIC
MIL compliance	NO	-	NO
Plug contact pitch	0.196 inch	-	0.196 inch
Match contact row spacing	0.196 inch	-	0.196 inch
Plug information	207015-1	-	207015-1
Mixed contacts	NO	-	NO
Installation option 1	LOCKING	-	LOCKING
Installation method	STRAIGHT	-	STRAIGHT
Installation type	BOARD	-	BOARD
Number of connectors	ONE	-	ONE
PCB row number	2	-	2
Number of rows loaded	2	-	2
Maximum operating temperature	130 °C	-	130 °C
Minimum operating temperature	-55 °C	-	-55 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	RECTANGULAR
PCB contact row spacing	4.9784 mm	-	4.9784 mm
Plating thickness	150u inch	-	30u inch
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING
Rated current (signal)	7.5 A	-	7.5 A
Guideline	CSA, UL	-	CSA, UL
Shell material	POLYAMIDE	-	POLYAMIDE
Terminal length	0.181 inch	-	0.181 inch
Terminal pitch	5.0038 mm	-	5.0038 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	4	-	4
UL Flammability Code	94V-0	-	94V-0
Evacuation force-minimum value	.278 N	-	.278 N
