FSBM20SL60 Overview

AC MOTOR CONTROLLER, 40 A, DMA32

FSBM20SL60 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	AC MOTOR CONTROLLER
JESD-30 code	R-XDMA-T32
Humidity sensitivity level	NOT SPECIFIED
Number of functions	1
Number of terminals	32
Maximum output current	40 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	COMMERCIAL
Maximum supply voltage (Vsup)	16.5 V
Minimum supply voltage (Vsup)	13.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	HYBRID
Terminal surface	NOT SPECIFIED
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

FSBM20SL60 Preview

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

FSBM20SL60

SPM

(Smart Power Module)

General Description

FSBM20SL60 is an advanced smart power module (SPM)

that Fairchild has newly developed and designed to provide

very compact and high performance ac motor drives mainly

targeting low speed low-power inverter-driven application

like air conditioners. It combines optimized circuit protection

and drive matched to low-loss IGBTs. Highly effective

short-circuit current detection/protection is realized through

the use of advanced current sensing IGBT chips that allow

continuous monitoring of the IGBTs current. System

reliability is further enhanced by the integrated under-

voltage lock-out protection. The high speed built-in HVIC

provides opto-coupler-less IGBT gate driving capability that

further reduce the overall size of the inverter system design.

In addition the incorporated HVIC facilitates the use of

single-supply drive topology enabling the FSBM20SL60 to

be driven by only one drive supply voltage without negative

bias. Inverter current sensing application can be achieved

due to the divided negative dc terminals.

Features

• UL Certified No. E209204

• 600V-20A 3-phase IGBT inverter bridge including control

ICs for gate driving and protection

• Divided negative dc-link terminals for inverter current

sensing applications

• Single-grounded power supply due to built-in HVIC

• Typical switching frequency of 3kHz

• Inverter power rating of 1.5kW / 100~253 Vac

• Isolation rating of 2500Vrms/min.

• Very low leakage current due to using ceramic substrate

• Adjustable current protection level by varying series

resistor value with sense-IGBTs

Applications

• AC 100V ~ 253V 3-phase inverter drive for small power

(1.5kW) ac motor drives

• Home appliances applications requiring low switching

frequency operation like air conditioners drive system

• Application ratings:

- Power : 1.5kW / 100~253 Vac

- Switching frequency : Typical 3kHz (PWM Control)

- 100% load current : 8A (Irms)

- 150% load current : 12A (Irms) for 1 minute

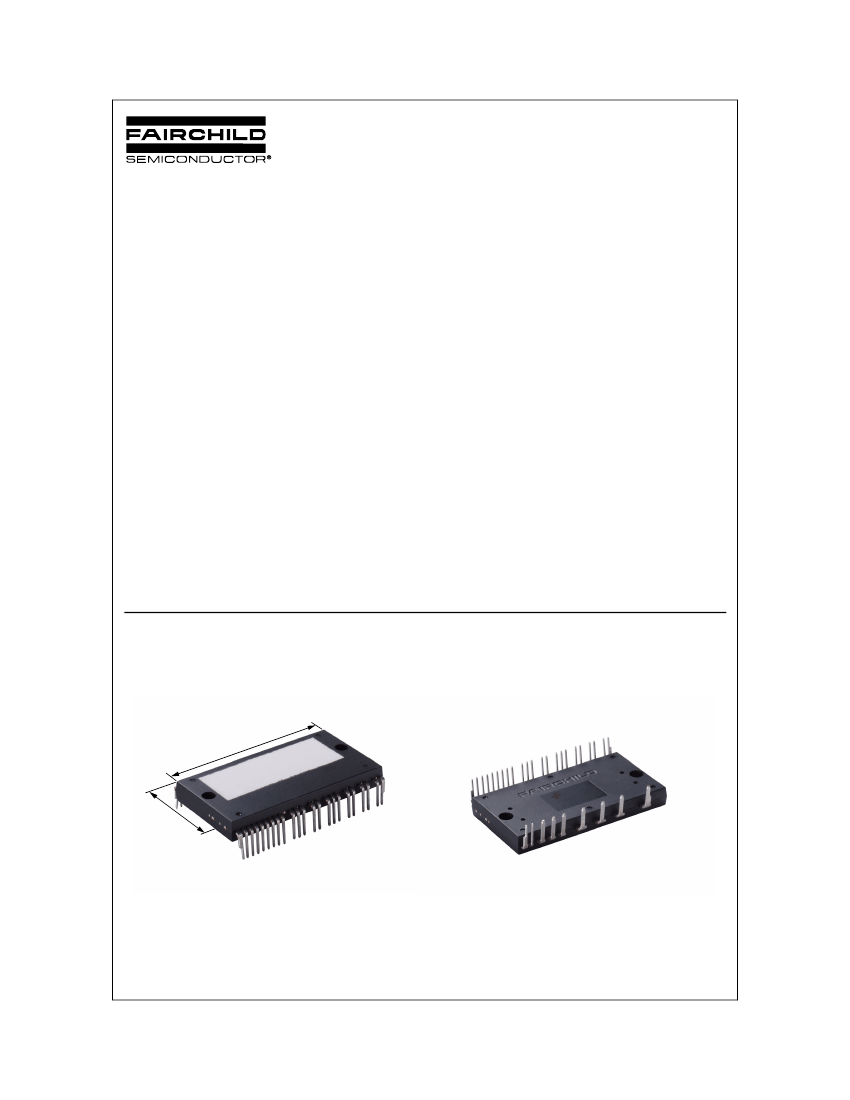

External View

Top View

Bottom View

60mm

31mm

Fig. 1.

Rev. D, August 2003

FSBM20SL60

Integrated Power Functions

• 600V-20A IGBT inverter for 3-phase DC/AC power conversion (Please refer to Fig. 3)

Integrated Drive, Protection and System Control Functions

• For inverter high-side IGBTs: Gate drive circuit, High voltage isolated high-speed level shifting

Control circuit under-voltage (UV) protection

Note) Available bootstrap circuit example is given in Figs. 13and 14.

• For inverter low-side IGBTs: Gate drive circuit, Short-Circuit (SC) protection

Control supply circuit under-voltage (UV) protection

• Fault signaling: Corresponding to a SC fault (Low-side IGBTs) or a UV fault (Low-side control supply circuit)

• Input interface: 5V CMOS/LSTTL compatible, Schmitt trigger input

Pin Configuration

Top View

(1) V

CC(L)

(2) com

(L)

(3) IN

(UL)

(4) IN

(VL)

(5) IN

(WL)

(6) com

(L)

(7) FO

(8) C

FOD

(9) C

(10) R

(11) IN

(UH)

(12) V

CC(UH)

(13) V

B(U)

(14) V

S(U)

(15) IN

(VH)

(16) com

(H)

(17) V

CC(VH)

(18) V

B(V)

(19) V

S(V)

(20) IN

(WH)

(21) V

CC(WH)

(22) V

B(W)

(23) V

S(W)

(24) NC

(25) NC

(26) N

(27) N

(28) N

(29) U

Case Temperature (T

)

Detecting Point

(30) V

(31) W

Ceramic Substrate

(32) P

Fig. 2.

Rev. D, August 2003

FSBM20SL60

Pin Descriptions

Pin Number

Pin Name

CC(L)

COM

(L)

(UL)

(VL)

(WL)

COM

(L)

FOD

(UH)

CC(UH)

B(U)

S(U)

(VH)

COM

(H)

CC(VH)

B(V)

S(V)

(WH)

CC(WH)

B(W)

S(W)

Pin Description

Low-side Common Bias Voltage for IC and IGBTs Driving

Low-side Common Supply Ground

Signal Input for Low-side U Phase

Signal Input for Low-side V Phase

Signal Input for Low-side W Phase

Low-side Common Supply Ground

Fault Output

Capacitor for Fault Output Duration Time Selection

Capacitor (Low-pass Filter) for Short-Circuit Current Detection Input

Resistor for Short-Circuit Current Detection

Signal Input for High-side U Phase

High-side Bias Voltage for U Phase IC

High-side Bias Voltage for U Phase IGBT Driving

High-side Bias Voltage Ground for U Phase IGBT Driving

Signal Input for High-side V Phase

High-side Common Supply Ground

High-side Bias Voltage for V Phase IC

High-side Bias Voltage for V Phase IGBT Driving

High-side Bias Voltage Ground for V Phase IGBT Driving

Signal Input for High-side W Phase

High-side Bias Voltage for W Phase IC

High-side Bias Voltage for W Phase IGBT Driving

High-side Bias Voltage Ground for W Phase IGBT Driving

No Connection

Negative DC–Link Input for U Phase

Negative DC–Link Input for V Phase

Negative DC–Link Input for W Phase

Output for U Phase

Output for V Phase

Output for W Phase

Positive DC–Link Input

Rev. D, August 2003

FSBM20SL60

Internal Equivalent Circuit and Input/Output Pins

Bottom View

(22) V

B(W )

(21) V

C C(W H )

(20) IN

(W H )

(23) V

S(W )

(18) V

B(V )

(17) V

C C(VH )

(16) C O M

(H )

(15) IN

(VH )

(19) V

S(V )

(13) V

B(U )

(12) V

C C(UH )

(11) IN

(U H )

(14) V

S(U )

(10) R

(9) C

(8) C

FO D

(7) V

(6) C O M

(L)

(5) IN

(W L)

(4) IN

(VL)

(3) IN

(U L)

(2) C O M

(L)

(1) V

C C(L)

VC C

COM

OUT

(32) P

(31) W

VC C

COM

OUT

(30) V

VC C

COM

(29) U

OUT

C (S C )

C (F O D )

VF O

O U T (W L)

(28) N

IN (W L)

IN (V L)

IN (U L)

C O M (L)

VC C

(26) N

(25) N C

(24) N C

O U T (U L)

O U T (V L)

(27) N

Note:

1) Inverter low-side is composed of three sense-IGBTs including freewheeling diodes for each IGBT and one control IC which has gate driving, current sensing and

protection functions.

2) Inverter power side is composed of four inverter dc-link input pins and three inverter output pins.

3) Inverter high-side is composed of three normal-IGBTs including freewheeling diodes and three drive ICs for each IGBT.

Fig. 3.

Rev. D, August 2003
