HM2P95PKJ1G0GC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P95PKJ1G0GC

HM2P95PKJ1G0GC: DescriptionBoard Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P95PKJ1G0GC Overview

Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal

HM2P95PKJ1G0GC Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	8
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	200
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

HM2P95PKJ1G0----

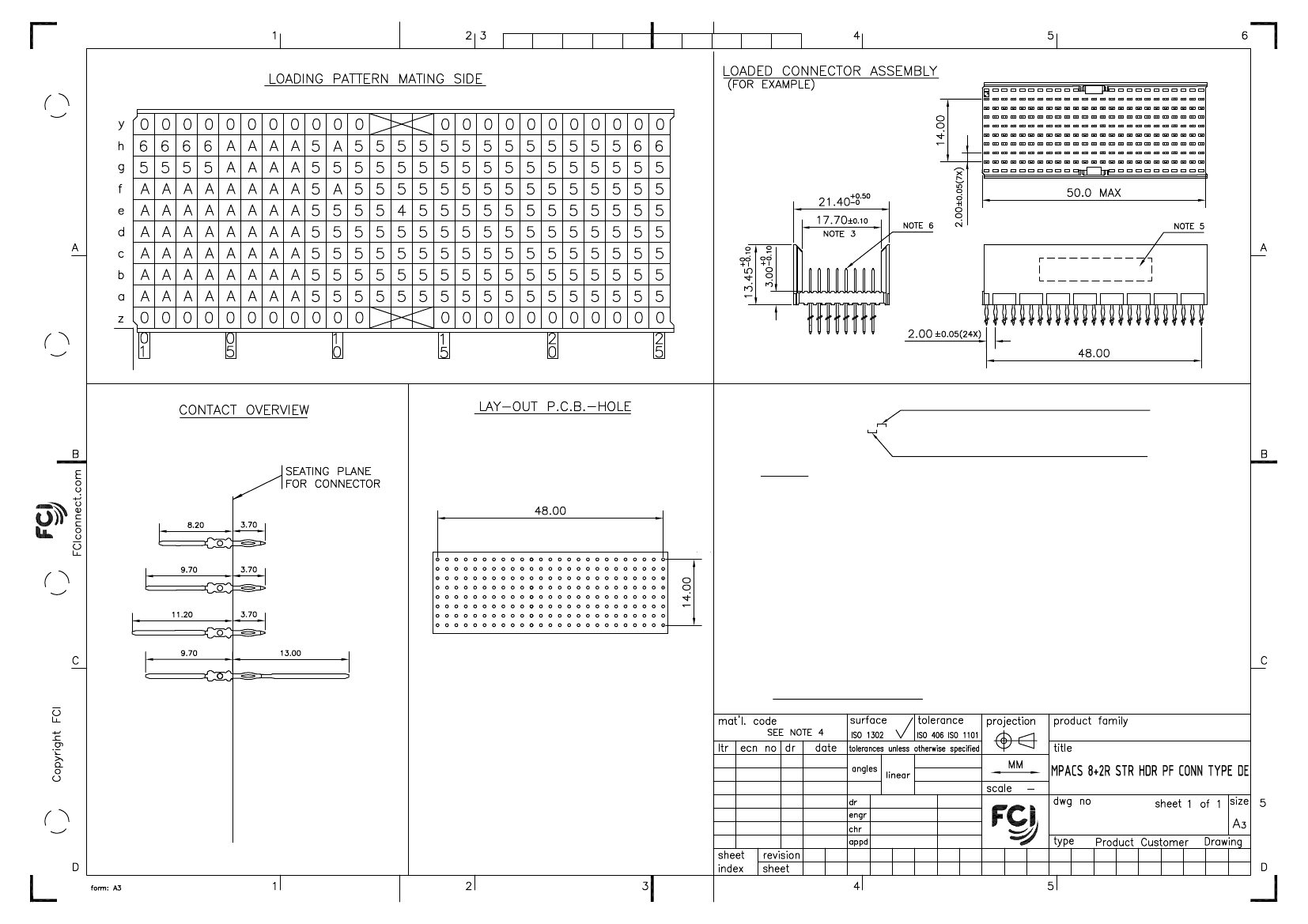

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

PART NO: HM2P95PKJ1G0----

MILLIPACS

I06-0195

MINI

2006-11-01

0°±1°

MINI K VANDANATH 2006-11-01

BIJU K PAUL

2006-11-01

.0±0.2

.00±0.1

BS, C ,203028, 735

PDM: Rev:A

STATUS:

Released

Printed: Dec 04, 2007

2 5
