UB2-5NEN-R6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> UB2-5NEN-R6

UB2-5NEN-R6: DescriptionPower/Signal Relay, 2 Form C, DPDT, Momentary, 0.02A (Coil), 5VDC (Coil), 100mW (Coil), 1A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight,; CategoryMechanical and electronic products relay; File Size250KB，12 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com

Download Datasheet Parametric View All

UB2-5NEN-R6 Overview

Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.02A (Coil), 5VDC (Coil), 100mW (Coil), 1A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight,

UB2-5NEN-R6 Parametric

Parameter Name	Attribute value
Maker	World Produts Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	5.7 mm
body height	8.8 mm
Body length or diameter	10.6 mm
Maximum coil current (DC)	0.02 A
Coil operating voltage (DC)	3.75 V
Coil power	100 mW
Coil release voltage (DC)	0.5 V
Coil resistance	250 Ω
Maximum coil voltage (DC)	5 V
Nominal coil voltage	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	37.5VA@250VAC
Contact (AC) maximum rated R load	1A@250VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated power R load	30W@220VDC
Contact (DC) maximum rated R load	1A@220VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
End contact plating	GOLD ALLOY
Input switching control type	Random
Insulation resistance	1000000000 Ω
Installation features	SURFACE MOUNT-STRAIGHT
Number of terminals	8
operating hours	2 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
method of packing	TAPE AND REEL

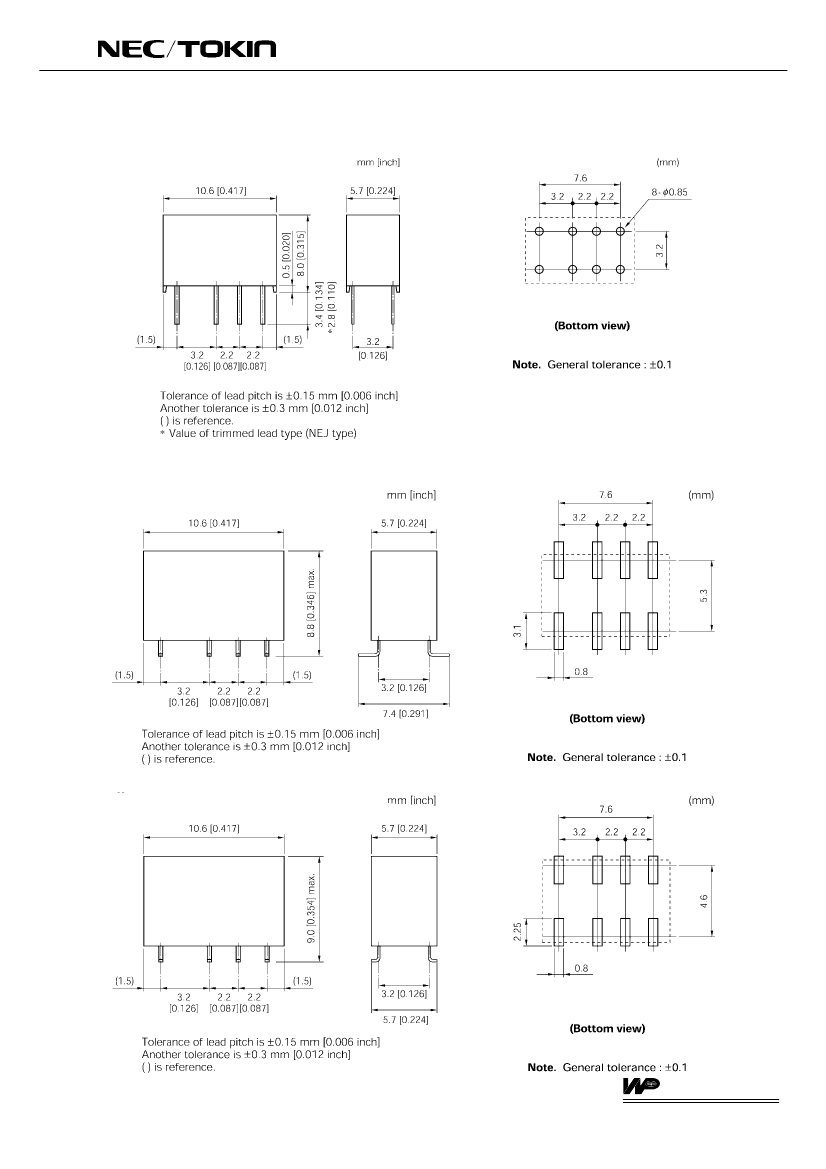

physical size	10.6mm x 5.7mm x 8.8mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	1 ms
surface mount	NO
Termination type	SOLDER
weight	1 g

Preview

Download Datasheet

View All

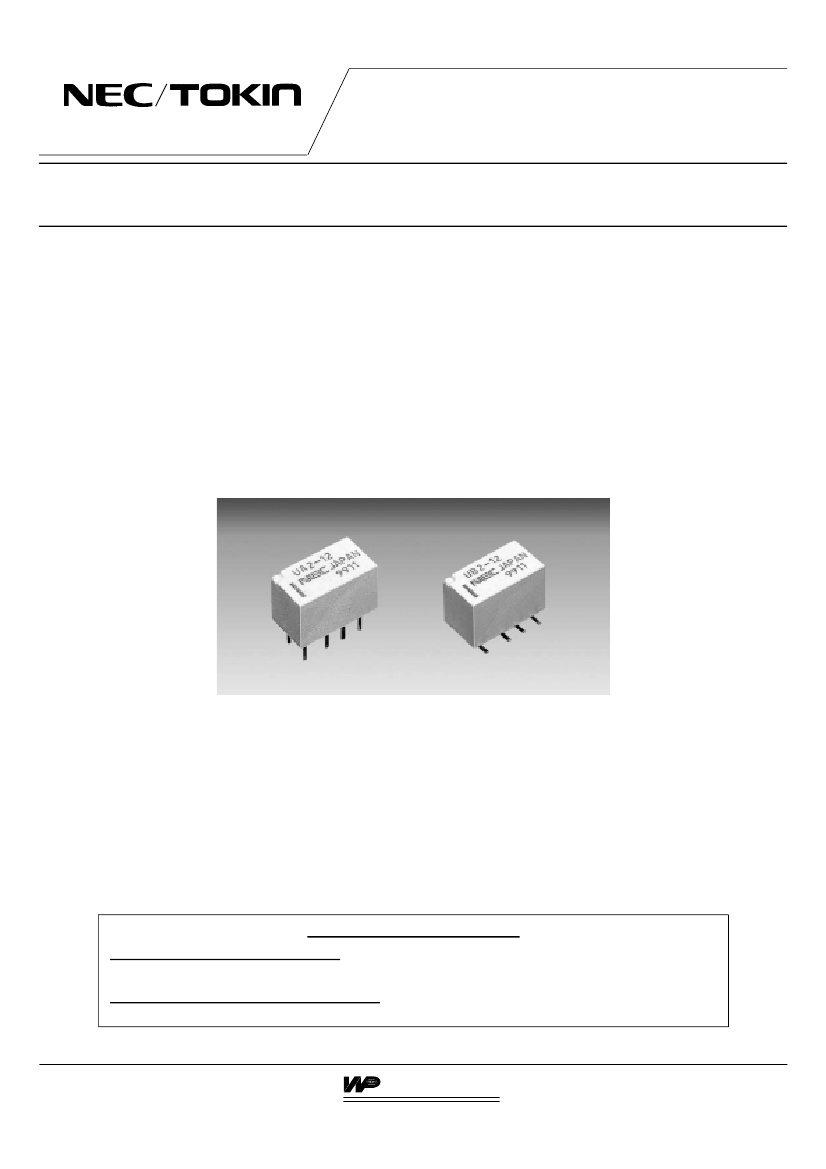

DATA SHEET

MINIATURE SIGNAL RELAY

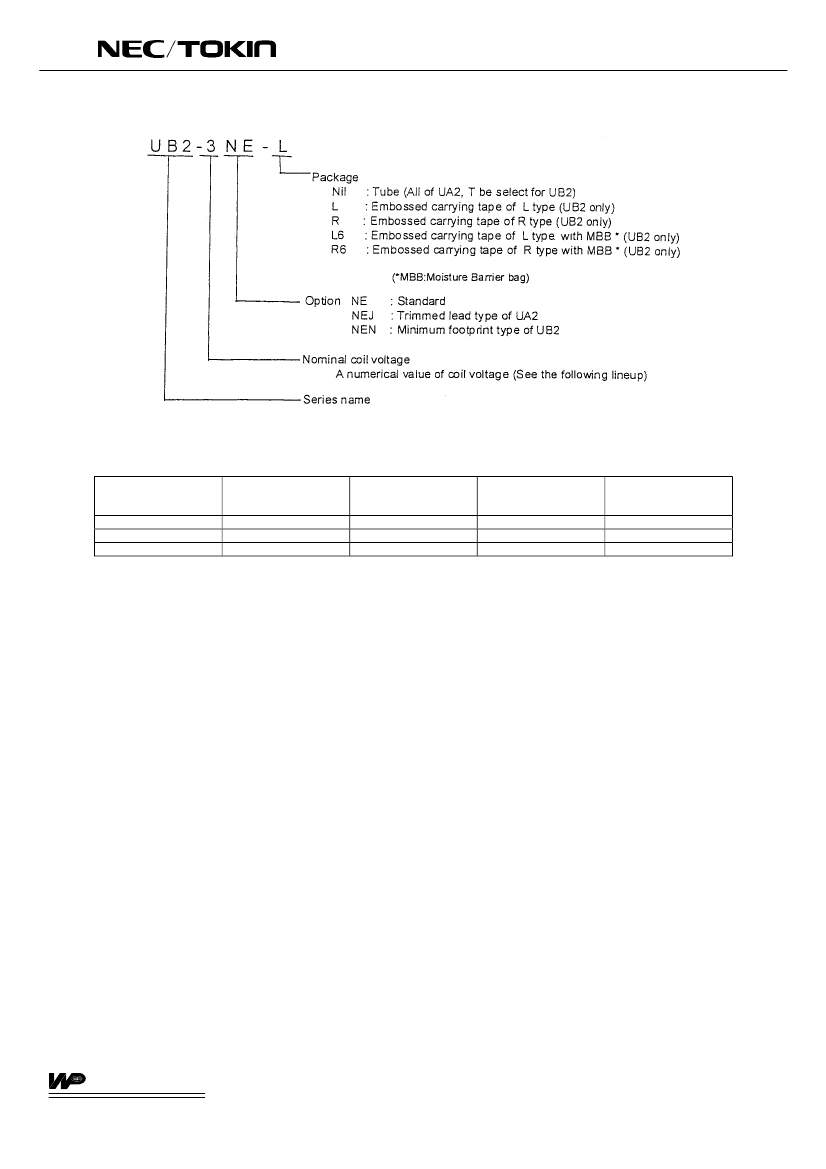

UA2/UB2 SERIES NE TYPE

Low power consumption, Super-compact size, Slim-package,

Surface-mounting type available

DESCRIPTION

NEC TOKIN's NE TYPE of UA2/UB2 series is a low-power consumption relay.

FEATURES

Small mounting size of slim package for dense mounting.

Low power consumption 100 mW

Telcordia (2500 V) and FCC (1500 V) surge capability.

IEC60950/UL1950/EN60950 spacing and high breakdown voltage.

(Basic insulation class on 200 V working voltage)

APPLICATIONS

Electronic switching systems, PBX, terminal equipment, telephone system.

For Correct Use of Miniature Relays

DO NOT EXCEED MAXIMUM RATINGS.

Do not use relays under exceeding conditions such as over ambient temperature, over voltage and over

current. Incorrect use could result in abnormal heating, damage to related parts or cause burning.

READ CAUTIONS IN THE SELECTION GUIDE.

Read the cautions described in NEC/TOKIN's "Miniature Relays" when you choose relays for your application.

The information in this document is subject to change without notice.

Document No. 0616EMDD03VOL02E

Date Published May 2005 P

Printed in Japan

WORLD PRODUCTS INC.

Ph (707) 996-5201 Fx (707) 996-3380

www.worldproducts.com

e-mail: corpsales@worldproducts.com
