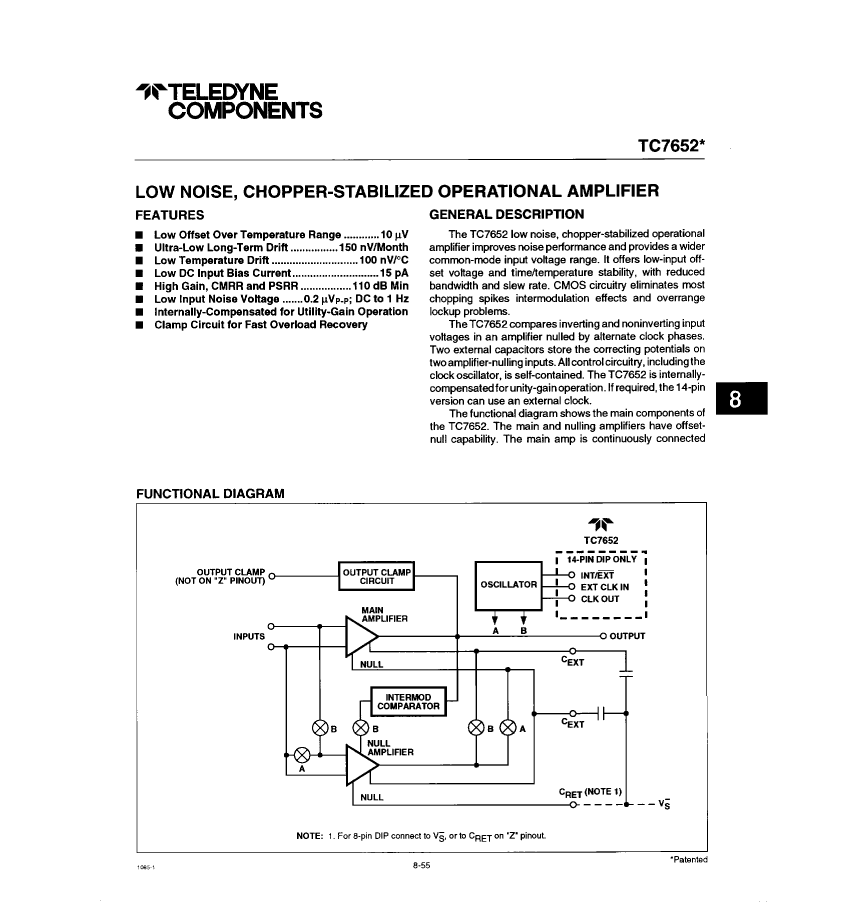

Operational Amplifier, 1 Func, 5uV Offset-Max, CMOS, CDIP8, CERDIP-8

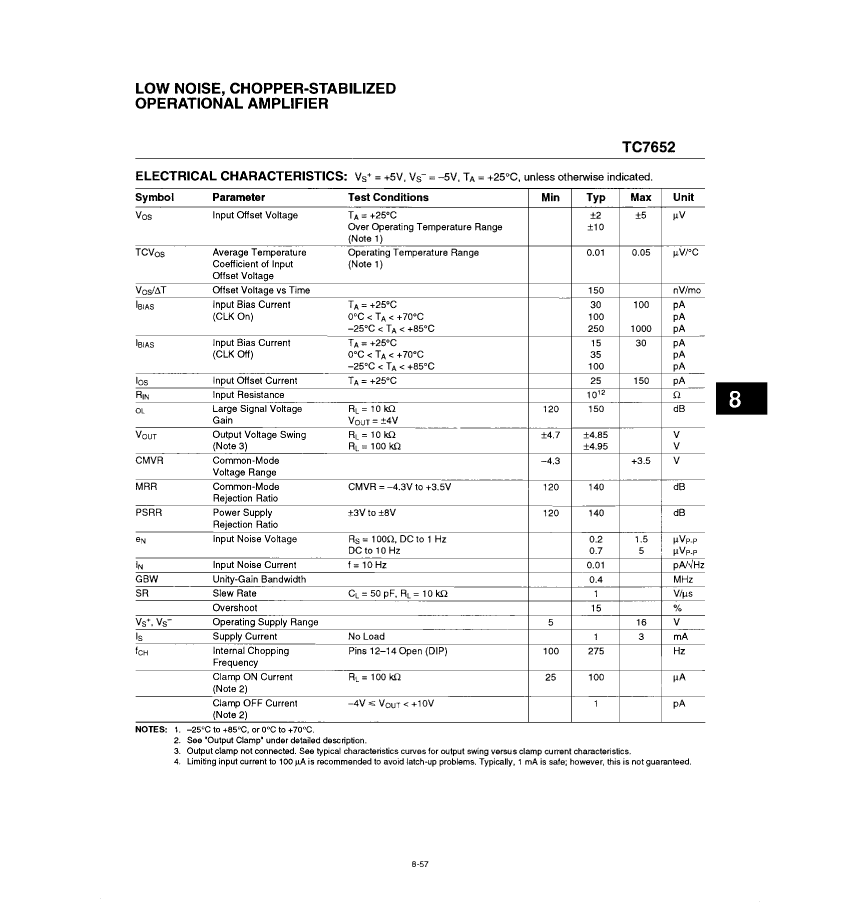

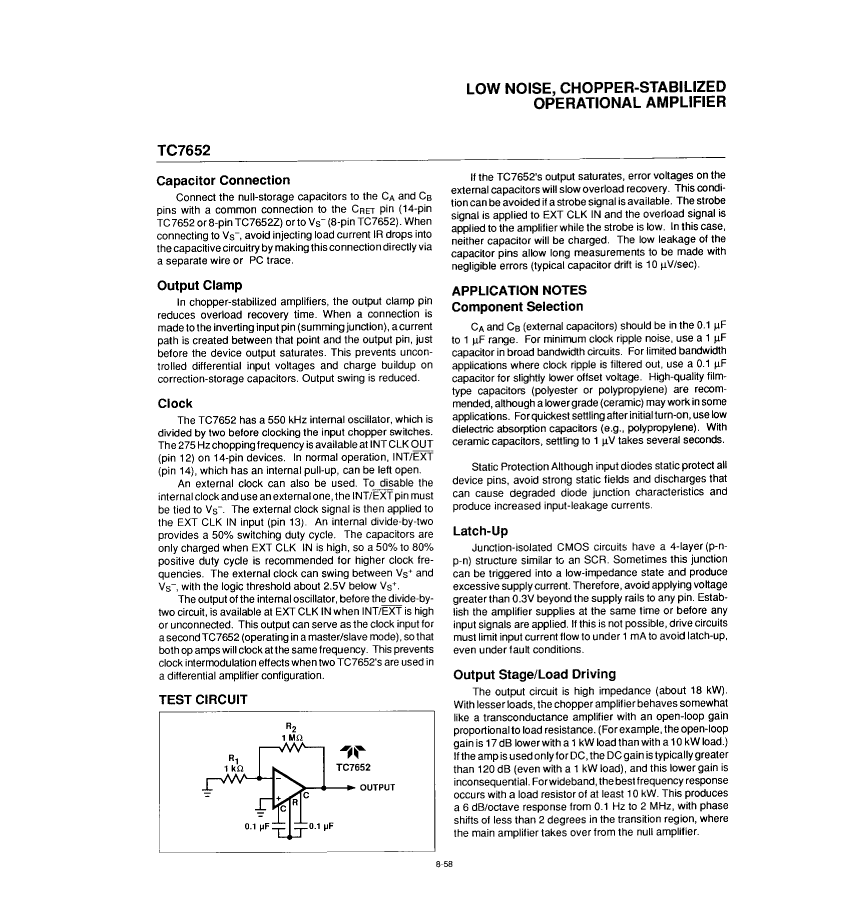

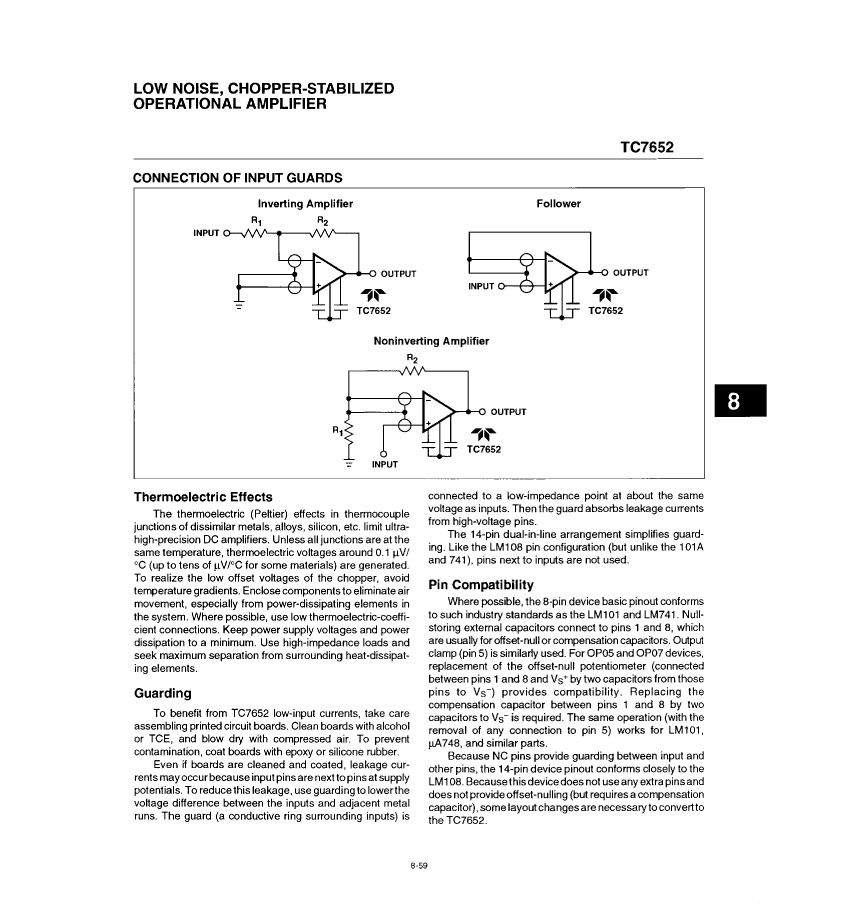

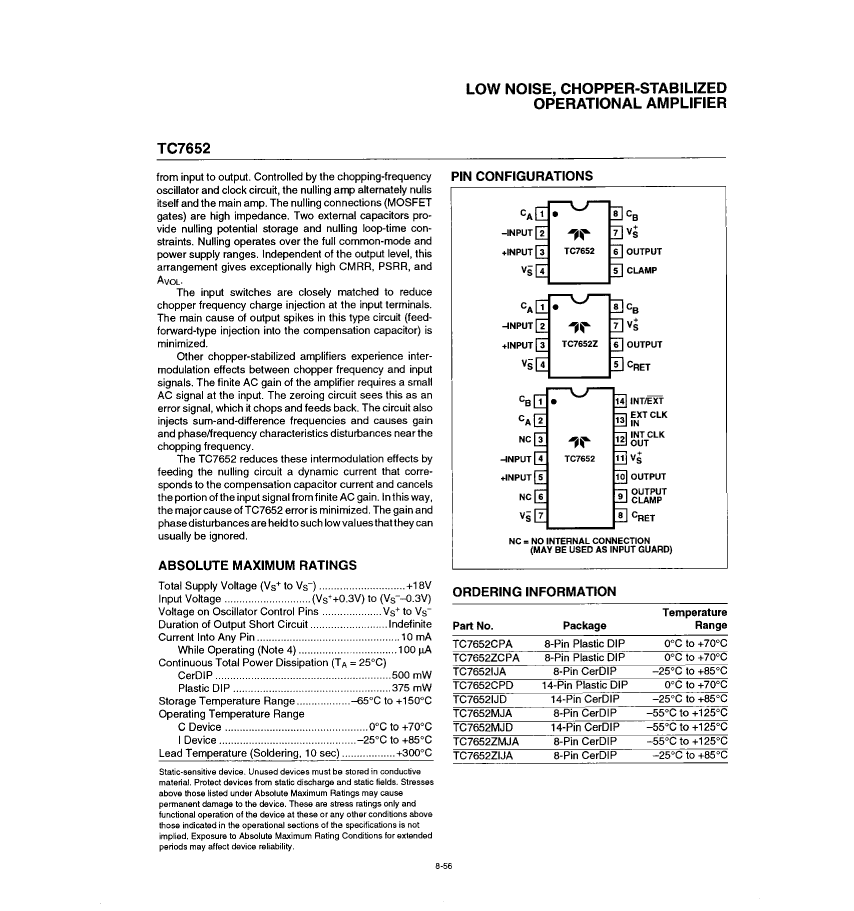

| Parameter Name | Attribute value |
| Maker | Teledyne Technologies Incorporated |
| package instruction | CERDIP-8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.0001 µA |
| Nominal Common Mode Rejection Ratio | 140 dB |
| Maximum input offset voltage | 5 µV |
| JESD-30 code | R-GDIP-T8 |
| Nominal Negative Supply Voltage (Vsup) | -5 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Nominal slew rate | 1 V/us |
| Maximum slew rate | 3 mA |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 400 kHz |
| TC7652MJA | TC7652ZIJA | TC7652ZMJA | TC7652ZCPA | TC7652MJD | TC7652CPD | TC7652CPA | TC7652IJD | |
|---|---|---|---|---|---|---|---|---|
| Description | Operational Amplifier, 1 Func, 5uV Offset-Max, CMOS, CDIP8, CERDIP-8 | Operational Amplifier, 1 Func, 5uV Offset-Max, CMOS, CDIP8, CERDIP-8 | Operational Amplifier, 1 Func, 5uV Offset-Max, CMOS, CDIP8, CERDIP-8 | Operational Amplifier, 1 Func, 5uV Offset-Max, CMOS, PDIP8, PLASTIC, DIP-8 | Operational Amplifier, 1 Func, 5uV Offset-Max, CMOS, CDIP14, CERDIP-14 | Operational Amplifier, 1 Func, 5uV Offset-Max, CMOS, PDIP14, PLASTIC, DIP-14 | Operational Amplifier, 1 Func, 5uV Offset-Max, CMOS, PDIP8, PLASTIC, DIP-8 | Operational Amplifier, 1 Func, 5uV Offset-Max, CMOS, CDIP14, CERDIP-14 |
| Maker | Teledyne Technologies Incorporated | Teledyne Technologies Incorporated | Teledyne Technologies Incorporated | Teledyne Technologies Incorporated | Teledyne Technologies Incorporated | Teledyne Technologies Incorporated | Teledyne Technologies Incorporated | Teledyne Technologies Incorporated |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.0001 µA | 0.001 µA | 0.0001 µA | 0.0001 µA | 0.0001 µA | 0.0001 µA | 0.0001 µA | 0.001 µA |
| Nominal Common Mode Rejection Ratio | 140 dB | 140 dB | 140 dB | 140 dB | 140 dB | 140 dB | 140 dB | 140 dB |
| Maximum input offset voltage | 5 µV | 5 µV | 5 µV | 5 µV | 5 µV | 5 µV | 5 µV | 5 µV |
| JESD-30 code | R-GDIP-T8 | R-GDIP-T8 | R-GDIP-T8 | R-PDIP-T8 | R-GDIP-T14 | R-PDIP-T14 | R-PDIP-T8 | R-GDIP-T14 |
| Nominal Negative Supply Voltage (Vsup) | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 14 | 14 | 8 | 14 |
| Maximum operating temperature | 125 °C | 85 °C | 125 °C | 70 °C | 125 °C | 70 °C | 70 °C | 85 °C |
| Minimum operating temperature | -55 °C | -25 °C | -55 °C | - | -55 °C | - | - | -25 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 1 V/us | 1 V/us | 1 V/us | 1 V/us | 1 V/us | 1 V/us | 1 V/us | 1 V/us |
| Maximum slew rate | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | OTHER | MILITARY | COMMERCIAL | MILITARY | COMMERCIAL | COMMERCIAL | OTHER |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Nominal Uniform Gain Bandwidth | 400 kHz | 400 kHz | 400 kHz | 400 kHz | 400 kHz | 400 kHz | 400 kHz | 400 kHz |
