InfiniiVision 3000 X-Series
Oscilloscopes
Data Sheet
Oscilloscopes redefined:
Breakthrough technology delivers
more scope for the same budget
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Breakthrough technology for budget conscious customers
Agilent Technologies is the fastest growing scope vendor
in the market for good reason: we deploy our investments
in technology to solve your measurement problems.
This commitment to superior technology brings you the
InfiniiVision X-Series oscilloscopes – engineered to deliver
value, functionality and flexibility at prices that fit into
your existing budgets. Whether you are looking for a basic
entry-level oscilloscope or a more sophisticated model to
get your job done, you want the most you can get for your
money. The full line of InfiniiVision X-Series oscilloscopes
– 30 models – ensure that you get exactly what you need
today with room to grow in the future.
Overview of the Agilent InfiniiVision X-Series oscilloscopes
InfiniiVision 2000 X-Series
Analog channels
Bandwidth (upgradable)
Maximum sample rate
70, 100, 200 MHz
1 GSa/s per channel
2 GSa/s half-channel interleaved mode
InfiniiVision 3000 X-Series
100, 200, 350, 500 MHz, 1 GHz
2 GSa/s per channel
(2.5 GSa/s on 1 GHz models)
4 GSa/s half-channel interleaved mode
(5 GSa/s on 1 GHz models)
2 Mpts standard, 4 Mpts optional
(Option DSOX3MemUp)
1,000,000 waveforms per second
16 on MSO models or with
DSOX3MSO (for 500MHz models and
below) and DSOXPERFMSO for 1 GHz
models upgrade
Yes (Option DSOX3WAVEGEN)
With AWG capability
Yes (option DSOXDVM)
Yes
Yes (multiple options), see page 18
Yes (Option DSOX3SGM)
Yes (Option DSOX3MASK)
Yes
Yes (Option DSOX3PWR)
Yes (Option DSOX3ADVMATH)
2 and 4 analog channels
Maximum memory depth
Waveform update rate
Digital timing channels
100 kpts (standard)
50,000 waveforms per second
8 on MSO models or with
DSOX2MSO upgrade
WaveGen built-in 20 MHz
Function/Arbitrary Waveform Generator
Integrated Digital Voltmeter
Search and navigate
Serial protocol analysis
Segmented memory
Mask limit testing
AutoProbe interface
Power Analysis
Advanced Waveform Math
Yes (Option DSOX2WAVEGEN)
No AWG capability
Yes (option DSOXDVM)
No
No
Yes (Option DSOX2SGM)
Yes (Option DSOX2MASK)
No
No
No
Need more memory or a bigger screen?

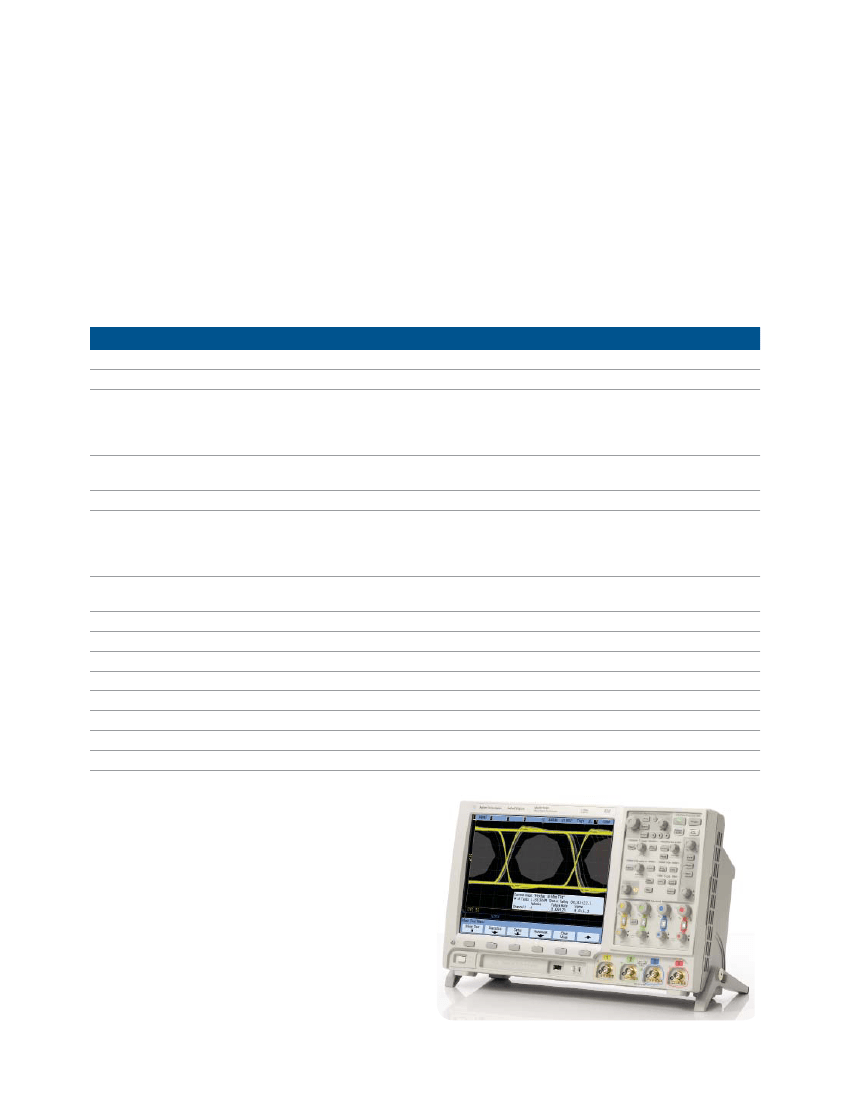

See the InfiniiVision 7000B Series oscilloscopes
• 12” display - nearly 40% larger than the nearest competitor.
• 100 MHz to 1 GHz DSO and MSO models
• 8 Mpts memory standard.
• Upgradability for MSO channels and measurement
applications
• Hardware-based measurement applications including
serial decode
• Xilinx FPGA dynamic probe support
• Altera FPGA dynamic probe support
• Standard LAN, USB, and XGA video out connectivity
See
www.agilent.com/find/7000
for more details
2
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget

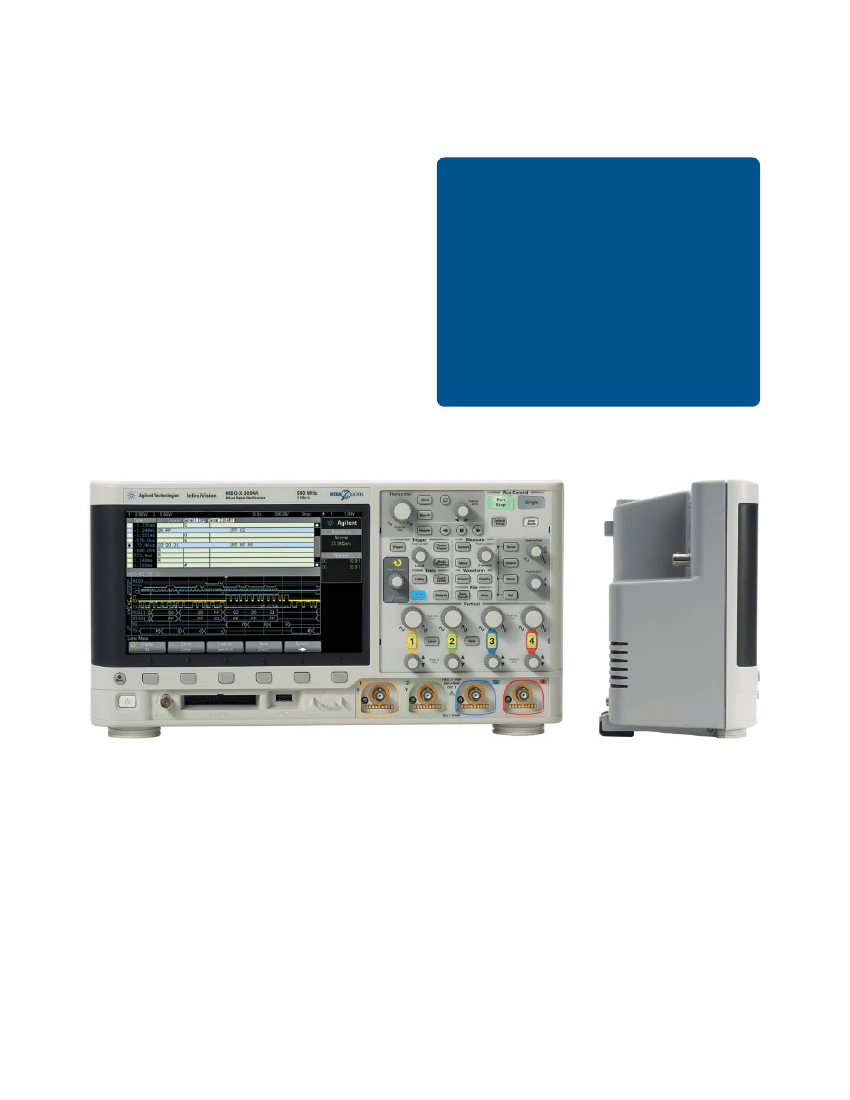

More scope
The InfiniiVision 3000 X-Series offers entry-level price
points to fit your budget with superior performance and
optional capabilities that are not available in any other
oscilloscope in its class. Our breakthrough technology
delivers more scope for the same budget.
With more scope, you can:
• See more
of your signal more of the time with the
largest screen in its class, the deepest memory and
the fastest waveform update rates
• Do more
with the power of 5 instruments in 1:
oscilloscope, logic timing analyzer, WaveGen
built-in 20 MHz Function/Arbitrary Waveform
Generator (optional), Integrated Digital Voltmeter
and protocol analyzer (optional)
• Get more investment protection with the industry’s
only fully upgradable scope, including bandwidth
and the most measurement applications available
3
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
See more of your signal, more of the time
Largest display
Engineering for the best signal visibility starts with the
largest display. Our 8.5-inch WVGA display offers 50%
more viewing area with 4 times the resolution (WVGA
800x480 versus WQVGA 400x240) so you can view analog,
digital and serial signals easily on screen.
Fastest update rate
With Agilent-designed MegaZoom IV custom ASIC
technology, the 3000 X-Series updates waveforms up to 1
million times per second.
If an oscilloscope updates waveforms slowly, it can make
using the oscilloscope very frustrating. Fast waveform
update rates can improve oscilloscope display quality to
show subtle waveform details such as noise and jitter
with display intensity modulation. Most importantly, fast
waveform update rates improve the probability of capturing
random and infrequent events that would not be captured
using an oscilloscope with a lower waveform update rate.

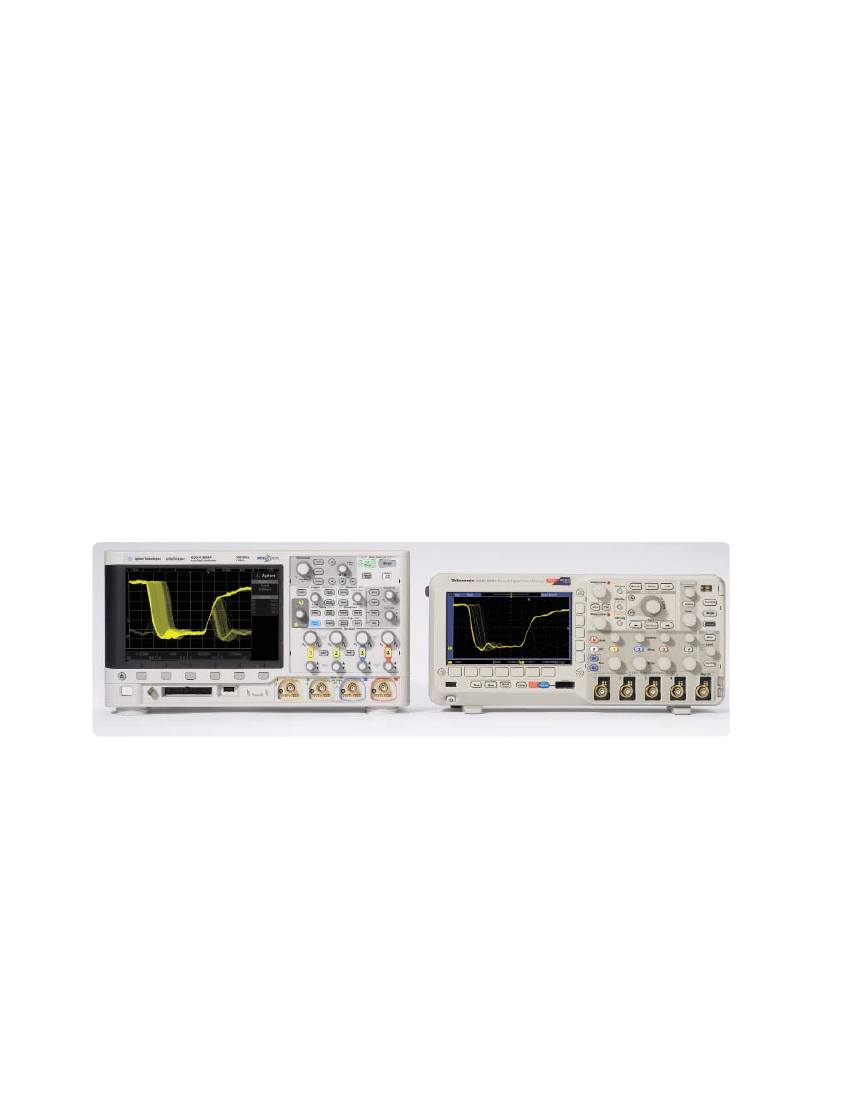

Notice that the Agilent 3000 X-Series allows you to see more of your signals, and captures the infrequent glitch and jitter that you
are unable to see on other oscilloscopes in this class.
4
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget

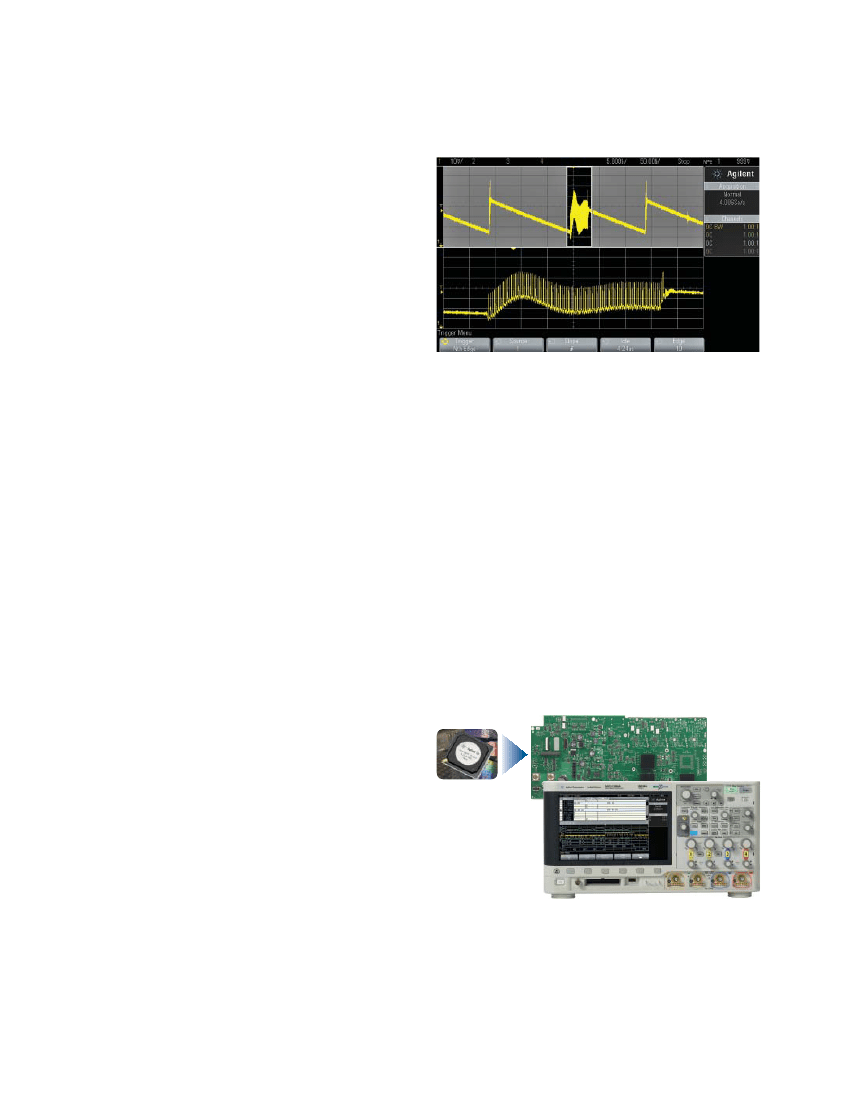

See more of your signal, more of the time
Deeper memory for longer time capture
With up to 4 Mpts of MegaZoom IV deep memory, you
can capture long, non-repeating signals while maintaining
a high sample rate, then quickly zoom in on areas of
interest.
The InfiniiVision X-Series optimizes your deep memory
oscilloscope measurements by using MegaZoom IV
technology to make the most effective trade-offs in
sample rate, memory depth and waveform update
rate. Although you may think deeper memory is always
better, using deep memory means making tradeoffs for
many other scopes on the market today.
Scopes with deep memory are typically priced higher,
and require additional waveform processing time to
acquire deep memory waveforms. This typically means
waveform update rates will be reduced, sometimes
significantly. For this reason, most other scopes have
manual memory-depth selections, and the typical
default memory depth setting is usually relatively
shallow (10 to 100 kpts). If you want to use deep memory
in these other scopes, you must manually turn it on and
deal with the update rate tradeoff. So you have to know
when it is important to use deep memory and when it
is not.
Agilent’s exclusive MegaZoom IV technology automatically
selects deeper memory when needed in order to
maintain fast sample rates while also updating quickly.
How does Agilent do that?
Agilent-designed
MegaZoom
IV custom ASIC technology
combines the capabilities of an oscilloscope, logic analyzer,
protocol analyzer, and WaveGen built-in function generator
in a compact form factor at an affordable price. 4
th
genera-
tion
MegaZoom
technology enables the industry’s fastest
waveform update rate with responsive deep memory
acquisitions.
5
