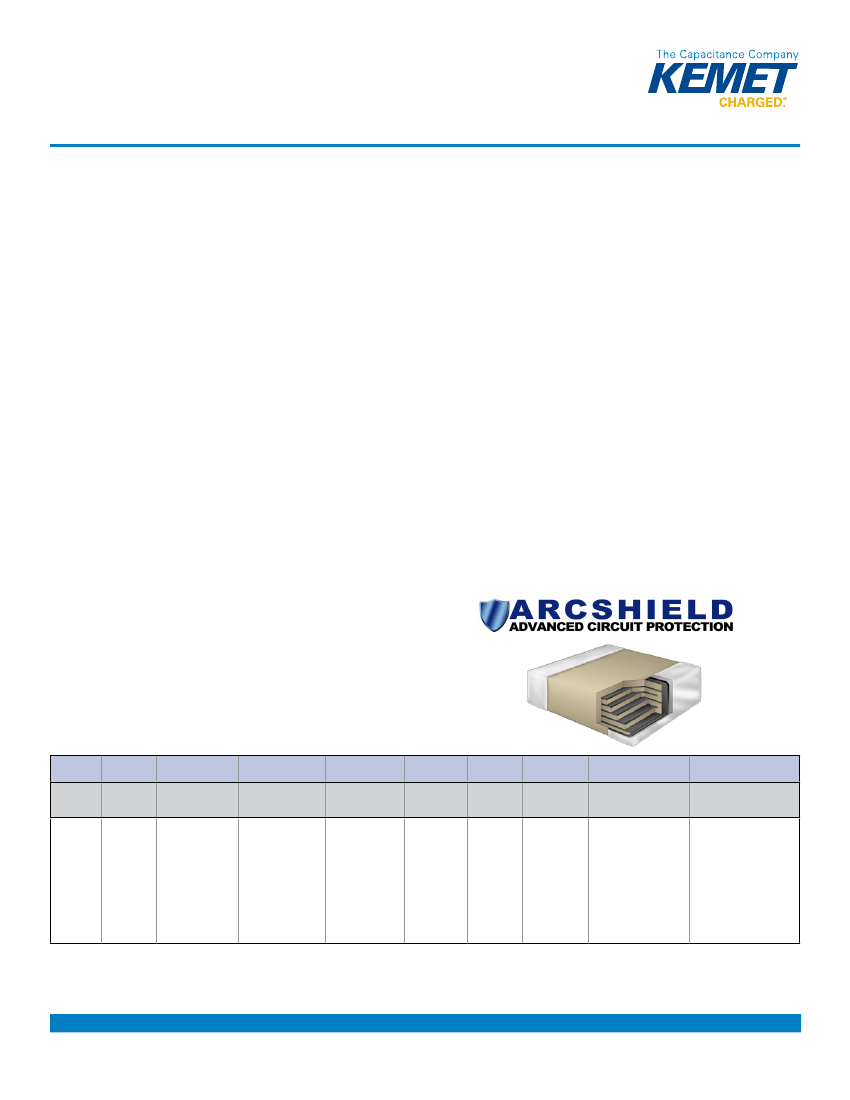

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
ArcShield Technology, High Voltage, X7R Dielectric,
500VDC-1000VDC (Commercial & Automotive Grade)
Overview
KEMET ”ArcShield” high voltage surface mount capacitors in
X7R Dielectric prevent surface arc-over discharge in high voltage
applications.
The phenomenon of surface arcing is caused by a high voltage
gradient between the two termination surfaces or between one
of the termination surfaces and the counter internal electrode
structure within the ceramic body. It occurs most frequently at
application voltages that meet or exceed 500V, in high humidity
environments, and in chip sizes with minimal bandwidth
separation (creepage distance). This phenomenon can either
damage surrounding components or lead to a breakdown of the
dielectric material, ultimately resulting in a short-circuit condition
(catastrophic failure mode).
“ArcShield” Technology (Patent Pending) features a robust
and unique internal shield electrode system that prohibits arc-
over while increasing available capacitance. This system offers
unrivaled performance and reliability when compared to external
surface coating technologies. Developed on the principle of a
partial Faraday cage, these devices prevent the arc from forming
and significantly reduce resulting failures.
These high voltage devices are available with KEMET's Flexible
termination technology which inhibits the transfer of board
stress to the rigid ceramic body, therefore mitigating flex cracks
which can result in low IR or short circuit failures. Although
flexible termination technology does not eliminate the potential
for mechanical damage that may propagate during extreme
environmental and handling conditions, it does provide superior
flex performance over standard termination systems. When
combined with flexible termination technology these devices offer
the ultimate level of protection against a low IR or short circuit
condition.
KEMET’s “ArcShield” high voltage surface mount MLCCs are
manufactured in state of the art ISO/TS 16949:2002 certified
facilities and are available in both commercial and automotive
grades. Automotive grade devices meet the demanding
Automotive Electronics Council's AEC-Q200 qualification
requirements. These devices exhibit a predictable change in
capacitance with respect to time and boast a minimal change in
capacitance with reference to ambient temperature. Capacitance
change is limited to ±15% from -55°C to +125°C.
Ordering Information
C
Ceramic
1812
Case Size
(L" x W")
0805
1206
1210
1808
1812
V
Specification/
Series
V = ArcShield
W = ArcShield
w/Flexible
Termination
334
Capacitance
Code (pF)
2 Sig. Digits +
Number of Zeros
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
C
Voltage
C = 500V
B = 630V
D = 1000V
R
Dielectric
R = X7R
A
C
TU
Packaging/Grade
(C-Spec)
2
Blank = Bulk
TU = 7" Reel
Unmarked
TM = 7" Reel Marked
AUTO = Automotive
Grade 7" Reel
Unmarked
Failure Rate/
Termination Finish
1
Design
A = N/A
C = 100% Matte Sn
L = SnPb (5% min)
Additional termination finish options may be available. Contact KEMET for details.
SnPb termination finish option is not available on automotive grade product.
2
Additional reeling or packaging options may be available. Contact KEMET for details.
1
1, 2
One WORLD
One Brand
One Strategy
One Focus
One Team
One KEMET
1
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1034_X7R_HV_ARC_SMD • 10/31/2011
(SMD MLCCs) – ArcShield Technology, High Voltage, X7R Dielectric, 500VDC-1000VDC (Commercial & Automotive Grade)
Dimensions – Standard Termination – Millimeters (Inches)
T
W
L
B
100% Tin or SnPb Plate
Nickel Plate
S
Electrodes
Conductive Metalization
EIA
Size
Code
0805
1206
1210
1808
1812
Metric
Size
Code
2012
3216
3225
4520
4532
L
Length
2.00 (.079) ± 0.20 (.008)
3.20 (.126) ± 0.20 (.008)
3.20 (.126) ± 0.20 (.008)
4.70 (.185) ± 0.50 (.020)
4.50 (.177) ± 0.30 (.012)
W
Width
1.25 (.049) ± 0.20 (.008)
1.60 (.063) ± 0.20 (.008)
2.50 (.098) ± 0.20 (.008)
2.00 (.079) ± 0.20 (.008)
3.20 (.126) ± 0.30 (.012)
T
Thickness
See Table 2 for
Thickness
B
Bandwidth
0.50 (0.02) ± 0.25 (.010)
0.50 (0.02) ± 0.25 (.010)
0.50 (0.02) ± 0.25 (.010)
0.60 (.024) ± 0.35 (.014)
0.60 (.024) ± 0.35 (.014)
S
Separation
Min.
0.75 (.030)
N/A
Mounting
Technique
Solder Wave or
Solder Reflow
Solder Reflow Only
W
L
B
Dimensions – Flexible Termination – Millimeters (Inches)
EIA
Size
Code
0805
1206
1210
1808
1812
T
S
Metric
Size
Code
2012
3216
3225
4520
4532
L
Length
2.10 (.083)
+0.30 (.012)/ -0.20 (.008)
3.30 (.130) ± 0.40 (.016)
3.30 (.130) ± 0.40 (.016)
4.70 (.185) ± 0.50 (.020)
4.50 (.178) ± 0.40 (.016)
W
Width
1.25 (.049) ± 0.20 (.008)
1.60 (.063) ± 0.20 (.008)
2.50 (.098) ± 0.20 (.008)
2.00 (.079) ± 0.20 (.008)
3.20 (.126) ± 0.30 (.012)
T
Thickness
See Table 2 for
Thickness
B
Bandwidth
0.50 (0.02)
+0.10(.004)/ -0.25 (.010)
0.60 (.024) ± 0.25 (.010)
0.60 (.024) ± 0.25 (.010)
0.70 (.028) ± 0.35 (.014)
0.70 (.028) ± 0.35 (.014)
S
Separation
Min.
0.70 (.028)
Mounting
Technique
Solder Wave or
Solder Reflow
Solder Reflow Only
N/A
Benefits
•
•
•
•
•
•
•
•
•
•
•
•
-55°C to +125°C operating temperature range
Pb-Free & RoHS compliant
EIA 0805, 1206, 1210, 1808, & 1812 case sizes
DC voltage ratings of 500V, 630V & 1KV
Capacitance offerings ranging from 10pF to 0.33μF
Available capacitance tolerances of ± 5%, ± 10% & ± 20%
Low ESR & ESL
Non-polar device, minimizing installation concerns
Commercial & Automotive (AEC-Q200) grades available
100% pure matte tin-plated termination finish allowing for excellent solderability
SnPb plated termination finish option available upon request (5% min)
Flexible termination option available upon request
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1034_X7R_HV_ARC_SMD • 10/31/2011
2
(SMD MLCCs) – ArcShield Technology, High Voltage, X7R Dielectric, 500VDC-1000VDC (Commercial & Automotive Grade)
Applications
Typical applications include switch mode power supplies (input filters, resonators, tank circuits, snubber circuits, output filters), high
voltage coupling and DC blocking, lighting ballasts, voltage multiplier circuits, DC/DC converters and coupling capacitors in Ćuk
converters. Markets include power supply, LCD fluorescent backlight ballasts, HID lighting, telecom equipment, industrial and medical
equipment/control, LAN/WAN interface, analog and digital modems, and automotive (electric and hybrid vehicles, charging stations and
lighting applications).
Note: The X7R dielectric is not recommended for AC line filtering or pulse applications.
Qualification/Certification
Commercial grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in Table
4, Performance & Reliability.
Automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test
methods and conditions are referenced in document AEC-Q200, Stress Test Qualification for Passive Components. For additional
information regarding the Automotive Electronics Council and AEC-Q200, please visit their website @www.aecouncil.com.
Environmental Compliance
Pb-Free and RoHS compliant (excluding SnPb termination finish option)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1034_X7R_HV_ARC_SMD • 10/31/2011
3
(SMD MLCCs) – ArcShield Technology, High Voltage, X7R Dielectric, 500VDC-1000VDC (Commercial & Automotive Grade)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 Vdc Applied (TCC)
Aging Rate (Max % Cap Loss/Decade Hour)
Dielectric Withstanding Voltage
Dissipation Factor (DF) Maximum Limit @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
-55°C to +125°C
±15%
3.0%
150% of rated voltage for voltage rating of < 1000V
120% of rated voltage for voltage rating of ≥ 1000V
(5 ± 1 seconds and charge/discharge not exceeding 50mA)
2.5%
100 megohm microfarads or 10GΩ
(500VDC applied for 120 ± 5 secs @ 25°C)
Parameters/Characteristics
Regarding Aging Rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1000 Hours.
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and Dissipation Factor (DF) measured under the following conditions:
1kHz ± 50Hz and 1.0 ± 0.2 Vrms if capacitance ≤10µF
120Hz ± 10Hz and 0.5 ± 0.1 Vrms if capacitance >10µF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 & Agilent E4980 have a feature known as Automatic
Level Control (ALC). The ALC feature should be switched to "ON".
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
X7R
Rated DC Voltage Capacitance Value
>25
16 / 25
< 16
All
DF (%)
3.0
5.0
7.5
Cap Shift
± 20%
IR
10% of Initial Limit
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1034_X7R_HV_ARC_SMD • 10/31/2011
4
(SMD MLCCs) – ArcShield Technology, High Voltage, X7R Dielectric, 500VDC-1000VDC (Commercial & Automotive Grade)
Table 1A – (0805 - 1812 Case Sizes)
Series
Cap
2,000 pF
2,200 pF
2,700 pF
3,300 pF
3,900 pF
4,700 pF
5,600 pF
6,800 pF
8,200 pF
10,000 pF
12,000 pF
15,000 pF
18,000 pF
22,000 pF
27,000 pF
33,000 pF
39,000 pF
47,000 pF
56,000 pF
62,000 pF
68,000 pF
82,000 pF
0.10 uF
0.12 uF
0.15 uF
0.18 uF
0.22 uF
0.27 uF
0.33 uF
0.39 uF
0.47 uF
C0805
C
500
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
B
630
D
1000
C
500
C1206
B
630
D
1000
C
500
C1210
B
630
D
1000
C
500
C1808
B
630
D
1000
C
500
C1812
B
630
D
1000
Cap Code
202
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
623
683
823
104
124
154
184
224
274
334
394
474
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
Voltage Code
Voltage DC
Cap Tolerance
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
Voltage DC
Voltage Code
Product Availability and Chip Thickness Codes - See Table 2 for Chip Thickness Dimensions
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
DG
ED
EF
EJ
EJ
EJ
EJ
EJ
EJ
EJ
EJ
EJ
ED
EF
EJ
EJ
EJ
EJ
ED
EM
EJ
EJ
FG
FG
FG
FG
FG
FG
FG
FG
FH
FM
FK
FK
FG
FG
FG
FG
FH
FH
FM
FM
FK
FG
FG
FH
FH
FK
FK
LE
LE
LE
LA
LA
LA
LA
LA
LA
LA
LA
LA
LB
LE
LE
LE
LA
LA
LA
LA
LA
LA
LC
LC
LE
LE
LE
LA
LA
LB
LB
LC
LC
GD
GD
GD
GD
GD
GD
GD
GD
GD
GE
GE
GK
GJ
GL
GS
GD
GD
GD
GD
GD
GD
GD
GE
GE
GH
GJ
GD
GD
GD
GD
GE
GE
GE
GK
GJ
500
C
630
B
1000
D
500
C
630
B
1000
D
500
C
630
B
1000
D
500
C
630
B
1000
D
500
C
630
B
1000
D
Cap
Cap Code
Series
C0805
C1206
C1210
C1808
C1812
Patent Pending Technology
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1034_X7R_HV_ARC_SMD • 10/31/2011
5
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
