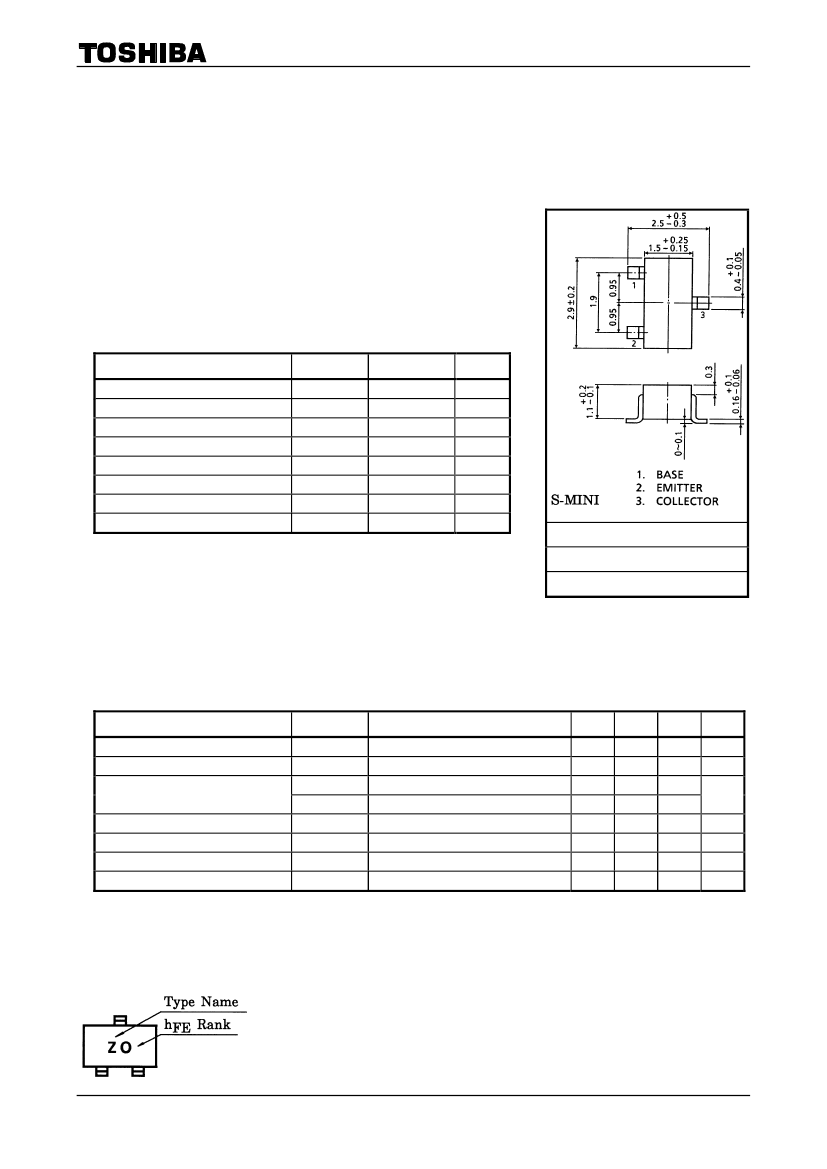

2SA1182
TOSHIBA Transistor Silicon PNP Epitaxial (PCT process)
2SA1182
Audio Frequency Low Power Amplifier Applications
Driver Stage Amplifier Applications
Switching Applications
•
•
Excellent h
FE
linearity: h
FE (2)
= 25 (min)
at V
CE
=
−6
V, I
C
=
−400
mA
Complementary to 2SC2859.
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
−35
−30
−5
−500
−50
150
125
−55~125
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
TO-236MOD
Note: Using continuously under heavy loads (e.g. the application of high
JEITA
SC-59
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
TOSHIBA
2-3F1A
reliability significantly even if the operating conditions (i.e.
Weight: 0.012 g (typ.)
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
DC current gain
(Note)
Symbol
I
CBO
I
EBO
h
FE (1)
h
FE (2)
V
CE (sat)
V
BE
f
T
C
ob
Test Condition
V
CB
= −35
V, I
E
=
0
V
EB
= −5
V, I
C
=
0
V
CE
= −1
V, I
C
= −100
mA
V
CE
= −6
V, I
C
= −400
mA
I
C
= −100
mA, I
B
= −10
mA
V
CE
= −1
V, I
C
= −100
mA
V
CE
= −6
V, I
C
= −20
mA
V
CB
= −6
V, I
E
=
0, f
=
1 MHz
Min
⎯
⎯
70
25
⎯
⎯
⎯
⎯
Typ.
⎯
⎯
⎯
⎯
−0.1
−0.8
200
13
Max
−0.1
−0.1
240
⎯
−0.25
−1.0
⎯
⎯
V
V
MHz
pF
Unit
μA
μA
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
Note: h
FE (1)
classification O(O): 70~140, Y(Y): 120~240, GR(G): 200~400 (
h
FE (2)
classification O: 25 (min), Y: 40 (min), GR: 70 (min)
) Marking Symbol
Marking
1
2007-11-01

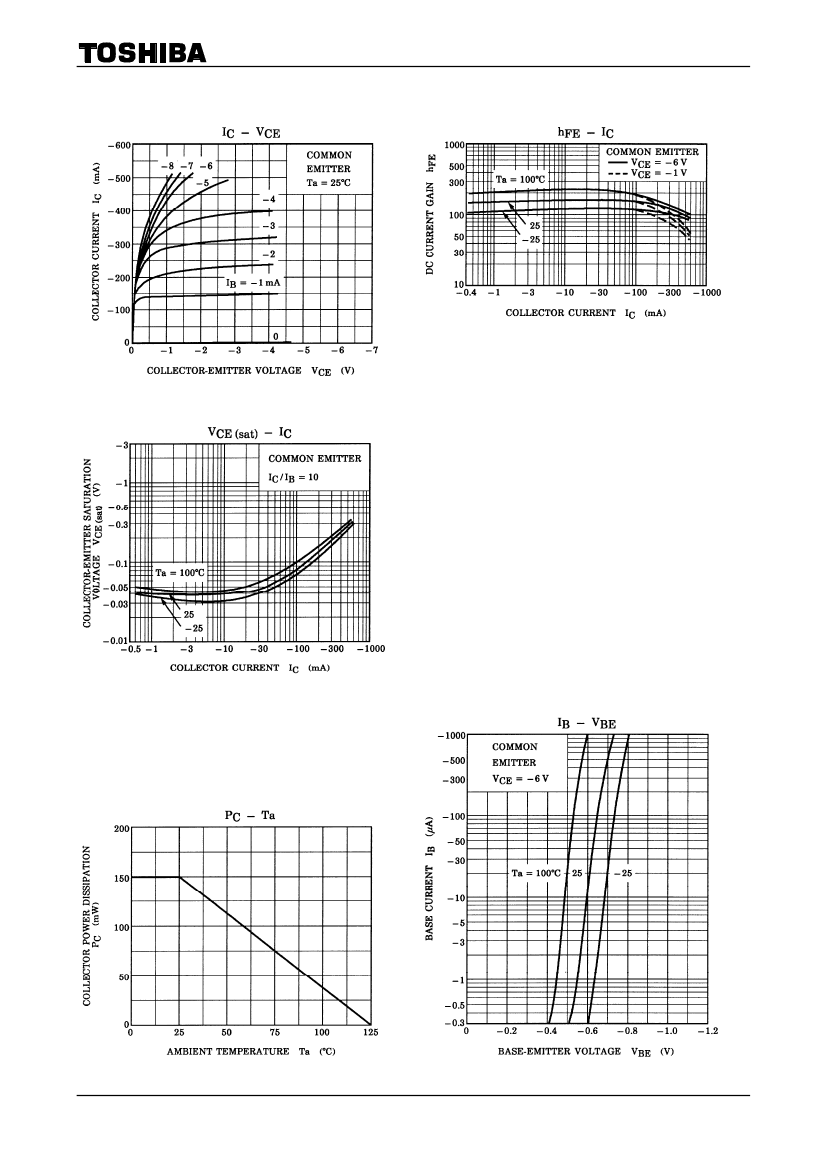

2SA1182
