SB16-04LHP-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SB16-04LHP-TR

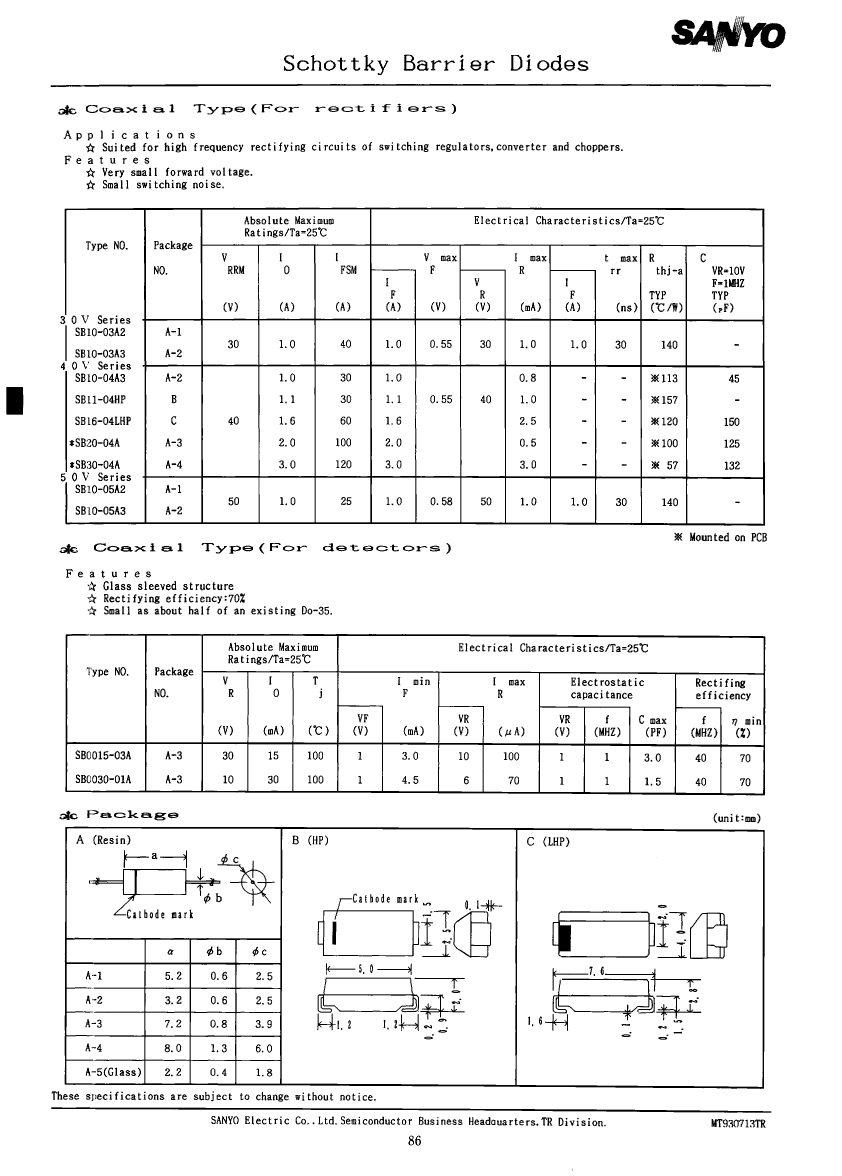

SB16-04LHP-TR: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 1.6A, 40V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size39KB，1 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

SB16-04LHP-TR Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.6A, 40V V(RRM), Silicon

SB16-04LHP-TR Parametric

Parameter Name	Attribute value
Maker	SANYO
package instruction	R-PDSO-C2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	60 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	1.6 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	2500 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

SB16-04LHP-TR Related Products

	SB16-04LHP-TR	SB10-05A2-AT1	SB11-04HP-TL	SB11-04HP-TR	SB10-05A2-BT	SB30-04A-BT	SB10-04A3-AT1	SB20-04A-AT1	SB20-04A-BT	SB30-04A-AT1
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.6A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Element, 1A, 50V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.1A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.1A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Element, 1A, 50V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 40V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 40V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2	O-PALF-W2	R-PDSO-C2	R-PDSO-C2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum output current	1.6 A	1 A	1.1 A	1.1 A	1 A	3 A	1 A	2 A	2 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	SMALL OUTLINE	LONG FORM	SMALL OUTLINE	SMALL OUTLINE	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	50 V	40 V	40 V	50 V	40 V	40 V	40 V	40 V	40 V
surface mount	YES	NO	YES	YES	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	C BEND	WIRE	C BEND	C BEND	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	DUAL	AXIAL	DUAL	DUAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maker	SANYO	-	-	-	-	SANYO	SANYO	SANYO	SANYO	SANYO
package instruction	R-PDSO-C2	O-PALF-W2	R-PDSO-C2	R-PDSO-C2	O-PALF-W2	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	O-PALF-W2
application	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Maximum forward voltage (VF)	0.55 V	-	0.55 V	0.55 V	-	0.55 V	-	0.55 V	0.55 V	0.55 V
Maximum non-repetitive peak forward current	60 A	-	30 A	30 A	-	120 A	-	100 A	100 A	120 A
Phase	1	-	1	1	-	1	-	1	1	1
Maximum reverse current	2500 µA	-	1000 µA	1000 µA	-	3000 µA	-	500 µA	500 µA	3000 µA
Shell connection	-	ISOLATED	-	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
