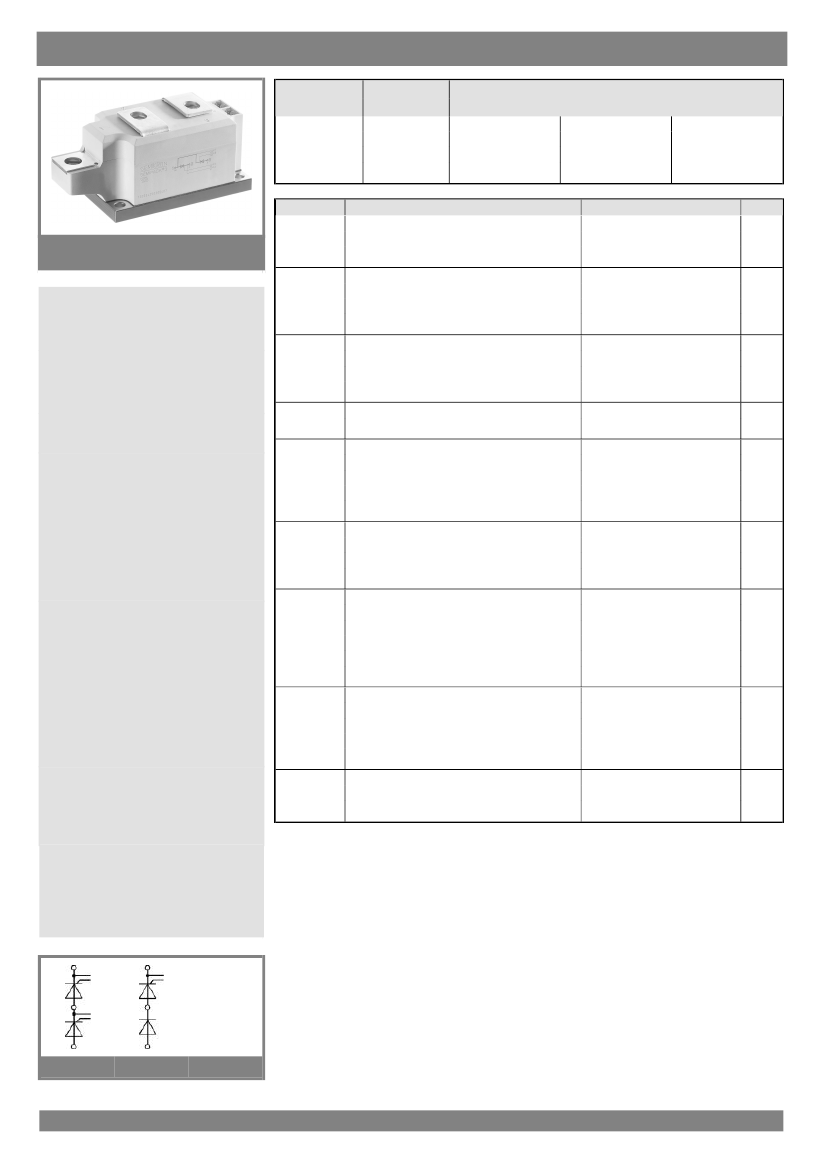

SKKT 250, SKKH 250
THYRISTOR BRIDGE,SCR,BRIDGE
Symbol
Conditions
Values
Units
SEMIPACK
®
3
Thyristor / Diode Modules
SKKH 250
SKKT 250
Features
Typical Applications*
1)
SKKT
SKKH
1
18-03-2011 STM
© by SEMIKRON
RECTIFIER,DIODE,THYRISTOR,MODULE

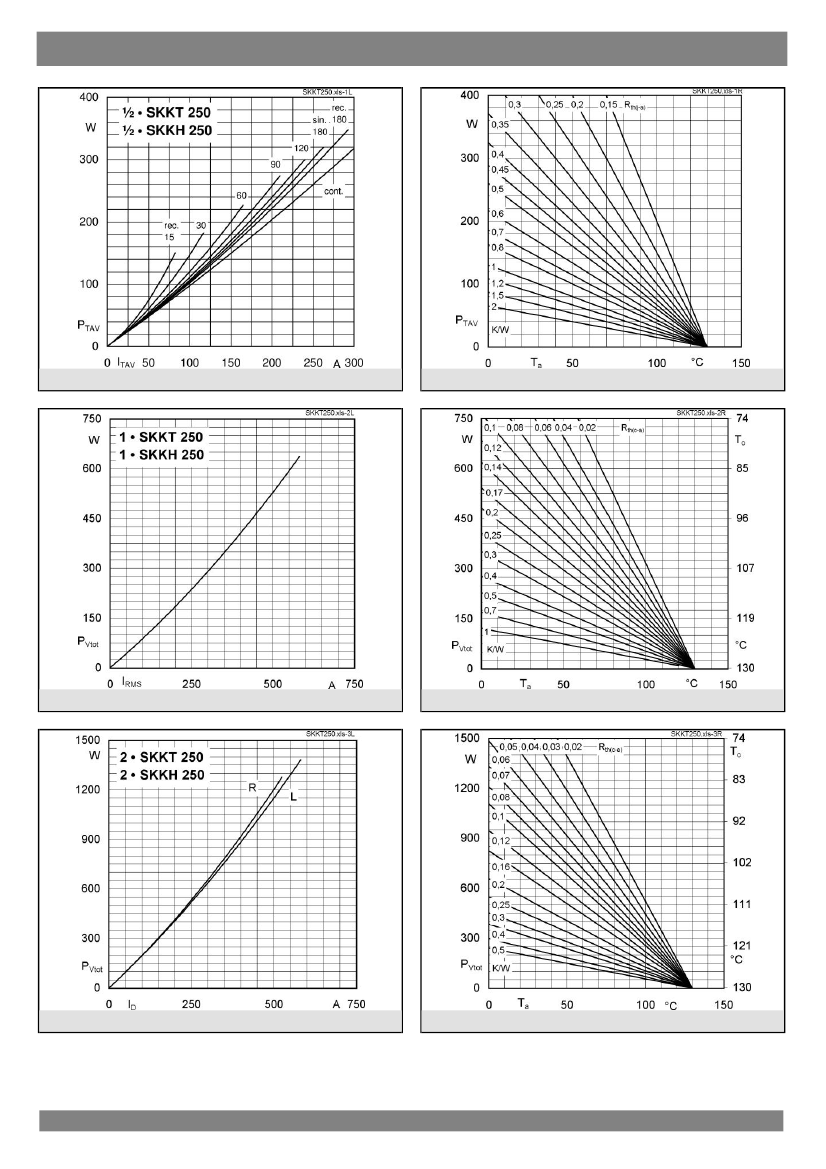

Fig. 1L Power dissipation per thyristor vs. on-state current
Fig. 1R Power dissipation per thyristor vs. ambient temp.
Fig. 2L Power dissipation per module vs. rms current
Fig. 2R Power dissipation per module vs. case temp.
Fig. 3L Power dissipation of two modules vs. direct current
Fig. 3R Power dissipation of two modules vs. case temp.
2
18-03-2011 STM
© by SEMIKRON
SKKT 250, SKKH 250
THYRISTOR BRIDGE,SCR,BRIDGE

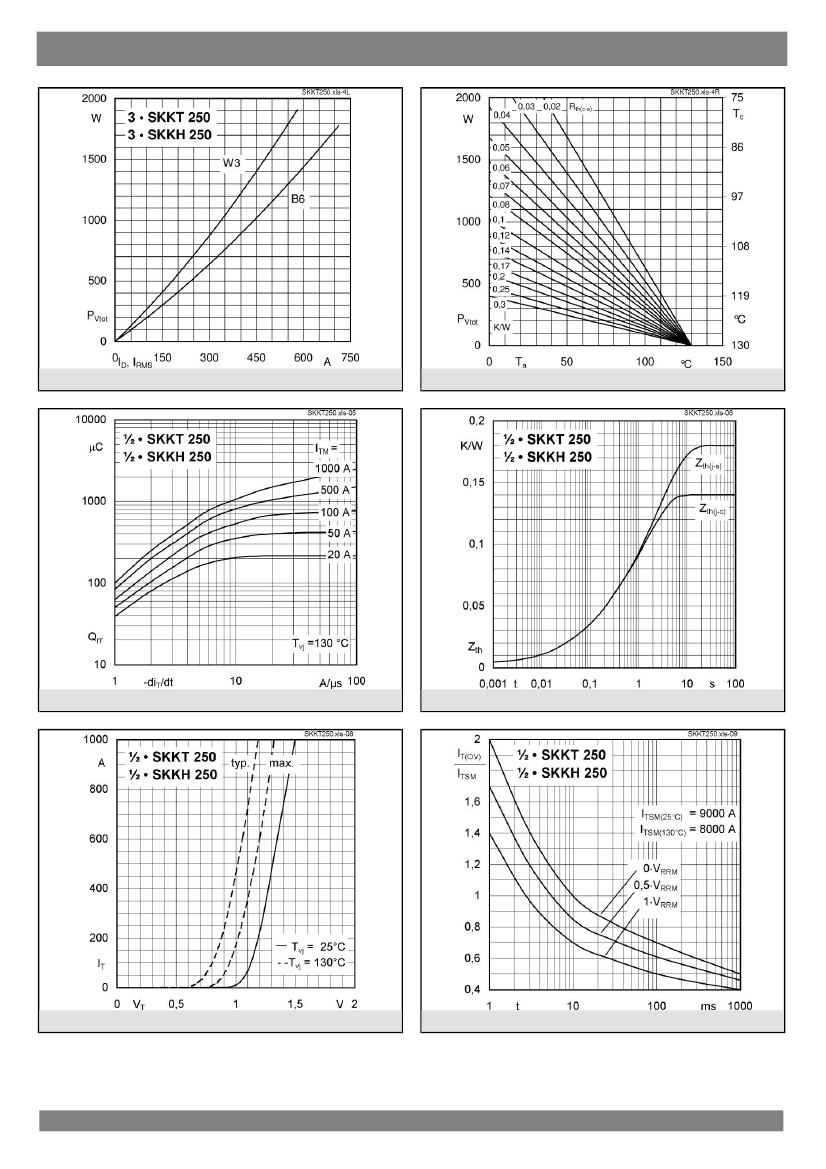

Fig. 4L Power dissipation of three modules vs. direct and rms current
Fig. 4R Power dissipation of three modules vs. case temp.
Fig. 5 Recovered charge vs. current decrease
Fig. 6 Transient thermal impedance vs. time
Fig. 7 On-state characteristics
Fig. 8 Surge overload current vs. time
3
18-03-2011 STM
© by SEMIKRON
RECTIFIER,DIODE,THYRISTOR,MODULE

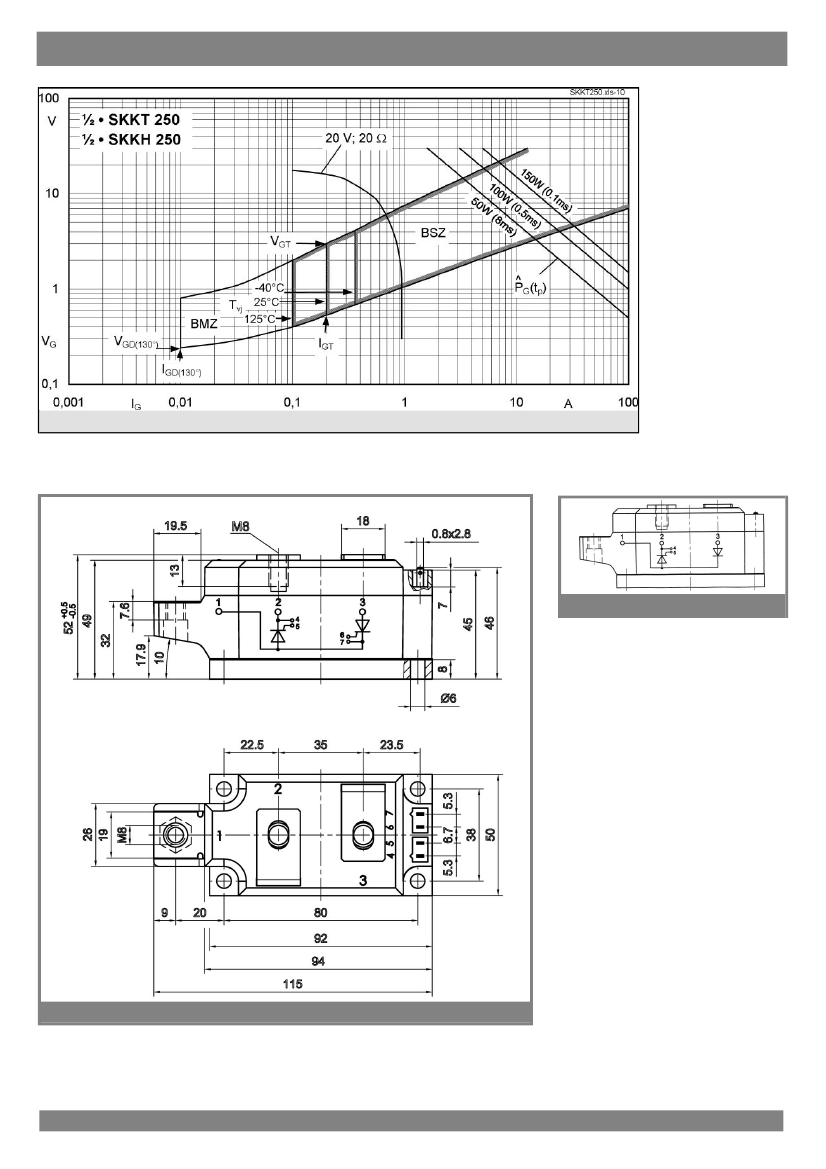

Fig. 9 Gate trigger characteristics
Dimensions in mm
* The specifications of our components may not be considered as an assurance of component characteristics.
Components have to be tested for the respective application. Adjustments may be necessary. The use of SEMIKRON
4
18-03-2011 STM
© by SEMIKRON
SKKT 250, SKKH 250
THYRISTOR BRIDGE,SCR,BRIDGE
products in life support appliances and systems is subject to prior specification and written approval by SEMIKRON. We
therefore strongly recommend prior consultation of our staff.
5
18-03-2011 STM
© by SEMIKRON
