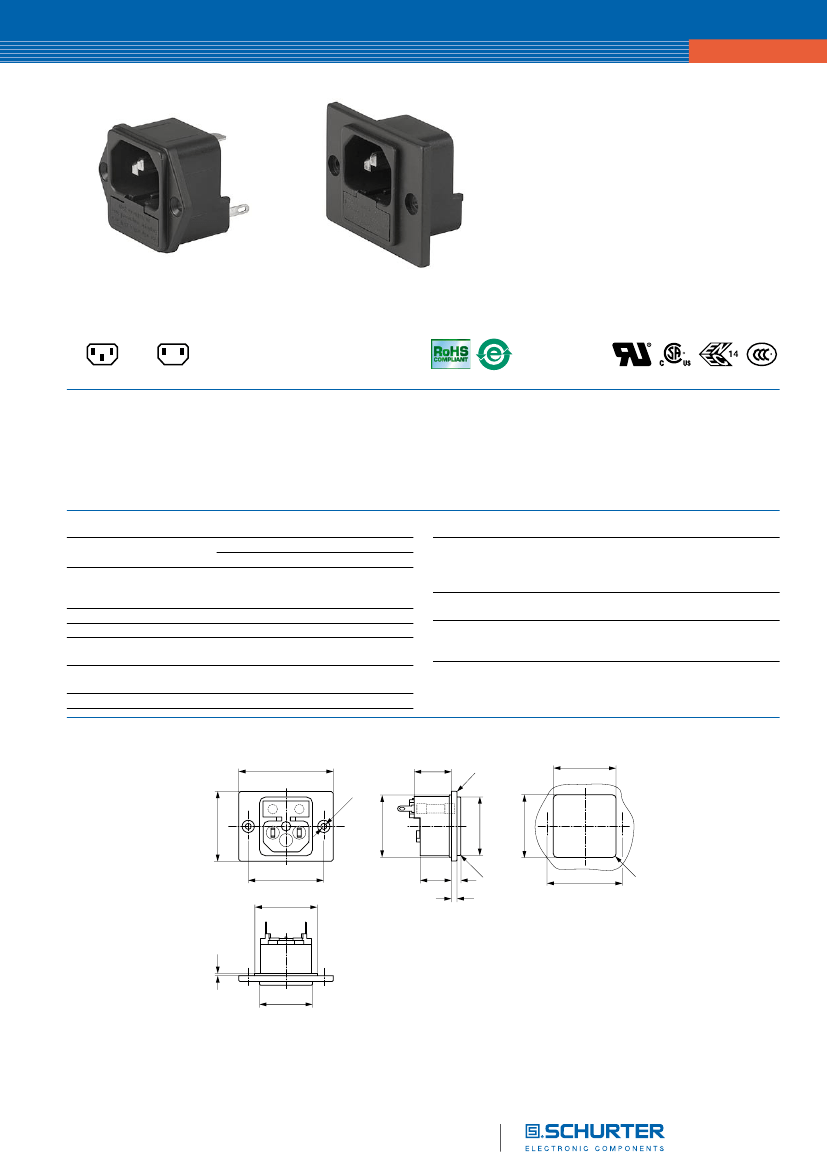

Power entry modules without line filter
www.schurter.com/pg05
IEC Appliance Inlet C14 or C18 with Fuseholder 1- or 2-pole
062
1062: Design 1 + 2
equipment class 1
1062: design 6 + 7
equipment class 1
C14
70° C
C18
70° C
- Panel Mount:
Screw-on from front side, Appliance Inlet, protection class I or II, Fuse-
holder for fuse-links 5 x 20 mm
- Solder terminals or quick connect terminals
Description
Characteristics
Weblinks
- The fuse drawer “Fingergrip” can be removed by hand
The fuseholder is accessible from the equipment front
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,
e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-
Drawings, Accessories, Detailed request for product
Approvals
- UL File Number: E93617
- CSA File Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
10 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Solder terminals or quick connect ter-
minals
PA6, black / grey / white, UL 94V-0
Appliance Inlet
C14 / C18 acc. to IEC 60320
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I or II
1 or 2 pole, acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
Admissible power acceptance at hig-
her ambient temperature see derating
curves
Fuseholder
Power Acceptance @ Ta >
23°C
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
50
19.7
R
0.
5
33.2
- 0
+0.2
ø
3.
2
33.2
- 0
33
37
31
+0.2
R
0.
R
<2
40
33
16.5
5
3
5
40
1.2
28
Length of the terminal please find at the order code configuration table
Connectors
Power entry modules without line filter
www.schurter.com/pg05
Config. Code
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
062
The characters are placeholders for the correspondingly keys of selections from the key tables.
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Type
Type
protection class 2
protection class 1
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Color
Configuration
key
B
X
Color
Black
Grey
White
Configuration
key
A
B
D
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Terminals
Terminal L
connection to fuse holder
Configuration
key
B
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Style
Style
Configuration
key
1
2
6
7
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Terminals
Terminal N
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
connection to fuse holder
Symbols similar as in table A
flange with countersunk holes
Configuration
key
2
3
8
9
B
Dimension "X"
00
The dimension "X" is dispalyed in (
1
/
10
mm). This information is also valid for the
order code
flange with through holes
flange with countersunk holes (special type)
flange with through holes (special type)
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Dimension X
Configuration
key
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Terminals
Terminal Ground
without terminal
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
Symbols similar as in table A
Configuration
key
0
2
3
8
9
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Features
Features
dead cover
holder for 1 or 2 fuses (text legible, when inlet on top)
holder for 1 or 2 fuses (text legible, when inlet on bottom)
Configuration
key
1
4
5
1062
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
= Terminal Fuseholder
Terminal Fuseholder
solder terminal
Configuration
key
1
Connectors
062
www.schurter.com/pg05
Variants
Config. Code
1062-X-B221-A-6004
Description
Power entry modules without line filter
Order Number
4304.6011
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: short solder terminal (L = 4.8 mm),
ground: short solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes (spe-
cial type), dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), not used
1062-X-B331-A-1004
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: long solder terminal (L = 8.5 mm),
4304.6012
ground: long solder terminal (L = 8.5 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimen-
sion X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top),
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: Blade terminal (4.8 x 0.8 mm), ground:
Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00,
features: holder for 1 or 2 fuses (text legible, when inlet on top),
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: Blade terminal (6.3 x 0.8 mm), ground:
Blade terminal (6.3 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00,
features: holder for 1 or 2 fuses (text legible, when inlet on top),
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: short
solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00,
features: holder for 1 or 2 fuses (text legible, when inlet on top),
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: short
solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00,
features: holder for 1 or 2 fuses (text legible, when inlet on bottom),
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: short
solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes (special type), di-
mension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), not used
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: long
solder terminal (L = 8.5 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00,
features: holder for 1 or 2 fuses (text legible, when inlet on top),
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade
terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, fea-
tures: holder for 1 or 2 fuses (text legible, when inlet on top),
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade
terminal (6.3 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, fea-
tures: holder for 1 or 2 fuses (text legible, when inlet on top),
1062, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade
terminal (6.3 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, fea-
tures: holder for 1 or 2 fuses (text legible, when inlet on bottom),
4304.6013
1062-X-B881-A-1004
1062-X-B991-A-1004
4304.6014
1062-X-BB21-A-1004
4304.6015
1062-X-BB21-A-1005
4304.6016
1062-X-BB21-A-6004
4304.6017
1062-X-BB31-A-1004
4304.6018
1062-X-BB81-A-1004
4304.6019
1062-X-BB91-A-1004
4304.6020
1062-X-BB91-A-1005
4304.6021
The listet variants should be available from stock Other versions on request www.schurter.com/contact
Packaging unit

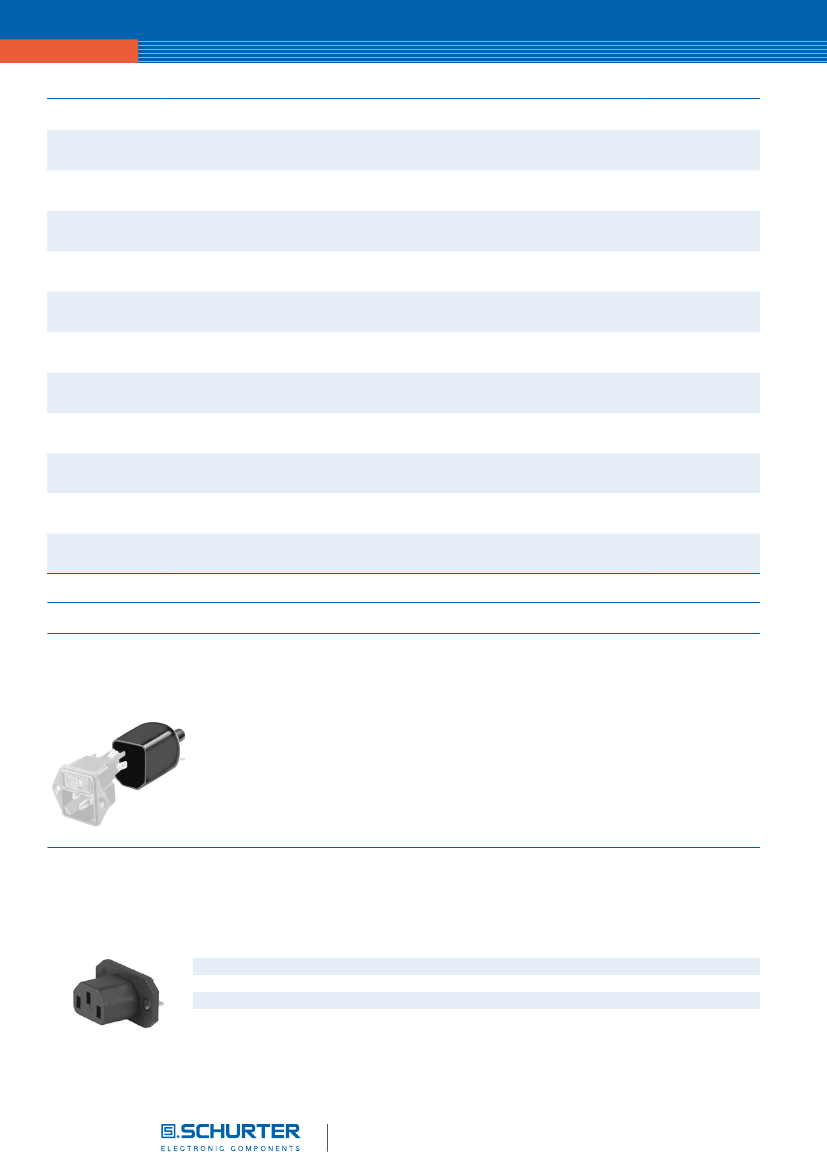

Accessories
200 Pcs
Description
Assorted Covers
Rear Cover
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
Appliance Outlet further types to 1062
4787
4788
5091
5092
Connectors
Power entry modules without line filter
www.schurter.com/pg05
062
0101
0102
0102-G
0112
4012
...

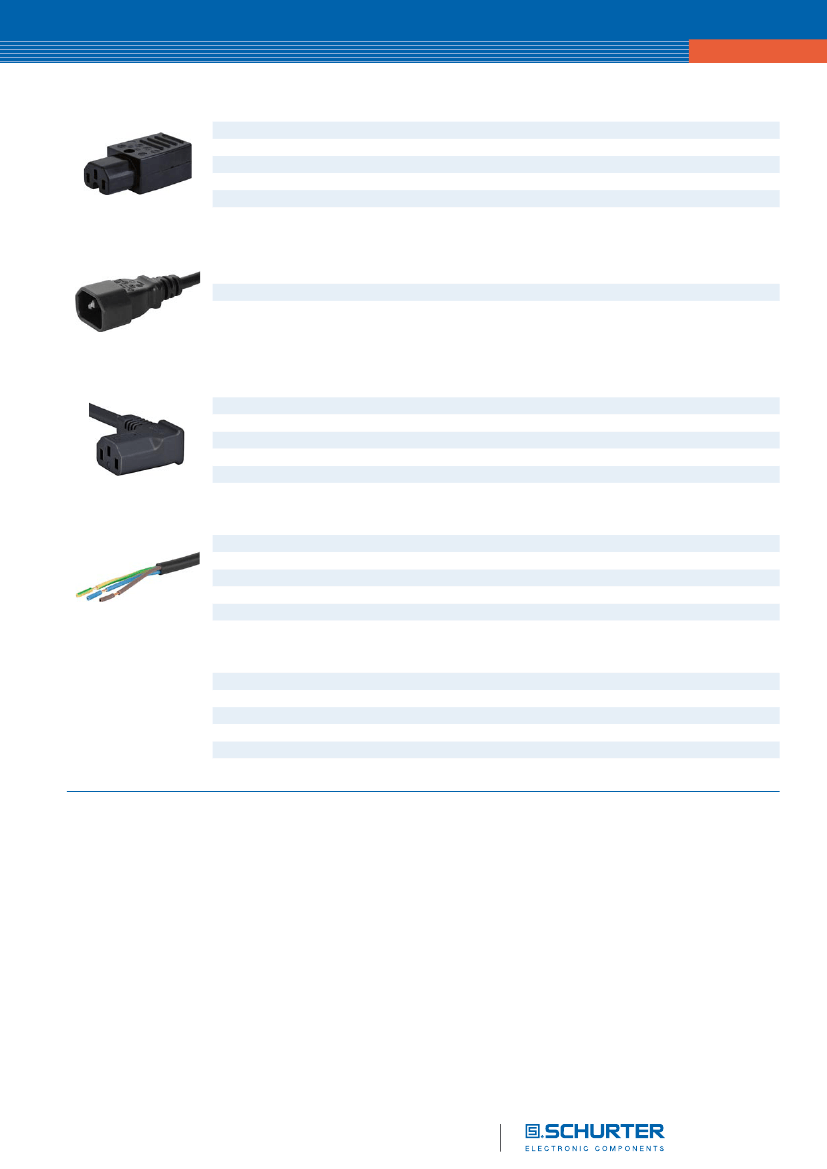

Connector Overview complete
IEC Connector C15, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
Connector further types to 1062
Interconnection Cord Overview complete
Interconnection Cord C13, 10 A
Interconnection Cord C13, 10 A
Interconnection Cord further types to 1062
6007.0212
6007.0214
Power Cord Overview complete
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13
Power Cord further types to 1062
Power Supply Cord Overview complete
Power Supply Cord with IEC Connector C13 straight, stripped end
Power Supply Cord with IEC Connector C13 angled, stripped end
EU Power Supply Cord with IEC Connector C13, straight
EU Power Supply Cord with IEC Connector C13, straight
US Power Supply Cord with IEC Connector C13, straight
Power Supply Cord further types to 1062
Power Supply or Interconnection Cord Overview complete
Diverse Power Supply and Interconnection Cords 10 A
Diverse Power Supply and Interconnection Cords 10 A
Diverse Power Supply and Interconnection Cords 10 A
UK Power Supply Cord with stipped ends
Diverse Power Supply and Interconnection Cords 10 A
Power Supply or Interconnection Cord further types to 1062
6003.0204
6003.0205
6026.0205
6044.0204
6045.0114
...
6000.0214
6000.0224
6003.0215
6004.0215
6009.1315
...
0311
3011
3012
3013
3020
...
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
5
04.04.2013
