Power entry modules without line filter

Voltage Selectors Insert

www.schurter.com/pg05

Voltage Selector Insert to KE, CE, KG, CG

Voltage selector inserts for power entry

modules, types KE, CE, KG, CG

To be used with drawer for KE, CE, KG, CG

Description

- Component:

Drop-in type, Switching Unit

- 1 Function:

Voltage selector insert (step switch)

- Up to four different switch positions

- Approved together with power entry module

Other versions on request

References

Fits to type:

- Fuse drawer with other voltage values

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Store, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories

Weblinks

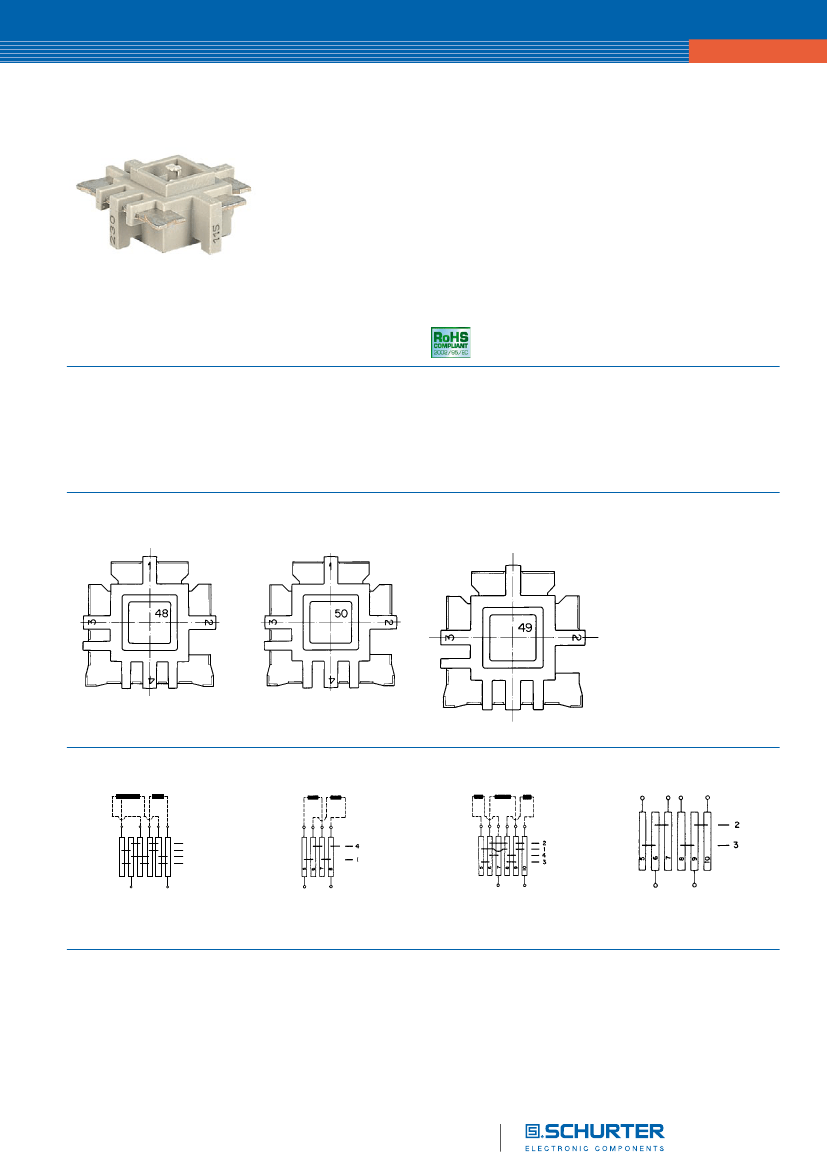

Dimensions

Switch position 1

Switch postion 2

Diagrams

System No. 1

System No. 2

System No. 3

System No. 4

2 separate windings, one with a tap

3 or 4 switch positions

2 separate windings one with a tap

3 or 4 switch positions

2 separate windings

2 switch positions

2 separate windings

2 switch positions

3 separate windings

3 or 4 switch positions

3 separate windings

3 or 4 switch positions

2-pole change over switch

2-pole change-over switch
