Specification
BTHQ 128064AVG-FFEMN-06 LED02WHITE-COG
(BT45182)
Doc. No.: COG-BTG12864-01
Version April 2007
DOCUMENT REVISION HISTORY
DOCUMENT
REVISION
FROM TO
A
DATE
DESCRIPTION
CHANGED
BY
XIAO LI
LAN
CHECKED
BY
VIVIAN
LUO
2007.04.25 First Release.
Based on
a.) Test Specification:
VL-TS-COG-BTG12864-XX REV.A
2006.11.17
b.) VL-QUA-012B REV.W 2004.03.20
(According to VL-QUA-012B, LCD size is
small because Unit Per Laminate=35 which
is more than 6pcs/Laminate.)
2
CONTENTS
Page No.
1.
2.
3.
GENERAL DESCRIPTION
MECHANICAL SPECIFICATIONS
INTERFACE SIGNALS
4
4
8
10
10
10
11
11
12
15
17
20
28
28
29
30
4. ABSOLUTE MAXIMUM RATINGS
4.1 ELECTRICAL MAXIMUM RATINGS – FOR IC ONLY
4.2 ENVIRONMENTAL CONDITION
5.
5.1
5.2
5.3
5.4
6.
7.
8.
9.
ELECTRICAL SPECIFICATIONS
TYPICAL ELECTRICAL CHARACTERISTICS
TIMING SPECIFICATIONS
INSTRUCTION SET
COMMAND DESCRIPTION
LCD SPECIFICATIONS
LED CHROMATICS COORDINATES
ELECTRO-OPTICAL CHARACTERISTICS
OPTICAL CHARACTERISTICS DEFINITION
10. LCD COSMETIC CONDITIONS
3
Preliminary Specification
of
LCD Module Type
Model No.: COG-BTG12864-01
1.
General Description
128 x 64 dots FFSTN Negative Black transmmsive LCD graphic module.
Viewing angle: 6 o’clock.
Driving scheme: 1/65 duty, 1/9 bias.
Driving IC: ‘NOVATEK’ NT7534H-BDT (COG) LCD controller/driver or equivalent.
Logic voltage: 3.3V.
White LED02 backlight.
FPC connection.
“RoHS” compliance.
2.
Mechanical Specifications

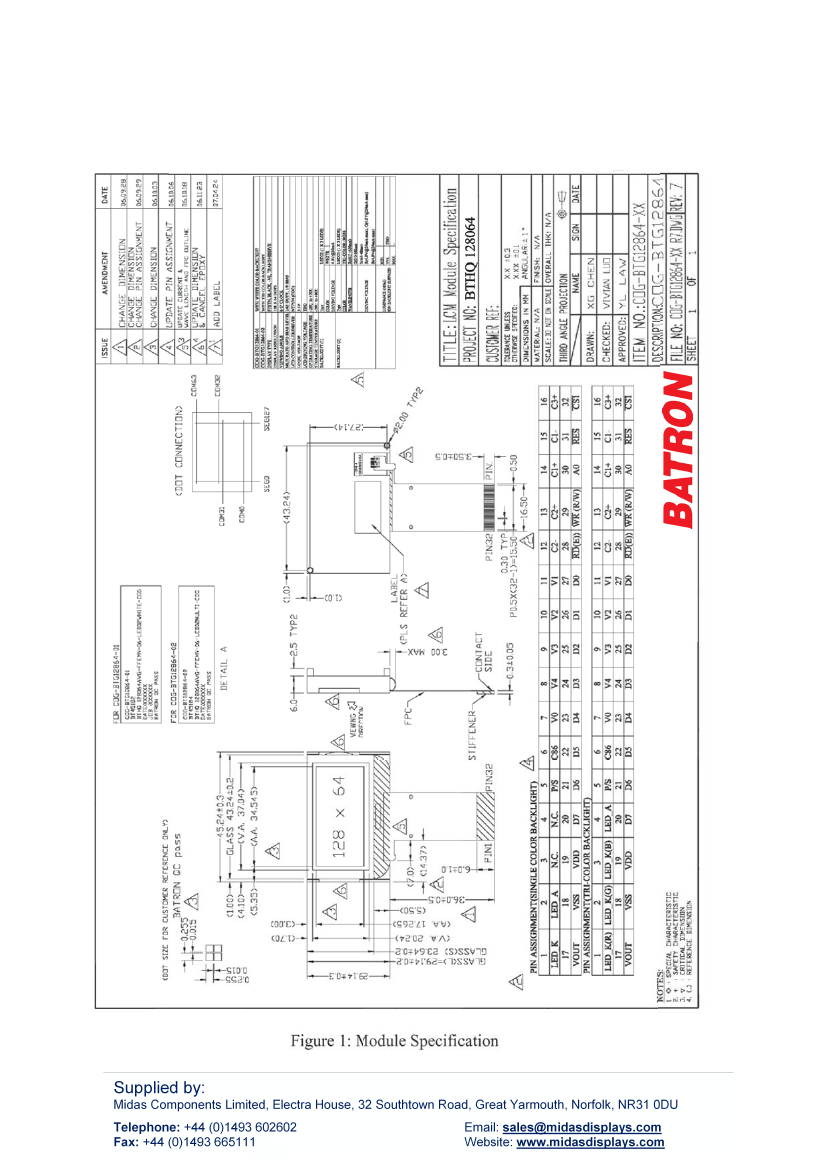

The mechanical detail is shown in Fig. 1 and summarized in Table 1 below.
Table 1
Specifications
45.24(W) x 29.14(H) x 8.5(D) (Excluded FPC)
37.04(W) x 20.24(H)
34.545(W) x 17.265(H)
128(W) x 64(H)
0.255(W) x 0.255(H)
0.015(W) x 0.015(H)
0.270(W) x 0.270(H)
Approx: 10.5
Parameter
Outline dimensions
Viewing area
Active area
Display format
Dot size
Dot spacing
Dot pitch
Weight
Unit
mm
mm
mm
dots
mm
mm
mm
gram
4
