22/02/2012
www.crouzet.com

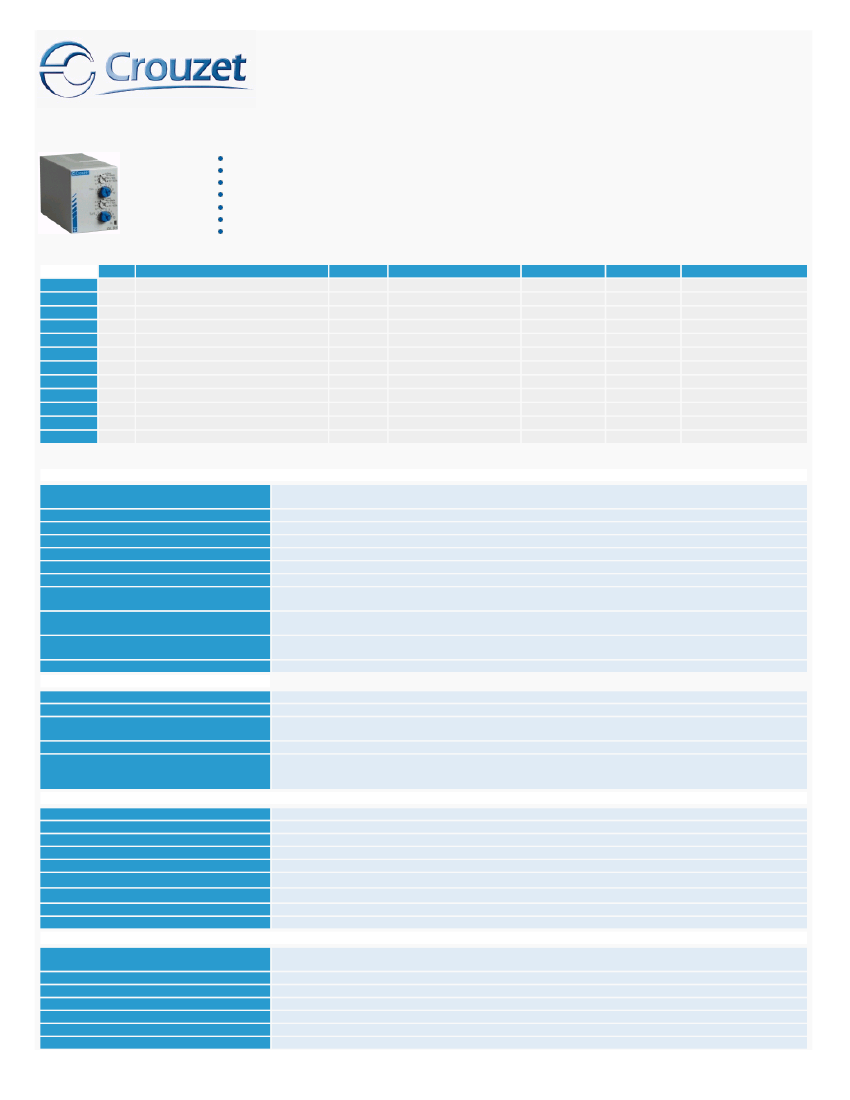

Plug-in OUR1 Part number 88867105
Multi-function or mono-function
Multi-range
Multi-voltage
Relay output 1 or 2: 8 A - 250 V (10 A UL)
LED status indicator
Option of connecting an external power supply to the control input
3-wire sensor control option
Type
88 867 105
88 867 215
88 867 135
88 867 155
88 867 100
88 867 103
88 867 305
88 867 415
88 867 435
88 867 455
88 867 300
88 867 303
OUR1
OCR1
OLR1
OUR4
OUR3
PU2R1
PA2R1
PC2R1
PL2R1
PU2R4
PU2R3
Functions
A - At - B - C - H - Ht - Di - D - Ac - Bw
C
Li - L
A - At - B - C - H - Ht - Di - D - Ac - Bw
A - At - B - C - H - Ht - Di - D - Ac - Bw
A - At - B - C - H - Ht - Di - D - Ac - Bw
A - At
C
Li - L
A - At - B - C - H - Ht - Di - D - Ac - Bw
A - At - B - C - Ht - Di - D - Ac - Bw
Timing
0,1s→100h
0,1s→100h
0,1s→100h
0,1s→100h
0,1s→100h
0,1s→100h
0,1s→100h
0,1s→100h
0,1s→100h
0,1s→100h
0,1s→100h
0,1s→100h
Output
1 changeover relay
2 changeover relays
1 changeover relay
1 changeover relay
1 changeover relay
1 changeover relay
2 timed changeover relays
2 changerover relays
2 changeover relays
2 changeover relays
2 timed changeover relays
2 timed changeover relays
Nominal rating
8A
8A
8A
8A
8A
8A
8A
8A
8A
8A
8A
8A
Connections
8-pin
8-pin
8-pin
8-pin
8-pin
8-pin
11-pin
11-pin
11-pin
11-pin
11-pin
11-pin
Supply voltage
24 V DC / 24 →240 V AC
24 V DC / 24 →240 V AC
24 V DC / 24 →240 V AC
24 V DC / 24 →240 V AC
12 V AC / DC
12 →240 V AC / DC
24 V DC / 24 →240 V AC
24 V DC / 24 →240 V AC
24 V DC / 24 →240 V AC
24 V DC / 24 →240 V AC
12 V AC / DC
12 →240 V AC / DC
OA2R1 A
Timing
Timing ranges (7 ranges)
Repetition accuracy with constant parameters
Drift Temperature
Drift Voltage
Display accuracy according to IEC/EN 1812-1
Minimum pulse duration typically (relay version)
Minimum pulse duration typically (solid state version)
Minimum pulse duration typically (relay version under
load)
Maximum reset time by de-energisation typically (relay
version)
Maximum reset time by de-energisation typically (solid
state version)
Immunity from micro power cuts: typical
1 s - 10 s - 1 min - 10 min - 1 h - 10 h - 100 h
TK2R1: 0.6s - 2.5s - 20s - 160 s
± 0.5% (IEC/EN 1812-1)
± 0,05% / °C
± 0.2% / V
± 10% / 25°C
30 ms
50 ms
100 ms
100 ms
350 ms
> 10 ms
Supply
Multi-voltage power supply
Frequency (Hz)
Operating range
Operator factor
Max. absorbed power
Depending on version
50 / 60
85 to 110% Un
(85 to 120% Un for 12V AC/DC)
100%
0,6 W 24 V AC/DC
1,5 W 230 V AC
32 VA 230 V AC
Output specification
1 or 2 changeover relays, AgNi (cadmium-free)
Rated power
Maximum breaking current
Minimum breaking current
Voltage breaking capacity
Electrical life (operations)
Mechanical life (operations)
Breakdown voltage acc. to IEC/EN 61812-1
Impulse voltage acc. to IEC/EN 60664-1, IEC/EN 61812-1
2000 VA/80 W
2000 VA/80 W
8 A AC 8A DC
10 mA / 5 V DC
250 V AC/ DC
10
5
operations 8 A 250 V resistive
5x10
6
2.5 kV /1 min / 1 mA / 50 Hz
5 kV, wave 1.2 / 50
μs
Solid state output
Rated power
Derating
Maximum admissible current
Minimum breaking current
Leakage current
Voltage breaking capacity
Maximum voltage drop at terminals
0,7 A AC/DC
20 °C (0,5 A UL)
5 mA / °C
20 A ≤ 10 ms
10 mA
< 5 mA
250 V AC/ DC
3 wire 4V - 2 wire 8V
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
22/02/2012
Electrical life (operations)
Mechanical life (operations)
Breakdown voltage acc. to IEC/EN 60664-1, IEC 60255-5
Input type
10
8
www.crouzet.com
10
8
2.5 kV to 1 mA / 1 min
Volt-free contact
3-wire PNP output control option residual voltage: 0.4V whatever the timer power supply
General characteristics
Conformity to standards
IEC/EN 61812-1
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
CE, UL, cUL, CSA, GL
-20 →+60
-30 →+60
Certifications
Temperature limits use (°C)
Temperature limits stored (°C)
Installation category
Voltage surge category
(acc. to IEC/EN 60664-1) )
Creepage distance and clearance acc. to IEC/EN 60664-1
4 kV / 3
Protection (IEC/EN 60529)
IP 20
IP 40
Degree of protection acc. to IEC/EN 60529 Front face
IP 50
(except Tk2R1)
Vibration resistance
f = 10 55 Hz
acc. to IEC/EN 60068-2-6
A = 0,35 mm
Relative humidity no condensation acc. to IEC/EN 60068-
93% sans condensation
2-30
Electromagnetic compatibility - Immunity to electrostatic
Level III (Air 8 KV / Contact 6 KV)
discharges acc to IEC/EN 61000-4-2
Immunity to electrostatic fields acc. ENV 50140/204
Level III 10V/m (80 MHz to 1 GHz)
CEI/EN 61000-4-3
Immunity to rapid transient bursts acc. to IEC/EN 61000-4-
Level III (direct 2kV / Capacitive coupling clamp 1 KV)
4
Immunity to shock waves on power supply acc. to IEC/EN
Level III (2 KV / common mode 2 KV/residual current mode 1KV)
61000-4-5
Immunity to radio frequency in common mode acc. to
Level III (10V rms: 0.15 MHz to 80 MHz)
IEC/EN 61000-4-6
Immunity to voltage dips and breaks acc. to IEC/EN 61000-
30%/10 ms
4-11
60%/100 ms >
95%/5 s
Mains-borne and radiated emissions acc. to EN 55O22
Class B
(CISPR22), EN55011 (CISPR11)
Fixing: Symmetrical DIN rail
35 mm
Connection capacity - without ferrule
2 x 2,5 mm
2
Connection capacity - with ferrule
Spring terminals, 2 terminals per connection point -
flexible wire
Spring terminals, 2 terminals per connection point - rigid
wire
Housing material
Weight: casing 17,5 mm
Weight: casing 22,5 mm
Weight: plug-in casing
2 x 1,5 mm
2
1,5 mm
2
2,5 mm
2
Self-extinguishing
60 g
90 g
80 g
Accessories
8-pin connector base
Code
25 622 128
Display
State displayed by 1 LED
- Flashing green when on
Green LED operation indicator
Pulsing :
- timer on, no timing in progress (except functions Di-D and Li-L)
Flashing :
- timing in progress
Permanently lit :
- Relay waiting, no timing in progress
Dimension Diagram :
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
22/02/2012

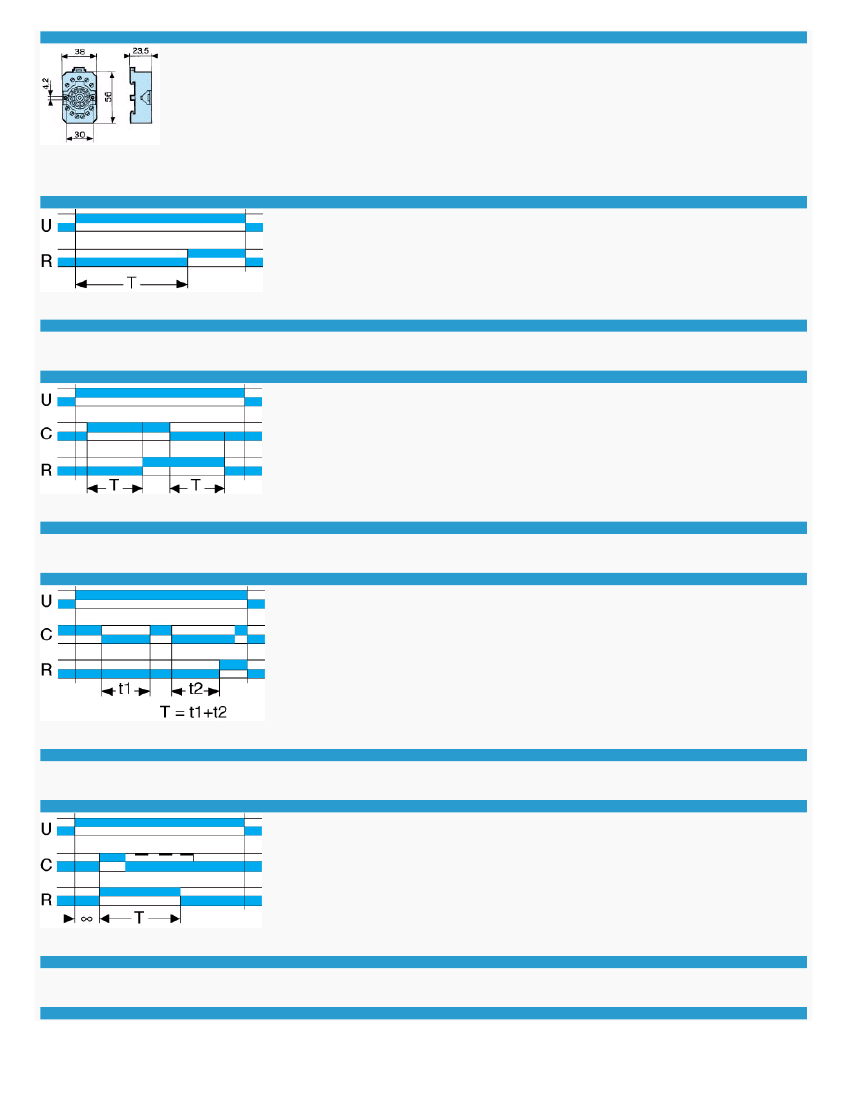

Dimension Diagram : Accessories
www.crouzet.com
Curves : Function A - 1 relay output
Function A
Delay on energisation 2 timers or 2 relays, including 1 instantaneous
Curves : Function Ac - 1 relay output
Function Ac
Timing after closing and opening of control contact
Curves : Function At - 1 relay output
Function At
Timing on energisation with memory
Curves : Function B - 1 relay output
Function B
Timing on impulse one shot
Curves : Function Bw - 1 relay output
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
22/02/2012
www.crouzet.com

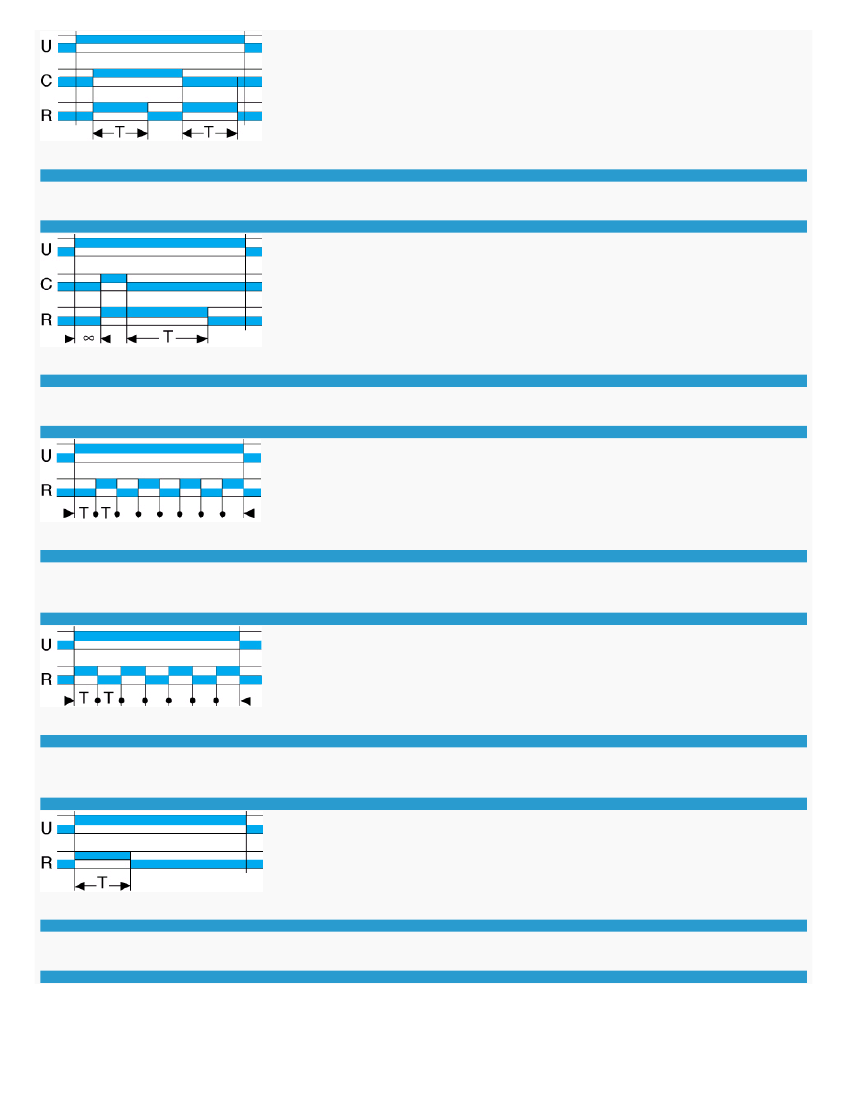

Function Bw
Pulse output (adjustable)
Curves : Function C - 1 relay output
Function C
Timing after impulse
Curves : Function D - 1 relay output
Function D
Flip-flop
Pause start
Curves : Function Di - 1 relay output
Function Di
Flip-flop
Pulse start
Curves : Function H - 1 relay output
Function H
Timing on energisation
Curves : Function Ht - 1 relay output
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
22/02/2012
www.crouzet.com
Function Ht
Delay on energisation with memory
: 8-pin 1 relay output
Functions
Functions A - At / H - Ht/ B / C / Di - D / Ac / Bw
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
