BCL565050101KLF datasheet, PDF

Datasheet> All Categories > Passive components> inductor> BCL565050101KLF

BCL565050101KLF: Description1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 2220, ROHS COMPLIANT; CategoryPassive components inductor; File Size220KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

BCL565050101KLF Overview

1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 2220, ROHS COMPLIANT

BCL565050101KLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	2220
Reach Compliance Code	compliant
uppercase and lowercase codes	2220
DC Resistance	1.6 Ω
Nominal inductance(L)	100 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	BCL565050
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.25 A
self resonant frequency	6 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	MATTE TIN
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.796 MHz
Tolerance	10%

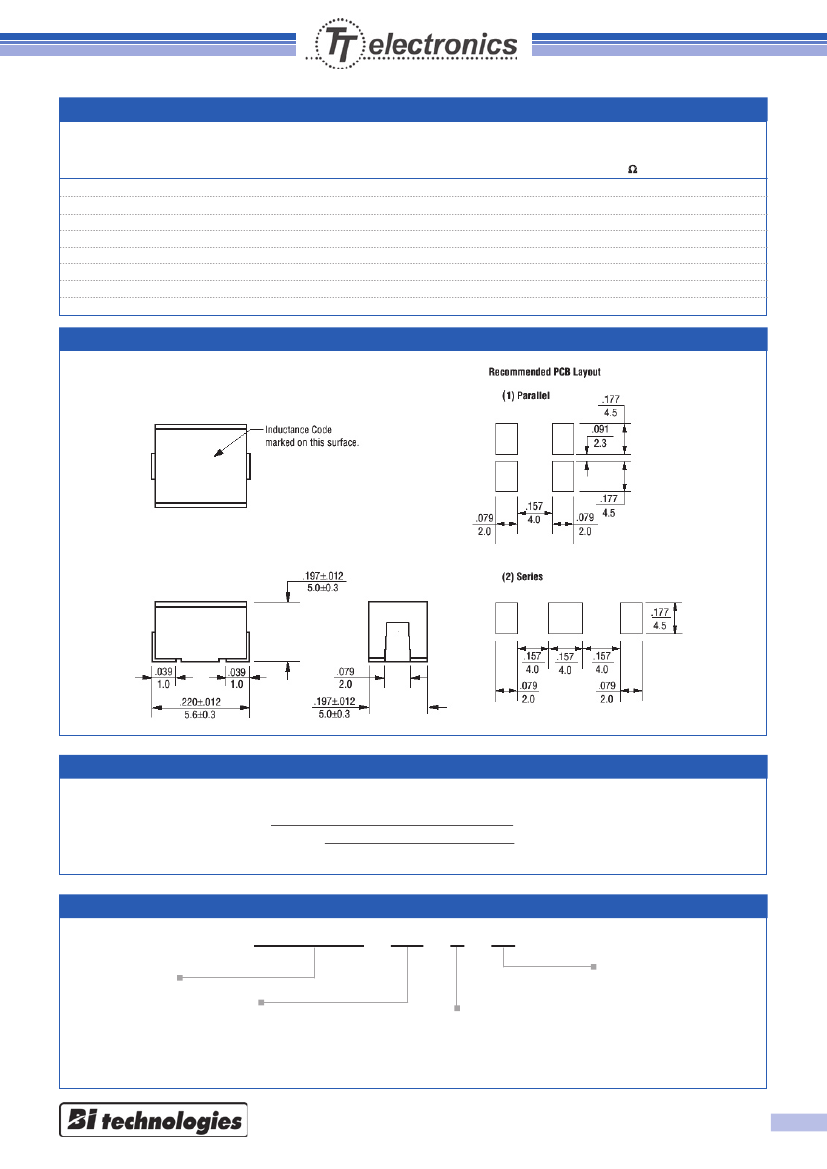

Preview

Download Datasheet

View All

Electrical / Environmental

 

losr

n f

om lia

‘LF’ M

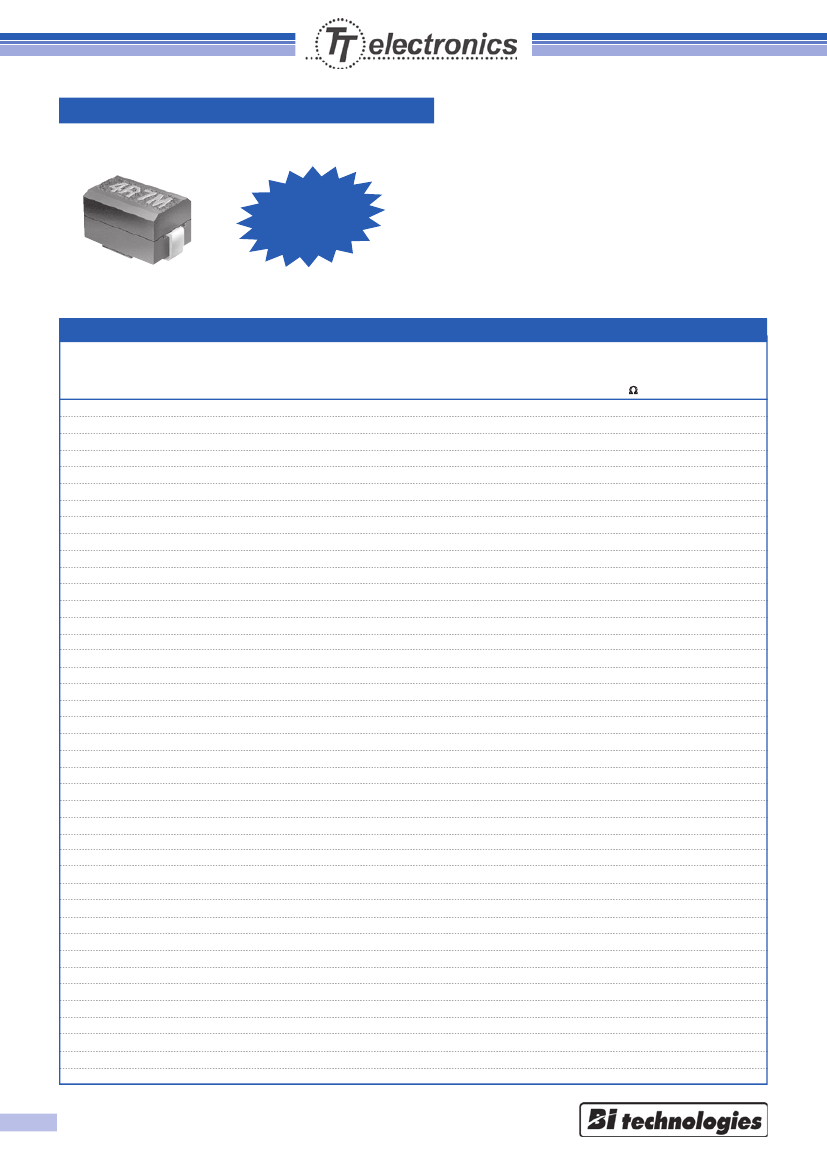

2220 Industry Size

Surface Mount Inductors

•

Inductance Range

1µH to 10,000µH

Standard Tolerance

±10%(>1,000µH = ±5%)

Operating Temperature Range

-40°C to +105°C

Ambient Temperature, Maximum

80°C

Resistance to Solder Heat

260°C for 10 sec.

Terminal Pull Strength, Minimum

0.5 kg

Specifications

Part

Number

BCL565050-1R0K

BCL565050-1R2K

BCL565050-1R5K

BCL565050-1R8K

BCL565050-2R2K

BCL565050-2R7K

BCL565050-3R3K

BCL565050-3R9K

BCL565050-4R7K

BCL565050-5R6K

BCL565050-6R8K

BCL565050-8R2K

BCL565050-100K

BCL565050-120K

BCL565050-150K

BCL565050-180K

BCL565050-220K

BCL565050-270K

BCL565050-330K

BCL565050-390K

BCL565050-470K

BCL565050-560K

BCL565050-680K

BCL565050-820K

BCL565050-101K

BCL565050-121K

BCL565050-151K

BCL565050-181K

BCL565050-221K

BCL565050-271K

BCL565050-331K

BCL565050-391K

BCL565050-471K

BCL565050-561K

BCL565050-681K

BCL565050-821K

BCL565050-102K

BCL565050-122J

BCL565050-152J

BCL565050-182J

BCL565050-222J

Inductance

µH

1.00±10%

1.20±10%

1.50±10%

1.80±10%

2.20±10%

2.70±10%

3.30±10%

3.90±10%

4.70±10%

5.60±10%

6.80±10%

8.20±10%

10.00±10%

12.00±10%

15.00±10%

18.00±10%

22.00±10%

27.00±10%

33.00±10%

39.00±10%

47.00±10%

56.00±10%

68.00±10%

82.00±10%

100.00±10%

120.00±10%

150.00±10%

180.00±10%

220.00±10%

270.00±10%

330.00±10%

390.00±10%

470.00±10%

560.00±10%

680.00±10%

820.00±10%

1000.00±10%

1200.00±5%

1500.00±5%

1800.00±5%

2200.00±5%

Test

Frequency

MHz

7.96

2.52

0.796

0.252

SRF

MHz Min.

11.5

10.5

9.5

8.5

7.8

7.0

6.4

6.0

5.4

4.8

4.4

3.9

3.6

3.2

2.9

2.6

2.4

2.2

2.0

1.8

1.5

1.4

1.3

1.2

Resistance

Ω

Max

0.030

0.035

0.04

0.05

0.06

0.07

0.08

0.09

0.11

0.13

0.15

0.18

0.21

0.25

0.30

0.36

0.43

0.52

0.62

0.72

0.85

1.0

1.2

1.4

1.6

1.9

2.2

2.8

3.4

4.2

4.9

5.8

7.0

8.5

Rated

Current

IDC mA

1800

1700

1600

1400

1300

1200

1120

1050

950

880

810

750

690

630

580

530

480

440

400

370

340

310

290

270

250

230

210

190

170

155

140

130

120

110

100

Q Min.

MAGNETIC COMPONENTS SELECTOR GUIDE 2006 EDITION

We reserve the right to change specifications without prior notice.

www.bitechnologies.com
