MBR10150CT-G
MBRB10150CT-G
MBR10150CT-1-G
Green Products
MBR10150CT-G/MBRB10150CT-G/MBR10150CT-1-G
SCHOTTKY RECTIFIER
Applications:
•
Switching power supply
•
Converters
•
Free-Wheeling diodes
•
Reverse battery protection
Features:
•
•
•
•
•
•
150 °C T
J
operation
Center tap configuration
Low forward voltage drop
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and
moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
MBR10150CT-G
Case styles
MBRB10150CT-G
MBR10150CT-1-G
TO-220AB
D
2
PAK

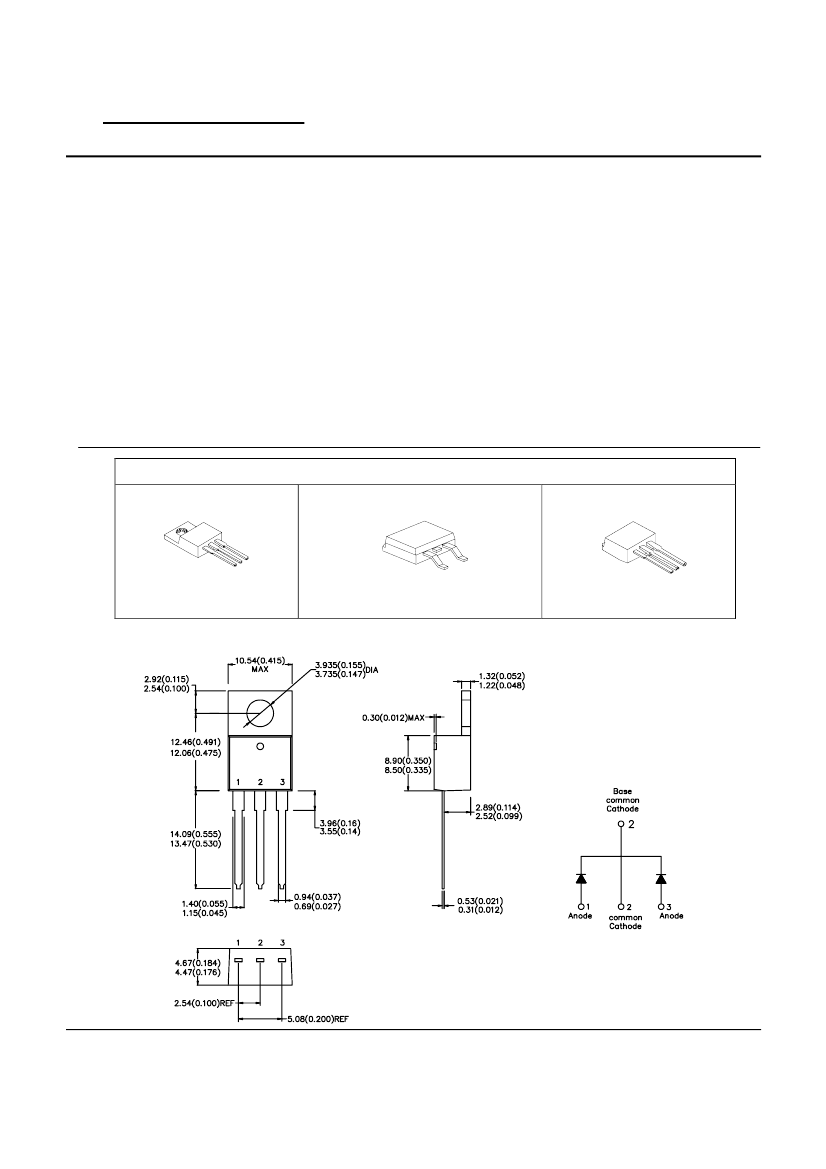

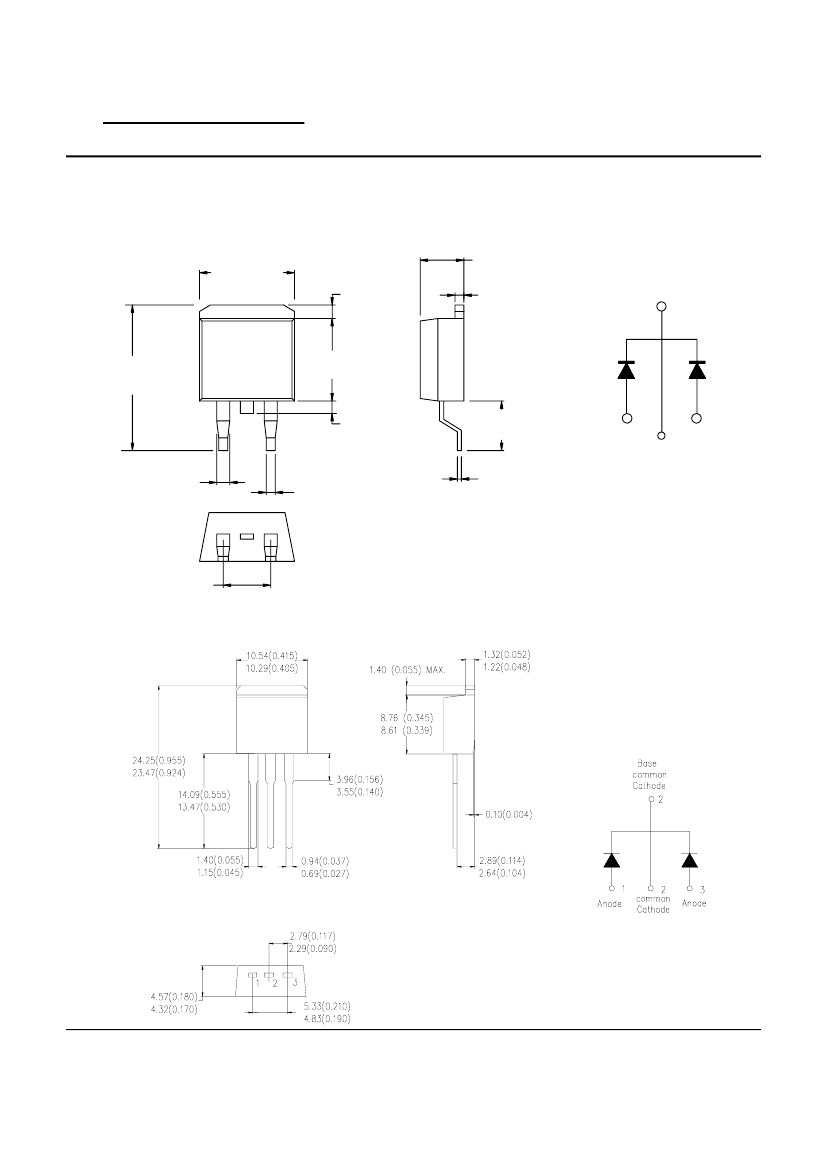

Mechanical Dimensions: In Inches / mm
TO-262
TO-220AB
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
Technical Data
Data Sheet 3429, Rev. -
MBR10150CT-G
MBRB10150CT-G
MBR10150CT-1-G
Green Products
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Max. Peak One Cycle Non-
Repetitive Surge Current
(per leg)
Symbol
V
RWM
I
F(AV)
Condition
-
50% duty cycle @T
C
=145°C,
rectangular wave form
8.3 ms, half Sine pulse
Max.
150
10
Units
V
A
I
FSM
138
A
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
(per leg)*
Symbol
V
F1
V
F2
Max. Reverse Current (per
leg)*
I
R1
I
R2
Max. Junction Capacitance
(per leg)
Typical Series Inductance
(per leg)
Max. Voltage Rate of Change
*
Pulse Width < 300µs, Duty Cycle <2%
C
T
L
S
dv/dt
Condition
@ 5A, Pulse, T
J
= 25
°C
@ 10 A, Pulse, T
J
= 25
°C
@ 5 A, Pulse, T
J
= 125
°C
@ 10 A, Pulse, T
J
= 125
°C
@V
R
= rated V
R
T
J
= 25
°C
@V
R
= rated V
R
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz
Measured lead to lead 5 mm from
package body
-
Max.
0.93
1.10
0.73
0.86
1.00
7.0
200
8.0
10,000
Units
V
V
mA
mA
pF
nH
V/µs
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
(per leg)
Approximate Weight
Mounting Torque
Case Style
Symbol
T
J
T
stg
R
θJC
wt
T
M
Condition
-
-
DC operation
Specification
-55 to +150
-55 to +150
4.5
Units
°C
°C
°C/W
g
Kg-cm
-
-
2
6(Min.)
12(Max.)
2
TO-220AB D PAK TO-262
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
Technical Data
Data Sheet 3429, Rev. -
MBR10150CT-G
MBRB10150CT-G
MBR10150CT-1-G
Green Products
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior not ice to improve product
characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version
of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual
property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from
use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed writ ten permission of
Sensitron Semiconductor.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations.
•
