68AT59-1P datasheet, PDF - EEWORLD Datasheet

68AT59-1P: DescriptionToggle Switch, 8PDT, Latched, 7A, 28VDC, Wire Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size143KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

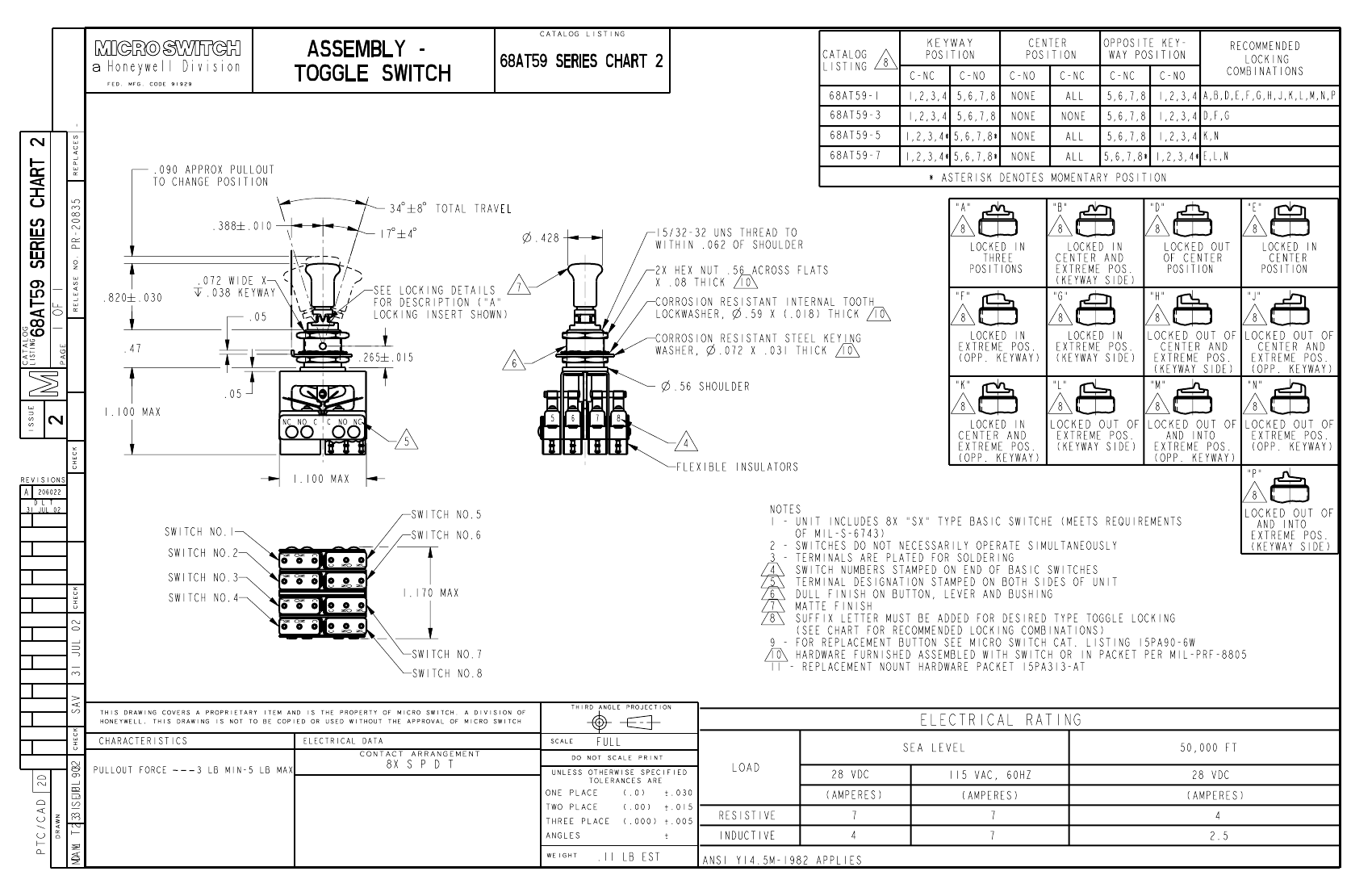

68AT59-1P Overview

Toggle Switch, 8PDT, Latched, 7A, 28VDC, Wire Terminal, Lever Actuator, Panel Mount-threaded

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	LEVER
body width	27.94 mm
body height	27.94 mm
Body length or diameter	29.72 mm
Contact (AC) maximum rated R load	7A@115VAC
Maximum contact current (AC)	7 A
Maximum contact current (DC)	7 A
Contact (DC) maximum rated R load	7A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	68AT59
Installation features	PANEL MOUNT-THREADED
Maximum operating force	22.24 N
seal	CORROSION PROOF
surface mount	NO
Switch action	LATCHED
switch function	8PDT
Switch type	TOGGLE SWITCH
Termination type	WIRE
