MC1812N221J102CT: DescriptionMULTICOMP - MC1812B473K631CT - CAPACITOR CERAMIC 0.047UF 630V; X7R; 10%; 1812; CategoryPassive components; File Size675KB，13 Pages; ManufacturerMulticomp

Download Datasheet View All

MC1812N221J102CT Overview

MULTICOMP - MC1812B473K631CT - CAPACITOR CERAMIC 0.047UF 630V; X7R; 10%; 1812

Preview

Download Datasheet

View All

Ceramic Capacitors

Middle and High Voltage

Features:

•

High voltage in a given case size

High stability and reliability

Applications:

•

Snubbers in high frequency power converters

High voltage coupling / DC blocking

DC-DC converters

Back-lighting inverters

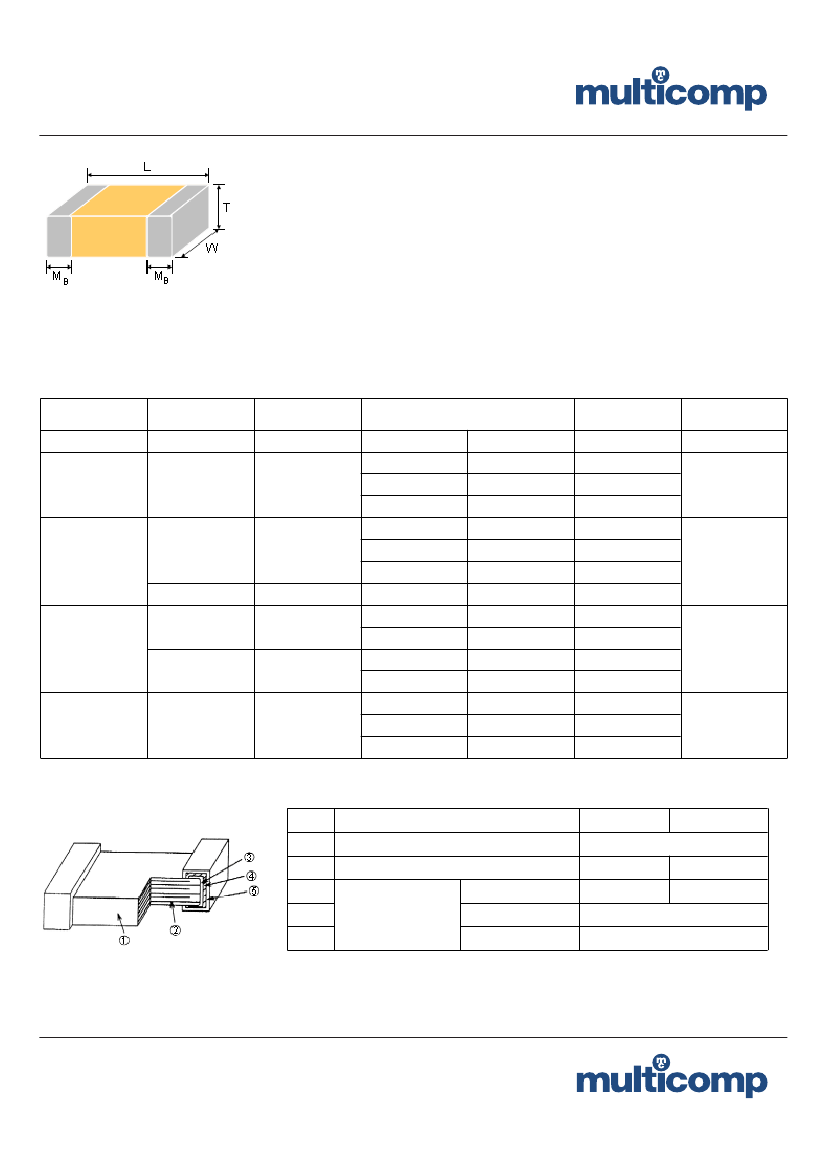

External Dimensions

Size Inch (mm)

0603 (1608)

0805 (2012)

L (mm)

1.6 ±0.1

2 ±0.15

W (mm)

0.8 ±0.1

1.25 ±0.1

T (mm) / Symbol

0.8 ±0.07

0.6 ±0.1

0.8 ±0.1

1.25 ±0.1

0.8 ±0.1

1206 (3216)

3.2 ±0.15

3.2 ±0.2

3.2 ±0.3

1210 (3225)

3.2 ±0.4

2.5 ±0.3

1.6 ±0.15

1.6 ±0.2

2.5 ±0.2

0.95 ±0.1

1.25 ±0.1

1.6 ±0.2

0.95 ±0.1

1.25 ±0.1

1.6 ±0.2

2.5 ±0.3

1.25 ±0.1

1812 (4532)

4.5 + 0.5 / -0.3

3.2 ±0.3

1.6 ±0.2

2 ±0.2

# Reflow soldering only is recommended

Remarks

(mm)

0.4 ±0.15

0.5 ±0.2

0.6 ±0.2

0.75 ±0.25

0.5 ±0.25

Constructions

No.

Termination

Name

Ceramic material

Inner electrode

Inner layer

Middle layer

Outer layer

NP0, X7R*

NP0, X7R

BaTiO

based

AgPd alloy

* Partial NP0;X7R items are with Ag/Ni/Sn terminations, please refer to product range of NP0;X7R dielectric for detail

www.element14.com

www.farnell.com

www.newark.com

Page <1>

20/02/12 V1.1
