SML44-472K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SML44-472K

SML44-472K: DescriptionGeneral Purpose Inductor, 47uH, 10%, 1 Element, SMD; CategoryPassive components inductor; File Size91KB，1 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric Compare View All

SML44-472K Overview

General Purpose Inductor, 47uH, 10%, 1 Element, SMD

SML44-472K Parametric

Parameter Name	Attribute value
Maker	Gowanda Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.45 Ω
Nominal inductance(L)	47 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.46 A
self resonant frequency	10.5 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
special characteristics	Q MEASURED AT 0.2 MHz
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	NO LEAD
Test frequency	0.001 MHz
Tolerance	10%

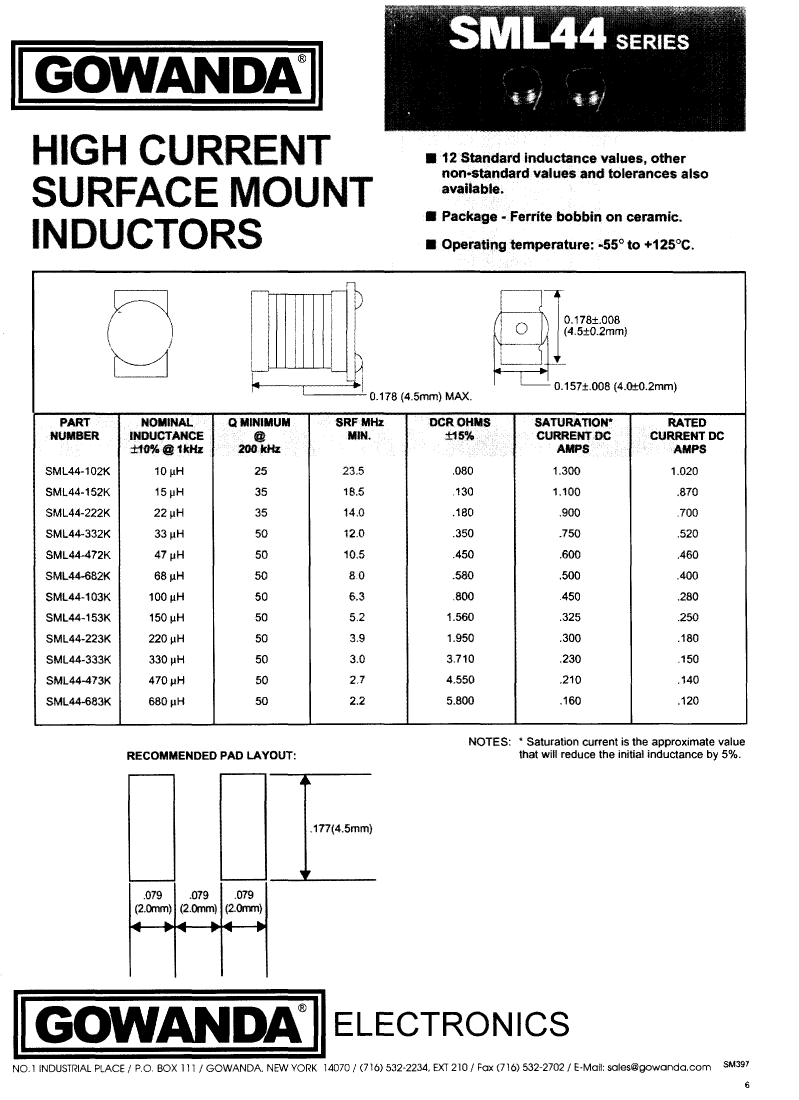

Preview

Download Datasheet

View All

SML44-472K Related Products

	SML44-472K	SML44-222K	SML44-223K	SML44-333K	SML44-153K	SML44-152K	SML44-103K	SML44-332K	SML44-682K	SML44-102K
Description	General Purpose Inductor, 47uH, 10%, 1 Element, SMD	General Purpose Inductor, 22uH, 10%, 1 Element, SMD	General Purpose Inductor, 220uH, 10%, 1 Element, SMD	General Purpose Inductor, 330uH, 10%, 1 Element, SMD	General Purpose Inductor, 150uH, 10%, 1 Element, SMD	General Purpose Inductor, 15uH, 10%, 1 Element, SMD	General Purpose Inductor, 100uH, 10%, 1 Element, SMD	General Purpose Inductor, 33uH, 10%, 1 Element, SMD	General Purpose Inductor, 68uH, 10%, 1 Element, SMD	General Purpose Inductor, 10uH, 10%, 1 Element, SMD
Maker	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.45 Ω	0.18 Ω	1.95 Ω	3.71 Ω	1.56 Ω	0.13 Ω	0.8 Ω	0.35 Ω	0.58 Ω	0.08 Ω
Nominal inductance(L)	47 µH	22 µH	220 µH	330 µH	150 µH	15 µH	100 µH	33 µH	68 µH	10 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Minimum quality factor (at nominal inductance)	50	35	50	50	50	35	50	50	50	25
Maximum rated current	0.46 A	0.7 A	0.18 A	0.15 A	0.25 A	0.87 A	0.28 A	0.52 A	0.4 A	1.02 A
self resonant frequency	10.5 MHz	14 MHz	3.9 MHz	3 MHz	5.2 MHz	18.5 MHz	6.3 MHz	12 MHz	8 MHz	23.5 MHz
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
special characteristics	Q MEASURED AT 0.2 MHz	Q MEASURED AT 0.2 MHz	Q MEASURED AT 0.2 MHz	Q MEASURED AT 0.2 MHz	Q MEASURED AT 0.2 MHz	Q MEASURED AT 0.2 MHz	Q MEASURED AT 0.2 MHz	Q MEASURED AT 0.2 MHz	Q MEASURED AT 0.2 MHz	Q MEASURED AT 0.2 MHz
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Test frequency	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%	10%
