Product Specifications
KPC6642-04 | D8PS-GN-MEGAPACK
KPC6642-
D8PS-GN-
Dimensions
Cord Length, maximum
Cord Length, minimum
2 m | 7 ft
1 ft | 1 m
PowerSUM D8PS Stranded Cordage Modular Patch Cord (Megapack of 100), Spring
Green Jacket
Electrical Specifications
ANSI/TIA Category
dc Resistance, maximum
Safety Voltage Rating
5e
0.30 ohm
300 V
Environmental Specifications
Environmental Space
Flammability Rating
Operating Temperature
Safety Standard
Nonplenum
UL 94 V0
10 °C to +60 °C (+14 °F to +140 °F)
Anatel
|
cETL
|
ETL
General Specifications
Cable Type
Interface, connector A
Interface, connector B
Jacket Color
Brand
U/UTP (unshielded)
RJ45 plug
RJ45 plug
Spring green
PowerSUM
|
SYSTIMAX®
Interface Feature, connector A Standard
Interface Feature, connector B Standard
Package Quantity
Pairs, quantity
100
4
Mechanical Specifications
Conductor Type
Material Type
Plug Insertion Life, minimum
Wiring
Stranded
Copper alloy
750 times
|
30 lbf
T568B
|
Polycarbonate
Outlet/Module Contact Plating Precious metals
Plug Retention Force, minimum 133 N

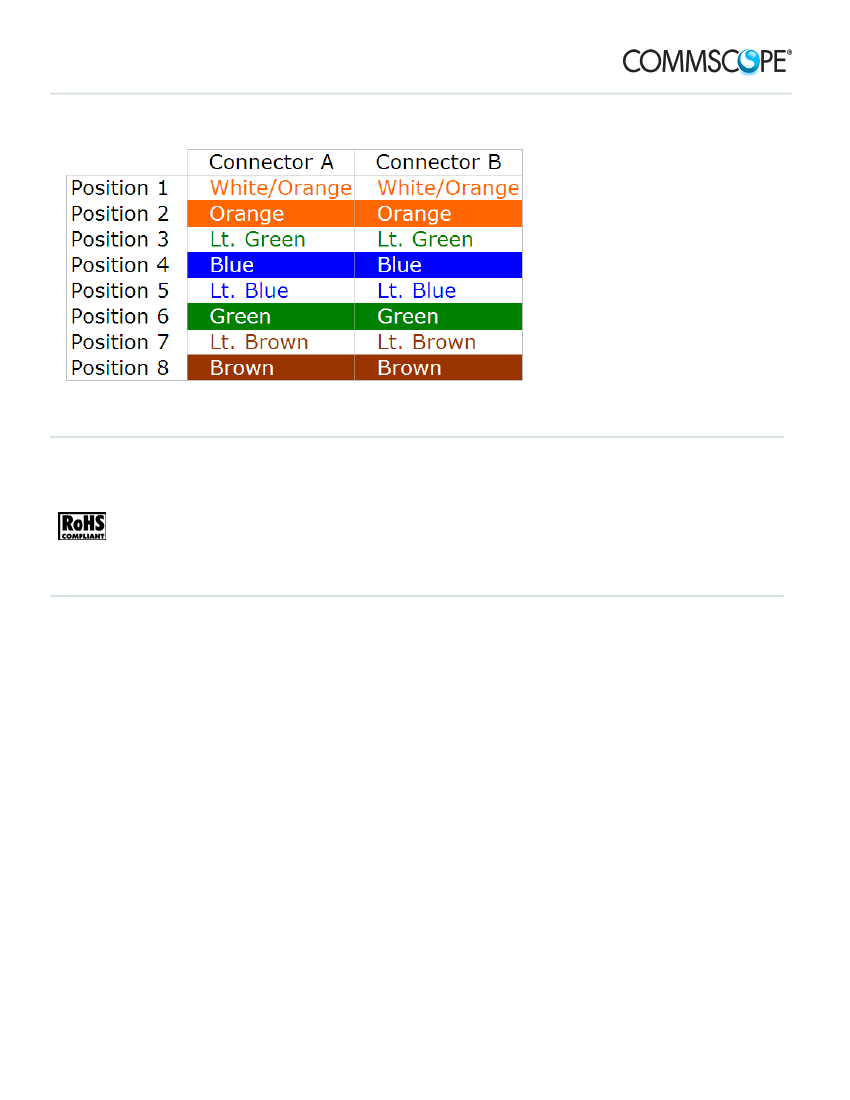

Wiring Diagram
©2016 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: January 16, 2016
page 1 of 4
May 9, 2016
Product Specifications
KPC6642-04 | D8PS-GN-MEGAPACK
KPC6642-04 | D8PS-GN-
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2008
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
Included Products
848482261
| 1074D SG 4/24 RVAR
(Product Component—not orderable)
—
PowerSUM 1074D Category 5e U/UTP
Cable, nonplenum, spring green jacket, 4 pair count, variable length, reel
©2016 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: January 16, 2016
page 2 of 4
May 9, 2016
Product Specifications
848482261 | 1074D SG 4/24 RVAR

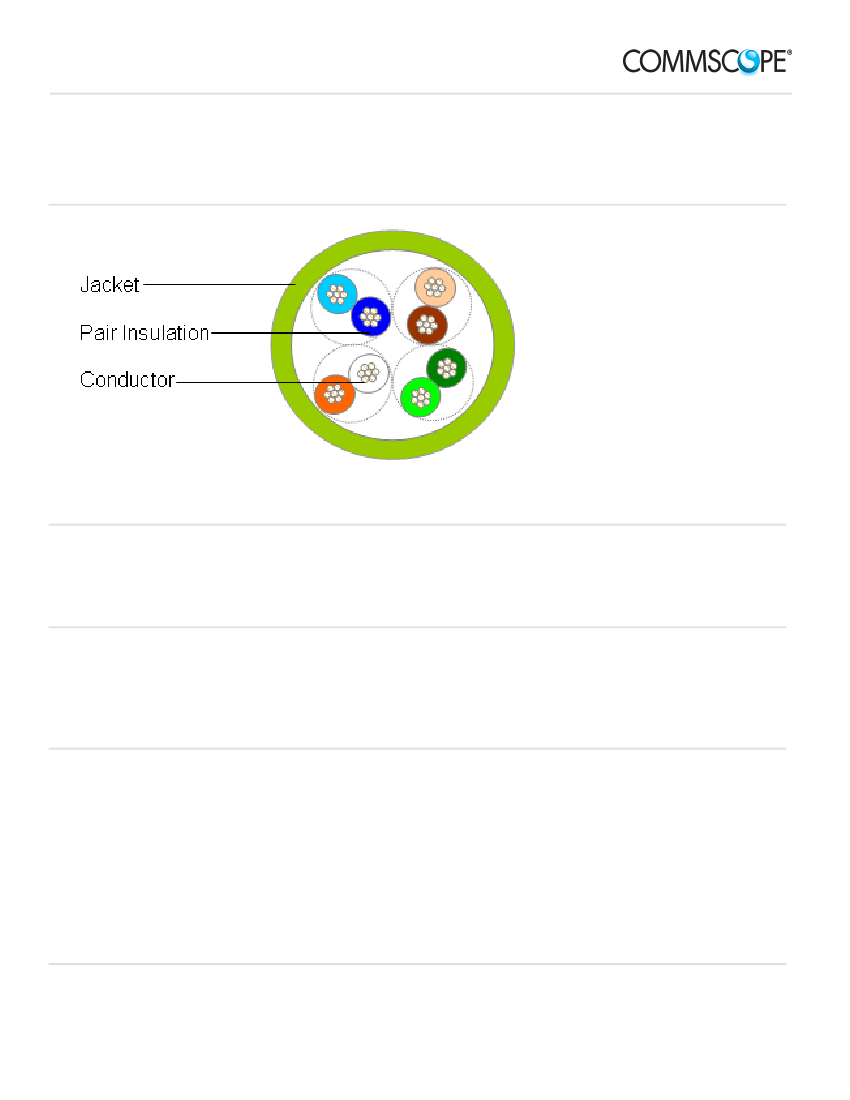

Cross Section Drawing
PowerSUM 1074D Category 5e U/UTP Cable, nonplenum, spring green jacket, 4 pair count, variable length, reel
Construction Materials
Jacket Material
Conductor Material
Insulation Material
PVC
Tinned copper
Polyolefin
Dimensions
Cable Length, special
Cable Weight
Diameter Over Jacket
Jacket Thickness
Variable length
24.20 lb/kft
5.715 mm
0.559 mm
|
|
0.225 in
0.022 in
Electrical Specifications
ANSI/TIA Category
dc Resistance Unbalance, maximum
dc Resistance, maximum
Mutual Capacitance
Operating Frequency, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum
5e
5 %
9.38 ohms/100 m
5.6 nF/100 m @ 1 kHz
200 MHz
ANSI/TIA568C.2
300 V
1500 Vac
|
2500 Vdc
|
CENELEC EN 5028831
|
ISO/IEC 11801 Class D
Nominal Velocity of Propagation (NVP) 69 %
Environmental Specifications
Environmental Space
Flame Test Method
Installation Temperature
Nonplenum
CM
0 °C to +60 °C (+32 °F to +140 °F)
page 3 of 4
May 9, 2016
©2016 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: January 16, 2016
Product Specifications
848482261 | 1074D SG 4/24 RVAR
Operating Temperature
20 °C to +60 °C (4 °F to +140 °F)
General Specifications
Cable Type
Pairs, quantity
Cable Component Type
Packaging Type
Brand
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
U/UTP (unshielded)
4
Cordage
Reel
PowerSUM
1074D
24 AWG
Stranded
8
|
SYSTIMAX®
Spring green
Mechanical Specifications
Pulling Tension, maximum
11 kg
|
25 lb
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2008
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
©2016 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: January 16, 2016
page 4 of 4
May 9, 2016
