REVISION Q
DO NOT
SCALE FROM
THIS PRINT
(No OF POS x .0250[.635]) + .2125[5.398] REF
.1188 3.016 REF
02
BSS-XXX-01-X-D-XX
(No OF POS -1) x .0250[.635]
.1500 3.810
REF
No OF POSITIONS
-025, -050, -075,
*-100, *-125, *-150
(PER ROW)
LEAD STYLE
-01
OPTION
-A: ALIGNMENT PINS
(USE BSS-XXX-01-D-A)
-LC: LOCKING CLIPS
(USE LC-08-TM-01)
-TR: TAPE & REEL (100 POS MAX)
.2450 6.223 REF
.2850 7.239
REF
01
FIG. 1
BSS-XXX-01-D
.0200 0.508 REF
"A"
.055 1.40
"A"
.0100 0.254 REF
PLATING SPECIFICATION
-L: LIGHT SELECTIVE GOLD W/ MATTE TIN TAILS (USE C-126-21-L) (SEE NOTE 9 & 11)
-F: FLASH SELECTIVE GOLD W/ MATTE TIN TAILS (USE C-126-21-F) (SEE NOTE 7,9 & 11)
-H; HEAVY GOLD (USE C-126-21-H)(SEE NOTE 11)
-C: ELECTRO-POLISHED SELECTIVE (USE C-126-21-C. SEE NOTE 11)
*SEE NOTE 10
.165
+.005
4.19
+0.13
- .001
- 0.03
.1430
- .001
3.632
- 0.025
(SEE NOTE 6)
+.003
+0.076
ROW SPECIFICATION
-D: DOUBLE (USE BSS-XXX-01-D)
.1350 3.429 REF
.0060 0.152
REF
C-126-21-X
(SEE NOTE 11)
LC-08-TM-01
SEE TABLE 1
.2950 7.493 REF
.070 1.765 REF
.0375 0.953 REF
.0560 1.422 REF
.0375 0.953
REF
2 MAX SWAY
(TYP)
(No OF POS x .0250[.635]) +
.1625[4.128]) .003[.08]
-LC: LOCKING CLIP OPTION SHOWN
POS 01
BSS-XXX-01-D-A
SECTION "A"-"A"
.0350 0.889 REF
(No OF POS x .0250[.635]) + .1625[4.128] REF
R
.0375 0.953
REF
-A: ALIGNMENT PIN OPTION SHOWN
NOTES:
1.
REPRESENTS A CRITICAL DIMENSION.
2. NOTE DELETED.
3. BURR ALLOWANCE: .0015 [.038] MAX.
4. MINIMUM PUSHOUT FORCE: .5 LB.
5. NOTE DELETED.
6. MAX VARIANCE OF .002[.51].
7. -L PLATING CAN BE SUBSTITUTED FOR-F PLATING.
8. RIBBED SIDEWALLS AT SAMTEC DISCRETION.
9. MAY SUBSTITUTE C-126-01-X FOR C-126-21-X.
10. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS, PLEASE
CONTACT SAMTEC INTERCONNECT PROCESSING GROUP.
11. -100 , -125 AND -150 POSITION PARTS USE C-269-11-X. DO NOT SUB C-126-XX-X.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
MATERIAL:
USER DIRECTION OF UN-REELING
POCKET NOT DETAILED
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TUBE VIEW
(PARTS TO BE LOADED WITH POSITION #1 IN
SAME DIRECTION AS ARROW ON TUBE)
DECIMALS
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
DESCRIPTION:
TAPE & REEL VIEW
TUBE: PT-1-24-03-78
PLUG: TP-03
INSULATOR: LCP, COLOR: BLACK. FLAMMABILITY RATING: UL94V0
CONTACT: PHOS BRONZE

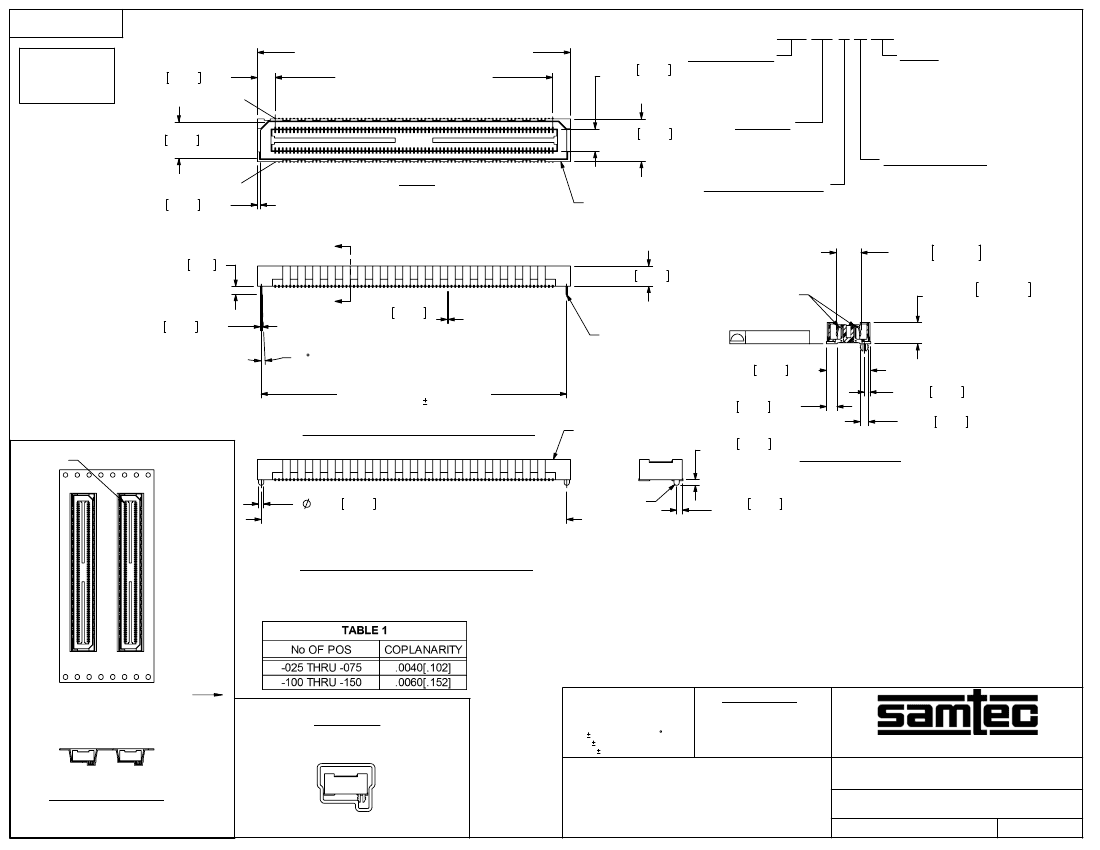

.635mm DOUBLE ROW SOCKET ASSEMBLY
DWG. NO.
BSS-XXX-01-X-D-XX
06/23/1999
SHEET
1
OF
1
F:\DWG\MISC\MKTG\BSS-XXX-01-X-D-XX-MKT.SLDDRW
BY:
DEAN P
