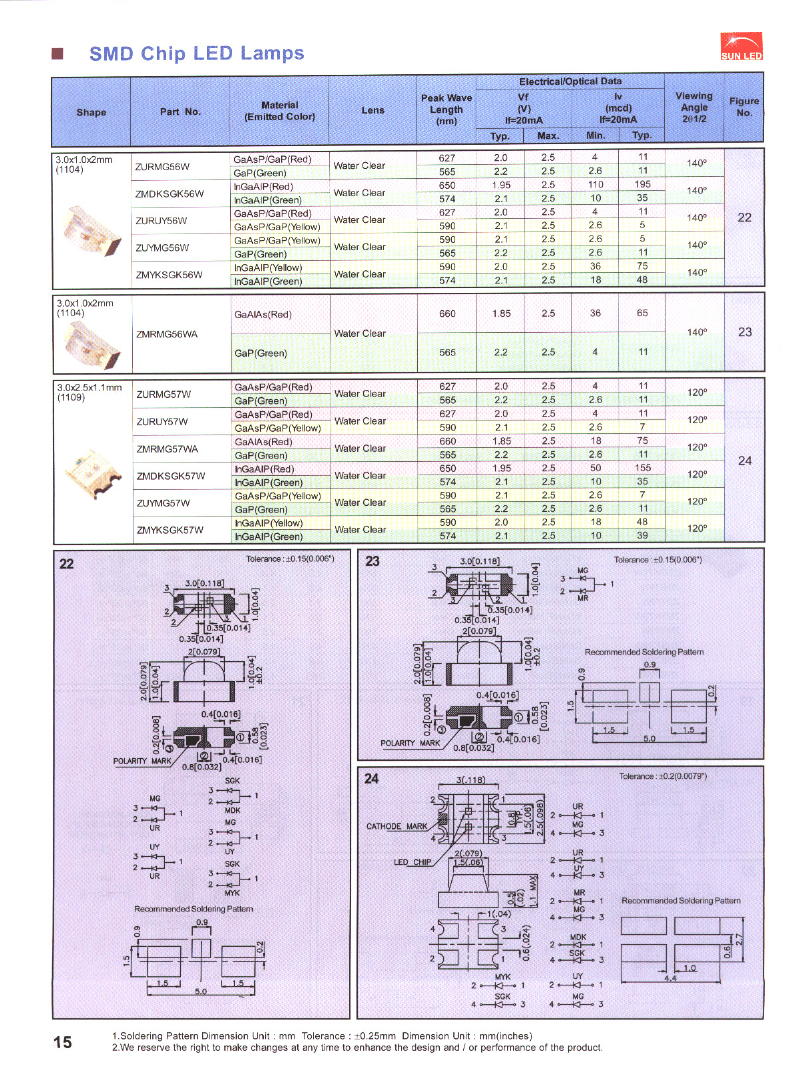

Preview

ZMRMG57WA: DescriptionDual Color LED, Red/green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.10 MM HEIGHT, SMD, 4 PIN; CategoryLED optoelectronic/LED photoelectric; File Size1MB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

ZMRMG57WA Overview

Dual Color LED, Red/green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.10 MM HEIGHT, SMD, 4 PIN

ZMRMG57WA Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	3 X 2.50 MM, 1.10 MM HEIGHT, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	RED/GREEN
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	75.0/11.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	660/565 nm
shape	RECTANGULAR
size	2.5 mm
surface mount	YES
Terminal pitch	2.7 mm
perspective	120 deg

Preview

Download Datasheet

View All

ZMRMG57WA Related Products

	ZMRMG57WA	ZURU57W	ZMRMG56WA	ZUYMG57W
Description	Dual Color LED, Red/green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.10 MM HEIGHT, SMD, 4 PIN	Dual Color LED, Red/yellow, Water Clear, 2.5mm, 3 X 2.50 MM, 1.10 MM HEIGHT, SMD, 4 PIN	Dual Color LED, Red/green, Water Clear, 2mm, 3 X 1 MM, 2 MM HEIGHT, SMD, 3 PIN	Dual Color LED, Yellow/green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.10 MM HEIGHT, SMD, 4 PIN
package instruction	3 X 2.50 MM, 1.10 MM HEIGHT, SMD, 4 PIN	3 X 2.50 MM, 1.10 MM HEIGHT, SMD, 4 PIN	3 X 1 MM, 2 MM HEIGHT, SMD, 3 PIN	3 X 2.50 MM, 1.10 MM HEIGHT, SMD, 4 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
color	RED/GREEN	RED/YELLOW	RED/GREEN	YELLOW/GREEN
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	75.0/11.0 mcd	11.0/7.0 mcd	65.0/11.0 mcd	7.0/11.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Number of terminals	4	4	3	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	DUAL COLOR LED	DUAL COLOR LED	DUAL COLOR LED	DUAL COLOR LED
total height	1.1 mm	1.1 mm	2 mm	1.1 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	660/565 nm	627/590 nm	660/565 nm	590/565 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2.5 mm	2.5 mm	2 mm	2.5 mm
surface mount	YES	YES	YES	YES
perspective	120 deg	120 deg	140 deg	120 deg
Maker	SUNLED	-	SUNLED	SUNLED
Terminal pitch	2.7 mm	2.7 mm	-	2.7 mm
