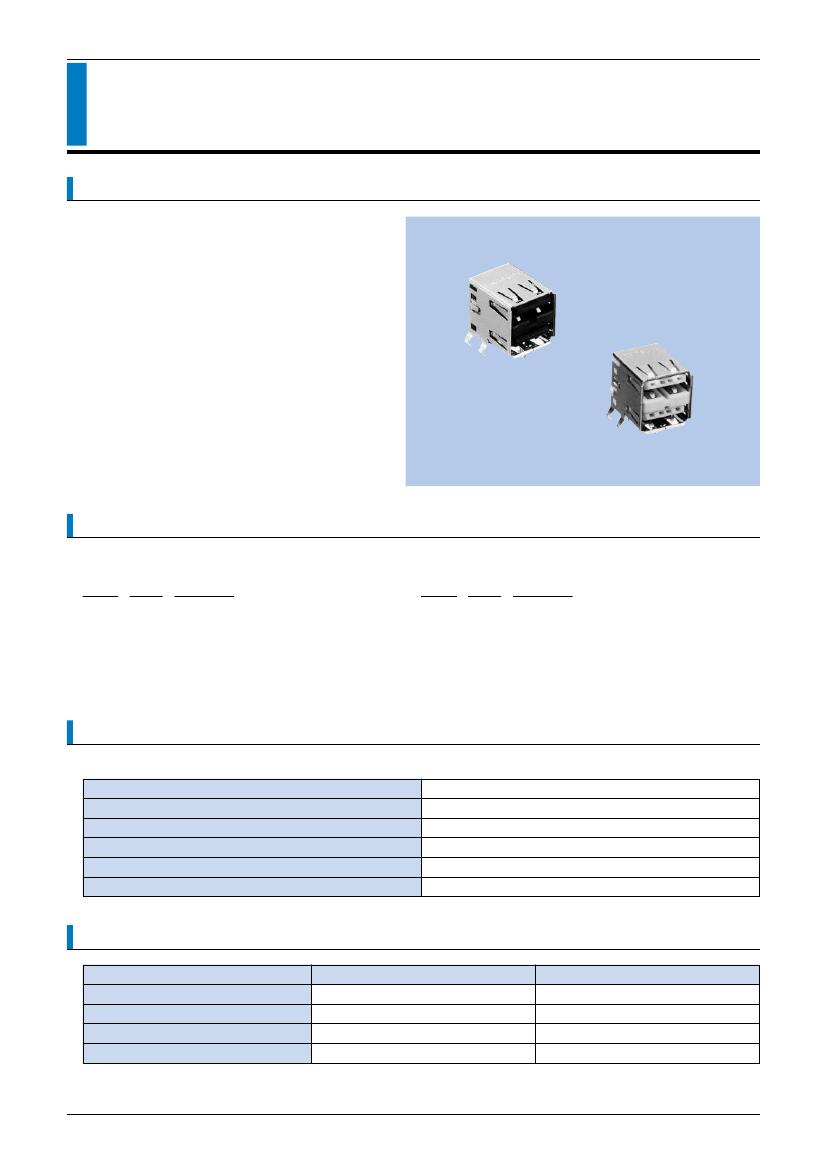

MITSUMI

USB Series "A" Connectors

CAM-B86 · C34

Connectors

FEATURES

1. Connector conforming to the USB interface.

2. Double-socket type CAM-B86,C34 being

interfit with IAM-B84.

3. Supports a strong mechanical load to prevent

terminal damage or bad contacts. (CAM-C34)

HOW TO ORDER

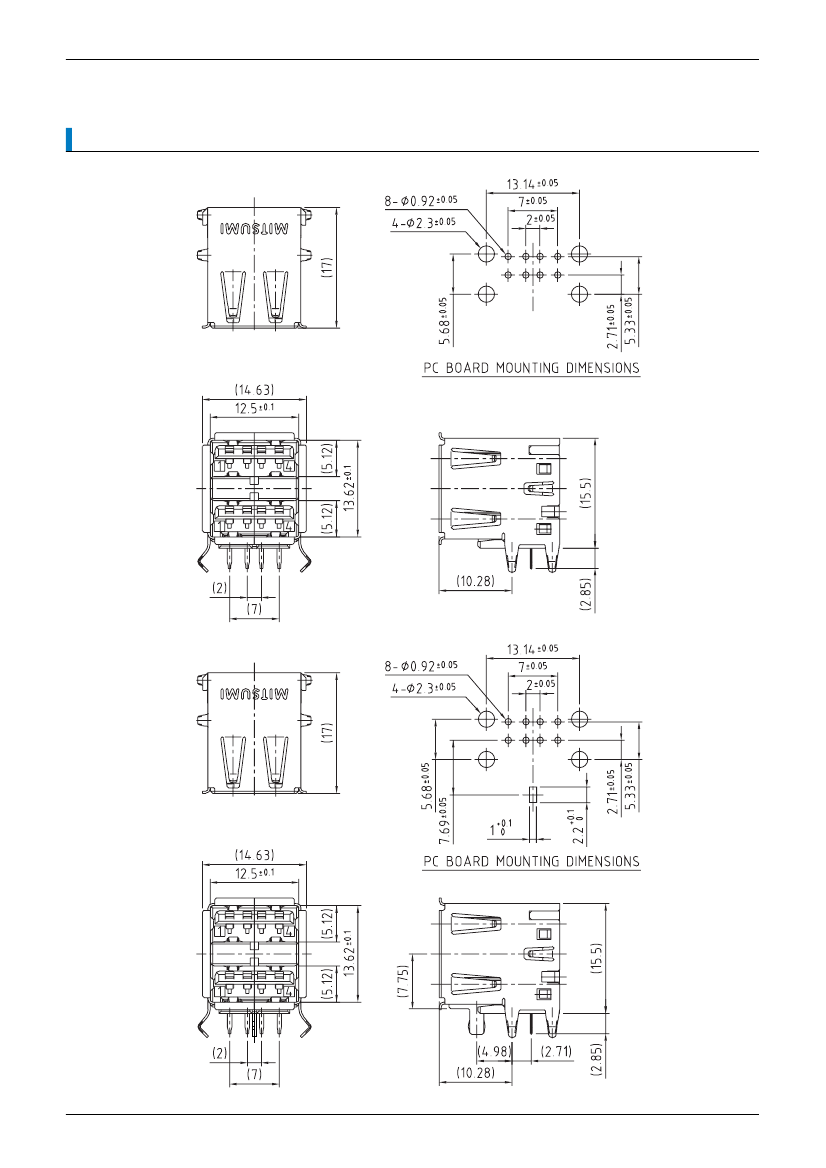

1. CAM-B86

2. CAM-C34

B86-008-2271A

1

2

3

1 Series No.

2 No. of contacts (008 : 8pins)

3 Running No. assigned by us

C34-008-2490A

1

2

3

1 Series No.

2 No. of contacts (008 : 8pins)

3 Running No. assigned by us

SPECIFICATIONS

ELECTRICAL CHARACTERISTICS & MECHANICAL CHARACTERISTICS

Rated Voltage

Rated Current

Withstanding Voltage

Insulation Resistance

Contact Resistance

Life (Matching Cycle)

30V AC (rms)

1A max. /1 terminal (Signal only)

750V AC (rms) 1minute

1000MΩ min. (at 500V DC)

30mΩ max.

1,500 times

MATERIAL & FINISH

Component Parts

Housing

Contact

Shell

Clip

Material

PBT resin

Copper Alloy

Finish

——

Gold plating

Solder plating

B86-008-2271A Related Products

	B86-008-2271A	C34-008-2490A
Description	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Socket	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Socket
Maker	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown	unknown
Body/casing type	SOCKET	SOCKET
Connector type	USB CONNECTOR	USB CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN LEAD	TIN LEAD
Shell material	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER
Total number of contacts	8	8
