BPS9B32CDD000L9 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BPS9B32CDD000L9

BPS9B32CDD000L9: DescriptionBoard Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal; CategoryThe connector The connector; File Size200KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

BPS9B32CDD000L9 Overview

Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal

BPS9B32CDD000L9 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (49) OVER NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	BPS9B32CDD
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	4
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	32
UL Flammability Code	94V-0

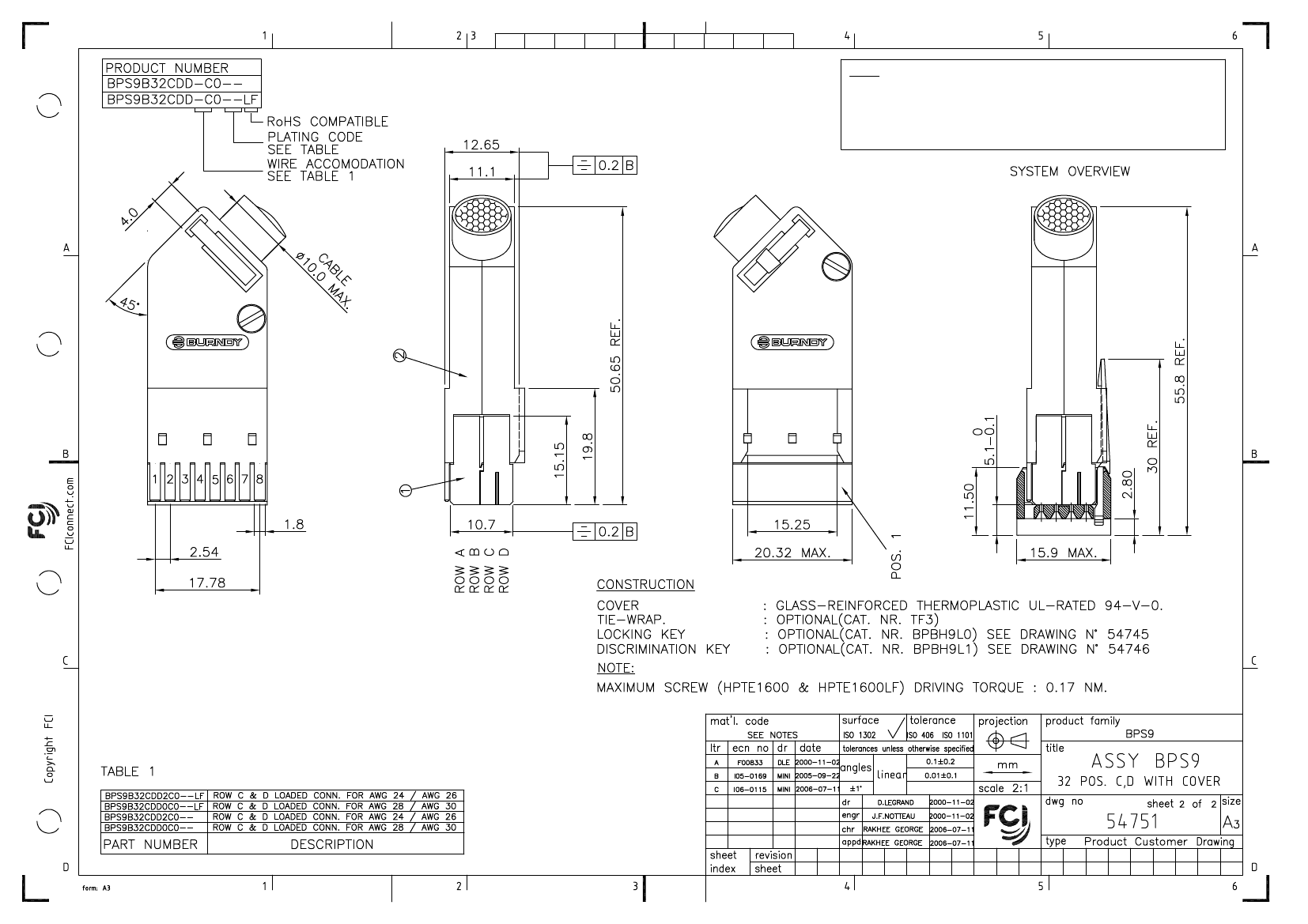

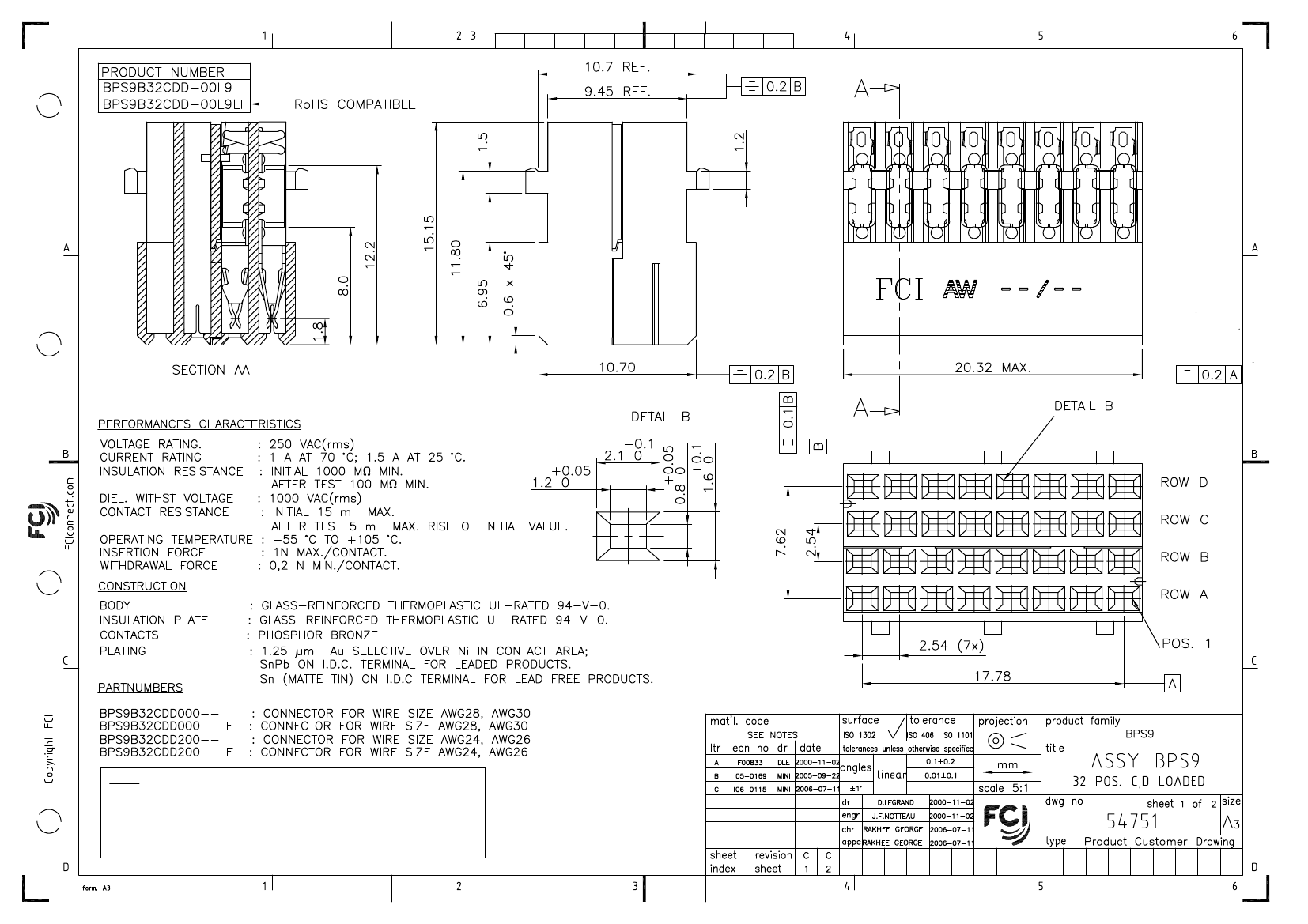

BPS9B32CDD000L9 Preview

NOTE:

1. THE "LF" PRODUCT MEETS EUROPEAN UNION DIRECTIVES AND OTHER

COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008.

2. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER

GS-14-920.

PDM: Rev:C

STATUS:

Released

Printed: May 14, 2011

NOTE:

1. THE "LF" PRODUCT MEETS EUROPEAN UNION DIRECTIVES AND OTHER

COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008.

2. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER

GS-14-920.

PDM: Rev:C

STATUS:

Released

Printed: May 14, 2011

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BPS9B32CDD000L9 Related Products

	BPS9B32CDD000L9	BPS9B32CDD2C0L9LF	BPS9B32CDD2C0L9	BPS9B32CDD-00L9LF	BPS9B32CDD-00L9	BPS9B32CDD000L9LF	BPS9B32CDD0C0L9LF	BPS9B32CDD0C0L9	BPS9B32CDD200L9LF	BPS9B32CDD200L9
Description	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal, ROHS COMPLIANT	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal, ROHS COMPLIANT	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal, ROHS COMPLIANT	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal, ROHS COMPLIANT	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal, ROHS COMPLIANT	Board Connector, 32 Contact(s), 4 Row(s), Female, IDC Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (49) OVER NICKEL	NOT SPECIFIED	GOLD (49) OVER NICKEL	GOLD (49) OVER NICKEL	GOLD (49) OVER NICKEL	GOLD (49) OVER NICKEL	GOLD (49) OVER NICKEL	GOLD (49) OVER NICKEL	GOLD (49) OVER NICKEL	GOLD (49) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	4	4	4	4	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	32	32	32	32	32	32	32	32	32	32
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	TIN LEAD	-	TIN LEAD	MATTE TIN	TIN LEAD	MATTE TIN	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD
JESD-609 code	e0	-	e0	e3	e0	e3	e3	e0	e3	e0
Manufacturer's serial number	BPS9B32CDD	-	BPS9B32CDD	BPS9B32CDD	BPS9B32CDD	BPS9B32CDD	BPS9B32CDD	BPS9B32CDD	BPS9B32CDD	BPS9B32CDD
