UC282TDTR-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> UC282TDTR-3

UC282TDTR-3: Description2.5V FIXED POSITIVE LDO REGULATOR, 0.5V DROPOUT, PSSO5, GREEN, PLASTIC, TO-263, D2PAK-5; CategoryPower/power management The power supply circuit; File Size1MB，15 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Environmental Compliance

Download Datasheet Parametric View All

UC282TDTR-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UC282TDTR-3	-	-	View	Buy Now

UC282TDTR-3 Overview

2.5V FIXED POSITIVE LDO REGULATOR, 0.5V DROPOUT, PSSO5, GREEN, PLASTIC, TO-263, D2PAK-5

UC282TDTR-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	D2PAK
package instruction	GREEN, PLASTIC, TO-263, D2PAK-5
Contacts	4
Reach Compliance Code	unknown
Maximum drop-back voltage 1	0.5 V
Maximum input voltage	7.5 V
Minimum input voltage	2.85 V
JESD-30 code	R-PSSO-G5
JESD-609 code	e3
length	10.16 mm
Humidity sensitivity level	2
Number of functions	1
Number of terminals	5
Working temperatureTJ-Max	100 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	3 A
Maximum output voltage 1	2.525 V
Minimum output voltage 1	2.45 V
Nominal output voltage 1	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	5.13 mm
surface mount	YES
Terminal surface	TIN
Terminal form	GULL WING
Terminal pitch	1.7 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.925 mm

UC282TDTR-3 Preview

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

UC282 1, UC282 2, UC282 3, UC282 ADJ, UC382 1, UC382 2, UC382 3, UC382 ADJ

FAST LDO LINEAR REGULATOR

SLUS317B − JANUARY 2000 − REVISED FEBRUARY 2004

Fast Transient Response

10-mA to 3-A Load Current

Short Circuit Protection

Maximum Dropout of 450-mV at 3-A Load

Current

Separate Bias and VIN Pins

Available in Adjustable or Fixed-Output

Voltages

5-Pin Package Allows Kelvin Sensing of

Load Voltage

Reverse Current Protection

5-PIN TO-220

T PACKAGE (TOP VIEW)

5-PIN TO-263

TD PACKAGE

(TOP VIEW)

Note: Tab = Ground

description

The UC382 is a low-dropout-linear regulator providing a quick response to fast load changes. Combined with

its precision onboard reference, the UC382 excels at driving GTL and BTL buses. Due to its fast response to

load transients, the total capacitance required to decouple the regulator’s output can be significantly decreased

when compared to standard LDO linear regulators.

Dropout voltage (VIN to VOUT) is only 450 mV maximum at 100°C and 350 mV typical at 3-A load.

The onboard bandgap reference is stable with temperature and scaled for a 1.2-V input to the internal-power

amplifier. The UC382 is available in fixed-output voltages of 1.5 V, 2.1 V, or 2.5 V. The output voltage of the

adjustable version can be set with two external resistors. If the external resistors are omitted, the output voltage

defaults to 1.2 V.

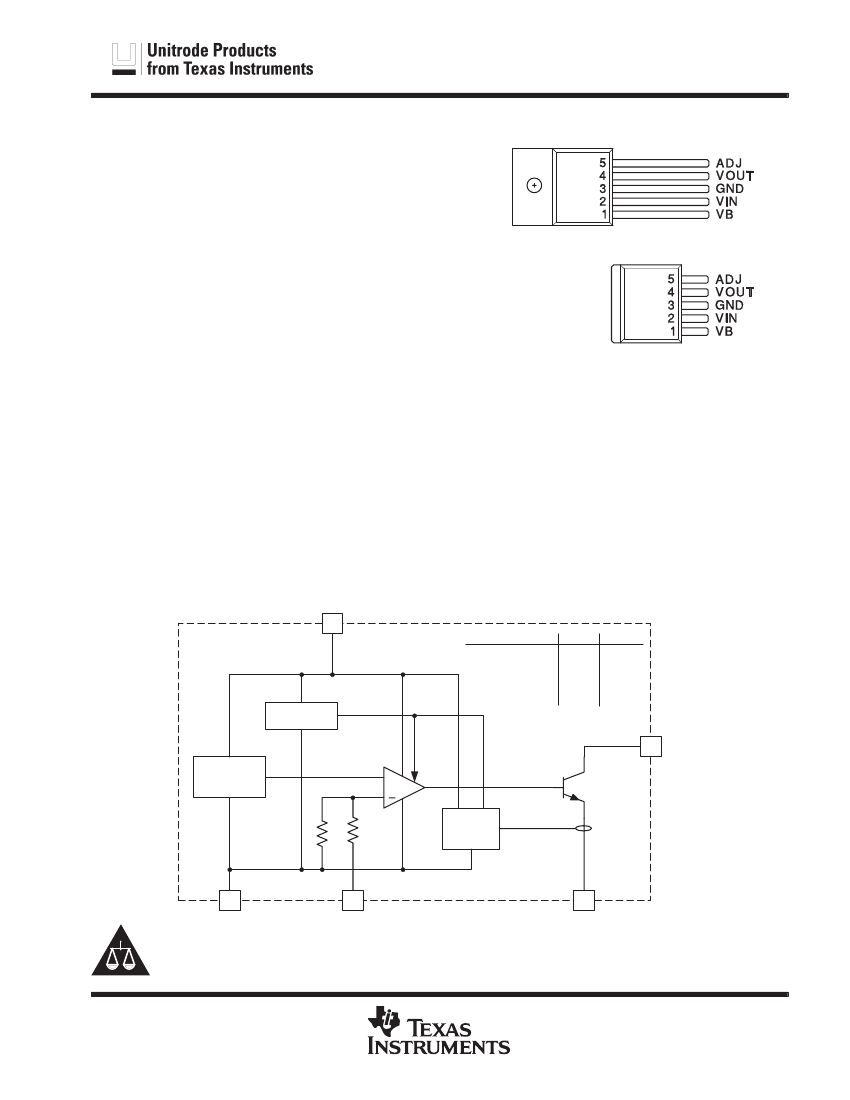

block diagram

UC382−ADJ

UC382−1 (1.5 V)

UC382−2 (2.1 V)

UC382−3 (2.5 V)

THERMAL

SHUTDOWN

1.2 V

BANDGAP

REFERENCE

VIN

OPEN

500

Ω

1.5 k

Ω

2.16 k

Ω

SHORT

CIRCUIT

SENSE

GND

ADJ

VOUT

UDG-00080

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.



2000−2004, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

UC282 1, UC282 2, UC282 3, UC282 ADJ, UC382 1, UC382 2, UC382 3, UC382 ADJ

FAST LDO LINEAR REGULATOR

SLUS317B − JANUARY 2000 − REVISED FEBRUARY 2004

absolute maximum ratings over operating free-air temperature (unless otherwise noted)

†}

VB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 V

VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.5 V

Output voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 V to 6.0 V

Storage temperature, T

stg

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C

Junction temperature, T

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55°C to 150°C

Lead temperature (soldering, 10 seconds) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300°C

† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and

functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not

implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

}

Currents are positive into, negative out of the specified terminal. Consult Packaging Section of Databook for thermal limitations and

considerations of packages.

AVAILABLE OPTIONS(1)

PACKAGED DEVICES

TO-220 (T)

1.5 V

–40°C to 100°C

0°C to 100°C

282T-1

382T-1

OUTPUT VOLTAGE

2.1 V

282T-2

382T-2

2.5 V

282T-3

382T-3

1.2 V or ADJ

282T-ADJ

382T-ADJ

1.5 V

282TD-1

382TD-1

TO−263 (TD)(2)

OUTPUT VOLTAGE

2.1 V

282TD-2

382TD-2

2.5 V

282TD-3

382TD-3

1.2 V or ADJ

282TD-ADJ

382TD-ADJ

1. For more package and ordering information, see the Package Option Addendum located at the end of this data sheet.

2. For 50 piece reel, add KTTT (e.g., UC282TDKTTT−1); for 500 piece reel, add TR (e.g., UC282TDTR−1).

electrical characteristics, T

= −40°C to 100°C for the UC282-X series and 0°C to 100°C for the

UC382-X, VB = 5 V, VIN = 3.3 V, VOUT = 2.5 V for the UC382-ADJ, T

= T

, (unless otherwise stated)

UC382-3 fixed 2.5 V, 3-A family

PARAMETERS

UC382-3

Output voltage (IVOUT = 100 mA)

Load regulation

VIN PSSR

VB PSSR

IVOUT = 3 A,

IVOUT = 10 mA

IVOUT = 3 A

2.94

TJ = 25°C

UC382-3

UC282-3

UC382-3

UC282-3

3.3

2.97

UC282-3

IVOUT = 10 mA to 3 A

TEST CONDITIONS

MIN

2.475

2.450

TYP

2.500

0.5

100

350

1.8

425

450

500

2.10

2.20

4.5

MAX

2.525

UNITS

VIN dropout voltage = VIN−VOUT

VB dropout = VB−VOUT

Short circuit current limit

VB current

VIN current

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

UC282 1, UC282 2, UC282 3, UC282 ADJ, UC382 1, UC382 2, UC382 3, UC382 ADJ

FAST LDO LINEAR REGULATOR

SLUS317B − JANUARY 2000 − REVISED FEBRUARY 2004

electrical characteristics, T

= −40°C to 100°C for the UC282-X series and 0°C to 100°C for the

UC382-X, VB = 5 V, VIN = 3.3 V, VOUT = 2.5 V for the UC382-ADJ, T

= T

, (unless otherwise stated)

UC382-2 fixed 2.1 V, 3-A family

PARAMETERS

UC382-2

Output voltage (IVOUT = 100 mA)

Load regulation

VIN PSSR

VB PSSR

IVOUT = 3 A,

IVOUT = 10 mA

IVOUT = 3 A

2.94

TJ = 25°C

UC382-2

UC282-2

UC382-2

UC282-2

3.3

2.97

UC282-2

IVOUT = 10 mA to 3 A

TEST CONDITIONS

MIN

2.079

2.058

TYP

2.100

0.5

100

350

1.8

425

450

500

2.10

2.20

4.5

MAX

2.121

UNITS

VIN dropout voltage = VIN−VOUT

VB dropout = VB−VOUT

Short circuit current limit

VB current

VIN current

UC382-1 fixed 1.5 V, 3-A family

PARAMETERS

UC382-1

Output voltage (IVOUT = 100 mA)

Load regulation

VIN PSSR

VB PSSR

IVOUT = 3 A,

IVOUT = 10 mA

IVOUT = 3 A

2.94

TJ = 25°C

UC382-1

UC282-1

UC382-1

UC282-1

3.3

2.97

UC282-1

IVOUT = 10 mA to 3 A

TEST CONDITIONS

MIN

1.485

1.470

TYP

1.500

0.5

100

350

1.8

425

450

500

2.10

2.20

4.5

MAX

1.515

UNITS

VIN dropout voltage = VIN−VOUT

VB dropout = VB−VOUT

Short circuit current limit

VB current

VIN current

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

UC282 1, UC282 2, UC282 3, UC282 ADJ, UC382 1, UC382 2, UC382 3, UC382 ADJ

FAST LDO LINEAR REGULATOR

SLUS317B − JANUARY 2000 − REVISED FEBRUARY 2004

electrical characteristics, T

= −40°C to 100°C for the UC282-X series and 0°C to 100°C for the

UC382-X, VB = 5 V, VIN = 3.3 V, VOUT = 2.5 V for the UC382-ADJ, T

= T

, (unless otherwise stated)

UC382-ADJ adjustable, 3-A family

PARAMETERS

UC382-ADJ

ADJ voltage (IVOUT = 100 mA)

Load regulation

VIN PSSR

VB PSSR

UC282-ADJ

IVOUT = 10 mA to 3 A

VOUT programmed for 2.5 V

IVOUT = 3 A,

IVOUT = 10 mA

IVOUT = 3 A

2.94

TJ = 25°C

UC382-ADJ

UC282-ADJ

UC382-ADJ

UC282-ADJ

3.3

2.97

TEST CONDITIONS

MIN

1.188

1.176

TYP

1.200

0.5

100

350

1.8

425

450

500

2.10

2.20

4.5

MAX

1.212

UNITS

VIN dropout voltage = VIN−VOUT

VB dropout = VB−VOUT

Short circuit current limit

VB current

VIN current

pin descriptions

ADJ:

In the adjustable version, the user programs the output voltage with two external resistors. The resistors

should be 0.1% for high accuracy. The output amplifier is configured as a non-inverting-operational amplifier.

The resistors should meet the criteria of R3 || R4 < 100

Ω.

Connect ADJ to VOUT for an output voltage of 1.2 V.

Note that the point at which the feedback network is connected to the output is the Kelvin sense point. For -1,

-2, and -3 versions, ADJ pin is tied to VOUT to obtain specified output voltage.

GND:

For accurate results, the GND pin should be referenced to the load ground.

VB:

Supplies power to all circuits of the regulator except the collector of the output-power transistor. The 2-V

headroom from VB to VOUT allows the use of a Darlington output stage for inherently-low-output impedance

and fast response. (Dropout is derated for junction temperatures below 0°C.)

VIN:

Supplies the current to the collector of the output-power transistor only. The dropout (VIN−VOUT) is under

100 mV for light loads; maximum dropout is 450 mV at 3 A for T

= 0°C to 100°C. (Dropout is derated for junction

temperatures over 100°C.) At full load, the majority of the VB current is going to the load.

VOUT:

This pin should be connected to the load via a low impedance path. Avoid connectors which add

significant inductance and resistance. Note that even though a Kelvin sense is available through a 5-pin

package, care must be taken since voltage drops along wire traces add to the dropout voltage.

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

FM modulator strong-weak signal switching circuit a

A8902 typical application wiring diagram

General circuit diagram of a simple battery automatic constant current charging circuit

intermittent irrigation controller circuit

Motor automatic control switch circuit

High input impedance fast inverting amplifier circuit

[Free of charge] Huaqing Yuanjian Famous Lecture: Unveiling the Secrets of Embedded Driver Development!: [size=5]Hello eeworld forum friends! [/size][size=5] [/size] [size=5]The long-awaited Huaqing Yuanjian lectures in April and May are finally coming! [/size] [color=#ff8c00]PS: The video of the March l...; eric_wang Embedded System

Thinking about ways to improve efficiency (based on work experience with Vxworks and Tornado) Welcome to discuss pointers: A question and random thoughts from an idle person in the embedded industry. I am just throwing out some ideas. I have been in the industry for a short time and have only worked on projects on Tornado...; pptyok Real-time operating system RTOS

Help: 2440 Using ADS debugging, the compile address and link address are not the same. Thank you!: I'm learning arm recently, using the 2440 development board, and the debugging tool is arm USB2.0 emulator, that is, I choose remote_A.dll file for debugging. Everything is normal at the beginning of ...; chenleixu ARM Technology

Sichuan Province College Student Electronic Design Competition Southwest University of Science and Technology Competition Topic - Multifunctional Timing Device: [i=s]This post was last edited by paulhyde on 2014-9-15 09:46[/i] [b]Electronic competition topic - Multifunctional timing device 1. Electronic competition topic task:[/b] Make an electronic clock wit...; 呱呱 Electronics Design Contest

Resume guidance: 5 principles to pay attention to when writing a resume: Through investigation, it is found that the resume is very important for job seekers to obtain preliminary interviews. Therefore, experts suggest that job seekers should pay attention to the following...; 村口的大爷 Talking about work

High energy ignition coil for racing: Dear masters, does anyone know a domestic manufacturer that is good at making high-energy ignition coils? Please give me some guidance, thank you!...; 知易行难 Automotive Electronics

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
