MCR16D-BA datasheet, PDF - EEWORLD Datasheet

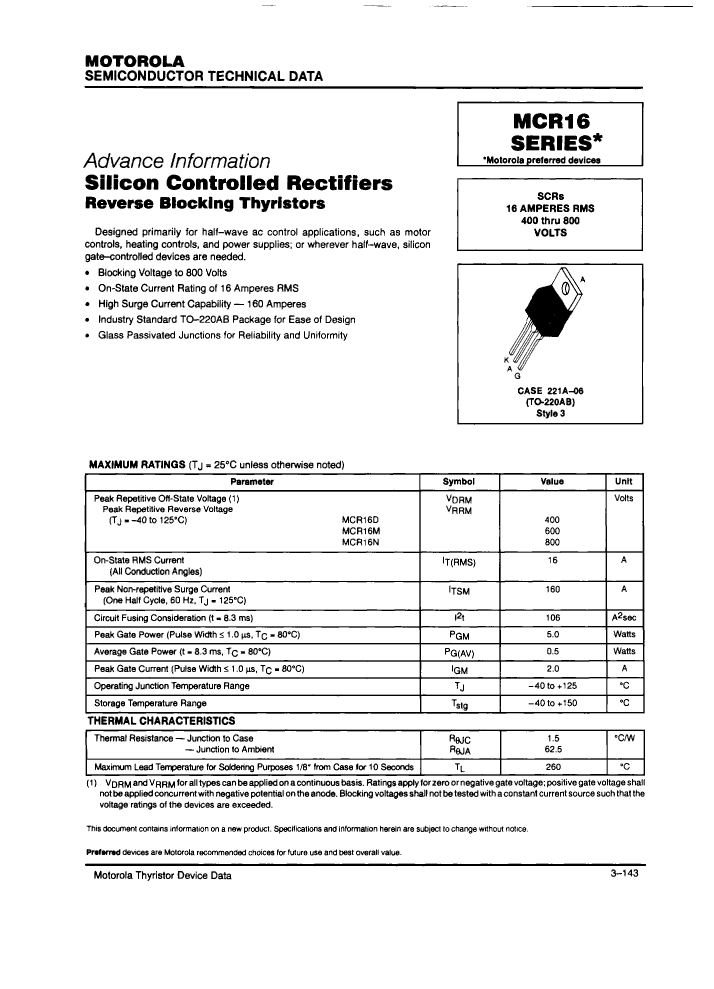

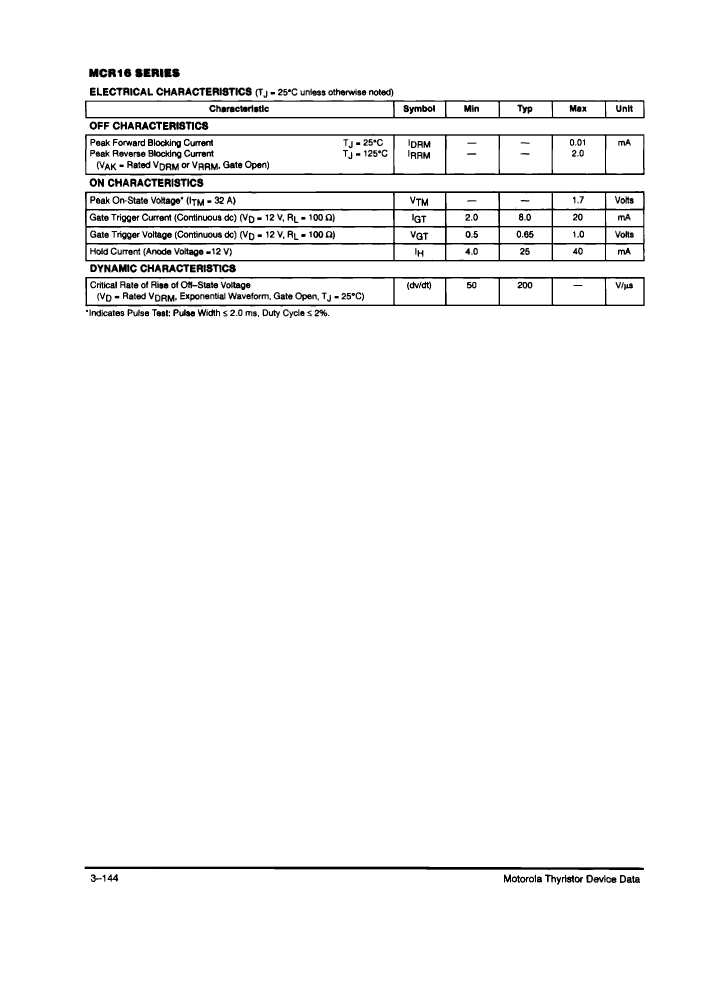

MCR16D-BA: Description16A, 400V, SCR, TO-220AB; CategoryAnalog mixed-signal IC Trigger device; File Size49KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

MCR16D-BA Overview

16A, 400V, SCR, TO-220AB

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Shell connection	ANODE
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	20 mA
Maximum DC gate trigger voltage	1 V
Maximum holding current	40 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	16 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	SCR
