MSM514402-10JS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MSM514402-10JS

MSM514402-10JS: DescriptionStatic Column DRAM, 1MX4, 100ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-26/20; Categorystorage storage; File Size463KB，15 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

MSM514402-10JS Overview

Static Column DRAM, 1MX4, 100ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-26/20

MSM514402-10JS Parametric

Parameter Name	Attribute value
Maker	OKI
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	STATIC COLUMN
Maximum access time	100 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
JESD-30 code	R-PDSO-J20
length	17.15 mm
memory density	4194304 bit
Memory IC Type	STATIC COLUMN DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	20
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX4
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	3.85 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	8.89 mm

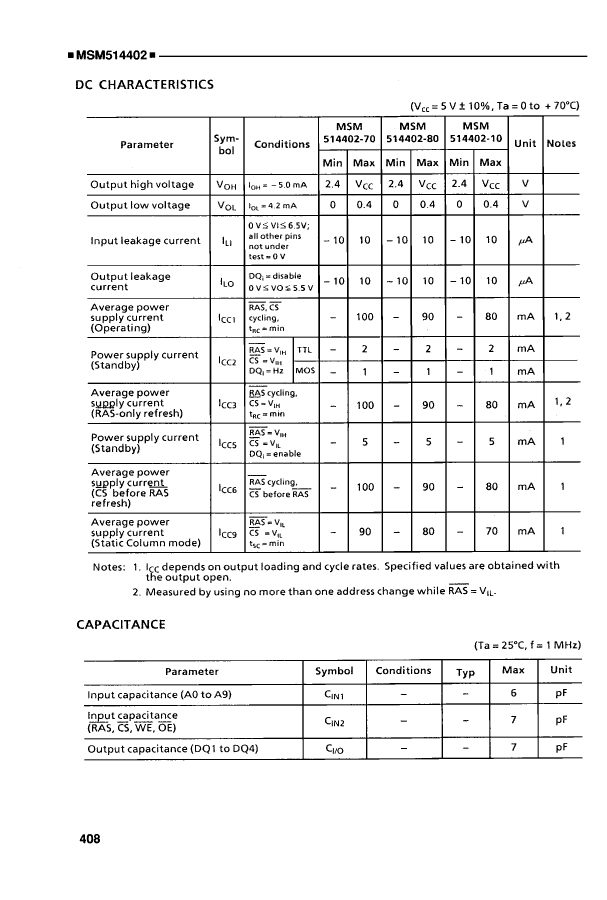

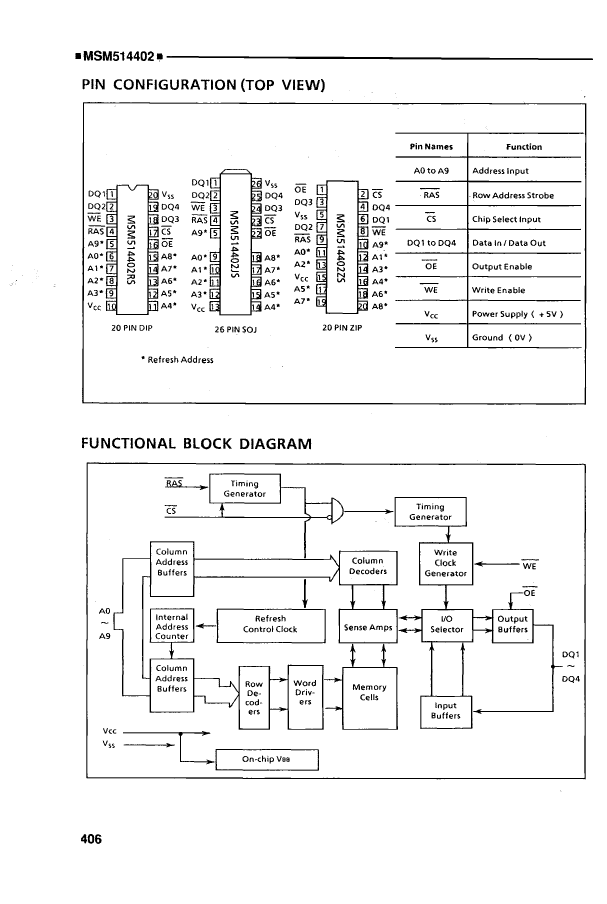

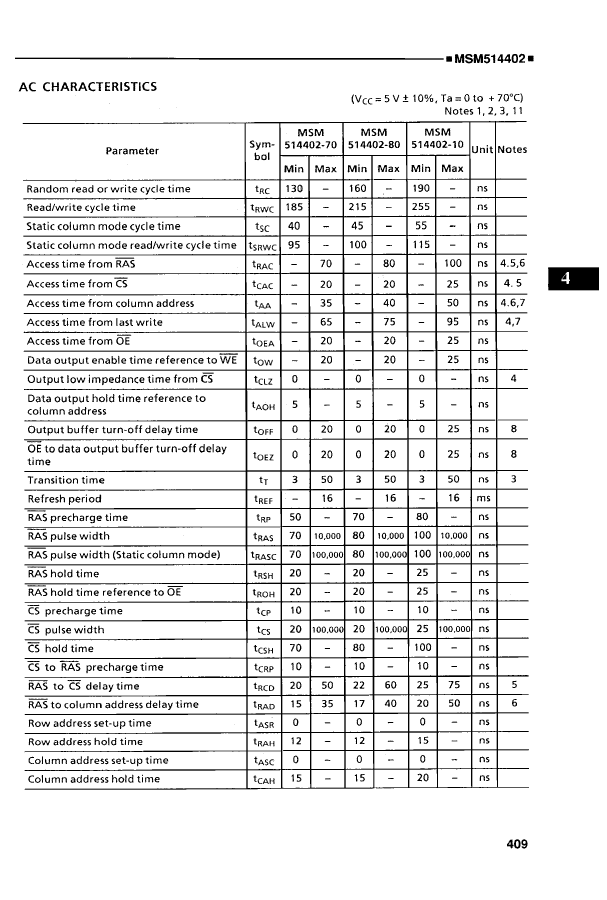

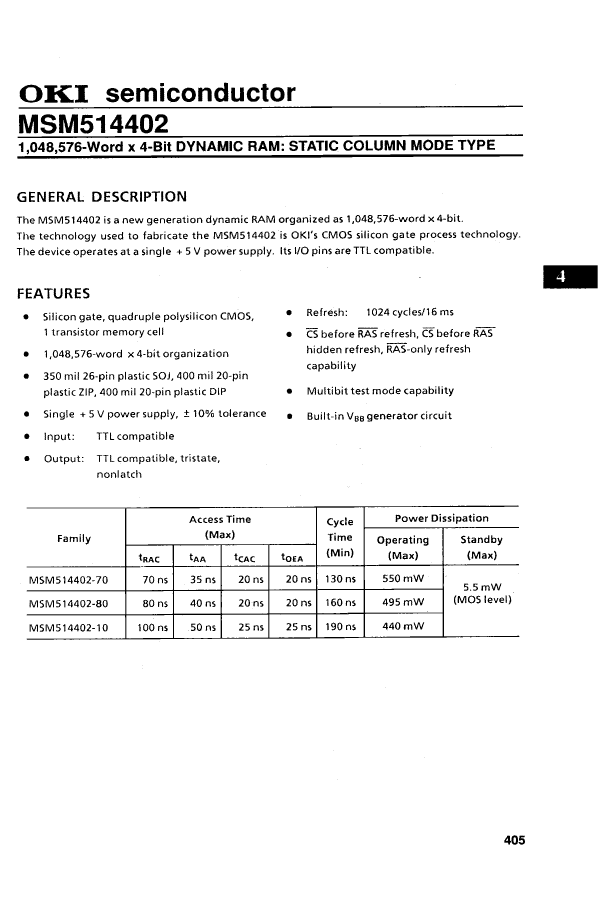

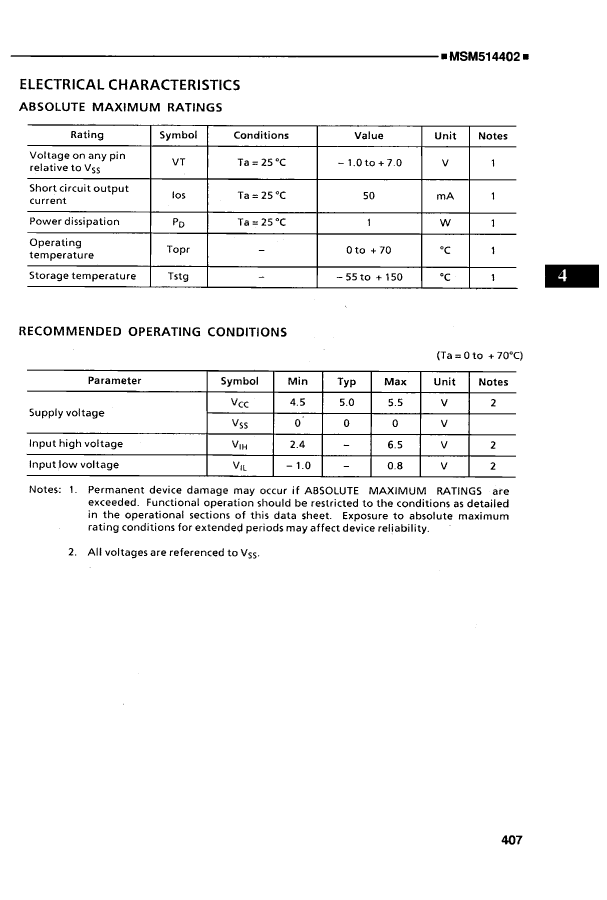

Preview

Download Datasheet

View All

MSM514402-10JS Related Products

	MSM514402-10JS	MSM514402-70RS	MSM514402-70ZS	MSM514402-80ZS	MSM514402-80JS	MSM514402-70JS	MSM514402-10RS	MSM514402-10ZS	MSM514402-80RS
Description	Static Column DRAM, 1MX4, 100ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-26/20	Static Column DRAM, 1MX4, 70ns, CMOS, PDIP20, 0.400 INCH, PLASTIC, DIP-20	Static Column DRAM, 1MX4, 70ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20	Static Column DRAM, 1MX4, 80ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20	Static Column DRAM, 1MX4, 80ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-26/20	Static Column DRAM, 1MX4, 70ns, CMOS, PDSO20, 0.350 INCH, PLASTIC, SOJ-26/20	Static Column DRAM, 1MX4, 100ns, CMOS, PDIP20, 0.400 INCH, PLASTIC, DIP-20	Static Column DRAM, 1MX4, 100ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20	Static Column DRAM, 1MX4, 80ns, CMOS, PDIP20, 0.400 INCH, PLASTIC, DIP-20
Maker	OKI	OKI	OKI	OKI	OKI	OKI	OKI	OKI	OKI
Parts packaging code	SOJ	DIP	ZIP	ZIP	SOJ	SOJ	DIP	ZIP	DIP
package instruction	SOJ,	DIP,	ZIP,	ZIP,	SOJ,	SOJ,	DIP,	ZIP,	DIP,
Contacts	20	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	STATIC COLUMN	STATIC COLUMN	STATIC COLUMN	STATIC COLUMN	STATIC COLUMN	STATIC COLUMN	STATIC COLUMN	STATIC COLUMN	STATIC COLUMN
Maximum access time	100 ns	70 ns	70 ns	80 ns	80 ns	70 ns	100 ns	100 ns	80 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
JESD-30 code	R-PDSO-J20	R-PDIP-T20	R-PZIP-T20	R-PZIP-T20	R-PDSO-J20	R-PDSO-J20	R-PDIP-T20	R-PZIP-T20	R-PDIP-T20
length	17.15 mm	24.4 mm	25.5 mm	25.5 mm	17.15 mm	17.15 mm	24.4 mm	25.5 mm	24.4 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	STATIC COLUMN DRAM	STATIC COLUMN DRAM	STATIC COLUMN DRAM	STATIC COLUMN DRAM	STATIC COLUMN DRAM	STATIC COLUMN DRAM	STATIC COLUMN DRAM	STATIC COLUMN DRAM	STATIC COLUMN DRAM
memory width	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20	20
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	DIP	ZIP	ZIP	SOJ	SOJ	DIP	ZIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024	1024	1024
Maximum seat height	3.85 mm	4.7 mm	10.16 mm	10.16 mm	3.85 mm	3.85 mm	4.7 mm	10.16 mm	4.7 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	ZIG-ZAG	ZIG-ZAG	DUAL	DUAL	DUAL	ZIG-ZAG	DUAL
width	8.89 mm	10.16 mm	2.8 mm	2.8 mm	8.89 mm	8.89 mm	10.16 mm	2.8 mm	10.16 mm
