BA3520F datasheet, PDF - EEWORLD Datasheet

BA3520F: DescriptionAudio Amplifier, 0.03W, 2 Channel(s), 1 Func, PDSO18, SOP-18; CategoryAnalog mixed-signal IC Consumption circuit; File Size329KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

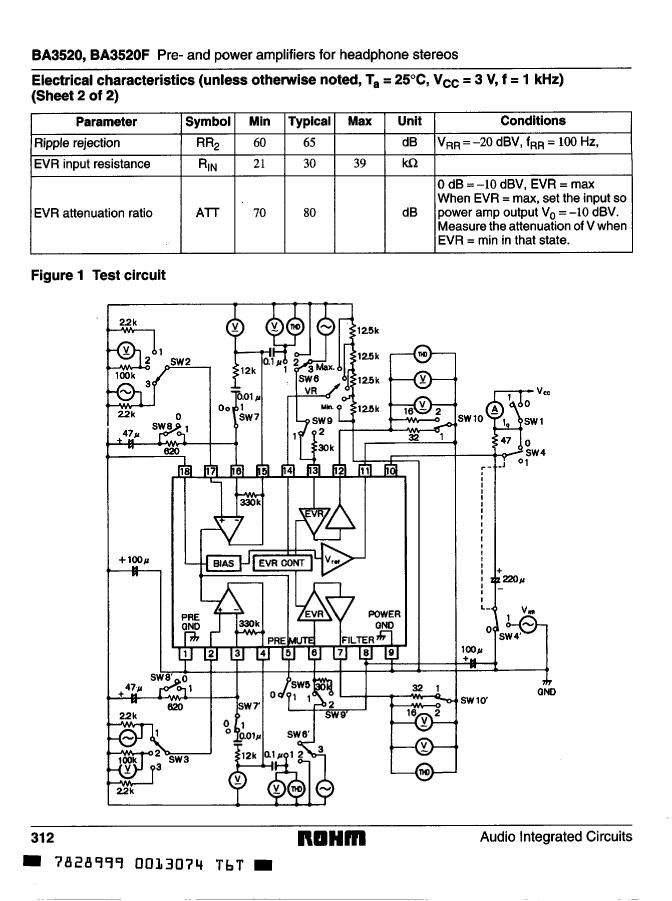

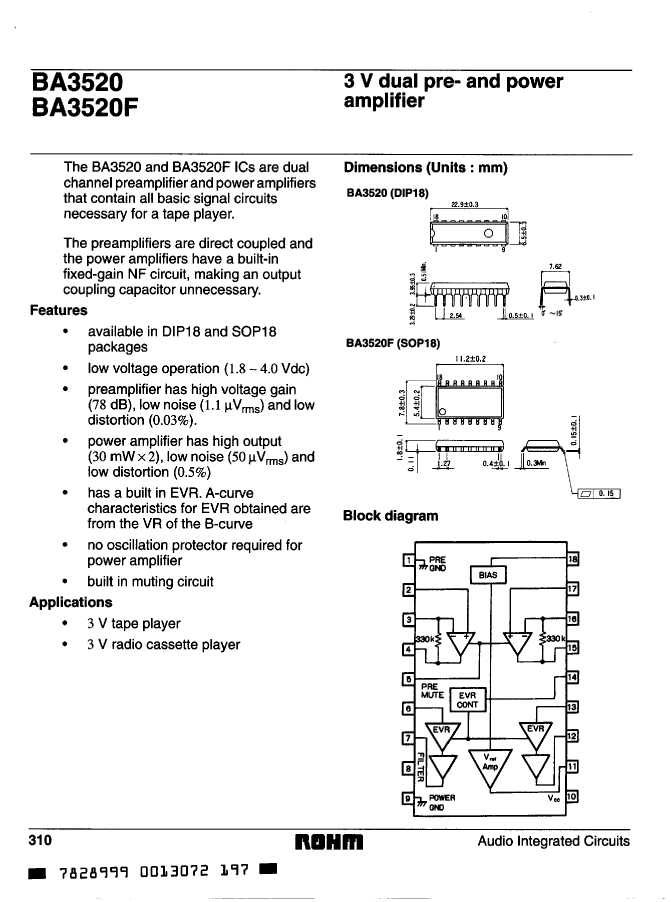

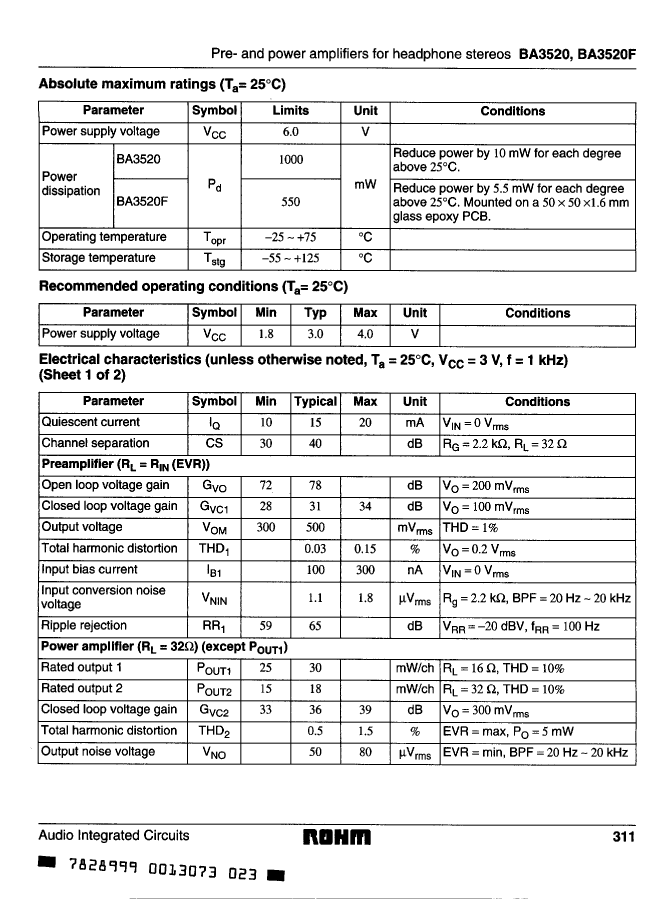

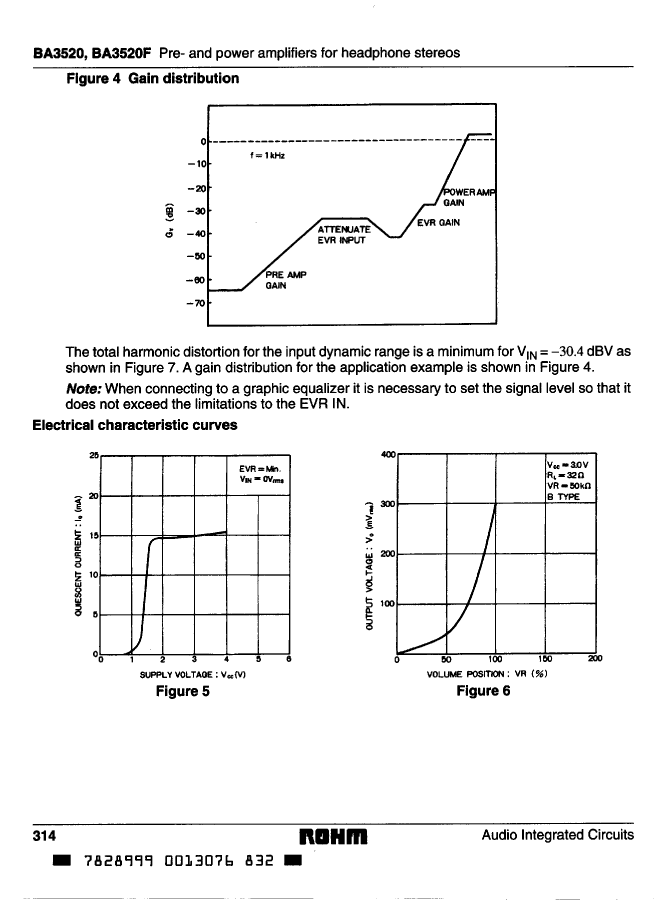

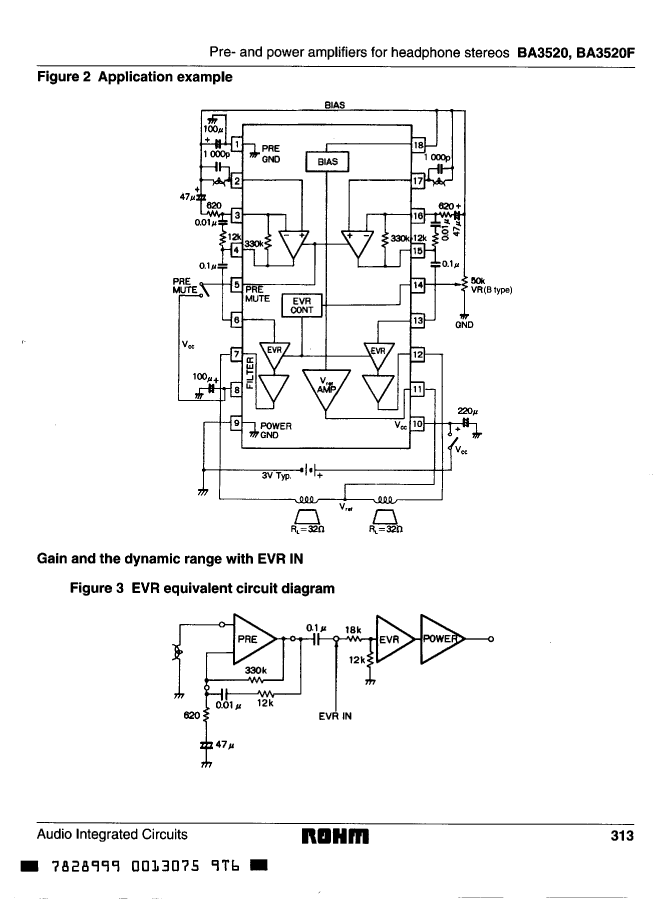

BA3520F Overview

Audio Amplifier, 0.03W, 2 Channel(s), 1 Func, PDSO18, SOP-18

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	18
Reach Compliance Code	unknown
ECCN code	EAR99
Commercial integrated circuit types	AUDIO AMPLIFIER
Gain	36 dB
JESD-30 code	R-PDSO-G18
length	11.2 mm
Number of channels	2
Number of functions	1
Number of terminals	18
Nominal output power	0.03 W
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	4 V
Minimum supply voltage (Vsup)	1.8 V
surface mount	YES
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.4 mm

	BA3520F	BA3520
Description	Audio Amplifier, 0.03W, 2 Channel(s), 1 Func, PDSO18, SOP-18	Audio Amplifier, 0.03W, 2 Channel(s), 1 Func, PDIP18, DIP-18
Maker	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	DIP
package instruction	SOP,	DIP,
Contacts	18	18
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Commercial integrated circuit types	AUDIO AMPLIFIER	AUDIO AMPLIFIER
Gain	36 dB	36 dB
JESD-30 code	R-PDSO-G18	R-PDIP-T18
length	11.2 mm	22.9 mm
Number of channels	2	2
Number of functions	1	1
Number of terminals	18	18
Nominal output power	0.03 W	0.03 W
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	4.25 mm
Maximum supply voltage (Vsup)	4 V	4 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V
surface mount	YES	NO
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	5.4 mm	7.62 mm
