BR502W datasheet, PDF - EEWORLD Datasheet

BR502W: DescriptionBridge Rectifier Diode, 50A, 200V V(RRM),; CategoryDiscrete semiconductor diode; File Size62KB，2 Pages; ManufacturerKuwait Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

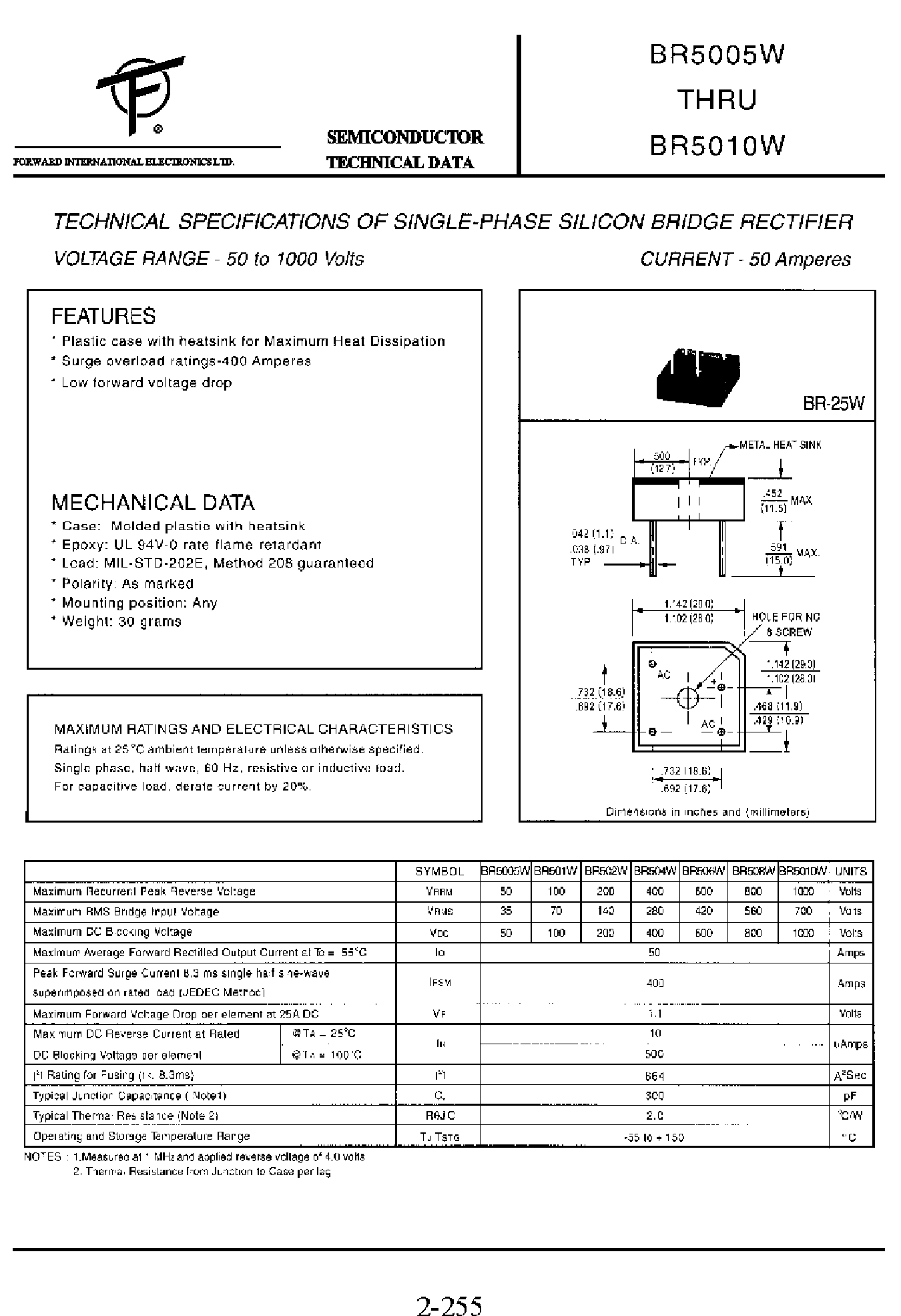

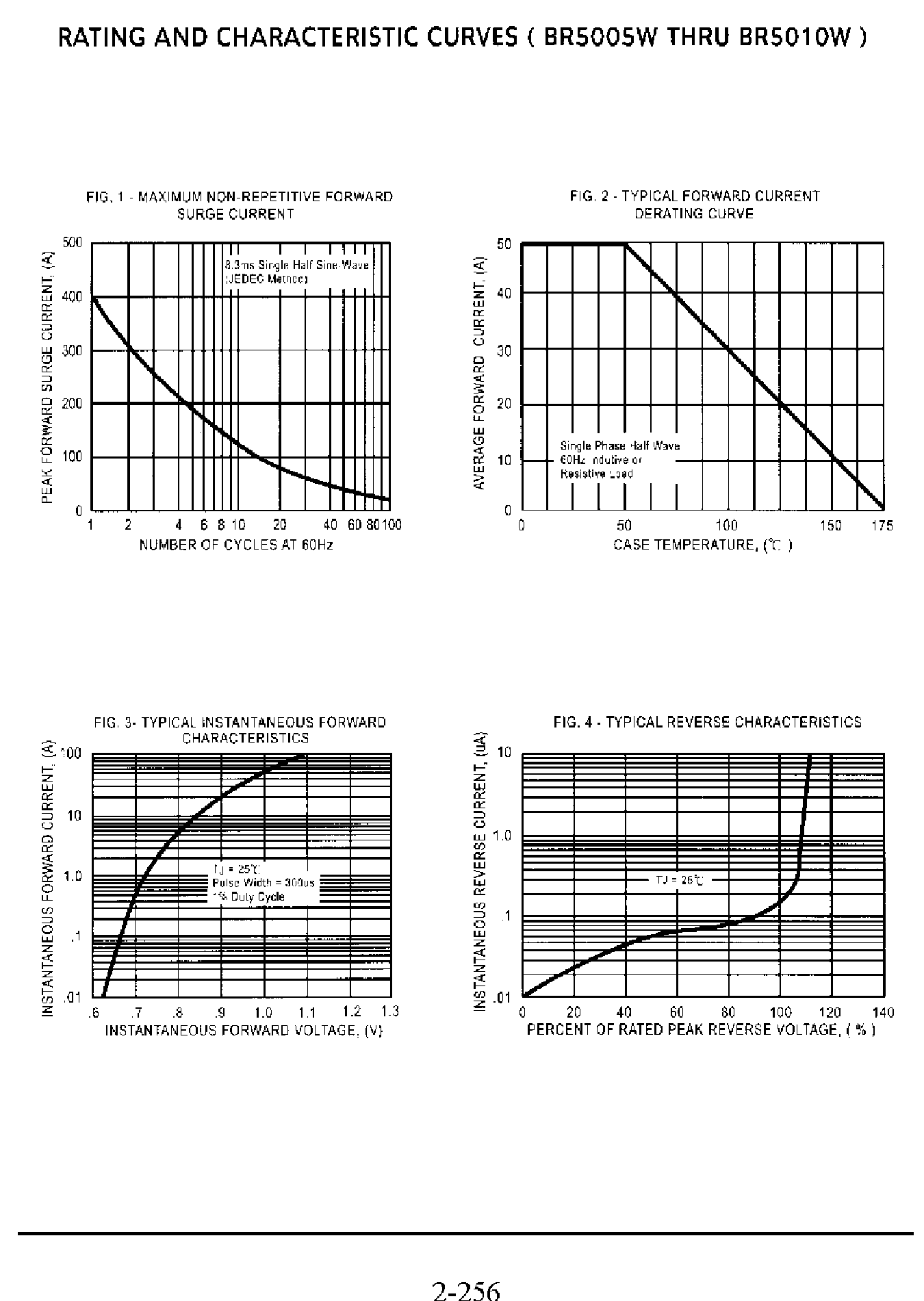

BR502W Overview

Bridge Rectifier Diode, 50A, 200V V(RRM),

Parameter Name	Attribute value
Maker	Kuwait Semiconductor Co., Ltd.
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	400 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	50 A
Maximum repetitive peak reverse voltage	200 V
surface mount	NO

	BR502W	BR5010W	BR5005W	BR501W	BR504W	BR506W	BR508W
Description	Bridge Rectifier Diode, 50A, 200V V(RRM),	Bridge Rectifier Diode, 50A, 1000V V(RRM),	Bridge Rectifier Diode, 50A, 50V V(RRM),	Bridge Rectifier Diode, 50A, 100V V(RRM),	Bridge Rectifier Diode, 50A, 400V V(RRM),	Bridge Rectifier Diode, 50A, 600V V(RRM),	Bridge Rectifier Diode, 50A, 800V V(RRM),
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A	400 A	400 A
Number of components	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Maximum repetitive peak reverse voltage	200 V	1000 V	50 V	100 V	400 V	600 V	800 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Maker	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.	-	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.	Kuwait Semiconductor Co., Ltd.
