Preview

BR358W: DescriptionBridge Rectifier Diode, 1 Phase, 35A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, BR-35W, 4 PIN; CategoryDiscrete semiconductor diode; File Size303KB，2 Pages; ManufacturerRectron; Environmental Compliance

Download Datasheet Parametric Compare View All

BR358W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR358W	-	-	View	Buy Now

BR358W Overview

Bridge Rectifier Diode, 1 Phase, 35A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, BR-35W, 4 PIN

BR358W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rectron
package instruction	S-PUFM-W4
Contacts	4
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Minimum breakdown voltage	800 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	S-PUFM-W4
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	35 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	0.00001 µA
surface mount	NO
Terminal surface	TIN
Terminal form	WIRE
Terminal location	UPPER
Maximum time at peak reflow temperature	10

BR358W Preview

RECTRON

SEMICONDUCTOR

TECHNICAL SPECIFICATION

BR3505

THRU

BR3510

SINGLE-PHASE SILICON BRIDGE RECTIFIER

VOLTAGE RANGE 50 to 1000 Volts CURRENT 35 Amperes

FEATURES

*

Superior thermal desing

400 amperes surge rating

//

1/4 universal faston terminal

Hole thru for # 8 screw

BR-35

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

o

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

BR-35W

MAXIMUM RATINGS

(At T

A

= 25

o

C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Bridge Input Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Output Current at Tc = 55 C

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Operating and Storage Temperature Range

T

J,

T

STG

-55 to + 175

0

o

SYMBOL

V

RRM

V

RMS

V

DC

I

O

I

FSM

BR3505

50

35

50

BR351

100

70

100

BR352

200

140

200

BR354

400

280

400

35.0

400

BR356

600

420

600

BR358

800

560

800

BR3510

1000

700

1000

UNITS

Volts

Amps

C

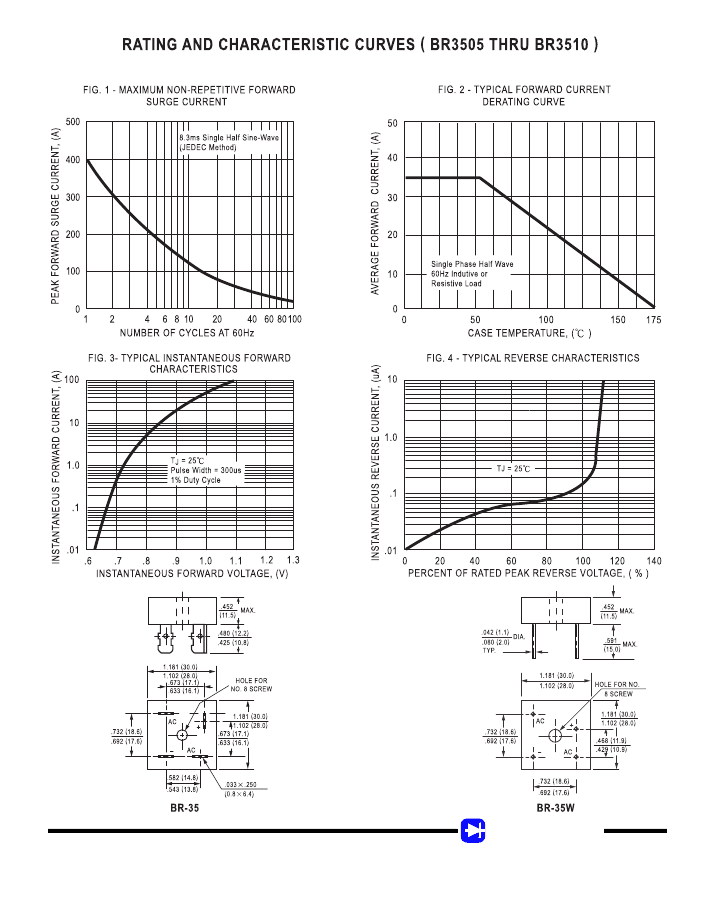

ELECTRICAL CHARACTERISTICS

(At T

A

= 25 C unless otherwise noted)

CHARACTERISTICS

Maximum Forward Voltage Drop per element at 17.5A DC

Maximum Reverse Current at Rated

DC Blocking Voltage per element

NOTE: Suffix ”W” for wire type

o

@T

A

= 25 C

o

SYMBOL

V

F

I

R

BR3505

BR351

BR352

BR354

1.1

10

0.5

BR356

BR358

BR3510 UNITS

Volts

uAmps

mAmps

1998-8

@T

C

= 100 C

o

Back

RECTRON

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BR358W Related Products

	BR358W	BR351W	BR352W
Description	Bridge Rectifier Diode, 1 Phase, 35A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, BR-35W, 4 PIN	Bridge Rectifier Diode, 1 Phase, 35A, 100V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, BR-35W, 4 PIN	Bridge Rectifier Diode, 1 Phase, 35A, 200V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, BR-35W, 4 PIN
Is it Rohs certified?	conform to	conform to	conform to
Maker	Rectron	Rectron	Rectron
package instruction	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
Contacts	4	4	4
Reach Compliance Code	compliant	compliant	compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	800 V	100 V	200 V
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V
JESD-30 code	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
JESD-609 code	e3	e3	e3
Humidity sensitivity level	1	1	1
Maximum non-repetitive peak forward current	400 A	400 A	400 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	35 A	35 A	35 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	100 V	200 V
Maximum reverse current	0.00001 µA	0.00001 µA	0.00001 µA
surface mount	NO	NO	NO
Terminal surface	TIN	TIN	TIN
Terminal form	WIRE	WIRE	WIRE
Terminal location	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	10	10	10
ECCN code	-	EAR99	EAR99
