SKKT57B/18E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> SKKT57B/18E

SKKT57B/18E: Description95A, 1800V, SCR, CERAMIC, CASE A48, SEMIPACK-7; CategoryAnalog mixed-signal IC Trigger device; File Size975KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKKT57B/18E Overview

95A, 1800V, SCR, CERAMIC, CASE A48, SEMIPACK-7

SKKT57B/18E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	TO-240
package instruction	CERAMIC, CASE A48, SEMIPACK-7
Contacts	3
Manufacturer packaging code	CASE A48
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current	150 mA
JESD-30 code	R-CUFM-X7
JESD-609 code	e3/e4
Number of components	2
Number of terminals	7
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	95 A
Off-state repetitive peak voltage	1800 V
Repeated peak reverse voltage	1800 V
surface mount	NO
Terminal surface	TIN/SILVER
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

SKKT57B/18E Preview

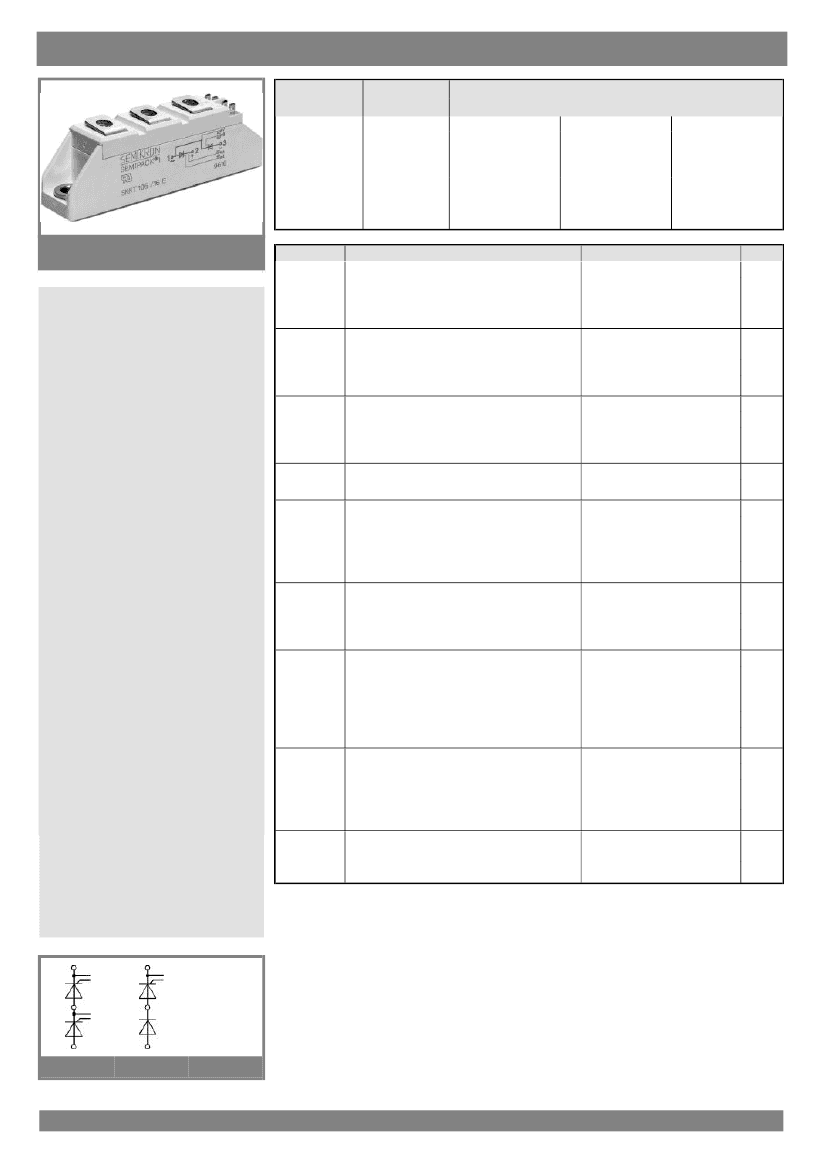

SKKT 57, SKKH 57, SKKT 57B

THYRISTOR

SEMIPACK

Thyristor / Diode Modules

SKKT 57

SKKH 57

SKKT 57B

Symbol

Conditions

Values

Units

Features

Typical Applications*

SKKT

SKKH

05-04-2011 GIL

BRIDGE,SCR,BRIDGE RECTIFIER,DIODE,THYRISTOR,MODULE

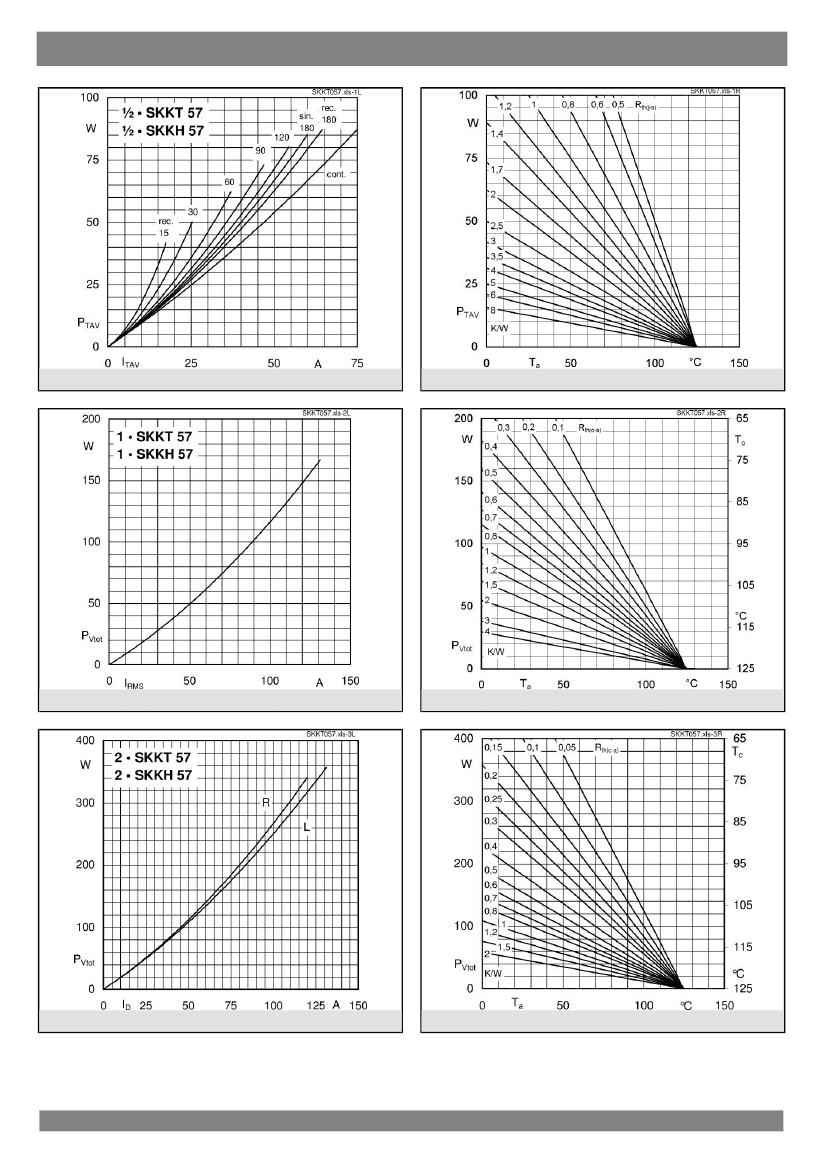

Fig. 1L Power dissipation per thyristor vs. on-state current

Fig. 1R Power dissipation per thyristor vs. ambient temp.

Fig. 2L Power dissipation per module vs. rms current

Fig. 2R Power dissipation per module vs. case temp.

Fig. 3L Power dissipation of two modules vs. direct current

Fig. 3R Power dissipation of two modules vs. case temp.

05-04-2011 GIL

SKKT 57, SKKH 57, SKKT 57B

THYRISTOR

Fig. 4L Power dissipation of three modules vs. direct and rms current

Fig. 4R Power dissipation of three modules vs. case temp.

Fig. 5 Recovered charge vs. current decrease

Fig. 6 Transient thermal impedance vs. time

Fig. 7 On-state characteristics

Fig. 8 Surge overload current vs. time

05-04-2011 GIL

BRIDGE,SCR,BRIDGE RECTIFIER,DIODE,THYRISTOR,MODULE

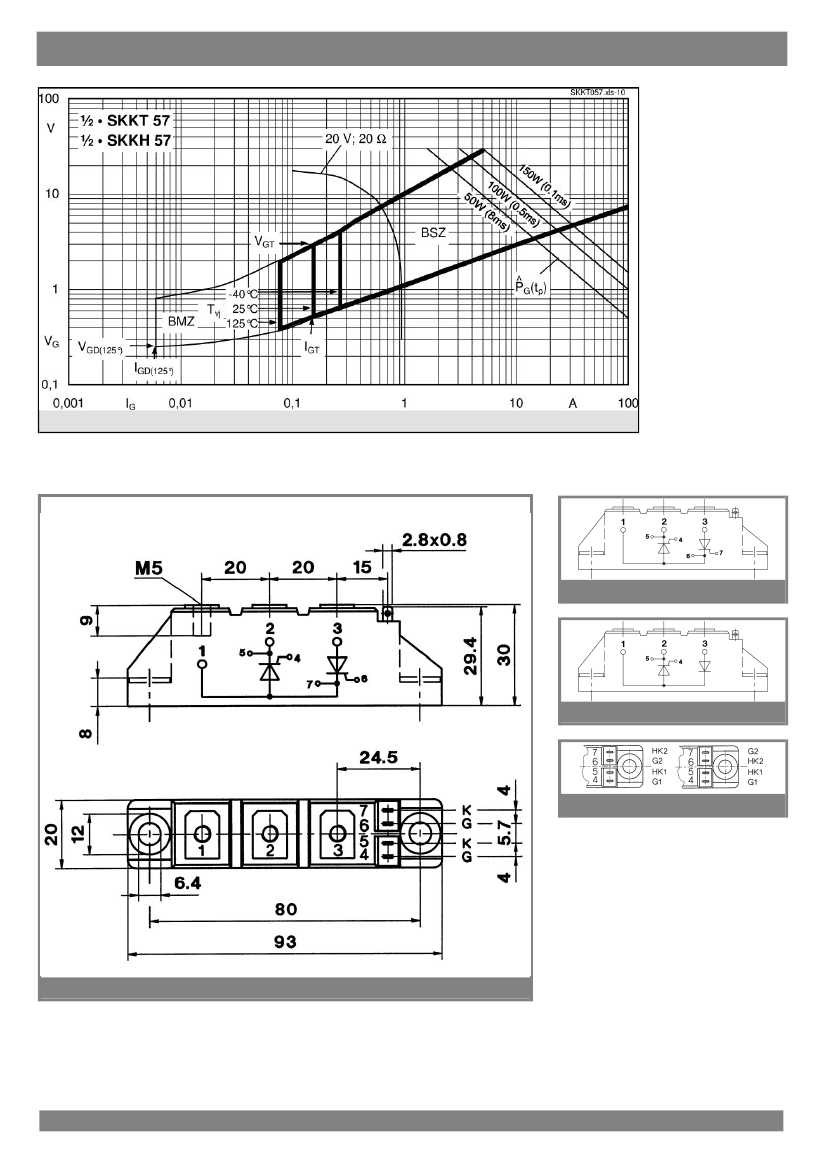

Fig. 9 Gate trigger characteristics

Dimensions in mm

* The specifications of our components may not be considered as an assurance of component characteristics.

Components have to be tested for the respective application. Adjustments may be necessary. The use of SEMIKRON

products in life support appliances and systems is subject to prior specification and written approval by SEMIKRON. We

therefore strongly recommend prior consultation of our staff.

05-04-2011 GIL

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SKKT57B/18E Related Products

	SKKT57B/18E	SKKT57B18E	SKKT57B/12E	SKKT57B/14E	SKKT57B/16E
Description	95A, 1800V, SCR, CERAMIC, CASE A48, SEMIPACK-7	Silicon Controlled Rectifier, 95A I(T)RMS, 55000mA I(T), 1800V V(DRM), 1800V V(RRM), 2 Element, CERAMIC, CASE A48, SEMIPACK-7	95A, 1200V, SCR, CERAMIC, CASE A48, SEMIPACK-7	95A, 1400V, SCR, CERAMIC, CASE A48, SEMIPACK-7	95A, 1600V, SCR, CERAMIC, CASE A48, SEMIPACK-7
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	TO-240	TO-240	TO-240	TO-240	TO-240
package instruction	CERAMIC, CASE A48, SEMIPACK-7	FLANGE MOUNT, R-CUFM-X7	CERAMIC, CASE A48, SEMIPACK-7	FLANGE MOUNT, R-CUFM-X7	CERAMIC, CASE A48, SEMIPACK-7
Contacts	3	3	3	3	3
Manufacturer packaging code	CASE A48	CASE A48	CASE A48	CASE A48	CASE A48
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
Other features	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA
JESD-30 code	R-CUFM-X7	R-CUFM-X7	R-CUFM-X7	R-CUFM-X7	R-CUFM-X7
JESD-609 code	e3/e4	e2	e3/e4	e3/e4	e3/e4
Number of components	2	2	2	2	2
Number of terminals	7	7	7	7	7
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	95 A	95 A	95 A	95 A	95 A
Off-state repetitive peak voltage	1800 V	1800 V	1200 V	1400 V	1600 V
Repeated peak reverse voltage	1800 V	1800 V	1200 V	1400 V	1600 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	TIN/SILVER	Tin/Silver (Sn/Ag)	TIN/SILVER	TIN/SILVER	TIN/SILVER
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR	SCR
Maximum DC gate trigger voltage	-	3 V	3 V	3 V	3 V
Maximum holding current	-	250 mA	250 mA	250 mA	250 mA
Nominal circuit commutation break time	-	-	80 µs	80 µs	80 µs
Critical rise rate of minimum off-state voltage	-	-	1000 V/us	1000 V/us	1000 V/us
Maximum repetitive peak off-state leakage current	-	-	15000 µA	15000 µA	15000 µA
