W24010ACJ-15: DescriptionStandard SRAM, 128KX8, 15ns, CMOS, PDSO32, 0.300 INCH, SOJ-32; Categorystorage storage; File Size151KB，10 Pages; ManufacturerWinbond Electronics Corporation; Websitehttp://www.winbond.com.tw

Download Datasheet Parametric Compare View All

W24010ACJ-15 Overview

Standard SRAM, 128KX8, 15ns, CMOS, PDSO32, 0.300 INCH, SOJ-32

W24010ACJ-15 Parametric

Parameter Name	Attribute value
Maker	Winbond Electronics Corporation
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	32
Reach Compliance Code	unknown
ECCN code	3A991.B.2.B
Maximum access time	15 ns
JESD-30 code	R-PDSO-J32
length	20.955 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.556 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.62 mm

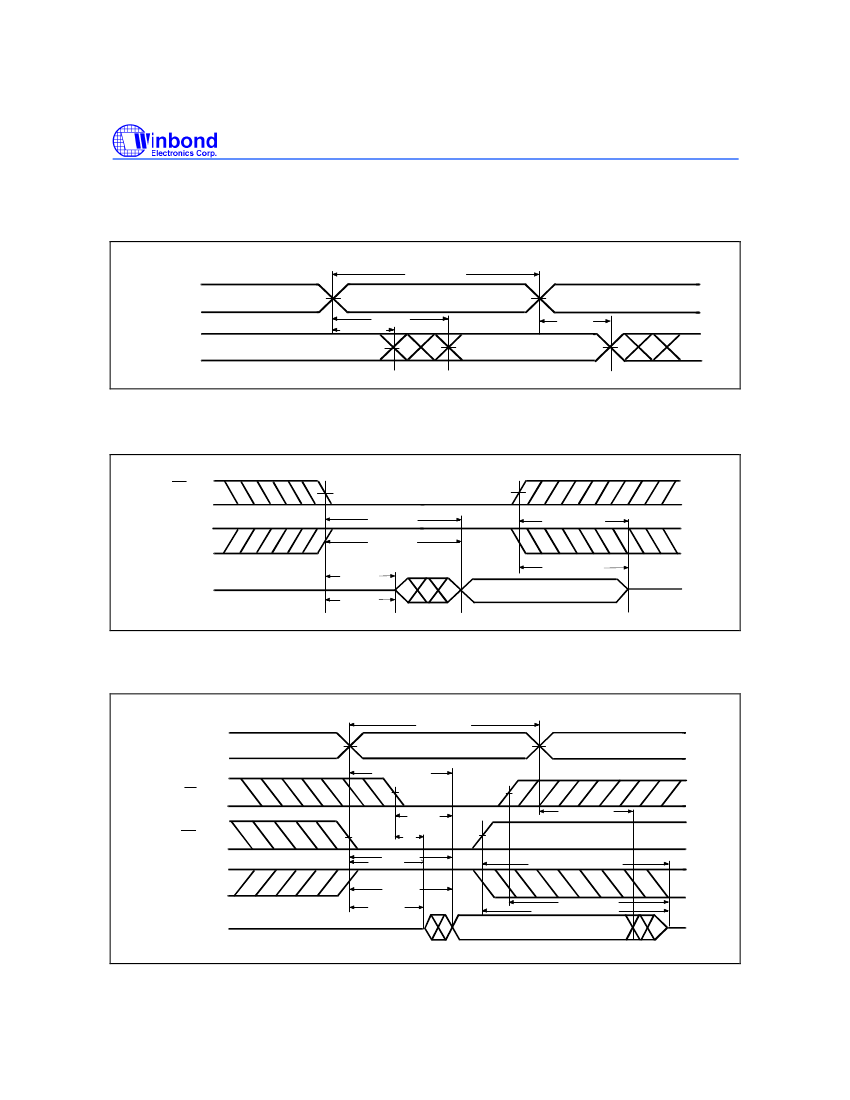

Preview

Download Datasheet

View All

W24010AC

128K

8 HIGH SPEED CMOS STATIC RAM

GENERAL DESCRIPTION

The W24010AC is a high speed, low power CMOS static RAM organized as 131072

8 bits that

operates on a single 5-volt power supply. This device is manufactured using Winbond's high

performance CMOS technology, which can meet the industrial grade requirement.

FEATURES

•

High speed access time: 12/15 nS (max.)

Low power consumption:

−

Active: 600 mW (typ.)

Single +5V power supply

Fully static operation

•

All inputs and outputs directly TTL compatible

Three-state outputs

Available packages: 32-pin 300 mil SOJ, 400

mil SOJ, skinny DIP and standard type one

TSOP (8 mm

20 mm)

•

PIN CONFIGURATIONS

BLOCK DIAGRAM

A16

A14

A12

I/O 1

I/O 2

I/O 3

A15

CS2

A13

A16

DECODER

CORE

ARRAY

A11

A10

CS1

I/O8

I/O7

I/O6

I/O 5

I/O 4

CS2

CS1

CONTROL

DATA I/O

I/O1

I/O8

PIN DESCRIPTION

SYMBOL

A0−A16

I/O1−I/O8

CS1, CS2

DESCRIPTION

Address Inputs

Data Inputs/Outputs

Chip Select Inputs

Write Enable Input

Output Enable Input

Power Supply

Ground

No Connection

A11

A13

CS2

A15

A16

A14

A12

32-pin

TSOP

A10

CS1

I/O8

I/O7

I/O6

I/O5

I/O4

DQ3

DQ2

DQ1

-1-

Publication Release Date: November 1998

Revision A1
