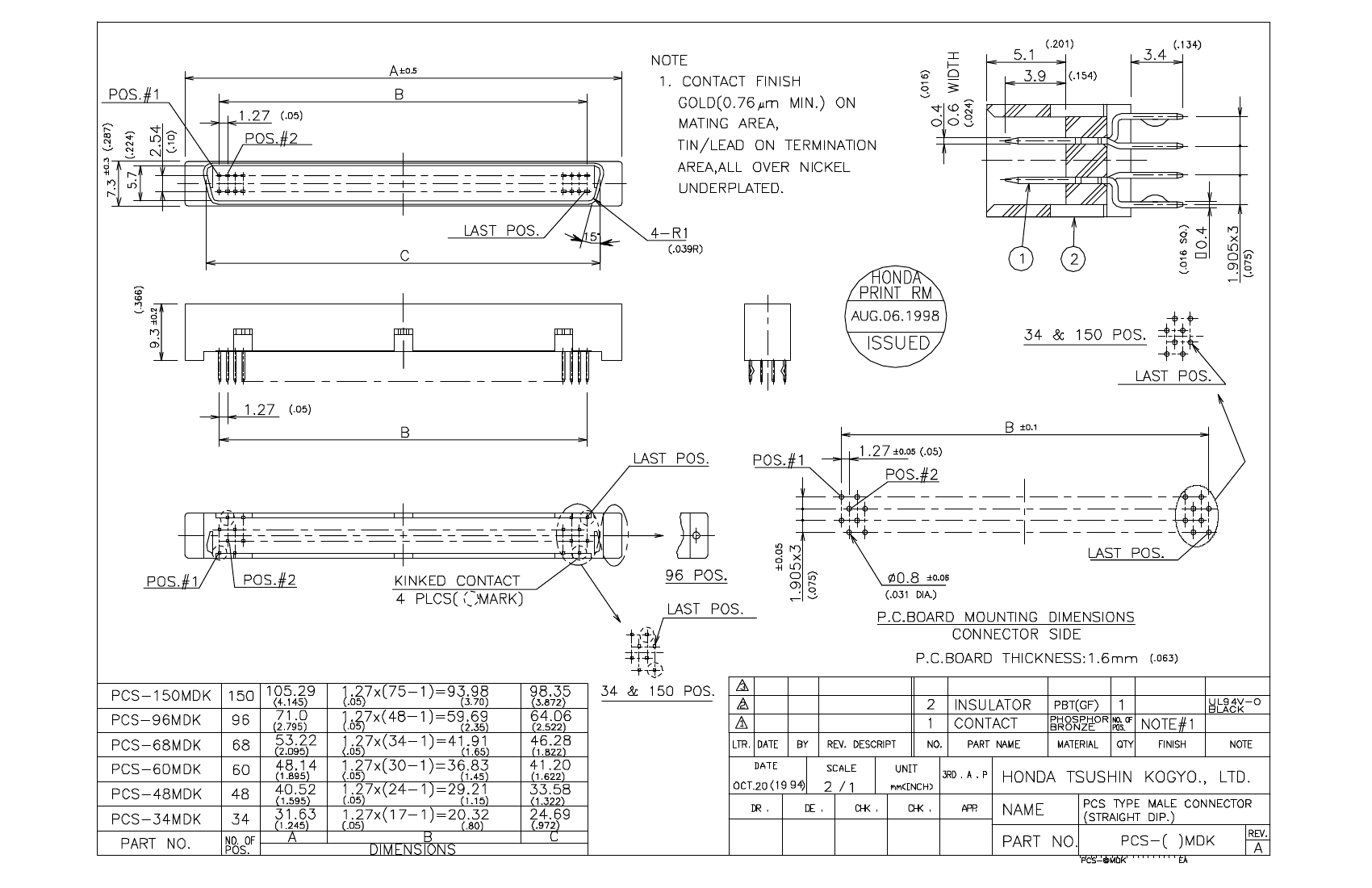

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,
| Parameter Name | Attribute value |
| Maker | Honda Tsushin Kogyo Co., Ltd. |
| Reach Compliance Code | unknown |
| Other features | STAGGERED CONFIGURATION |
| Connector type | BOARD CONNECTOR |
| Contact completed and terminated | TIN LEAD OVER NICKEL |
| Contact point gender | MALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 60 |
| UL Flammability Code | 94V-0 |
| PCS-60MDK | PCS-150MDK | PCS-34MDK | PCS-48MDK | PCS-68MDK | PCS-96MDK | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, | Board Connector, 150 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, | Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, | Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, | Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, | Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, |
| Maker | Honda Tsushin Kogyo Co., Ltd. | Honda Tsushin Kogyo Co., Ltd. | Honda Tsushin Kogyo Co., Ltd. | Honda Tsushin Kogyo Co., Ltd. | Honda Tsushin Kogyo Co., Ltd. | Honda Tsushin Kogyo Co., Ltd. |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact completed and terminated | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 60 | 150 | 34 | 48 | 68 | 96 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Is it Rohs certified? | - | - | incompatible | incompatible | incompatible | incompatible |
| ECCN code | - | - | EAR99 | EAR99 | EAR99 | EAR99 |
| body width | - | - | 0.287 inch | 0.287 inch | 0.287 inch | 0.287 inch |
| body length | - | - | 1.245 inch | 1.595 inch | 2.095 inch | 2.795 inch |
| Contact to complete cooperation | - | - | AU ON NI | AU ON NI | AU ON NI | AU ON NI |
| Contact material | - | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | - | - | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | - | - | 35 mΩ | 35 mΩ | 35 mΩ | 35 mΩ |
| Contact style | - | - | CENTRONIC | CENTRONIC | CENTRONIC | SQ PIN-SKT |
| Dielectric withstand voltage | - | - | 1050VAC V | 1050VAC V | 1050VAC V | 1050VAC V |
| Insulation resistance | - | - | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | - | - | BLACK | BLACK | BLACK | BLACK |
| insulator material | - | - | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Plug contact pitch | - | - | 0.05 inch | 0.05 inch | 0.05 inch | 0.05 inch |
| Match contact row spacing | - | - | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Installation option 1 | - | - | LOCKING | LOCKING | LOCKING | LOCKING |
| PCB row number | - | - | 4 | 4 | 4 | 4 |
| Maximum operating temperature | - | - | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | - | - | -55 °C | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | - | - | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | - | - | 1.905 mm | 1.905 mm | 1.905 mm | 1.905 mm |
| Rated current (signal) | - | - | 1 A | 1 A | 1 A | 1 A |
| Guideline | - | - | UL | UL | UL | UL |
| reliability | - | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | - | - | 0.134 inch | 0.134 inch | 0.134 inch | 0.134 inch |
