EG-2002CA-62.5000MHZ-DCZL0: DescriptionCLOCK SAW OSCILLATOR, 62.5 MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size337KB，2 Pages; ManufacturerSeiko Epson Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

EG-2002CA-62.5000MHZ-DCZL0 Overview

CLOCK SAW OSCILLATOR, 62.5 MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

EG-2002CA-62.5000MHZ-DCZL0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Seiko Epson Corporation
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	1.5 ns
frequency tolerance	50 ppm
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	62.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	SAW OSCILLATOR
Output compatibility	LVCMOS
physical size	7.0mm x 5.0mm x 1.2mm
longest rise time	1.5 ns
Maximum slew rate	60 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

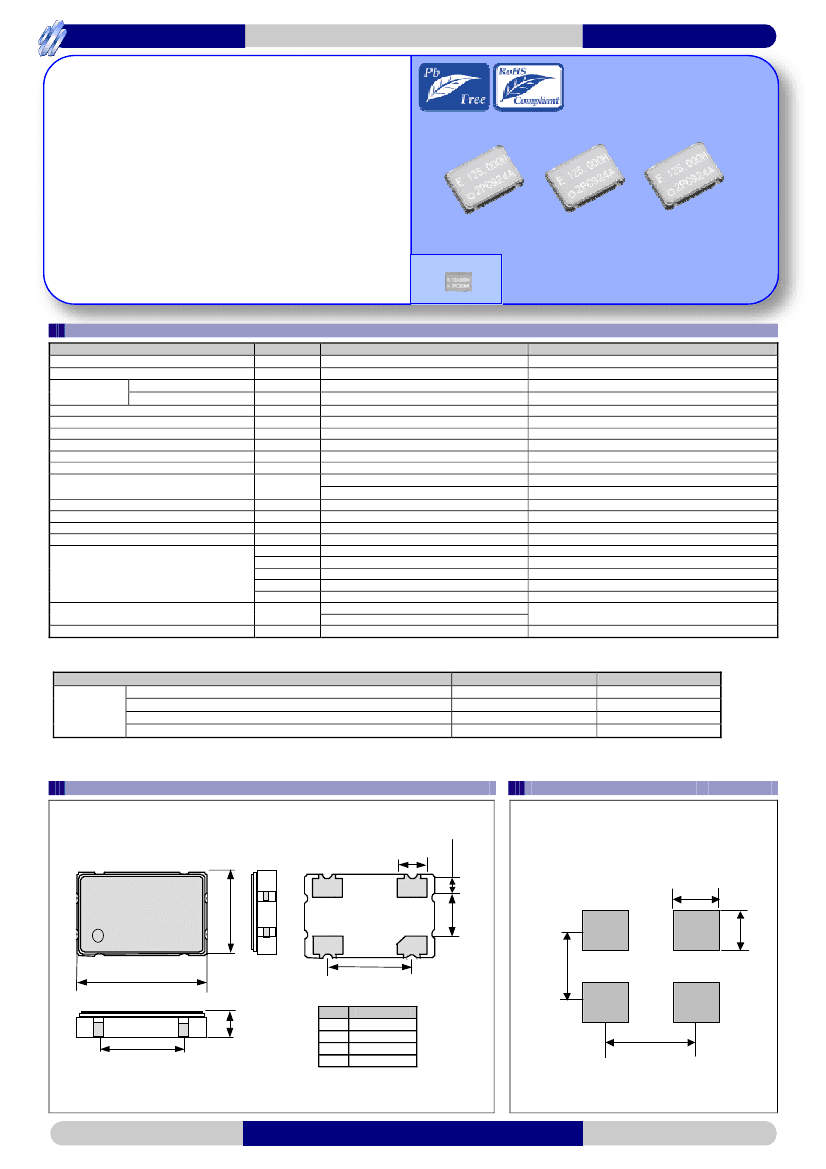

EG-2002CA-62.5000MHZ-DCZL0 Preview

Crystal oscillator

Epson Toyocom

Product Number (please contact us)

CRYSTAL OSCILLATOR

LOW-JITTER SAW OSCILLATOR

Q3802CA00xxxx00

EG - 2002CA

•Frequency

range

62.5 MHz to 170 MHz

•Operating

voltage

3.3 V

•Output

LV-TTL

•Function

Output enable(OE)

•Thickness

1.2 mm Typ.

•Very

low jitter and low phase noise by SAW unit.

Actual size

Specifications (characteristics)

Item

Output frequency range

Supply voltage

Storage temperature

Temperature

range

Operating temperature

Frequency tolerance

Current consumption

Disable current

Symmetry

High output voltage

Low output voltage

Output load condition

High input voltage

Low input voltage

Rise time / Fall time

Start-up time

Symbol

T_stg

T_use

f_tol

I_dis

SYM

L_CMOS

t_str

Jitter

Phase Jitter

RMS

p-p

acc

Frequency aging

f_aging

+25

°C,

First year, V

=3.3 V

As per below table

Based on DTS-2075 Digital timing system made from WAVECREST with jitter analysis software VISI6.

Except : PCH,DCH

Frequency range (MHz)

P: 125 to 170

D: 62.5 to 124.999

-6

±100×10

°C

to +70

°C)*4

PCH

DCH

Details of

±100×10

-6

°C

to +70

°C)

PCY

DCY

frequency

±50×10

-6

°C

to +70

°C)*6

PCZ

DCZ

tolerance

±50×10

-6

°C

to +70

°C)*5

PCF (125 MHz Only)

This includes initial frequency tolerance, temperature variation, supply voltage variation, load variation, reflow drift, and 10 years aging(+25

°C,10

years).

This includes initial frequency tolerance, temperature variation, supply voltage variation, load variation, and reflow drift (except 10 years aging).

This includes initial frequency tolerance and temperature variation (except supply voltage variation, load variation, reflow drift, and 10 years aging).

Specifications

62.500 MHz to 170.000 MHz

3.3 V

0.3 V

-40

°C

to +100

°C

to +70

°C

±50 ×

-6

±100 ×

-6

60 mA Max.

25 mA Max.

45 % to 55 %

2.4 V Min.

0.4 V Max.

25 pF Max.

15 pF Max.

70 % V

Min.

30 % V

Max.

1.5 ns Max.

10 ms Max.

0.2 ps Typ.

3 ps Typ.

25 ps Typ.

4 ps Typ.

0.05

-3

UI Typ.

1 ps Max.

-6

/ year Max.

Remarks

Please contact us for inquiries regarding available frequencies.

Store as bare product after unpacking

°C

to +70

°C

OE=V

, No load condition

OE=GND

1.4 V level, L_CMOS

≤

Max.

= -8 mA

= 8 mA

= 62.5 MHz

> 62.5 MHz

OE terminal

0.8 V

→

2.0 V level, L_CMOS

≤

Max.

Time at minimum supply voltage to be 0 s

Deterministic Jitter

Random Jitter

(RMS of total distribution)

Peak to Peak

Accumulated Jitter(σ) n=2 to 50000 cycles

Offset frequency: 12 kHz to 20 MHz

External dimensions

(Unit:mm)

Footprint (Recommended)

(Unit:mm)

1.4

1.1

5.0

±0.2

2PC924A

2.6

E 125.000H

1.8

7.0

±0.2

5.08

Pin map

Connection

GND

OUT

1.2

±0.2

3.9

5.08

#2 is connected to the cover.

http://www.epsontoyocom.co.jp

1.5

“QMEMS” EPSON TOYOCOM

In order to meet customer needs in a rapidly advancing digital,

broadband and ubiquitous society, we are committed to offering products

that are one step ahead of the market and a rank above the rest in quality.

To achieve our goals, we follow a “3D (three device) strategy” designed to

drive both horizontal and vertical growth. We will to grow our three device

categories of “Timing Devices”, ”Sensing Devices” and “Optical Devices”,

and expand vertical growth through a combination of products from these

categories.

A Quartz MEMS is any high added value quartz device that exploits the

characteristics of quartz crystal material but that is produced using MEMS

(micro-electro-mechanical system) processing technology.

Market needs are advancing faster than previously imagined toward

smaller, more stable crystal products, but we will stay ahead of the curve

by rolling out products that exceed market speed and quality

requirements. We want to further accelerate the 3D strategy by QMEMS.

Quartz devices have become crucial in the network environment where

products are increasingly intended for broadband, ubiquitous applications

and where various types of terminals can transfer information almost

immediately via LAN and WAN on a global scale. Epson Toyocom

Corporation addresses every single aspect within a network environment.

The new corporation offers “Digital Convergence” solutions to problems

arising with products for consumer use, such as, core network systems

and automotive systems.

PROMOTION OF ENVIRONMENTAL MANAGEMENT SYSTEM

CONFORMING TO INTERNATIONAL STANDARDS

At Epson Toyocom, all environmental initiatives operate under

ISO 14000 is an international standard for environmental management

the Plan-Do-Check-Action(PDCA) cycle designed to achieve

that was established by the International Standards Organization in 1996

continuous improvements. The environmental management

against the background of growing concern regarding global warming,

system (EMS) operates under the ISO 14001 environmental

destruction of the ozone layer and global deforestation

management standard.

All of our major manufacturing and non-manufacturing sites,in Japan and overseas, completed the acquisition of ISO 14001 certification.

In the future, new group companies will be expected to acquire the certification around the third year of operations.

WORKING FOR HIGH QUALITY

In order provide high quality and reliable products and services than meet customer needs,

Epson Toyocom made early efforts towards obtaining ISO9000 series certification and has acquired ISO9001 for all business establishments in Japan

and abroad. We have also acquired ISO/TS 16949 certification that is requested strongly by major automotive manufacturers as standard.

QS-9000 is an enhanced standard for quality assurance systems

formulated by leading U.S. automobile manufacturers based on the

international ISO 9000 series.

ISO/TS 16949 is a global standard based on QS-9000, a severe standard

corresponding to the requirements from the automobile industry.

►Explanation

of the mark that are using it for the catalog

►Pb

free.

►Complies

with EU RoHS directive.

►Pb

free terminal designed. Contains Pb in products exempted by RoHS directive.

(Contains Pb in sealing glass, high melting temperature type solder or other.)

►Complies

with EU RoHS directive.

►The

products have been designed for high reliability applications such as Automotive.

Notice

●This

material is subject to change without notice.

●Any

part of this material may not be reproduced or duplicated in any form or any means without the written permission of Epson Toyocom.

●The

information, applied circuitry, programming, usage, etc., written in this material is intended for reference only. Epson Toyocom does not

assume any liability for the occurrence of infringing on any patent or copyright of a third party. This material does not authorize the licensing for

any patent or intellectual copyrights.

●Any

product described in this material may contain technology or the subject relating to strategic products under the control of the Foreign

Exchange and Foreign Trade Law of Japan and may require an export license from the Ministry of International Trade and Industry or other

approval from another government agency.

●You

are requested not to use the products (and any technical information furnished, if any) for the development and/or manufacture of weapon

of mass destruction or for other military purposes. You are also requested that you would not make the products available to any third party

who may use the products for such prohibited purposes.

●These

products are intended for general use in electronic equipment. When using them in specific applications that require extremely high

reliability, such as the applications stated below, you must obtain permission from Epson Toyocom in advance.

/ Space equipment (artificial satellites, rockets, etc.) / Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc.)

/ Medical instruments to sustain life / Submarine transmitters / Power stations and related / Fire work equipment and security equipment

/ traffic control equipment / and others requiring equivalent reliability.

●

In this new crystal master for Epson Toyocom, product codes and markings will remain as previously identified prior to the merger.

Due to the on-going strategy of gradual unification of part numbers, please review product codes and markings, as they will change during the

course of the coming months.

We apologize for the inconvenience, but we will eventually have a unified part numbering system for Epson Toyocom that will be user friendly.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
