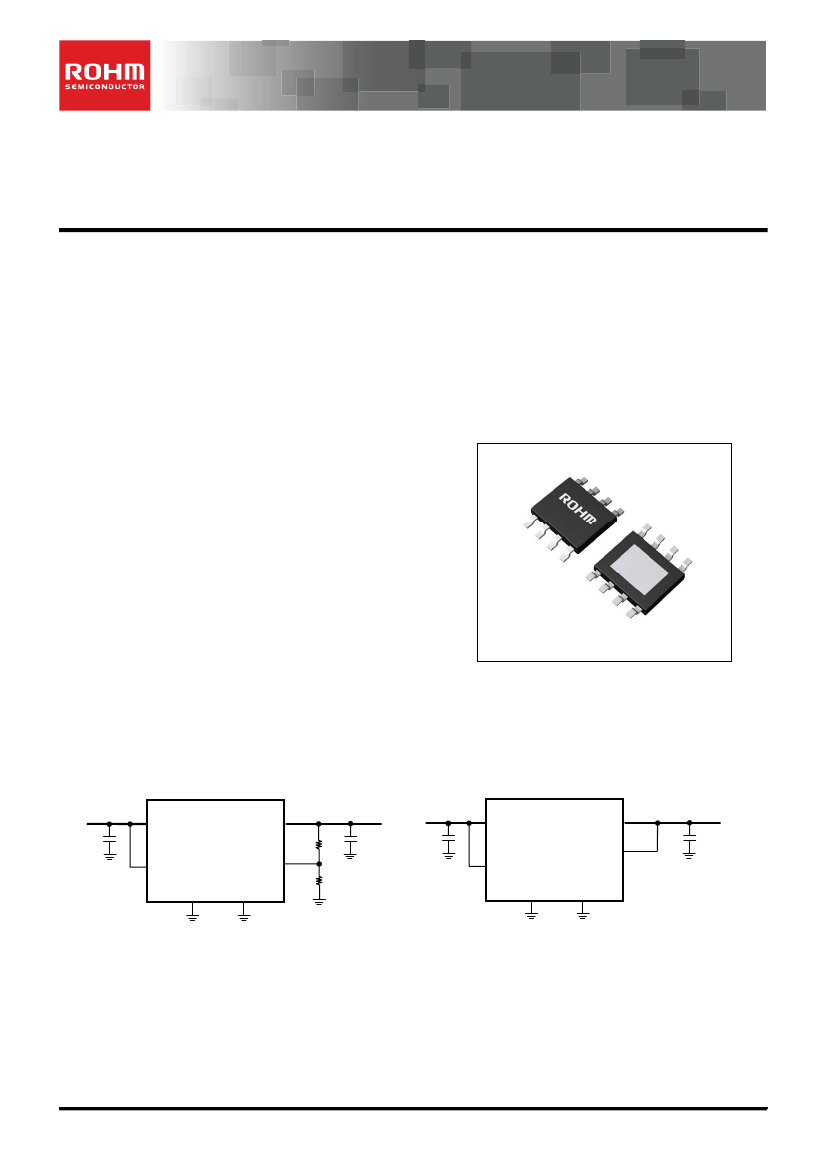

Datasheet
300mA Variable Output
Industrial LDO Regulator
BDxxGA3MEFJ-LB
General Description
This is the product guarantees long time support in Industrial market.
BDxxGA3MEFJ-LB is a LDO regulator with output current 0.3A. The output accuracy is ±1% of output voltage. With
external resistance, it is available to set the output voltage at random (from 1.5V to 13.0V).It has package type: HTSOP-J8.
Over current protection (for protecting the IC destruction by output short circuit), circuit current ON/OFF switch (for setting
the circuit 0μA at shutdown mode), and thermal shutdown circuit (for protecting IC from heat destruction by over load
condition) are all built in. It is usable for ceramic capacitor and enables to improve smaller set and long-life.
Features
Long Time Support a Product for Industrial
Applications.
High accuracy reference voltage circuit
Built-in Over Current Protection circuit (OCP)
Built-in Thermal Shut Down circuit (TSD)
With shut down switch
Package
HTSOP-J8
(Typ.)
(Typ.)
(Max.)
4.90mm x 6.00mm x 1.00mm
Applications
Industrial Equipment
Key Specifications
Input power supply voltage range:
4.5V to 14.0V
Output voltage range(Variable type):
1.5V to 13.0V
Output voltage(Fixed type): 1.5V/1.8V/2.5V/3.0V/3.3V
5.0V/6.0V/7.0V/8.0V/9.0V/10V/12V
Output current:
0.3A (Max.)
Shutdown current:
0μA(Typ.)
Operating temperature range:
-40℃ to +105℃
HTSOP-J8
Typical Application Circuit
V
CC
C
IN
EN
GND
FIN
V
O
R
1
FB
R
2
C
OUT
C
IN
V
CC
V
O
V
O_S
C
OUT
EN
GND
FIN
C
IN
,C
OUT
: Ceramic Capacitor
C
IN
,C
OUT
: Ceramic Capacitor
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product has no designed protection against radioactive rays.
1/21
TSZ02201-0R6R0AZ00510-1-2
21.Feb.2014 Rev.002
BDxxGA3MEFJ-LB
Ordering Information
Datasheet
B
D
x
x
G
A
3
M
E
F
J
-
LBH2
Part
Output
Number voltage
00:Variable
15:1.5V
18:1.8V
25:2.5V
30:3.0V
33:3.3V
50:5.0V
60:6.0V
70:7.0V
80:8.0V
90:9.0V
J0:10.0V
J2:12.0V
Voltage
Output
resistance current
G:15V
A3:0.3A
High
Reliability
Grade
“M”：Mseries
Package
EFJ:HTSOP-J8
Product class
LB for Industrial applications
Packaging and forming specification
H2:Emboss tape reel
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
2/21
TSZ02201-0R6R0AZ00510-1-2
21.Feb.2014 Rev.002
BDxxGA3MEFJ-LB
Block Diagram
BD00GA3MEFJ-LB
GND
3
FIN
SOFT
START
OCP
Datasheet
8
VCC
(VO+0.90) to 14.0V
Ceramic
≧
1.0μF
Capacitor
Body d
i
Vo
1
R
1
EN
5
TSD
1.5V to 13.0V
Ceramic
Capacitor
≧
1.0μF
2
FB
R
2
Figure 1. Block Diagram
BDxxGA3MEFJ-LB (Fixed type)
GND
3
OCP
SOFT
START
8
VCC
4.5½14.0V
Ceramic
≧
1.0μF
Capacitor
FIN
Body d
i
Vo
1
2
5
TSD
Ceramic
≧
1.0μF
Capacitor
EN
Vo_s
Figure 2. Block Diagram (Fixed type)
Pin ConFigure uration
TOP VIEW
V
O
FB/Vo_s
GND
N.C.
V
CC
N.C.
N.C.
EN
Pin Description
Pin No.
1
2
3
4
5
6
7
8
Reverse
Pin name
V
O
FB/Vo_s
GND
N.C.
EN
N.C.
N.C.
V
CC
FIN
Pin Function
Output pin
Feedback pin (Used to connect Vo)
GND pin
Non Connection (Used to connect GND or OPEN state.)
Enable pin
Non Connection (Used to connect GND or OPEN state.)
Non Connection (Used to connect GND or OPEN state.)
Input pin
Substrate(Connect to GND)
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
3/21
TSZ02201-0R6R0AZ00510-1-2
21.Feb.2014 Rev.002
BDxxGA3MEFJ-LB
Absolute Maximum Ratings
(Ta=25℃)
Parameter
Power supply voltage
EN voltage
Power dissipation
HTSOP-J8
Operating Temperature Range
Storage Temperature Range
Junction Temperature
Symbol
V
CC
V
EN
Pd
*2
Topr
Tstg
Tjmax
Limits
-0.3 to +15.0 *
1
15.0
2110
*2
-40 to +105
-55 to +150
+150
Unit
V
V
mW
℃
℃
℃
Datasheet
*1 Not to exceed Pd
*2 Reduced by 16.9mW/℃ for each increase in Ta of 1℃ over 25℃. (when mounted on a board 70mm×70mm×1.6mm glass-epoxy board, two layer)
Recommended Operating Ratings
(Ta=25℃)
Parameter
Input power supply voltage
EN voltage
Output voltage setting range
Output current
Symbol
V
CC
V
EN
V
O
I
O
Min.
4.5
0.0
1.5
0.0
Max.
14.0
14.0
13.0
0.3
Unit
V
V
V
A
Electrical Characteristics
(Unless otherwise noted, EN=3V, Vcc=6V, R
1
=43kΩ, R
2
=8.2kΩ)
Parameter
Circuit current at shutdown
mode
Bias current
Line regulation
Load regulation
Minimum dropout Voltage1
Minimum dropout Voltage2
Minimum dropout Voltage3
Output reference voltage
(Variable type)
Output voltage(Fixed type)
EN Low voltage
EN High voltage
EN Bias current
Symbol
I
SD
I
CC
Reg.I
Reg I
O
V
CO1
V
CO2
V
CO3
V
FB
V
O
V
EN
(Low)
V
EN
(High)
I
EN
Temp
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
0.792
0.776
Vo×0.99
Vo×0.97
0
0
2.4
2.4
1
-
Min.
-
-
-
-
-1.0
-1.0
-1.5
-1.5
-
-
Typ.
0
-
600
-
-
-
-
-
0.15
-
0.30
-
0.60
-
0.800
-
Vo
Vo
-
-
-
-
3
-
Max.
5
5
900
1200
1.0
1.0
1.5
1.5
0.30
0.40
0.60
0.80
0.90
1.2
0.808
0.824
Vo×1.01
Vo×1.03
0.8
0.8
14.0
14.0
9
9
Unit
μA
μA
%
%
V
V
V
V
V
V
V
µA
V
CC
=( Vo+0.9V )→14.0V
I
O
=0→0.3A
V
CC
=5V, I
O
=100mA
Vcc=5V, Io=200mA
Vcc=5V, Io=300mA
I
O
=0mA
I
O
=0mA
Conditions
V
EN
=0V, OFF mode
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
4/21
TSZ02201-0R6R0AZ00510-1-2
21.Feb.2014 Rev.002
BDxxGA3MEFJ-LB

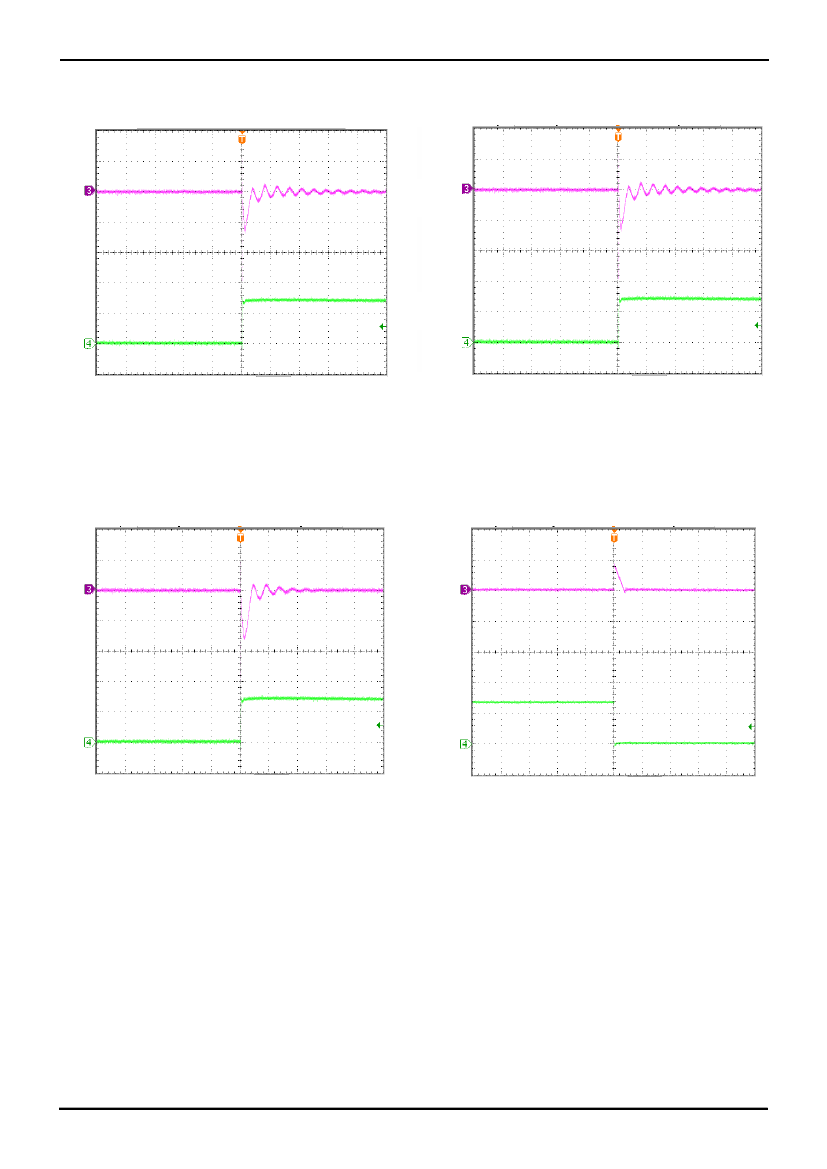

Typical Performance Curves
(Unless otherwise noted, EN=3V, V
CC
=6V, R
1
=43kΩ, R
2
=8.2kΩ)
Datasheet
Vo
100mV/div
Vo
100mV/div
T.B.D
Io
O
I
0.2A/div
IIo
O
0.2A/div
10usec/div
Figure 3.
Transient Response
(0→0.3A)
Co=1µF, Ta=-40°C
Figure 4.
Transient Response
(0→0.3A)
Co=1µF, Ta=25°C
10usec/div
V
EN
Vo
100mV/div
V
Vo
EN
100mV/div
V
CC
Io
0.2A/div
V
O
T.B.D
V
CC
T.B.D
Io
0.2A/div
10usec/div
Figure 5.
Transient Response
(0→0.3A)
Co=1µF,Ta=105℃
Figure 6.
Transient Response
(0.3→0A)
Co=1µF,Ta=-40℃
2msec/div
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
5/21
TSZ02201-0R6R0AZ00510-1-2
21.Feb.2014 Rev.002
