1/3
Structure
Product series
Type
Function
特
長
Silicon Monolithic Integrated Circuit
PWM Driver for combi drive
BD7791FUV
・3-phase-sensor-less
system, therefore don’t need three hall sensors
for spindle motor driver.
・Stability
high-speed start from the state of the stop for spindle motor driver.
○Absolute
maximum ratings
Parameter
Power MOS supply voltage
Control circuit power supply voltage
Maximum driver output current
Power dissipation
Operating temperature range
Storage temperature range
Joint part temperature
Symbol
PVcc
Vcc
IoMAX
Pd
Topr
Tstg
Tjmax
3
Limits
6
6
＃1
1.37
＃2
-30½85
-55½150
150
Unit
V
V
A
W
℃
℃
℃
#1 The current is guaranteed 3.0A in case of the current is turned on/off in a duty-ratio of less than 1/10 with a maximum
on-time of 5ms and when short brake.
#2 PCB (70mm×70mm×1.6mm,occupied copper foil is less than 3%,glass epoxy standard board) mounting.
Reduce power by 11.0 mW for each degree above 25℃.
○Recommended
operating conditions(Ta=-30½+85℃)
〔Set
the power supply voltage taking allowable dissipation into considering〕
Parameter
Power MOS supply voltage
Control circuit power supply voltage
Symbol
PVcc
Vcc
MIN
4.0
4.0
TYP
5.0
5.0
MAX
5.5
5.5
Unit
V
V
This product isn’t designed for protection against radioactive rays.
Status of this document
The Japanese version of this document is the formal specification.
A customer may use this translation version only for a reference to help reading the formal version.
If there are any differences in translation version of this document , formal version takes priority.
REV. A
2/3

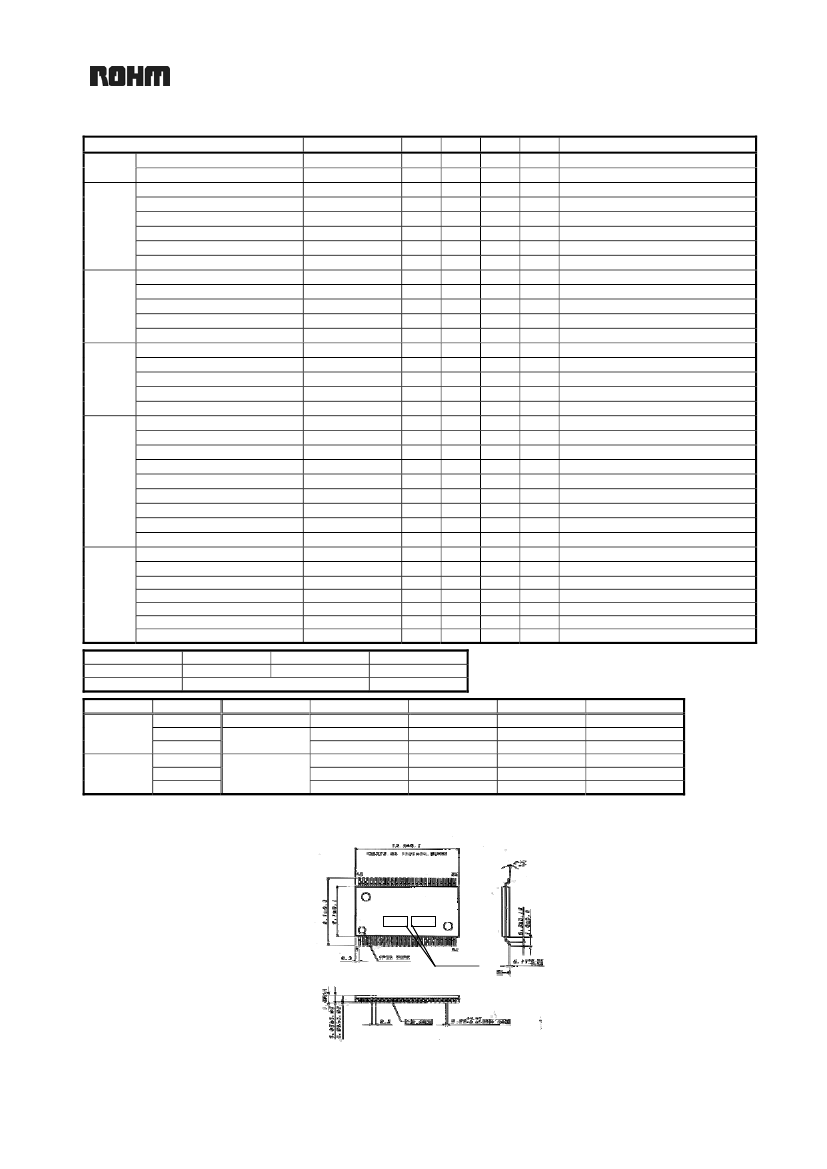

○Electrical
characteristics
(Unless otherwise noted Ta=25℃, Vcc=PVcc=5V, Vref=1.25V, RL(ACT,STP,LOAD)=8Ω+47μH, RL(SP)=2Ω+47μH, RNF=0.2Ω,
CTL1,2=3.3V, GVSW=0V, VIN1,2,3,4,5,6=OPEN, VCOM=OPEN, VCCOM=OPEN, VCOUT=OPEN)
Parameter
Symbol
MIN.
TYP. MAX.
Unit
Condition
Quiescent current
ICC
－
8
20
mA
CTL1,2=H
Current in standby mode
IST
－
－
0.2
mA
CTL1,2=L
Input dead zone (one side)
VDZACT1,2,3
－
－
3
mV
Output offset voltage
VOO1,2,3
-50
－
50
mV
Voltage gain 1, 2
Voltage gain 1 (CH1,2,3)
GVC1_1,2,3
15.5
17.5
19.5
dB
External input resistor 10kΩ
Voltage gain 2 (CH1,2)
GVC2_1,2
10
12
14
dB
Extern al input resistor 10kΩ, GVSW=H
Output On resistor（top and bottom）
RON1,2,3
－
1.2
1.8
Ω
Io=500mA
PWM frequency
f1,2,3CH
215
310
405
kHz
Voltage gain 1, 2
Input dead zone (one side)
VDZ4,5
10
30
50
mV
Output offset voltage
VOO4,5
-50
－
50
mV
Voltage gain
GVC4,5
15.5
17.5
19.5
dB
Output On resistor（top and bottom）
RON4,5
－
1.6
2.4
Ω
Io=500mA
PWM frequency
f4,5CH
215
310
405
kHz
Input dead zone (one side)
VDZ6
20
60
100
mV
CTL1=H, CTL2=L
Output offset voltage
VOO6
-50
－
50
mV
CTL1=H, CTL2=L
Voltage gain
GVC6
15.5
17.5
19.5
dB
CTL1=H, CTL2=L
Output On resistor（top and bottom）
RON6
－
1.8
2.7
Ω
Io=500mA, CTL1=H, CTL2=L
PWM frequency
f6CH
215
310
405
kHz
CTL1=H, CTL2=L
Input dead zone of gm1(one side)
VDZSP1
2
30
100
mV
Input dead zone of gm2(one side)
VDZSP2
6
90
300
mV
GVSW=M
Input dead zone of gm3(one side)
VDZSP3
10
150
500
mV
GVSW=H
Input output gain 1
gm1
0.88
1.1
1.32
A/V
Input output gain 2
gm2
0.28
0.36
0.44
A/V
GVSW=M
Input output gain 3
gm3
0.17
0.22
0.27
A/V
GVSW=H
Output On resistor（top and bottom）
RONSP
－
0.6
1.4
Ω
Io=500mA
Output limit voltage
VLIMSP
0.18
0.22
0.26
V
PWM frequency
fSP
－
167
－
kHz
Vref drop mute ON threshold voltage
VMVref
－
0.7
1.0
V
Vcc drop mute ON threshold voltage
VMVccD
3.2
3.6
4.0
V
CTL1 L voltage
VCTL1L
0
－
1.0
V
CTL1 H voltage
VCTL1H
2.0
－
3.3
V
CTL2, GVSW L voltage
VCTL2L, VGVL
0
－
1.0
V
CTL2, GVSW M(Hi-z) voltage
VCTL2M, VGVM
1.6
－
2.0
V
OPEN（Hi-z）is also available.
CTL2, GVSW H voltage
VCTL2H, VGVH
2.6
－
3.3
V
L
gm1
M（Hi-z）
gm2
GVC1_1,2
H
gm3
GVC2_1,2
Circuit
current
Actuator
driver
block
Steppin
g driver
block
Loading
driver
block
Spindle
driver
block
Others
GVSW
Spindle gain mode
CH1,2 gain mode
CTL1
CTL2
Brake mode
SPINDLE Output
CH1,2,3 Output
CH4,5 Output
CH6 Output
L
―
Hi-Z
Hi-Z
Hi-Z
Hi-Z
L
M
ACTIVE
Hi-Z
Hi-Z
Hi-Z
Short brake
H
ACTIVE
ACTIVE
ACTIVE
Hi-Z
L
Hi-Z
Hi-Z
ACTIVE
ACTIVE
H
M（Hi-z）
Reverse brake
ACTIVE
Hi-Z
Hi-Z
Hi-Z
H
ACTIVE
ACTIVE
ACTIVE
Hi-Z
Please supply the middle level voltage for CTL2 when using it in the mode of CTL1=L and CTL2=M.
○Package
outlines
BD7791FUV
LOT No.
(UNIT : mm)
REV. A
3/3

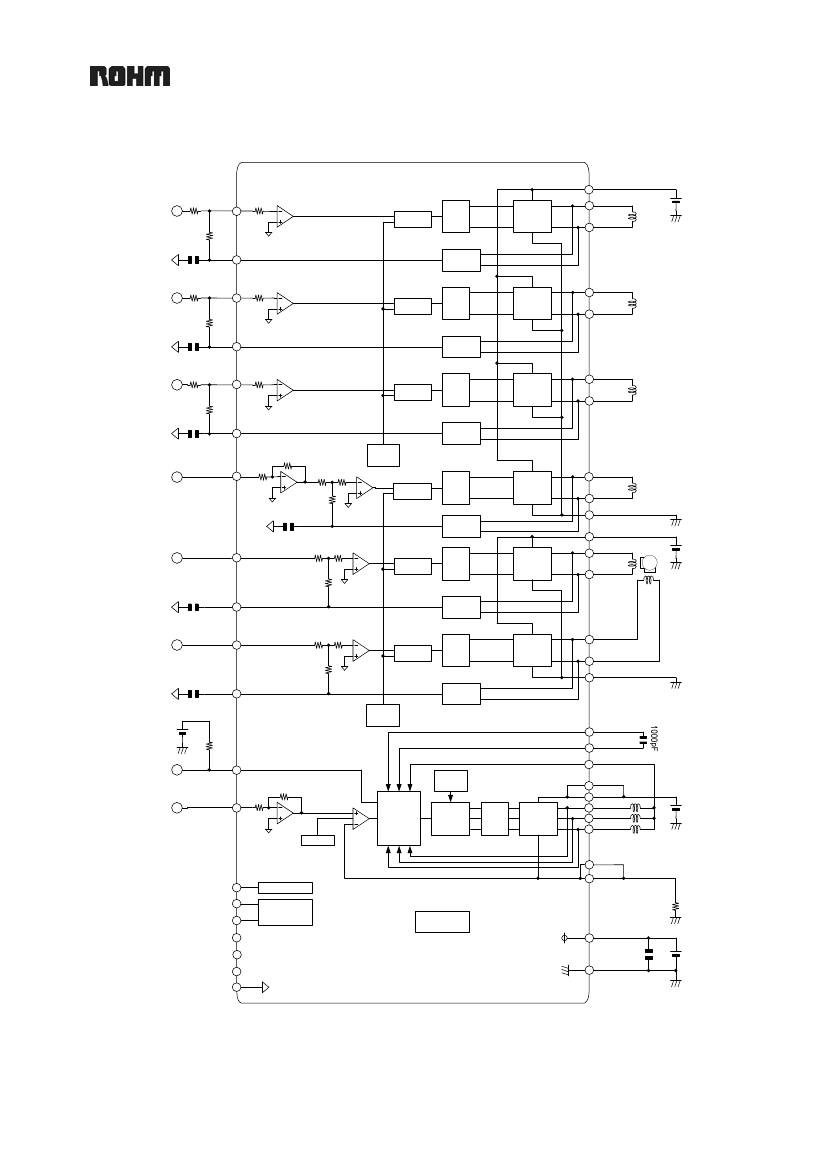

○Block
diagram / Application circuit
The external constants concerning CH1,2 are values optimized in case 4Ω+47μH is assumed as a load, and those concerning CH3
are values optimized in case 4Ω+10μH is assumed as a load.
