Datasheet
DC Brushless Motor Driver Series
Built-in Speed Control, 3 Hall Sensors
Three-Phase Brushless Motor Driver
BM62380MUV
General Description
BM62380MUV is sine wave driver IC for three-phase
brushless motor driver with 40 V power supply voltage
rating and 2.0 A output current rating. It detects the rotor
position by 3 Hall sensors. In addition, it has a speed
feedback control function, and controls output PWM Duty
by adjusting the rotational frequency characteristics for
the input PWM signal and the rotational frequency
affected from motor.
Key Specifications
Operating Supply Voltage Range:
8 V to 28 V
Output current rating:
2.0 A
Output ON Resistance (top & bottom total):
0.6 Ω (Typ)
Output PWM Frequency:
40 kHz (Typ)
Standby Current:
0.6 mA (Typ)
Operating Temperature Range:
-40 °C to +85 °C
W (Typ) x D (Typ) x H (Max)
6.00 mm x 6.00 mm x 1.00 mm
Package
Features
Speed Control on PWM Duty Input
Low ON Resistance DMOS Output
Built-in Boost Voltage Circuit
3 Hall Sine Wave Drive
Automatic Lead Angle Control
Motor Pole Select Function
Soft Start Function
Current Limit Function
Power Save Function
Direction of Rotation Setting
Short Brake Control
Speed Feedback Control
Able to set Motor Rotation Speed Table and Various
Parameters with the built-in OTP
Built-in Several Protection Functions (Motor Lock
Protection [MLP], High Speed Rotation Protection,
Over Voltage Lock Out [OVLO], Under Voltage Lock
Out [UVLO], Thermal Shutdown [TSD], Over Current
Protection [OCP])
VQFN040V6060
Application
Fan Motor
Other General Consumer Equipment

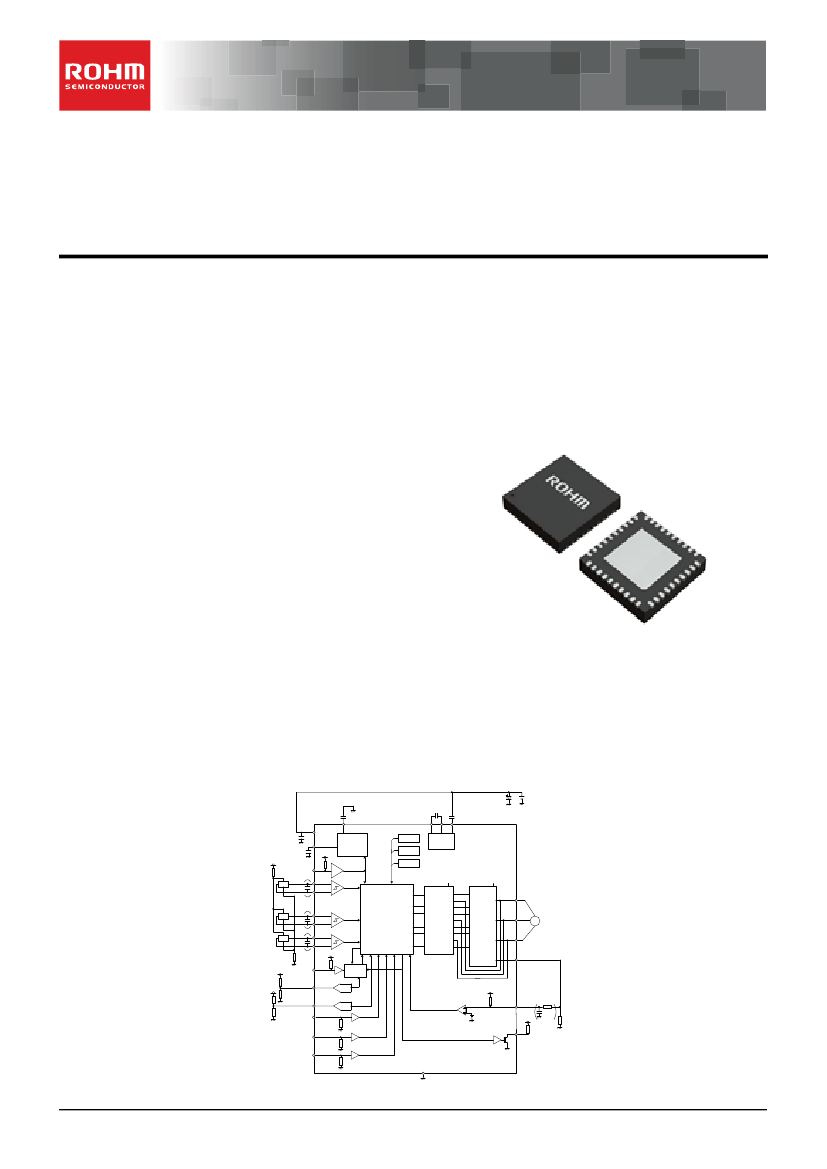

Typical Application Circuit
24 V
0.1 µF
0.1 µF
VCC
VREG15
UVLO
VREG50
0.1 µF
Internal Reg
OVLO
PS
HUP
HUN
U
VG
VCC
CP1 CP2
0.1 µF
VG
REG
TSD
Charge
Pump
VREG50
HU
HV
HVP
HVN
CTL
Logic
Pre
Driver
V
M
Driver
W
HW
HWP
HWN
VREG50
RNF
Speed
Control
Logic
PWMB
VREG50
POLE_SEL
VREG50
SS_SEL
FR
Selector
VREG50
Selector
RCL
BRK
FGO
External
Power
Supply
SPI_EN
GND
〇Product
structure : Silicon integrated circuit
www.rohm.com
© 2018 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 14 • 001
〇This
product has no designed protection against radioactive rays
1/28
TSZ02201-0S3S0C100160-1-2
18.Mar.2019 Rev.001
BM62380MUV
Contents
General Description .............................................................................................................................................................. 1
Features ................................................................................................................................................................................ 1
Application ............................................................................................................................................................................ 1
Key Specifications ................................................................................................................................................................ 1
Package................................................................................................................................................................................. 1
Typical Application Circuit .................................................................................................................................................... 1
Contents................................................................................................................................................................................ 2
Pin Configurations ................................................................................................................................................................ 3
Pin Description ..................................................................................................................................................................... 3
Block Diagram....................................................................................................................................................................... 4
Absolute Maximum Ratings .................................................................................................................................................. 5
Thermal Resistance .............................................................................................................................................................. 6
Recommended Operating Conditions .................................................................................................................................. 6
Electrical Characteristics...................................................................................................................................................... 7
Application Example ............................................................................................................................................................. 9
Board Design Note ................................................................................................................................................................ 9
Description of Pin Functions .............................................................................................................................................. 10
Description of Operations................................................................................................................................................... 12
Thermal Resistance Model ................................................................................................................................................. 22
I/O Equivalence Circuits ..................................................................................................................................................... 23
Operational Notes ............................................................................................................................................................... 24
Ordering Information .......................................................................................................................................................... 26
Marking Diagram ................................................................................................................................................................. 26
Physical Dimension and Packing Information.................................................................................................................... 27
Revision History.................................................................................................................................................................. 28
www.rohm.com
© 2018 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
2/28
TSZ02201-0S3S0C100160-1-2
18.Mar.2019 Rev.001
BM62380MUV
Pin Configurations
(TOP VIEW)
VCC
RNF
RNF
RCL
22
30
29
28
27
26
25
24
23
N.C
21
20
19
18
17
16
15
14
13
VG
U
U
V
V
CP2
CP1
N.C
31
32
33
N.C
W
W
VCC
N.C
N.C
FGO
GND
PS
N.C
HWN
34
HWP
35
HVN
HVP
HUN
N.C
N.C
36
37
38
39
40
1
2
3
4
5
6
7
8
9
10
EXP-PAD
POLE_SEL
VREG50
VREG15
SS_SEL
SPI_EN
12
11
PWMB
HUP
BRK
Pin Description
Pin
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Back
Side
Pin Name
HUP
VREG50
VREG15
BRK
FR
SS_SEL
POLE_SEL
PWMB
Function
U phase hall input +
Standard voltage output
Internal power supply output for
logic circuit
Brake control / SPI
communication data input-output
Rotation direction setting
Soft Start setting
Motor Pole setting
PWM input (negative logic)
/ SPI communication clock input
SPI communication setting
N.C. (OPEN)
N.C. (OPEN)
Power Save input
Ground
Rotating speed pulse signal output
N.C. (OPEN)
N.C. (OPEN)
Power supply
W Phase output
W Phase output
N.C (OPEN)
Connect the EXP-PAD to the GND.
Pin
No.
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Pin Name
N.C.
RCL
RNF
V
V
RNF
U
U
VCC
VG
CP2
CP1
N.C
HWN
HWP
HVN
HVP
HUN
N.C.
N.C.
N.C. (OPEN)
N.C
FR
Function
Output current detection voltage input
Pin for connecting the current sense
resistor.
V Phase output
V Phase output
Pin for connecting the current sense
resistor.
U Phase output
U Phase output
Power supply
Boost output
Capacitor connection for boost circuit 2
Capacitor connection for boost circuit 1
N.C. (OPEN)
W phase hall input -
W phase hall input +
V phase hall input -
V phase hall input +
U phase hall input -
N.C. (OPEN)
N.C. (OPEN)
SPI_EN
N.C.
N.C.
PS
GND
FGO
N.C.
N.C.
VCC
W
W
N.C.
EXP-PAD
www.rohm.com
© 2018 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
3/28
TSZ02201-0S3S0C100160-1-2
18.Mar.2019 Rev.001
BM62380MUV

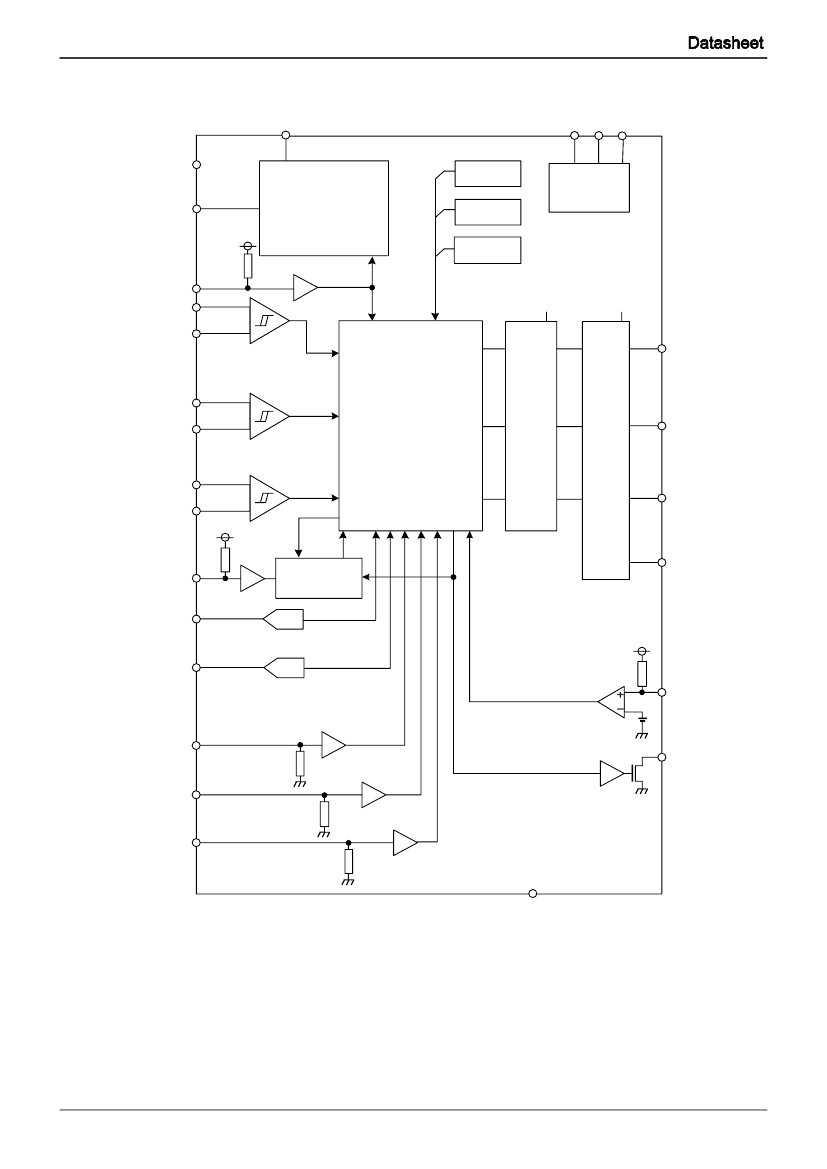

Block Diagram
VREG15
3pin
17pin
29pin
CP1 CP2 VG
32pin 31pin 30pin
VCC
UVLO
VREG50
2pin
REG
Charge
Pump
TSD
OVLO
Internal
Reg
PS
HUP
HUN
12pin
1pin
38pin
VG
VCC
27pin
28pin
U
37pin
HVP
36pin
HVN
CTL
Logic
Pre
Driver
Driver
24pin
25pin
V
HWP
HWN
35pin
34pin
18pin
19pin
W
VREG50
23pin
26pin
PWMB
8pin
7pin
Selector
Speed
Control
Logic
RNF
POLE_SEL
VREG50
SS_SEL
6pin
Selector
22pin
RCL
FR
5pin
14pin
FGO
BRK
4pin
SPI_EN
9pin
13pin
GND
www.rohm.com
© 2018 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
4/28
TSZ02201-0S3S0C100160-1-2
18.Mar.2019 Rev.001
BM62380MUV
Absolute Maximum Ratings (Ta= 25 °C)
Parameters
Power Supply Voltage (VCC)
VG Voltage
Driver Output Current (U, V, W)
Output Voltage (U, V, W)
RNF Pin Voltage
FGO Pin Voltage
FGO Pin Current
VREG50 Pin Current
RCL Pin Voltage
Control Input Pin Voltage
(Note 1)
Hall Input Pin Voltage
(Note 2)
Maximum Junction Temperature
Storage Temperature Range
Symbol
V
CC
V
G
I
OMAX
V
OMAX
V
RNF
V
FGO
I
FGO
I
VREG50
V
RCL
V
IN1
V
IN2
Tjmax
Tstg
Rating
40
40
2.0
40
0.7
30
10
-30
4.5
7
7
150
-55 to +150
Unit
V
V
A
V
V
V
mA
mA
V
V
V
°C
°C
Caution 1:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is
operated over the absolute maximum ratings.
Caution 2:
Should by any chance the maximum junction temperature rating be exceeded the rise in temperature of the chip may result in deterioration of the
properties of the chip. In case of exceeding this absolute maximum rating, design a PCB with thermal resistance taken into consideration by
increasing board size and copper area so as not to exceed the maximum junction temperature rating.
(Note 1)
The SS_SEL, POLE_SEL, PWMB, PS, BRK, FR, SPI_EN pins.
(Note 2)
The HUP, HUN, HVP, HVN, HWP, HWN pins.
www.rohm.com
© 2018 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
5/28
TSZ02201-0S3S0C100160-1-2
18.Mar.2019 Rev.001
